## ETC3250/5250

Introduction to Machine Learning

### Resampling

Lecturer: Emi Tanaka

Department of Econometrics and Business Statistics

## Resampling

• Resampling is a process of making new data based on observed data.
• Commonly used resampling methods include:
• Cross validation
• often used for model assessment.
• Bootstrapping
• often used to provide a measure of accuracy of a parameter estimate.

## Recall: training, validation and testing data sets

• In Lecture 1, randomly splitting 75% of data into training data and the remaining 25% into testing data, then measured the accuracy of model trained on the training data using the testing data.
• But the model accuracy changes on a different split.
• Cross-validation extends this approach to:
• several iterations of different splits, and
• combine (typically by averaging) the model accuracy across the iterations.

# Cross validation

## $k$-fold cross validation

1. Partition samples into $k$ (near) equal sized subsamples (referred to as folds).
2. Fit the model on $k − 1$ subsets, and compute a metric, e.g. RMSE, on the omitted subset.
3. Repeat $k$ times omitting a different subset each time.

## Cross validation accuracy

• Choice of $k = 10$ is common.
• Recall from Lecture 1 there are a number of ways to measure preditive accuracy, e.g. RMSE, MAE, MAPE and MPE.
• Cross-validation accuracy is calculated:
• by calculating the accuracy (based on one metric) on every fold, then
• combining this into a single number, e.g. by taking a simple average.

## $k$-fold cross validation with rsample

• $k = 5$ fold cross validation ($k =$ v in the rsample package)
library(tidyverse)
library(rsample)
set.seed(2023) # to replicate result
toyota_folds <- vfold_cv(toyota, v = 5)
toyota_folds
#  5-fold cross-validation
# A tibble: 5 × 2
splits              id
<list>              <chr>
1 <split [5390/1348]> Fold1
2 <split [5390/1348]> Fold2
3 <split [5390/1348]> Fold3
4 <split [5391/1347]> Fold4
5 <split [5391/1347]> Fold5

## Measuring accuracy for a single fold

scroll

• Each fold is an rsplit object:
toyota_folds$splits[[1]] <Analysis/Assess/Total> <5390/1348/6738> • So you can extract the training and testing data as before: toyota_train1 <- training(toyota_folds$splits[[1]])
toyota_test1 <- testing(toyota_folds$splits[[1]]) • And train models as before: library(rpart) # for regression tree library(kknn) # for k-nearest neighbour model_fits <- list( "reg" = lm(log10(price) ~ year, data = toyota_train1), "tree" = rpart(log10(price) ~ year, data = toyota_train1, method = "anova"), "knn" = train.kknn(log10(price) ~ year, data = toyota_train1) ) • Then predict responses: results_test1 <- imap_dfr(model_fits, ~{ toyota_test1 %>% select(year, price) %>% mutate(.model = .y, .pred = 10^predict(.x, .)) }) • and finally measure predictive accuracy for this fold: library(yardstick) results_test1 %>% group_by(.model) %>% metric_set(rmse, mae, mape, mpe, rsq)(., price, .pred) %>% pivot_wider(.model, names_from = .metric, values_from = .estimate) # A tibble: 3 × 6 .model rmse mae mape mpe rsq <chr> <dbl> <dbl> <dbl> <dbl> <dbl> 1 knn 7808. 6631. 70.4 -64.7 0.188 2 reg 5364. 4123. 33.7 -8.23 0.186 3 tree 5380. 4121. 33.8 -8.67 0.178 ## Fitting the models for each fold toyota_models <- toyota_folds %>% # fit models mutate(reg = map(splits, ~lm(log10(price) ~ year, data = training(.x))), tree = map(splits, ~rpart(log10(price) ~ year, data = training(.x), method = "anova")), knn = map(splits, ~train.kknn(log10(price) ~ year, data = training(.x)))) toyota_models # 5-fold cross-validation # A tibble: 5 × 5 splits id reg tree knn <list> <chr> <list> <list> <list> 1 <split [5390/1348]> Fold1 <lm> <rpart> <trn.kknn> 2 <split [5390/1348]> Fold2 <lm> <rpart> <trn.kknn> 3 <split [5390/1348]> Fold3 <lm> <rpart> <trn.kknn> 4 <split [5391/1347]> Fold4 <lm> <rpart> <trn.kknn> 5 <split [5391/1347]> Fold5 <lm> <rpart> <trn.kknn> ## Measuring accuracy for each fold scroll toyota_metrics <- toyota_models %>% mutate(across(c(reg, tree, knn), function(models) { # now for every fold and model, map2(splits, models, function(.split, .model) { testing(.split) %>% # compute prediction for testing set mutate(.pred = 10^predict(.model, .)) %>% # then get metrics metric_set(rmse, mae, mape, mpe, rsq)(., price, .pred) %>% # in a one-row data frame such that # column names are metric, # values are the accuracy measure pivot_wider(-.estimator, names_from = .metric, values_from = .estimate) }) }, .names = "{.col}_metrics")) toyota_metrics # 5-fold cross-validation # A tibble: 5 × 8 splits id reg tree knn reg_metrics <list> <chr> <list> <list> <list> <list> 1 <split [5390/1348]> Fold1 <lm> <rpart> <trn.kknn> <tibble [1 × 5]> 2 <split [5390/1348]> Fold2 <lm> <rpart> <trn.kknn> <tibble [1 × 5]> 3 <split [5390/1348]> Fold3 <lm> <rpart> <trn.kknn> <tibble [1 × 5]> 4 <split [5391/1347]> Fold4 <lm> <rpart> <trn.kknn> <tibble [1 × 5]> 5 <split [5391/1347]> Fold5 <lm> <rpart> <trn.kknn> <tibble [1 × 5]> tree_metrics knn_metrics <list> <list> 1 <tibble [1 × 5]> <tibble [1 × 5]> 2 <tibble [1 × 5]> <tibble [1 × 5]> 3 <tibble [1 × 5]> <tibble [1 × 5]> 4 <tibble [1 × 5]> <tibble [1 × 5]> 5 <tibble [1 × 5]> <tibble [1 × 5]> toyota_metrics$reg_metrics[[1]]
# A tibble: 1 × 5
rmse   mae  mape   mpe   rsq
<dbl> <dbl> <dbl> <dbl> <dbl>
1 5364. 4123.  33.7 -8.23 0.186

## Examining the fold results

toyota_metrics_wide <- toyota_metrics %>%
# expand to see results
unnest_wider(ends_with("_metrics"), names_sep = "_") %>%
# wrangle data into output form below
pivot_longer(contains("metrics"),
names_to = c("model", "metric"),
names_pattern = "(.*)_metrics_(.*)",
values_to = "value") %>%
pivot_wider(c(id, model),
names_from = metric,
values_from = value)

toyota_metrics_wide
# A tibble: 15 × 7
id    model  rmse   mae  mape    mpe   rsq
<chr> <chr> <dbl> <dbl> <dbl>  <dbl> <dbl>
1 Fold1 reg   5364. 4123.  33.7  -8.23 0.186
2 Fold1 tree  5380. 4121.  33.8  -8.67 0.178
3 Fold1 knn   7808. 6631.  70.4 -64.7  0.188
4 Fold2 reg   5633. 4227.  33.6  -6.62 0.193
5 Fold2 tree  5585. 4184.  33.4  -6.45 0.207
6 Fold2 knn   7508. 6285.  65.2 -57.6  0.205
7 Fold3 reg   5845. 4240.  34.5  -7.94 0.245
8 Fold3 tree  5794. 4197.  34.9  -8.42 0.262
9 Fold3 knn   8880. 7337.  78.0 -71.7  0.192
10 Fold4 reg   6010. 4200.  33.3  -7.79 0.184
11 Fold4 tree  5964. 4149.  33.0  -7.93 0.196
12 Fold4 knn   8512. 7092.  73.8 -68.9  0.192
13 Fold5 reg   5984. 4273.  33.3  -6.84 0.195
14 Fold5 tree  5949. 4219.  33.0  -7.00 0.201
15 Fold5 knn   7902. 6602.  68.9 -63.3  0.207

## Getting the cross validation metrics

toyota_metrics_wide %>%
# get the average of each metric columns
group_by(model) %>%
summarise(across(rmse:rsq, mean))
# A tibble: 3 × 6
model  rmse   mae  mape    mpe   rsq
<chr> <dbl> <dbl> <dbl>  <dbl> <dbl>
1 knn   8122. 6790.  71.3 -65.2  0.197
2 reg   5767. 4212.  33.7  -7.48 0.201
3 tree  5734. 4174.  33.6  -7.69 0.209
• But a numerical summary alone can be deceiving in understand what is the best model.

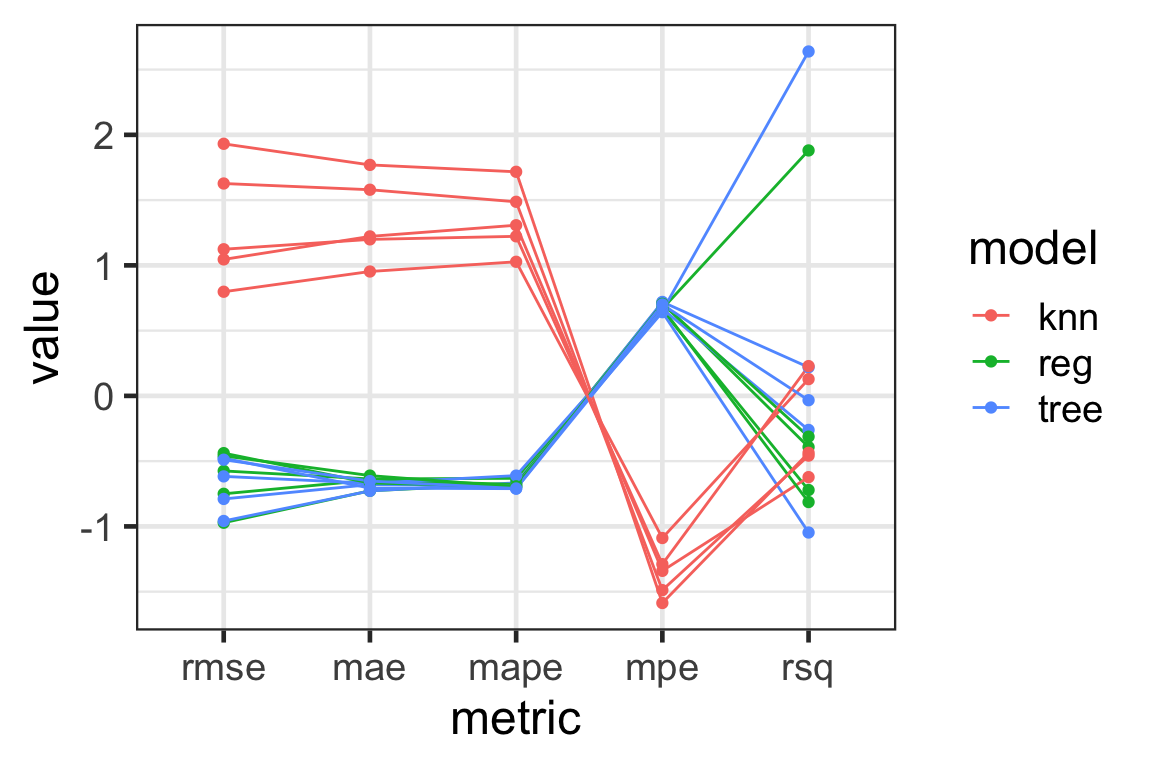

## Visualising with parallel coordinate plots

toyota_metrics_wide %>%
GGally::ggparcoord(columns = 3:7,
groupColumn = 2,
showPoints = TRUE) +
labs(x = "metric")
• Parallel coordinate plots can be used to visualise high-dimensional data - here our model metrics!
• Each variable is shown in the $x$-axis.
• The value of the variable is standardised in this plot.
• The lines correspond to an observational unit (a fold and a model combination).
• The lines are colored by the model here.

Results

• We see that knn has a large variation in the metrics - this means this model has a high variance and it is not desirable.
• The tree and reg has a large variation in rmse and rsq - they are somewhat similar in performance.

## Leave-one-out cross validation (LOOCV)

• LOOCV is a special case of $k$-fold cross validation where $k = n$ (or $n_{Train}$).
toyota %>%
vfold_cv(v = n())
• The rsample package has a specific function for this special case that is essentially similar to above:
toyota %>%
loo_cv()
# Leave-one-out cross-validation
# A tibble: 6,738 × 2
splits           id
<list>           <chr>
1 <split [6737/1]> Resample1
2 <split [6737/1]> Resample2
3 <split [6737/1]> Resample3
4 <split [6737/1]> Resample4
5 <split [6737/1]> Resample5
6 <split [6737/1]> Resample6
7 <split [6737/1]> Resample7
8 <split [6737/1]> Resample8
9 <split [6737/1]> Resample9
10 <split [6737/1]> Resample10
# … with 6,728 more rows

## Bias-variance tradeoff for cross validation

• $k$-fold cross validation with $k < n$ has a computational advantage over LOOCV ($k = n$).
• LOOCV is preferred to $k$-fold cross validation in the perspective of bias reduction (almost all data are used to estimate the model).
• $k$-fold cross validation is preferred to LOOCV in the perspective of lower variance (the $n$ fitted models in LOOCV are going to be highly positively correlated).
• We usually select $k=5$ or $k=10$ to balance the bias-variance trade-off.

# Bootstrap

## Bootstrap samples

• A bootstrap sample is created by sampling with replacement the original data with the same dimension as the original data.
set.seed(2023) # to replicate results
toyota %>%
sample_n(size = n(), replace = TRUE)
# A tibble: 6,738 × 9
model  year price trans…¹ mileage fuelT…²   tax
<chr> <dbl> <dbl> <chr>     <dbl> <chr>   <dbl>
1 C-HR   2019 26499 Automa…    1970 Hybrid    140
2 Aygo   2018  7800 Manual    12142 Petrol    145
3 Yaris  2015  6490 Manual    36100 Petrol     30
4 Yaris  2018 10500 Manual     9290 Petrol    145
5 Yaris  2018  9595 Manual    20740 Petrol    145
6 Auris  2016 17490 Automa…   29031 Hybrid      0
7 Yaris  2014  8498 Automa…   57677 Hybrid      0
8 PROA…  2019 28456 Automa…    9119 Diesel    145
9 Yaris  2017  7998 Manual    63978 Petrol    150
10 Auris  2017 15095 Automa…   43405 Hybrid      0
# … with 6,728 more rows, 2 more variables:
#   mpg <dbl>, engineSize <dbl>, and abbreviated
#   variable names ¹​transmission, ²​fuelType

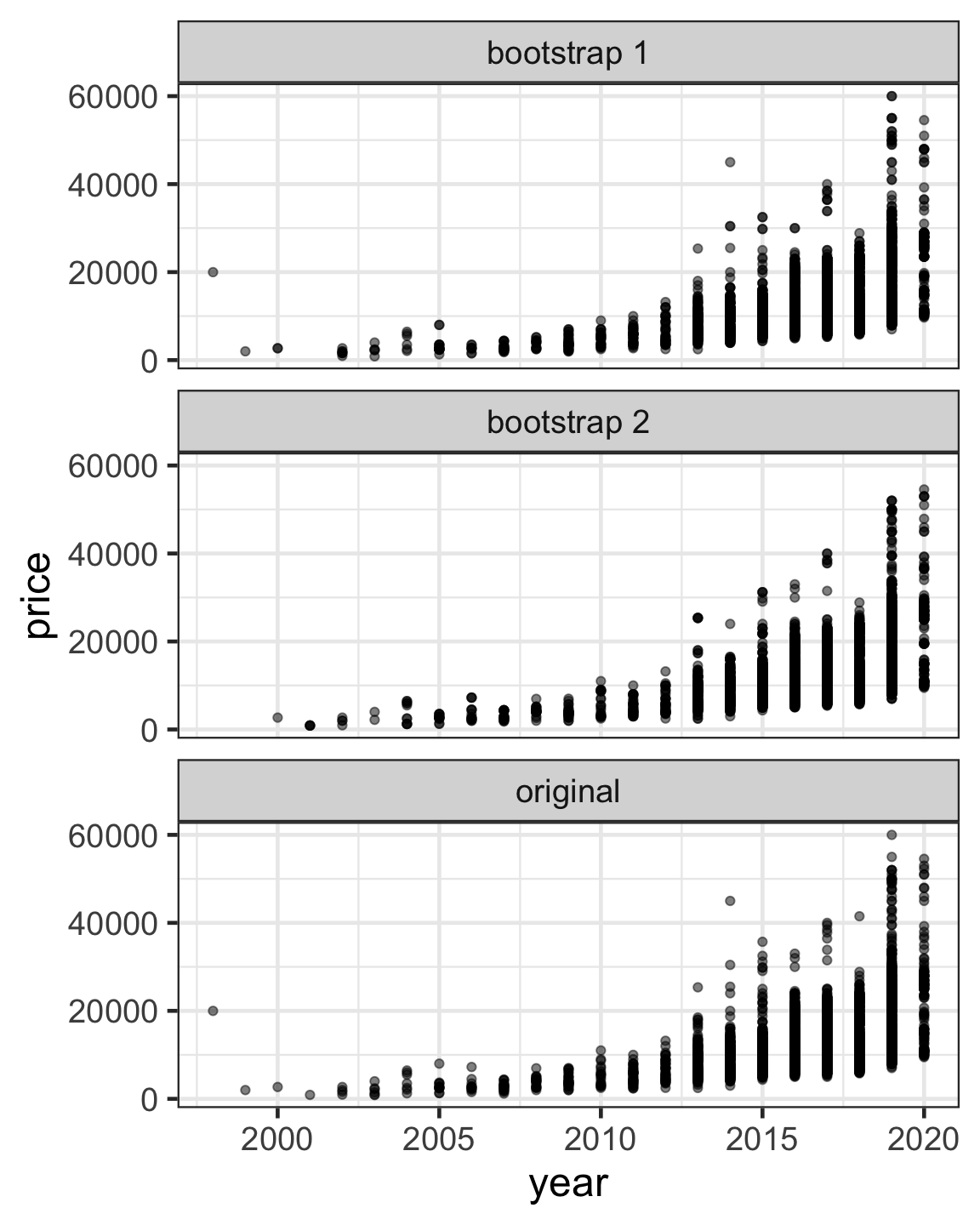

Code
bind_rows(mutate(toyota, sample = "original"),
mutate(toyota, sample = "bootstrap 1") %>%
sample_n(size = n(), replace = TRUE),
mutate(toyota, sample = "bootstrap 2") %>%
sample_n(size = n(), replace = TRUE)) %>%
ggplot(aes(year, price)) +
geom_point(alpha = 0.5) +
facet_wrap(~sample, ncol = 1)

## Out-of-bag samples for bootstraps

• In a bootstrap sample, some observations may appear more than once or even some not at all.
• When constructing a bootstrap sample split into training and testing dataset, becareful to ensure that the testing dataset only contains out-of-bag (OOB) samples.
• OOB samples are observations that are not included in the bootstrap sample.
• rsample::bootstraps function ensures testing data only contains OOB samples.
toyota %>%
bootstraps(times = 10)
# Bootstrap sampling
# A tibble: 10 × 2
splits              id
<list>              <chr>
1 <split [6738/2481]> Bootstrap01
2 <split [6738/2483]> Bootstrap02
3 <split [6738/2461]> Bootstrap03
4 <split [6738/2545]> Bootstrap04
5 <split [6738/2474]> Bootstrap05
6 <split [6738/2468]> Bootstrap06
7 <split [6738/2521]> Bootstrap07
8 <split [6738/2475]> Bootstrap08
9 <split [6738/2479]> Bootstrap09
10 <split [6738/2495]> Bootstrap10

# Nested cross validation

## Nested cross validation

• In practice, you likely need a validation data to optimise the hyperparameters.
• Nested cross validation (or double resampling) includes two resampling schemes:
• outside: the initial resampling produces the split into training and testing data for multiple folds/iterations, then
• inside: the resampling for the initial training data split into training and validation data for multiple folds/iterations.

## Nested cross validation with R

• You can achieve this easily using the rsample::nested_cv()
toyota %>%
nested_cv(outside = vfold_cv(v = 5),
inside = bootstraps(times = 10))
# Nested resampling:
#  outer: 5-fold cross-validation
#  inner: Bootstrap sampling
# A tibble: 5 × 3
splits              id    inner_resamples
<list>              <chr> <list>
1 <split [5390/1348]> Fold1 <boot [10 × 2]>
2 <split [5390/1348]> Fold2 <boot [10 × 2]>
3 <split [5390/1348]> Fold3 <boot [10 × 2]>
4 <split [5391/1347]> Fold4 <boot [10 × 2]>
5 <split [5391/1347]> Fold5 <boot [10 × 2]>

## Cautionary tale for nested cross validation

• Some combinations of resampling schemes will result in the same observations appearing in both the training and testing/validation set.
• rsample::nested_cv gives some warning for bad combination but be cautious of this!
toyota %>%
nested_cv(outside = bootstraps(times = 10),
inside = vfold_cv(v = 5))
Warning: Using bootstrapping as the outer resample is dangerous since the inner
resample might have the same data point in both the analysis and assessment
set.
# Nested resampling:
#  outer: Bootstrap sampling
#  inner: 5-fold cross-validation
# A tibble: 10 × 3
splits              id          inner_resamples
<list>              <chr>       <list>
1 <split [6738/2457]> Bootstrap01 <vfold [5 × 2]>
2 <split [6738/2457]> Bootstrap02 <vfold [5 × 2]>
3 <split [6738/2462]> Bootstrap03 <vfold [5 × 2]>
4 <split [6738/2503]> Bootstrap04 <vfold [5 × 2]>
5 <split [6738/2462]> Bootstrap05 <vfold [5 × 2]>
6 <split [6738/2501]> Bootstrap06 <vfold [5 × 2]>
7 <split [6738/2472]> Bootstrap07 <vfold [5 × 2]>
8 <split [6738/2507]> Bootstrap08 <vfold [5 × 2]>
9 <split [6738/2508]> Bootstrap09 <vfold [5 × 2]>
10 <split [6738/2475]> Bootstrap10 <vfold [5 × 2]>

# Takeaways

• Resampling involves repeatedly drawing samples from the training data to create new data.
• Resampling can be computationally expensive but it can give:
• a more robust estimate of the prediction error or
• help with model selection or tune hyperparameters.
