A tool to easily simulate valid experimental data

Emi Tanaka

Biological Data Science Institute

30th November 2023

Motivation

Designing an experiment (Statistician’s version)

Today is about the lone statistician ensuring their proposed experimental design is sensible.

Backcasting

Define a desirable future and then works backwards.

Backcasting is a planning method that starts with defining a desirable future and then works backwards to identify policies and programs that will connect that specified future to the present.

Use simulated data to check your experimental design

• Consider backcasting as another tool for diagnosing experimental design.
• But simulating experimental data isn’t routine practice! Why?
• Perhaps it requires too much effort in practice for regular adoption.

In statistics, backcasting involves the prediction of the unknown values of the independent variables that might have existed, in order to explain the known values of the dependent variable.

–Wikipedia

Experimental Design

An example

Glasshouse tomato production*

Aim: Study production of glasshouse tomatoes under different air and soil temperatures.

• There are 8 glasshouse compartments.
• Each compartment contained two large troughs where tomatoes are grown.
• For each trough, half of the soil would be heated or unheated.
• From each half-trough (which we call plot), 3 tomatoes will be sampled for observations.
• The compartment was kept at minimum of either 13°C or 16°C.
• Heated soil was either kept at 18°C or 21°C.

*Example inspired by Mead, Gilmour & Mead (2012) Statistical Principles for the Design of Experiments: Applications to Real Experiments.

Encoding the experimental design

edibble R package will be used to encode the experimental design (then later simulate the experimental data).

• Tanaka (2023) edibble: An R package to encapsulate elements of experimental designs for better planning, management and workflow.
  • emitanaka.org/paper-edibble
  • arxiv.org/abs/2311.09705
• Tanaka (2023) Towards a unified language in experimental designs propagated by a software framework.
  • emitanaka.org/research/edibble-design
  • arxiv.org/abs/2307.11593

library(edibble)

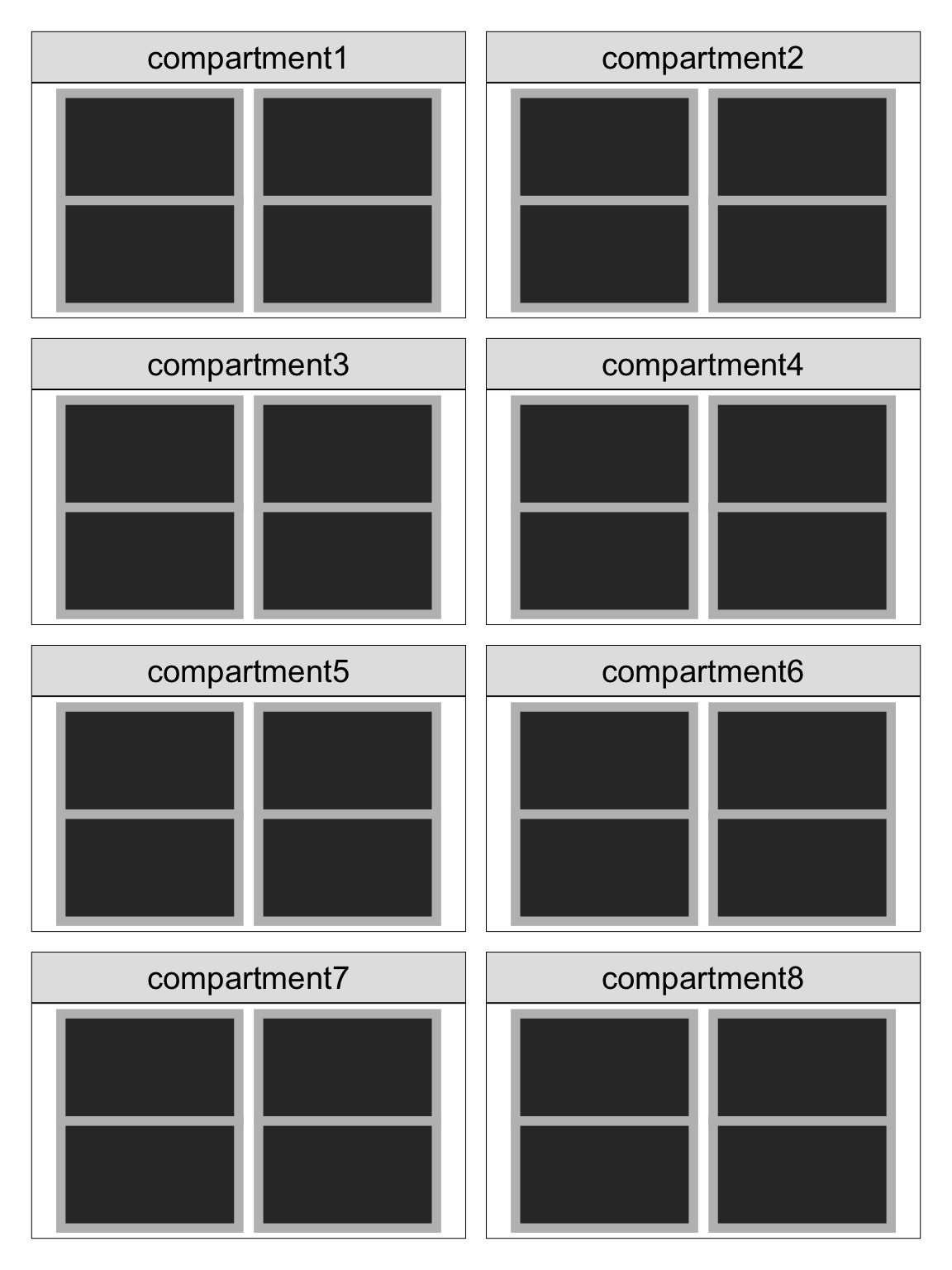

Unit structure

tomato_units <- set_units(compartment = 8,
                               trough = nested_in(compartment, 2),
                                 plot = nested_in(trough, 2),
                               tomato = nested_in(plot, 3))

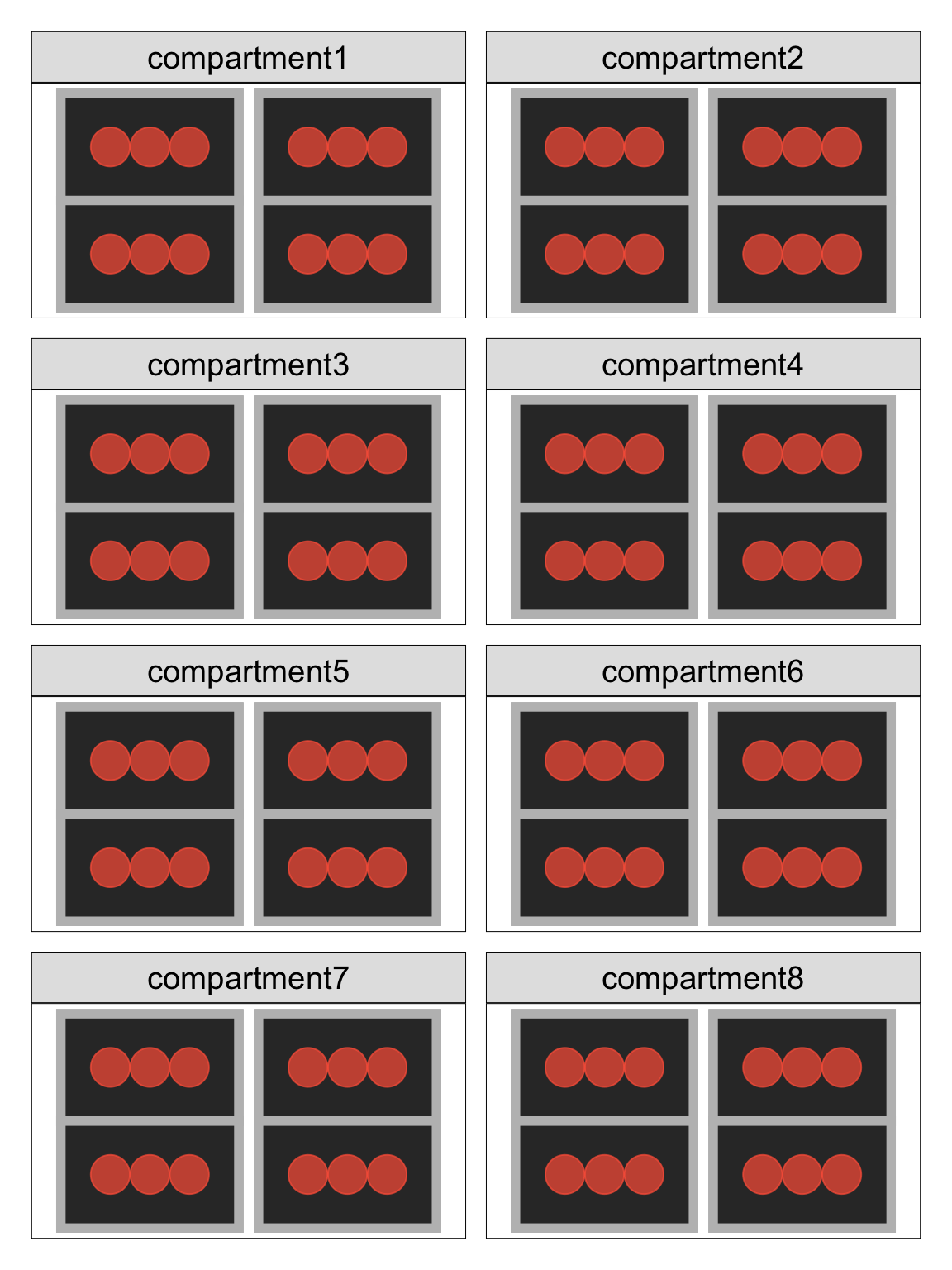

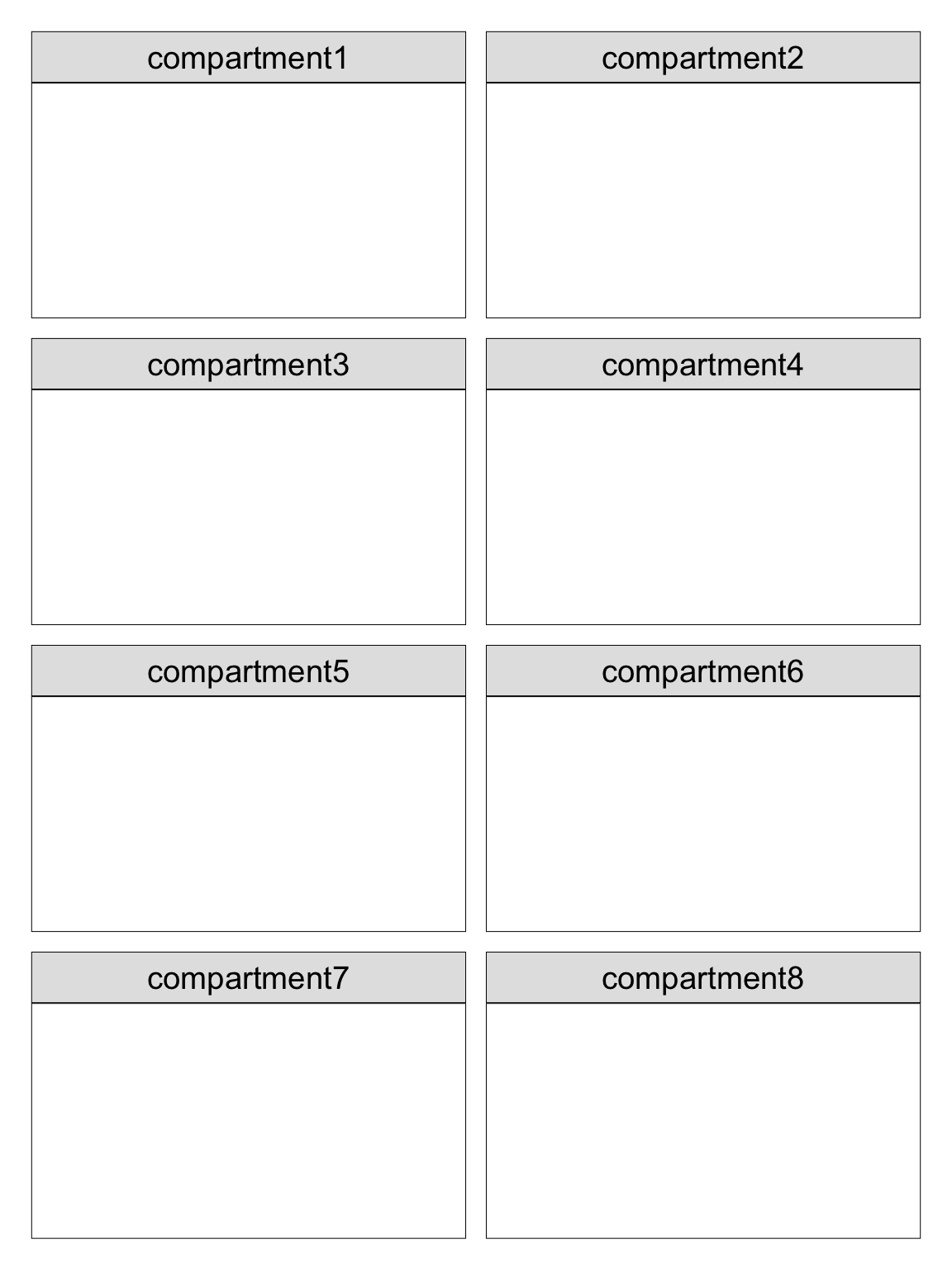

• 8 compartments

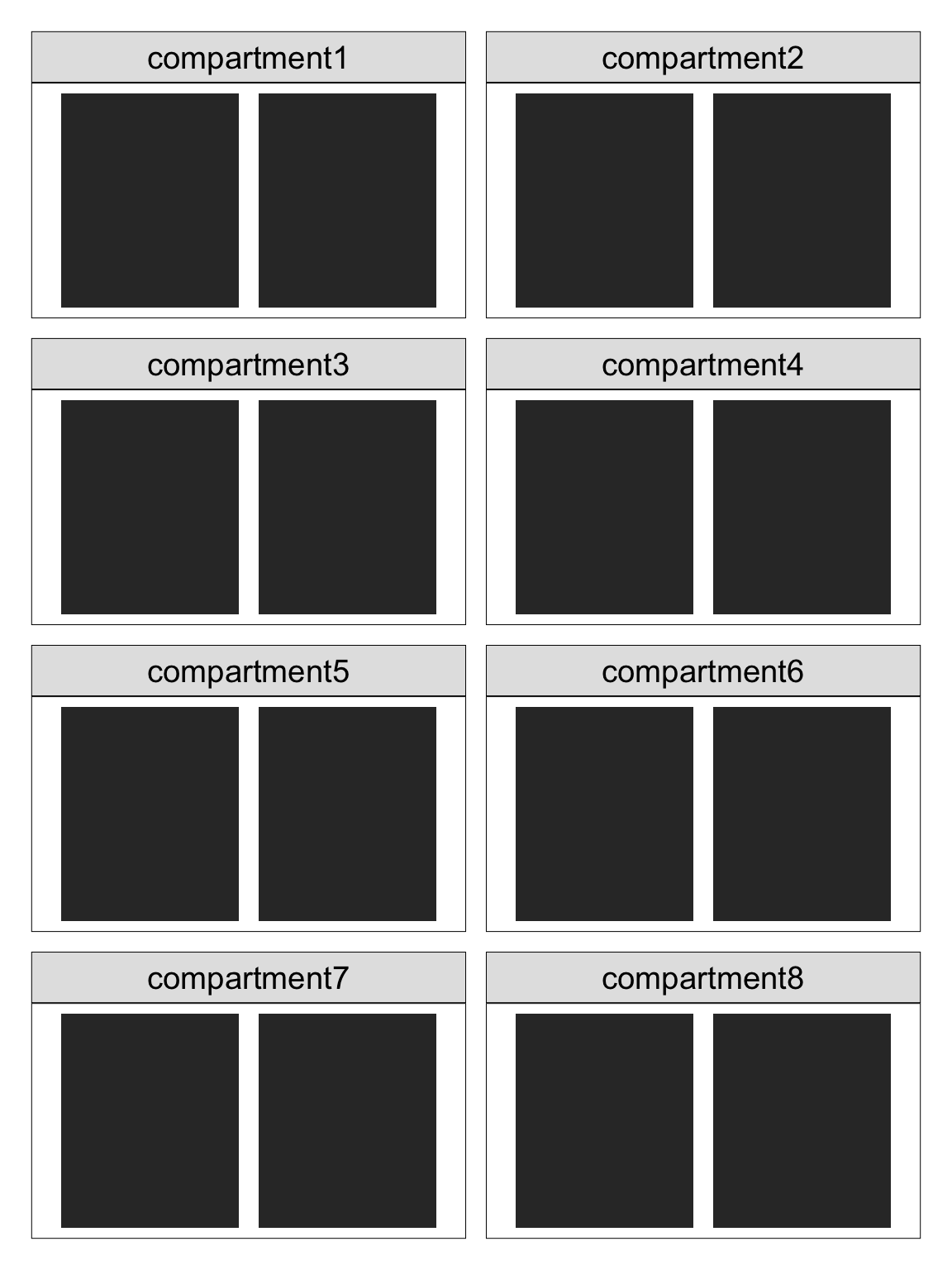

• each with 2 troughs
• each trough is separated to 2 plots
• from each plot, 3 tomatoes will be sampled

Treatment structure

tomato_trts <- set_trts(air_temp = c("13°C", "16°C"),
                          heated = c("Yes", "No"),
                       soil_temp = conditioned_on(heated,
                                          "Yes" ~ c("18°C", "21°C"),
                                           "No" ~ "Ambient"))

• air temperature of 13°C or 16°C
• half of the soil is heated or unheated
• if heated, soil temperature is kept at 18°C or 21°C
• if unheated, kept ambient.

Mapping units to treatments

tomato_mapping <- allot_trts(air_temp ~ compartment,
                               heated ~ plot,
                            soil_temp ~ plot)

• different air temperature allocated to compartment
• half of soil (plot ) in each trough is heated
• different soil temperature on heated plot

tomato_assign1 <- tomato_mapping +
  assign_trts(order = c("random", "random", "systematic-slowest"), seed = 1) +
  serve_table(label_nested = c(plot, trough))

tomato_assign2 <- tomato_mapping +
  assign_trts(order = c("random", "random", "blocksdesign"), seed = 1) +
  serve_table(label_nested = c(plot, trough))

• assignment algorithms used for each allotment (not the main point of this talk)

Experimental design for the tomato experiment

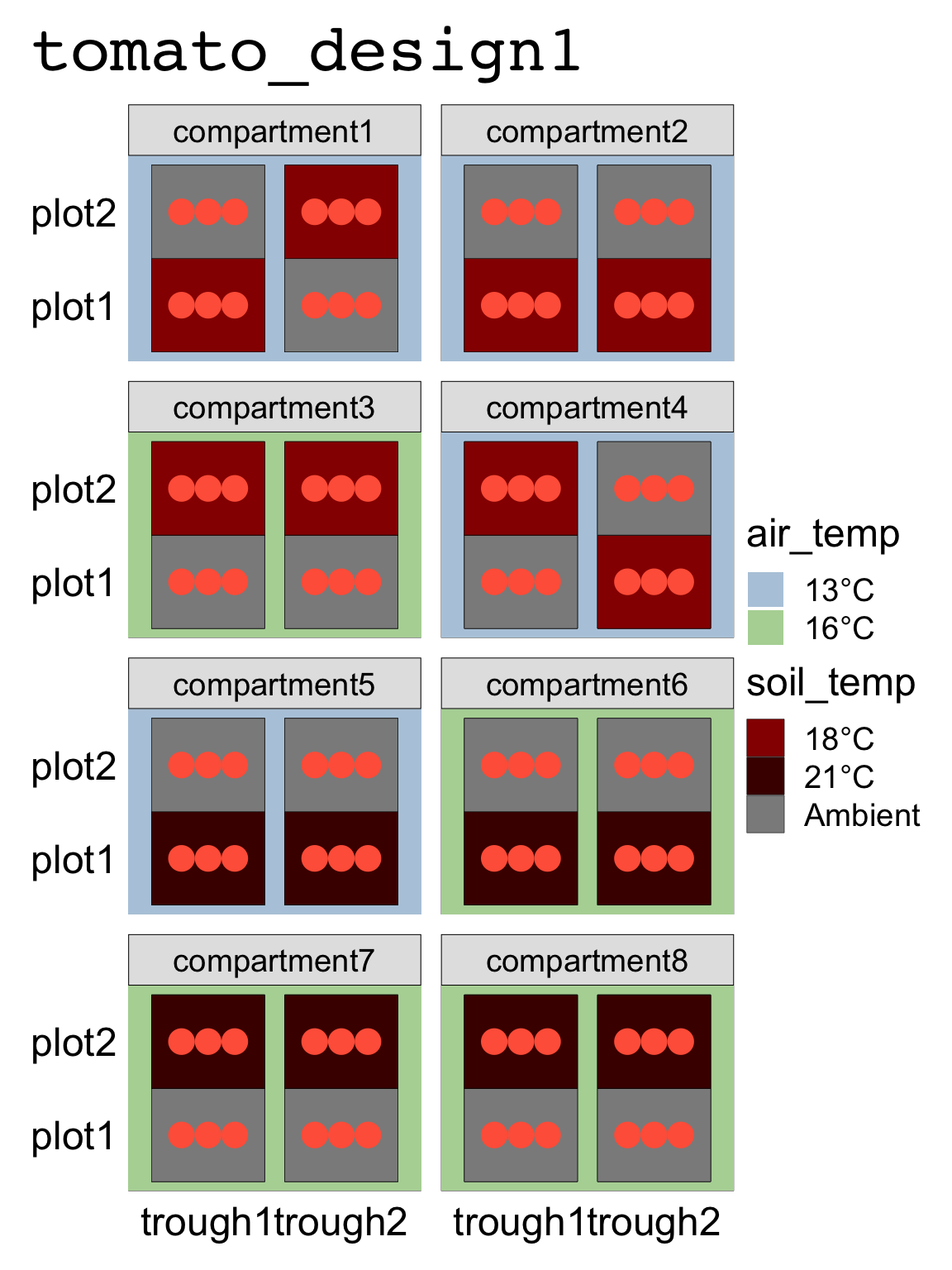

tomato_design1 <- tomato_units + tomato_trts + tomato_assign1

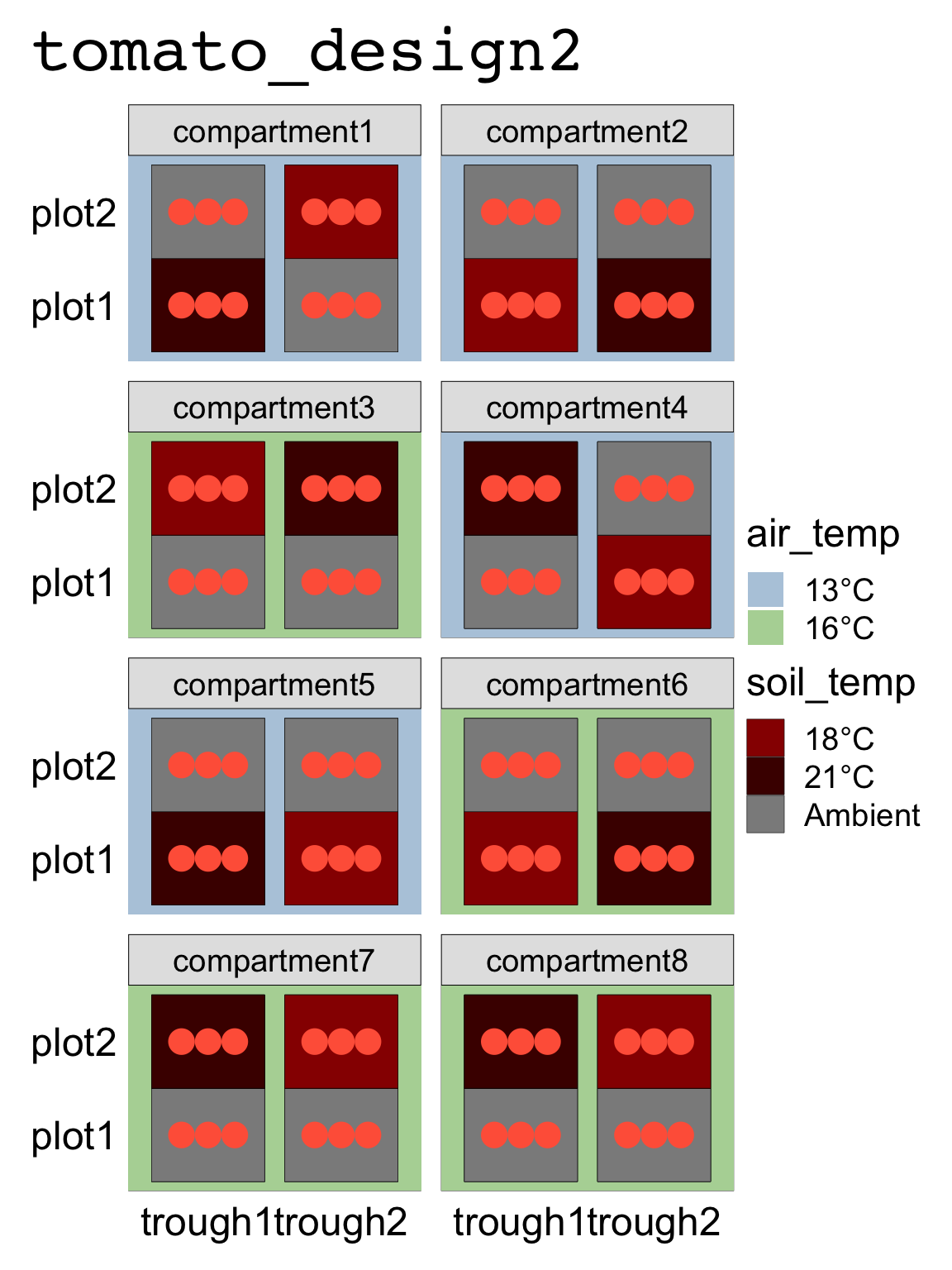

tomato_design2 <- tomato_units + tomato_trts + tomato_assign2

Measurements recorded

tomato_expt <- tomato_design2 %>%
  set_rcrds_of(tomato = c("shape", "weight"),
               plot = c("ntomatoes", "yield")) %>%
  expect_rcrds(factor(shape, levels = c("flat", "round", "other")),
               yield > 0, yield < 10, weight > 0, weight < 1000,
               ntomatoes >= 0L)

• The shape and weight of each sampled tomato will be recorded.
• The number of tomatoes and yield from each plot will be recorded.

⚖️ Domain experts (or the literature) generally have some idea about sensible values or distribution of the experimental data.

• The shape will be recorded as flat, round, or other.
• The yield is expected to be between 0 and 10kg and weight is between 0 and 1000g.
• The number of tomatoes is expected to be a positive integer.

Simulation Tool

Simulating experimental data

• 👩‍💻 Simulating experimental data (if done at all) are often done in a bespoke manner.

compartment	trough	plot	tomato	air_temp	heated	soil_temp
compartment1	trough1	plot1	tomato01	13°C	Yes	21°C
compartment1	trough1	plot1	tomato02	13°C	Yes	21°C
compartment1	trough1	plot1	tomato03	13°C	Yes	21°C
compartment1	trough1	plot2	tomato04	13°C	No	Ambient
compartment1	trough1	plot2	tomato05	13°C	No	Ambient
compartment1	trough1	plot2	tomato06	13°C	No	Ambient
compartment1	trough2	plot1	tomato07	13°C	No	Ambient
compartment1	trough2	plot1	tomato08	13°C	No	Ambient
compartment1	trough2	plot1	tomato09	13°C	No	Ambient
compartment1	trough2	plot2	tomato10	13°C	Yes	18°C
compartment1	trough2	plot2	tomato11	13°C	Yes	18°C
compartment1	trough2	plot2	tomato12	13°C	Yes	18°C
compartment2	trough1	plot1	tomato13	13°C	Yes	18°C
compartment2	trough1	plot1	tomato14	13°C	Yes	18°C
compartment2	trough1	plot1	tomato15	13°C	Yes	18°C
compartment2	trough1	plot2	tomato16	13°C	No	Ambient
compartment2	trough1	plot2	tomato17	13°C	No	Ambient
compartment2	trough1	plot2	tomato18	13°C	No	Ambient
compartment2	trough2	plot1	tomato19	13°C	Yes	21°C
compartment2	trough2	plot1	tomato20	13°C	Yes	21°C
compartment2	trough2	plot1	tomato21	13°C	Yes	21°C
compartment2	trough2	plot2	tomato22	13°C	No	Ambient
compartment2	trough2	plot2	tomato23	13°C	No	Ambient
compartment2	trough2	plot2	tomato24	13°C	No	Ambient
compartment3	trough1	plot1	tomato25	16°C	No	Ambient
compartment3	trough1	plot1	tomato26	16°C	No	Ambient
compartment3	trough1	plot1	tomato27	16°C	No	Ambient
compartment3	trough1	plot2	tomato28	16°C	Yes	18°C
compartment3	trough1	plot2	tomato29	16°C	Yes	18°C
compartment3	trough1	plot2	tomato30	16°C	Yes	18°C
compartment3	trough2	plot1	tomato31	16°C	No	Ambient
compartment3	trough2	plot1	tomato32	16°C	No	Ambient
compartment3	trough2	plot1	tomato33	16°C	No	Ambient
compartment3	trough2	plot2	tomato34	16°C	Yes	21°C
compartment3	trough2	plot2	tomato35	16°C	Yes	21°C
compartment3	trough2	plot2	tomato36	16°C	Yes	21°C
compartment4	trough1	plot1	tomato37	13°C	No	Ambient
compartment4	trough1	plot1	tomato38	13°C	No	Ambient
compartment4	trough1	plot1	tomato39	13°C	No	Ambient
compartment4	trough1	plot2	tomato40	13°C	Yes	21°C
compartment4	trough1	plot2	tomato41	13°C	Yes	21°C
compartment4	trough1	plot2	tomato42	13°C	Yes	21°C
compartment4	trough2	plot1	tomato43	13°C	Yes	18°C
compartment4	trough2	plot1	tomato44	13°C	Yes	18°C
compartment4	trough2	plot1	tomato45	13°C	Yes	18°C
compartment4	trough2	plot2	tomato46	13°C	No	Ambient
compartment4	trough2	plot2	tomato47	13°C	No	Ambient
compartment4	trough2	plot2	tomato48	13°C	No	Ambient
compartment5	trough1	plot1	tomato49	13°C	Yes	21°C
compartment5	trough1	plot1	tomato50	13°C	Yes	21°C
compartment5	trough1	plot1	tomato51	13°C	Yes	21°C
compartment5	trough1	plot2	tomato52	13°C	No	Ambient
compartment5	trough1	plot2	tomato53	13°C	No	Ambient
compartment5	trough1	plot2	tomato54	13°C	No	Ambient
compartment5	trough2	plot1	tomato55	13°C	Yes	18°C
compartment5	trough2	plot1	tomato56	13°C	Yes	18°C
compartment5	trough2	plot1	tomato57	13°C	Yes	18°C
compartment5	trough2	plot2	tomato58	13°C	No	Ambient
compartment5	trough2	plot2	tomato59	13°C	No	Ambient
compartment5	trough2	plot2	tomato60	13°C	No	Ambient
compartment6	trough1	plot1	tomato61	16°C	Yes	18°C
compartment6	trough1	plot1	tomato62	16°C	Yes	18°C
compartment6	trough1	plot1	tomato63	16°C	Yes	18°C
compartment6	trough1	plot2	tomato64	16°C	No	Ambient
compartment6	trough1	plot2	tomato65	16°C	No	Ambient
compartment6	trough1	plot2	tomato66	16°C	No	Ambient
compartment6	trough2	plot1	tomato67	16°C	Yes	21°C
compartment6	trough2	plot1	tomato68	16°C	Yes	21°C
compartment6	trough2	plot1	tomato69	16°C	Yes	21°C
compartment6	trough2	plot2	tomato70	16°C	No	Ambient
compartment6	trough2	plot2	tomato71	16°C	No	Ambient
compartment6	trough2	plot2	tomato72	16°C	No	Ambient
compartment7	trough1	plot1	tomato73	16°C	No	Ambient
compartment7	trough1	plot1	tomato74	16°C	No	Ambient
compartment7	trough1	plot1	tomato75	16°C	No	Ambient
compartment7	trough1	plot2	tomato76	16°C	Yes	21°C
compartment7	trough1	plot2	tomato77	16°C	Yes	21°C
compartment7	trough1	plot2	tomato78	16°C	Yes	21°C
compartment7	trough2	plot1	tomato79	16°C	No	Ambient
compartment7	trough2	plot1	tomato80	16°C	No	Ambient
compartment7	trough2	plot1	tomato81	16°C	No	Ambient
compartment7	trough2	plot2	tomato82	16°C	Yes	18°C
compartment7	trough2	plot2	tomato83	16°C	Yes	18°C
compartment7	trough2	plot2	tomato84	16°C	Yes	18°C
compartment8	trough1	plot1	tomato85	16°C	No	Ambient
compartment8	trough1	plot1	tomato86	16°C	No	Ambient
compartment8	trough1	plot1	tomato87	16°C	No	Ambient
compartment8	trough1	plot2	tomato88	16°C	Yes	21°C
compartment8	trough1	plot2	tomato89	16°C	Yes	21°C
compartment8	trough1	plot2	tomato90	16°C	Yes	21°C
compartment8	trough2	plot1	tomato91	16°C	No	Ambient
compartment8	trough2	plot1	tomato92	16°C	No	Ambient
compartment8	trough2	plot1	tomato93	16°C	No	Ambient
compartment8	trough2	plot2	tomato94	16°C	Yes	18°C
compartment8	trough2	plot2	tomato95	16°C	Yes	18°C
compartment8	trough2	plot2	tomato96	16°C	Yes	18°C

Some bespoke approaches to simulating data:

library(dplyr)
sim_bespoke <- tomato_expt %>%
  mutate(yield_same = 1) %>%
  mutate(yield_null = rnorm(n(), 5, 1)) %>%
  mutate(yield_trts = 5 + c("13°C" = -1.1, "16°C" = 0)[air_temp] +
           c("18°C" = 1.3, "21°C" = 2.1, "Ambient" = 0)[soil_temp] +
           rnorm(n(), 0, 1)) %>%

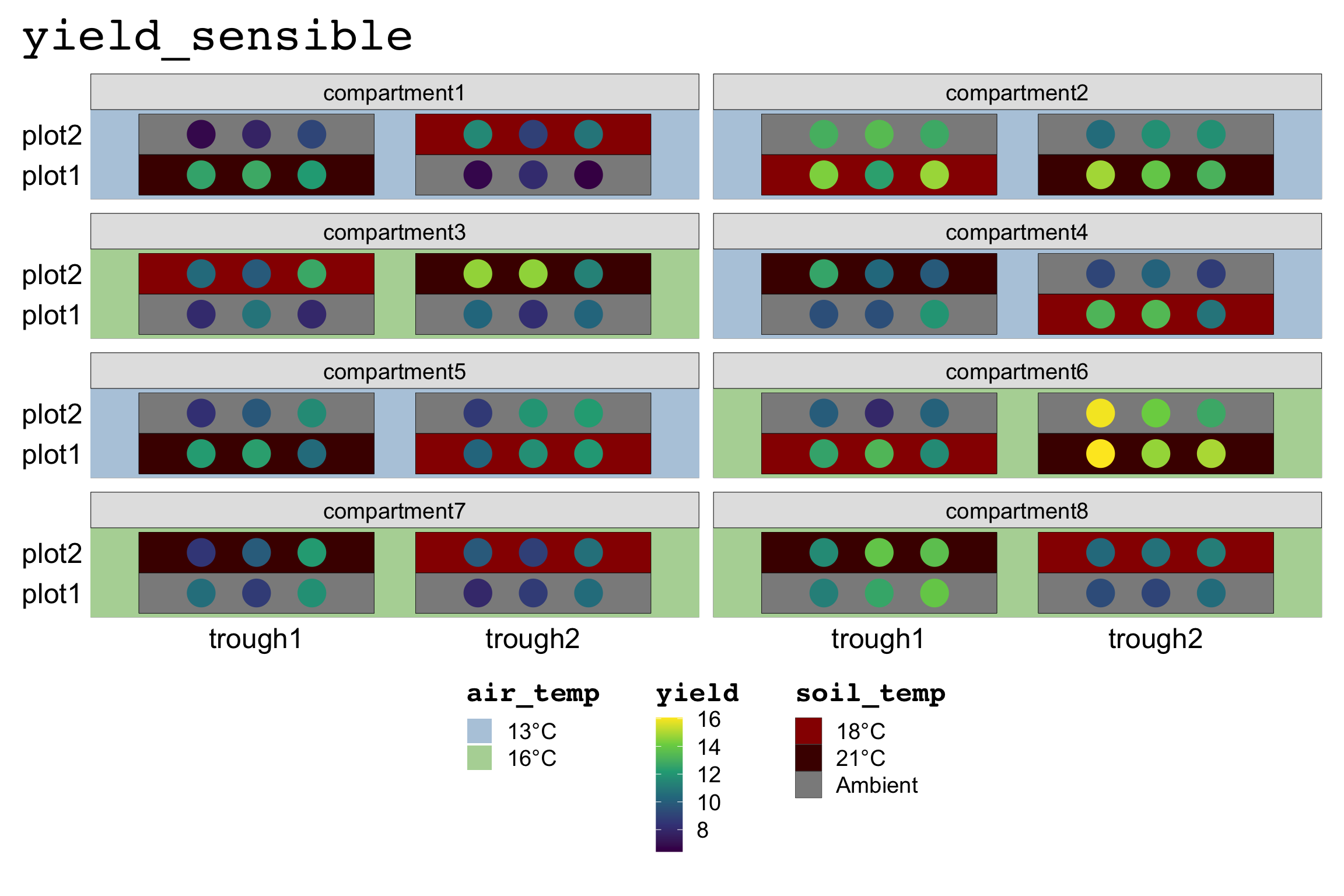

  mutate(yield_sensible = 5 + yield_trts +
           rnorm(nlevels(compartment), 0, 1)[index_levels(compartment)] +
           rnorm(nlevels(trough), 0, 1)[index_levels(trough)] +
           rnorm(nlevels(plot), 0, 1)[index_levels(plot)])

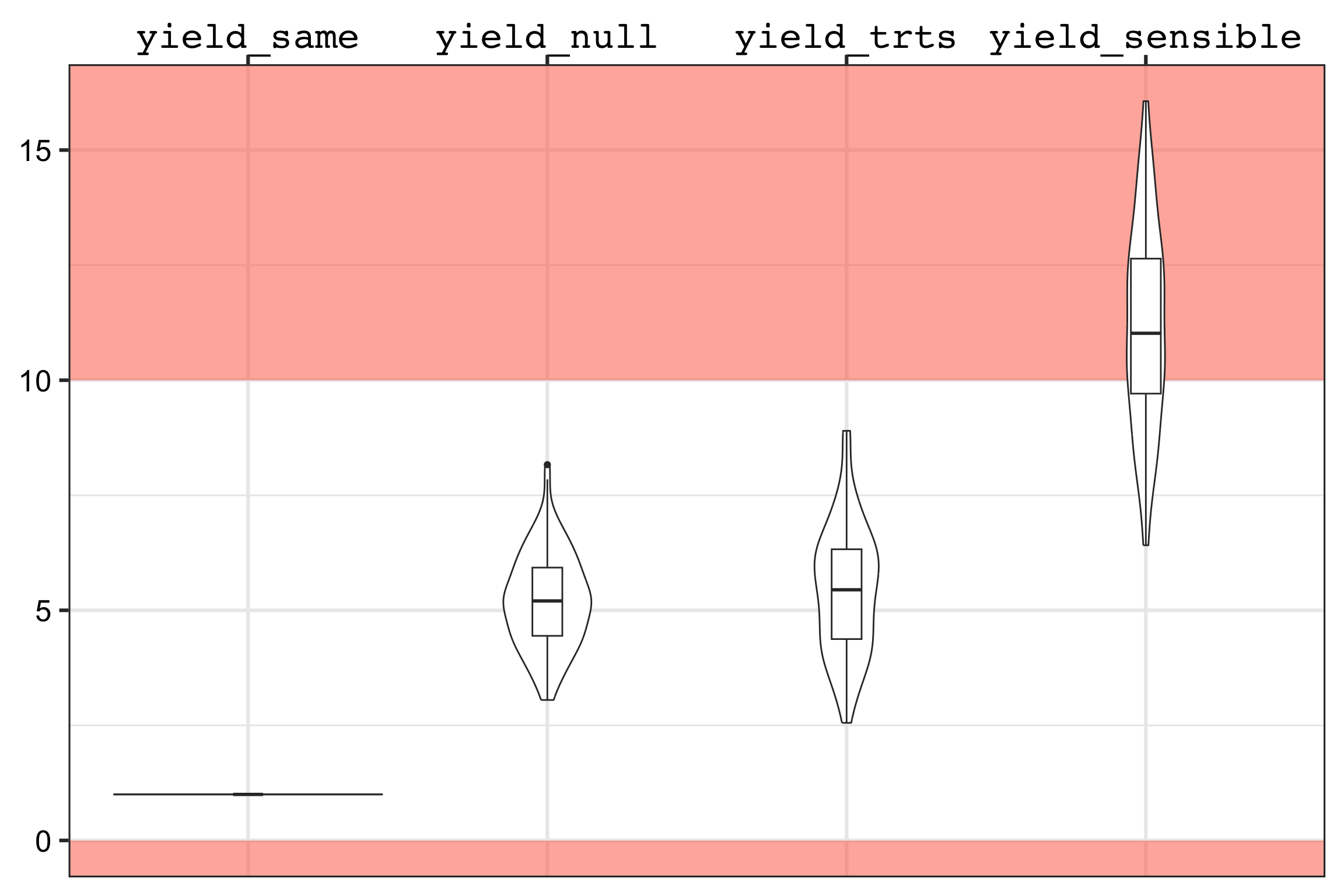

yield_same: A quick dummy response data. yield_null: Ignore influence of treatment and unit structures. yield_trts: Considers the treatment effects (more realistic). yield_sensible: Adds possible unit variations on top of the treatment effects (more sensible).

Analysis of simulated data

summary(aov(yield_same ~ air_temp * soil_temp +
          Error(compartment/trough/plot), sim_bespoke))

Error: compartment
          Df    Sum Sq   Mean Sq F value Pr(>F)
air_temp   1 3.782e-30 3.782e-30       1  0.356
Residuals  6 2.269e-29 3.782e-30

Error: compartment:trough
                   Df    Sum Sq   Mean Sq F value Pr(>F)
soil_temp           1 3.782e-30 3.782e-30       1  0.356
air_temp:soil_temp  1 3.782e-30 3.782e-30       1  0.356
Residuals           6 2.269e-29 3.782e-30

Error: compartment:trough:plot
                   Df    Sum Sq   Mean Sq F value Pr(>F)
soil_temp           2 7.560e-30 3.782e-30       1  0.397
air_temp:soil_temp  2 7.560e-30 3.782e-30       1  0.397
Residuals          12 4.538e-29 3.782e-30

Error: Within
          Df   Sum Sq   Mean Sq F value Pr(>F)
Residuals 64 2.42e-28 3.782e-30

summary(aov(yield_null ~ air_temp * soil_temp +
          Error(compartment/trough/plot), sim_bespoke))

Error: compartment
          Df Sum Sq Mean Sq F value Pr(>F)
air_temp   1  0.169  0.1691   0.093  0.771
Residuals  6 10.957  1.8261

Error: compartment:trough
                   Df Sum Sq Mean Sq F value Pr(>F)
soil_temp           1  0.432  0.4325   0.260  0.628
air_temp:soil_temp  1  0.080  0.0803   0.048  0.833
Residuals           6  9.989  1.6649

Error: compartment:trough:plot
                   Df Sum Sq Mean Sq F value Pr(>F)
soil_temp           2  0.618  0.3090   0.232  0.797
air_temp:soil_temp  2  1.391  0.6953   0.521  0.607
Residuals          12 16.004  1.3337

Error: Within
          Df Sum Sq Mean Sq F value Pr(>F)
Residuals 64   60.4  0.9437

summary(aov(yield_trts ~ air_temp * soil_temp +
          Error(compartment/trough/plot), sim_bespoke))

Error: compartment
          Df Sum Sq Mean Sq F value  Pr(>F)
air_temp   1 15.873  15.873   20.07 0.00419 **
Residuals  6  4.745   0.791
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Error: compartment:trough
                   Df Sum Sq Mean Sq F value   Pr(>F)
soil_temp           1  2.899   2.899   63.74 0.000206 ***
air_temp:soil_temp  1  3.815   3.815   83.87 9.54e-05 ***
Residuals           6  0.273   0.045
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Error: compartment:trough:plot
                   Df Sum Sq Mean Sq F value   Pr(>F)
soil_temp           2  48.71  24.357  63.872 4.01e-07 ***
air_temp:soil_temp  2   1.08   0.542   1.422    0.279
Residuals          12   4.58   0.381
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Error: Within
          Df Sum Sq Mean Sq F value Pr(>F)
Residuals 64  101.5   1.586

summary(aov(yield_sensible ~ air_temp * soil_temp +
          Error(compartment/trough/plot), sim_bespoke))

Error: compartment
          Df Sum Sq Mean Sq F value Pr(>F)
air_temp   1   0.67   0.674    0.03  0.869
Residuals  6 136.41  22.735

Error: compartment:trough
                   Df Sum Sq Mean Sq F value Pr(>F)
soil_temp           1  29.33  29.331   7.447 0.0342 *
air_temp:soil_temp  1  29.63  29.630   7.523 0.0336 *
Residuals           6  23.63   3.938
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Error: compartment:trough:plot
                   Df Sum Sq Mean Sq F value  Pr(>F)
soil_temp           2  82.23   41.11  11.275 0.00176 **
air_temp:soil_temp  2   3.74    1.87   0.514 0.61096
Residuals          12  43.76    3.65
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Error: Within
          Df Sum Sq Mean Sq F value Pr(>F)
Residuals 64  101.5   1.586

Some simulated experimental data are not valid values

• Notice that yield is measured on the plot level, but variation exists within plot.

Writing the simulation process with edibble

tomato_sim <- tomato_expt %>%
  simulate_process(
    yield = function(air = -1.1, soil = c(1.3, 2.1)) {
      air_effects <- c("13°C" = air, "16°C" = 0)
      soil_effects <- c("18°C" = soil[1], "21°C" = soil[2], "Ambient" = 0)
      compartment_noise <- rnorm(nlevels(compartment), 0, 1)
      trough_noise <- rnorm(nlevels(trough), 0, 1)
      plot_noise <- rnorm(nlevels(plot), 0, 1)
      tomato_noise <- rnorm(nlevels(tomato), 0, 1)

      5 + air_effects[air_temp] + soil_effects[soil_temp] +
        compartment_noise[index_levels(compartment)] +
        trough_noise[index_levels(trough)] +
        plot_noise[index_levels(plot)] +
        tomato_noise[index_levels(tomato)]
  })

Simulating data with edibble

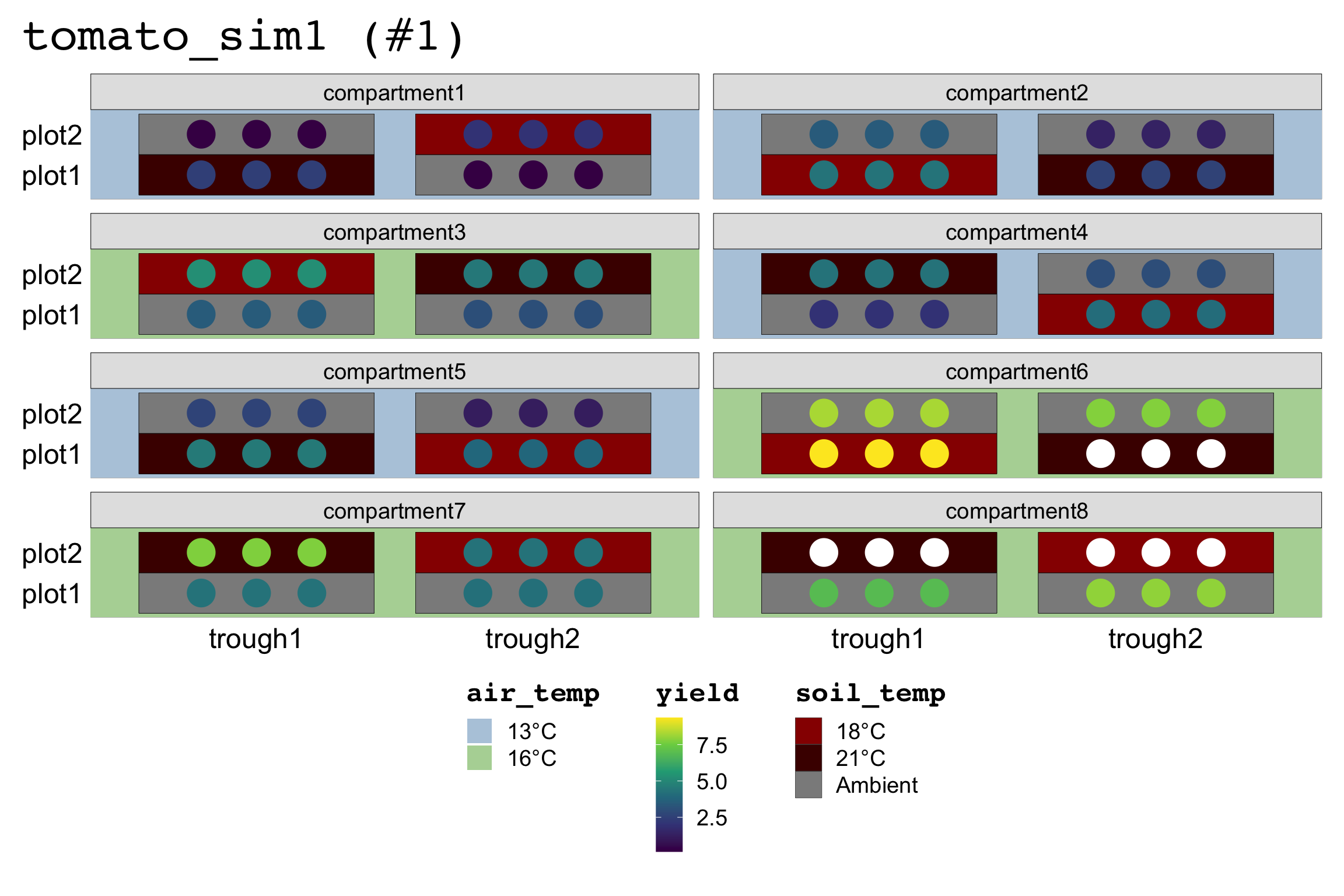

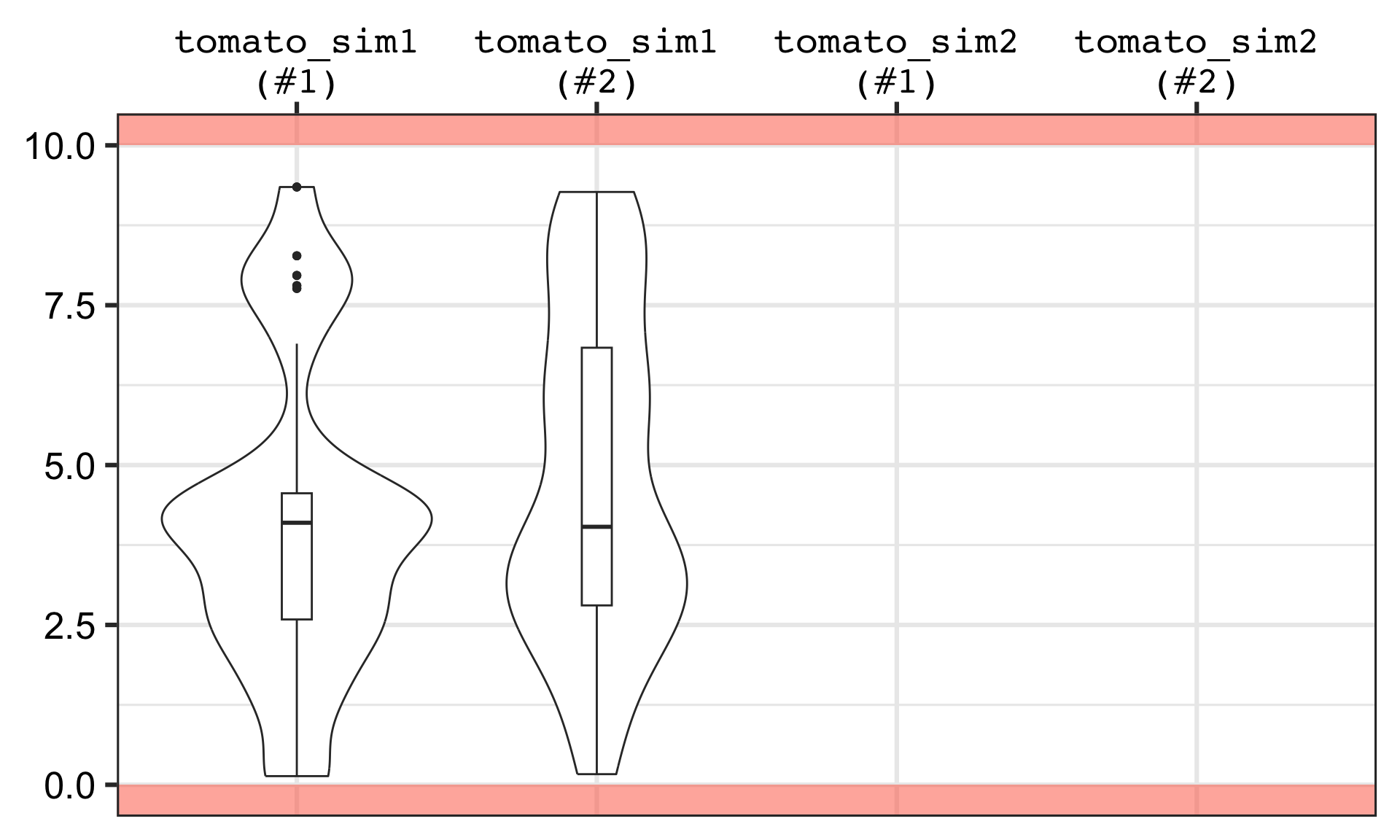

tomato_sim1 <- tomato_sim %>%
  simulate_rcrds(yield = with_params(air = -3), .nsim = 2, .seed = 2023)

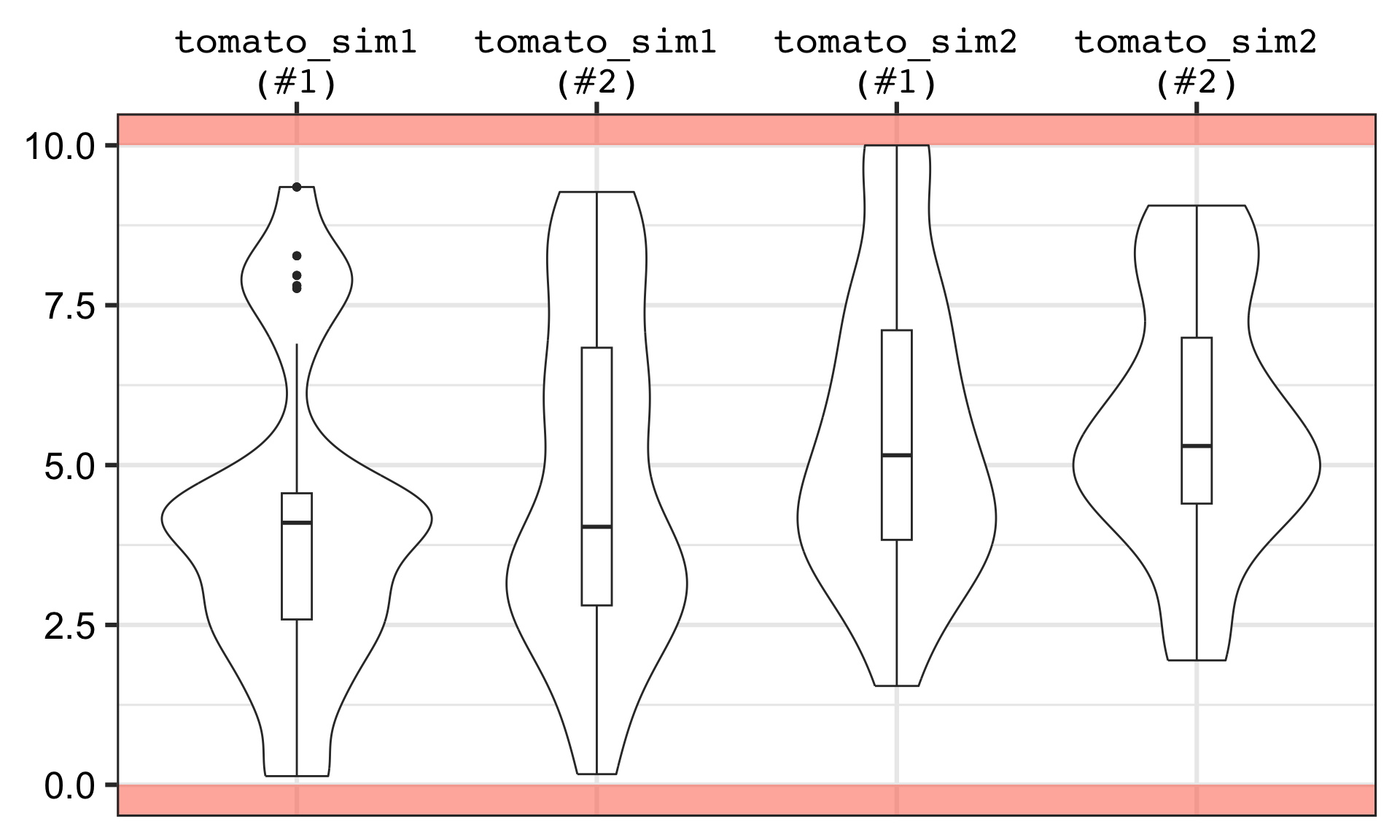

tomato_sim2 <- tomato_sim %>%
  simulate_rcrds(yield = with_params(.aggregate = median, # default = mean
                                     .censor = c(0, 10)), # default = NA
                 .nsim = 2, .seed = 2023)

A tool to easily simulate valid experimental data

A tool to easily simulate valid experimental data

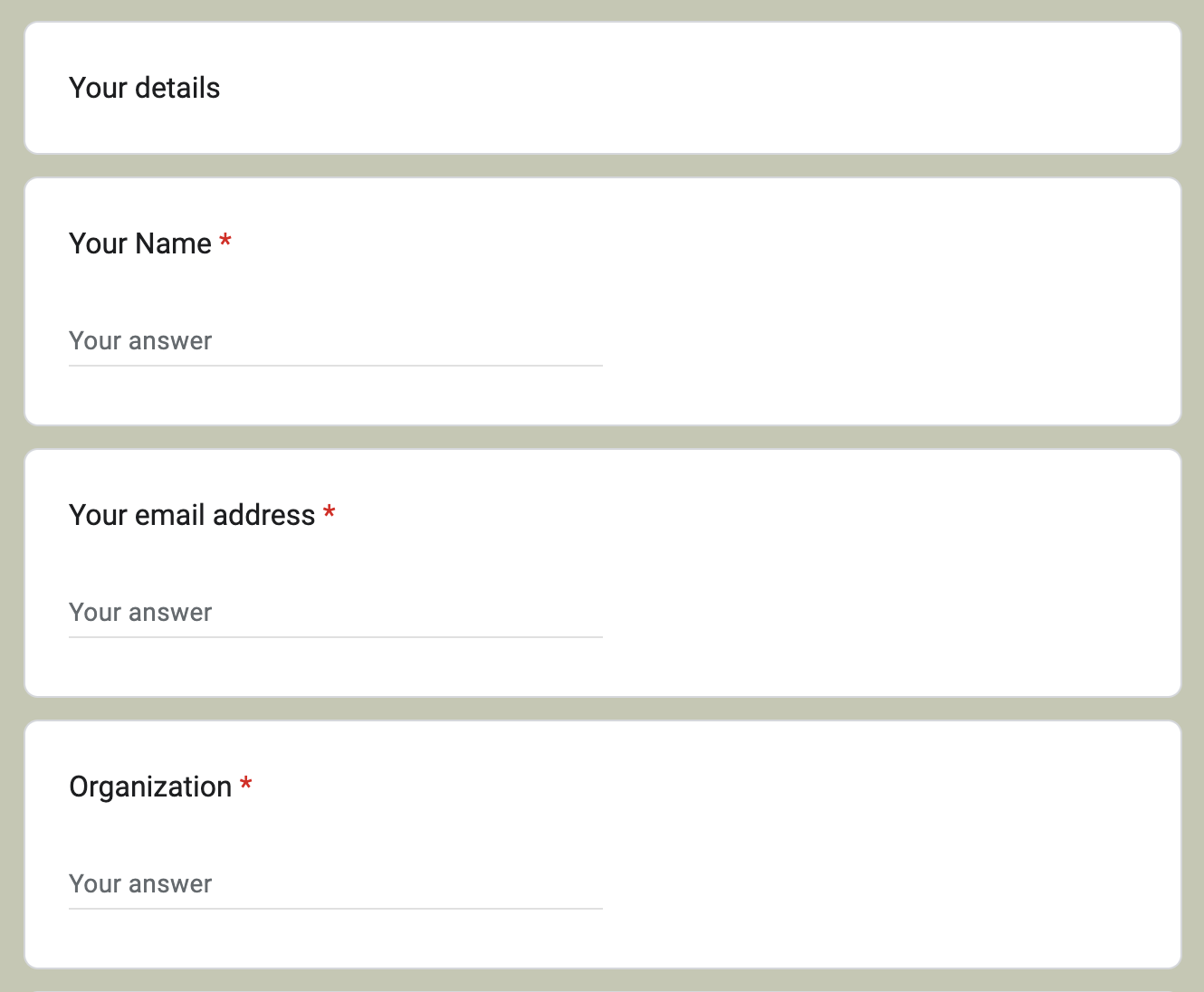

Filling forms

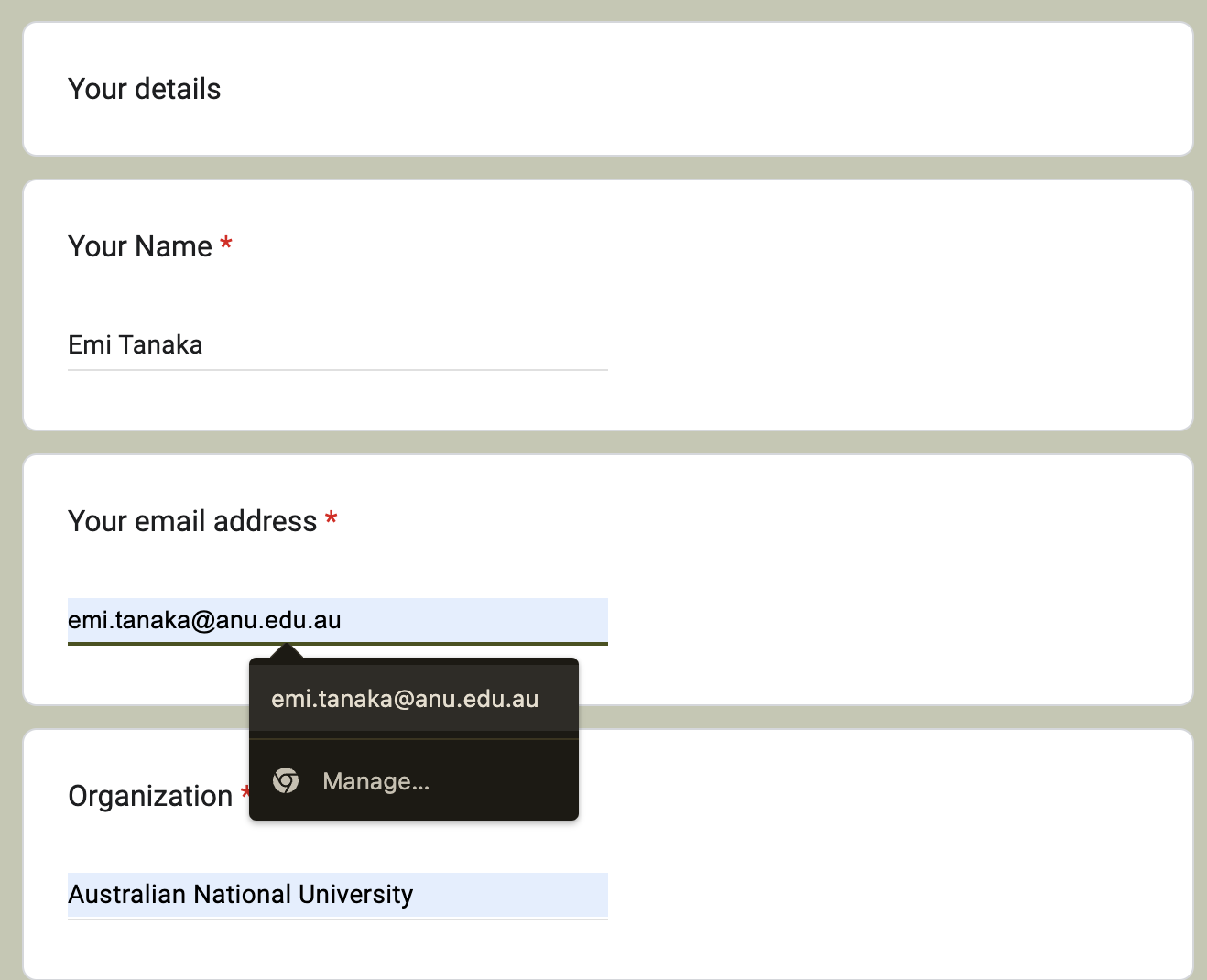

Autofill saves time!

Why can’t we have an automated good-enough simulation?

Autofill records with edibble

(simauto <- autofill_rcrds(tomato_expt, .nsim = 1, .seed = 1))

# An edibble: 96 x 12
    compartment  trough    plot   tomato air_temp heated soil_temp shape weight ntomatoes yield  .sim
         <U(8)> <U(16)> <U(32)>  <U(96)>   <T(2)> <T(2)>    <T(3)>
          <chr>   <chr>   <chr>    <chr>    <chr>  <chr>     <chr> <fct>  <dbl>     <int> <dbl> <int>
 1 compartment1 trough1   plot1 tomato01     13°C    Yes   21°C    flat    304.        38 5.40      1
 2 compartment1 trough1   plot1 tomato02     13°C    Yes   21°C    other   466.        38 5.40      1
 3 compartment1 trough1   plot1 tomato03     13°C    Yes   21°C    flat    405.        38 5.40      1
 4 compartment1 trough1   plot2 tomato04     13°C    No    Ambient flat    574.        18 3.96      1
 5 compartment1 trough1   plot2 tomato05     13°C    No    Ambient flat    482.        18 3.96      1
 6 compartment1 trough1   plot2 tomato06     13°C    No    Ambient other   299.        18 3.96      1
 7 compartment1 trough2   plot1 tomato07     13°C    No    Ambient round   377.        51 2.82      1
 8 compartment1 trough2   plot1 tomato08     13°C    No    Ambient round   488.        51 2.82      1
 9 compartment1 trough2   plot1 tomato09     13°C    No    Ambient flat    613.        51 2.82      1
10 compartment1 trough2   plot2 tomato10     13°C    Yes   18°C    round   522.        22 0.795     1
# ℹ 86 more rows

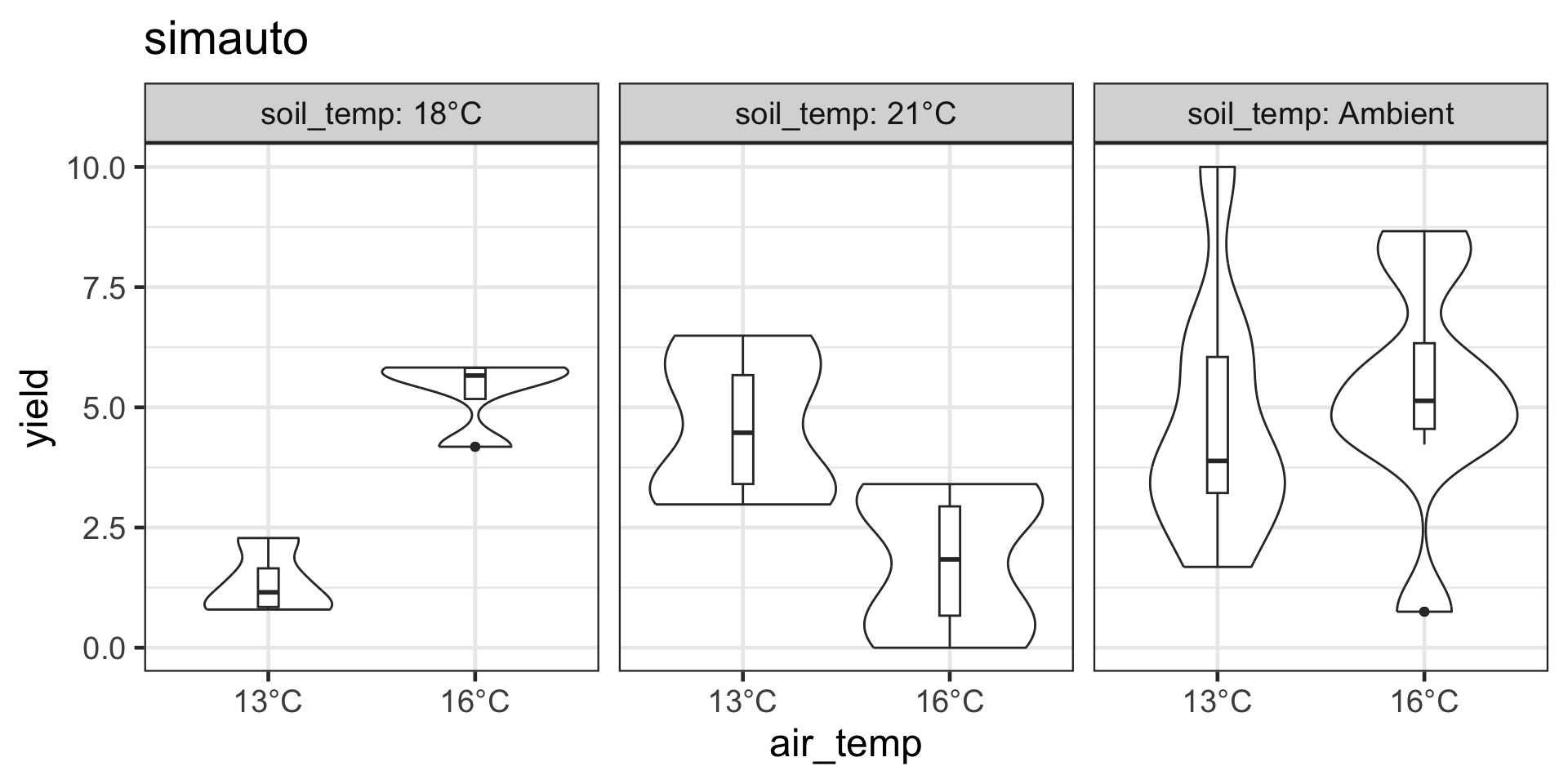

summary(aov(yield ~ air_temp * soil_temp + Error(compartment/trough/plot), data = simauto))

Error: compartment
          Df Sum Sq Mean Sq F value Pr(>F)
air_temp   1   7.37   7.372   0.853  0.391
Residuals  6  51.87   8.646

Error: compartment:trough
                   Df Sum Sq Mean Sq F value Pr(>F)
soil_temp           1  16.00   16.00   0.811  0.403
air_temp:soil_temp  1  59.52   59.52   3.017  0.133
Residuals           6 118.39   19.73

Error: compartment:trough:plot
                   Df Sum Sq Mean Sq F value Pr(>F)
soil_temp           2  84.94   42.47   3.956 0.0479 *
air_temp:soil_temp  2  80.90   40.45   3.768 0.0537 .
Residuals          12 128.83   10.74
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Error: Within
          Df    Sum Sq   Mean Sq F value Pr(>F)
Residuals 64 1.355e-27 2.117e-29

:::

Examining the process and underlying values

examine_process(simauto, "yield")

simulate_process(
   yield = function ()
   {
       plot_effects <- rnorm(32, 0, 7.5)
       air_temp_effects <- rnorm(2, 0, 4.7)
       y <- plot_effects[index_levels(plot)] + air_temp_effects[index_levels(air_temp)]
       rescale_values(y, lower = 0, upper = 10)
   } )

examine_process_values(simauto, "yield", sim = 1)

$air_temp_effects
[1] 3.487784 0.693595

$plot_effects
 [1]   2.63182298  -1.30910197  -4.43571353 -10.00520446  -8.22973876  15.27077707  -2.44867195   5.80503909   5.88754801   5.72434560   2.21106570  -9.39266943  -7.57127815   5.63543396  -9.81265134   3.95655073  -4.00154680  -2.98782011  -5.92177088  -1.72605852   6.57888631   3.40299883  -1.74348111   6.52504144  12.42002801  -0.04776697   3.52867090   2.08663987  -7.33427206  -6.94939607  14.39827847   6.60958341

$y
 [1]  6.1196073  6.1196073  6.1196073  2.1786824  2.1786824  2.1786824 -0.9479292 -0.9479292 -0.9479292 -6.5174201 -6.5174201 -6.5174201 -4.7419544 -4.7419544 -4.7419544 18.7585614 18.7585614 18.7585614  1.0391124  1.0391124  1.0391124  9.2928234  9.2928234  9.2928234  6.5811430  6.5811430  6.5811430  6.4179406  6.4179406  6.4179406  2.9046607  2.9046607  2.9046607 -8.6990744 -8.6990744 -8.6990744 -4.0834938 -4.0834938 -4.0834938  9.1232183  9.1232183  9.1232183 -6.3248670 -6.3248670 -6.3248670  7.4443351  7.4443351  7.4443351 -0.5137625 -0.5137625 -0.5137625  0.4999642  0.4999642  0.4999642 -2.4339866 -2.4339866 -2.4339866  1.7617258  1.7617258  1.7617258  7.2724813  7.2724813  7.2724813  4.0965938  4.0965938  4.0965938 -1.0498861 -1.0498861 -1.0498861  7.2186364  7.2186364  7.2186364 13.1136230 13.1136230 13.1136230  0.6458280  0.6458280  0.6458280  4.2222659  4.2222659  4.2222659  2.7802349  2.7802349  2.7802349 -6.6406771 -6.6406771 -6.6406771 -6.2558011 -6.2558011 -6.2558011
[91] 15.0918735 15.0918735 15.0918735  7.3031784  7.3031784  7.3031784

Key Takeaways

Summary

• Much like in backcasting, simulating data is useful for experimental planning.
• edibble R package encapsulates elements of experimental designs in a series of composable functions.
• edibble::autofill_rcrds() provides a quick, lazy simulation for checking or revising the statistical analysis plan for free, if your experiment is designed using the edibble R package.
• (Obviously don’t use it for any serious simulation studies).
• For a more customisable option, you can use simulate_process() + simulate_rcrds() that include censoring and aggregation options that respects the experimental structure and expectations.

Thanks for listening!

These slides are available at emitanaka.org/slides/biometrics2023.

More details also in arXiv papers:

• Tanaka (2023) edibble: An R package to encapsulate elements of experimental designs for better planning, management and workflow. emitanaka.org/paper-edibble
• Tanaka (2023) Towards a unified language in experimental designs propagated by a software framework. emitanaka.org/research/edibble-design

edibble R package is available on CRAN with the latest developments on GitHub at github.com/emitanaka/edibble

install.packages("edibble")
remotes::install_github("emitanaka/edibble") # latest development

emi.tanaka@anu.edu.au
