ETC5512: Wild Caught Data

.info-box.w-50.bg-white[
These slides are viewed best by Chrome or Firefox and occasionally need to be refreshed if elements did not load properly. See <a href=lecture-06.pdf>here for the PDF </a>.
]

---

# .monash-blue[ETC5512: Wild Caught Data]

<h2 style="font-weight:900!important;">Combining Australian census and election data</h2>

.bottom_abs.width100[

Lecturer: *Emi Tanaka*

Department of Econometrics and Business Statistics

ETC5512.Clayton-x@monash.edu

Week 6

]

---

.aim-box.tl.w-70[
Today you will:

- look at the ABS geographical boundaries for the 2016 census
- integrate data from different sources (census and election) to make exploratory inferences
]

---

# Recall 2019 Federal Election Data

```r
library(tidyverse)
library(sf)
*aec_map <- read_sf(here::here("data/vic-july-2018-esri/E_AUGFN3_region.shp"))
*votes <- read_csv("https://results.aec.gov.au/24310/Website/Downloads/HouseDopByDivisionDownload-24310.csv", skip = 1)

winners_fix <- votes %>%
 mutate(DivisionNm = ifelse(DivisionNm=="McEwen", "Mcewen", DivisionNm)) %>%
 filter(Elected=="Y" & CountNumber==0 & CalculationType=="Preference Count") %>% # get the winner
 right_join(aec_map, by = c("DivisionNm" = "Elect_div")) # join the data

auscolours <- c("ALP" = "#DE3533", "LNP" = "#ADD8E6", "KAP" = "#8B0000", "GVIC" = "#10C25B", "XEN" = "#ff6300",
 "LP" = "#0047AB", "NP" = "#0a9cca", "IND" = "#000000")

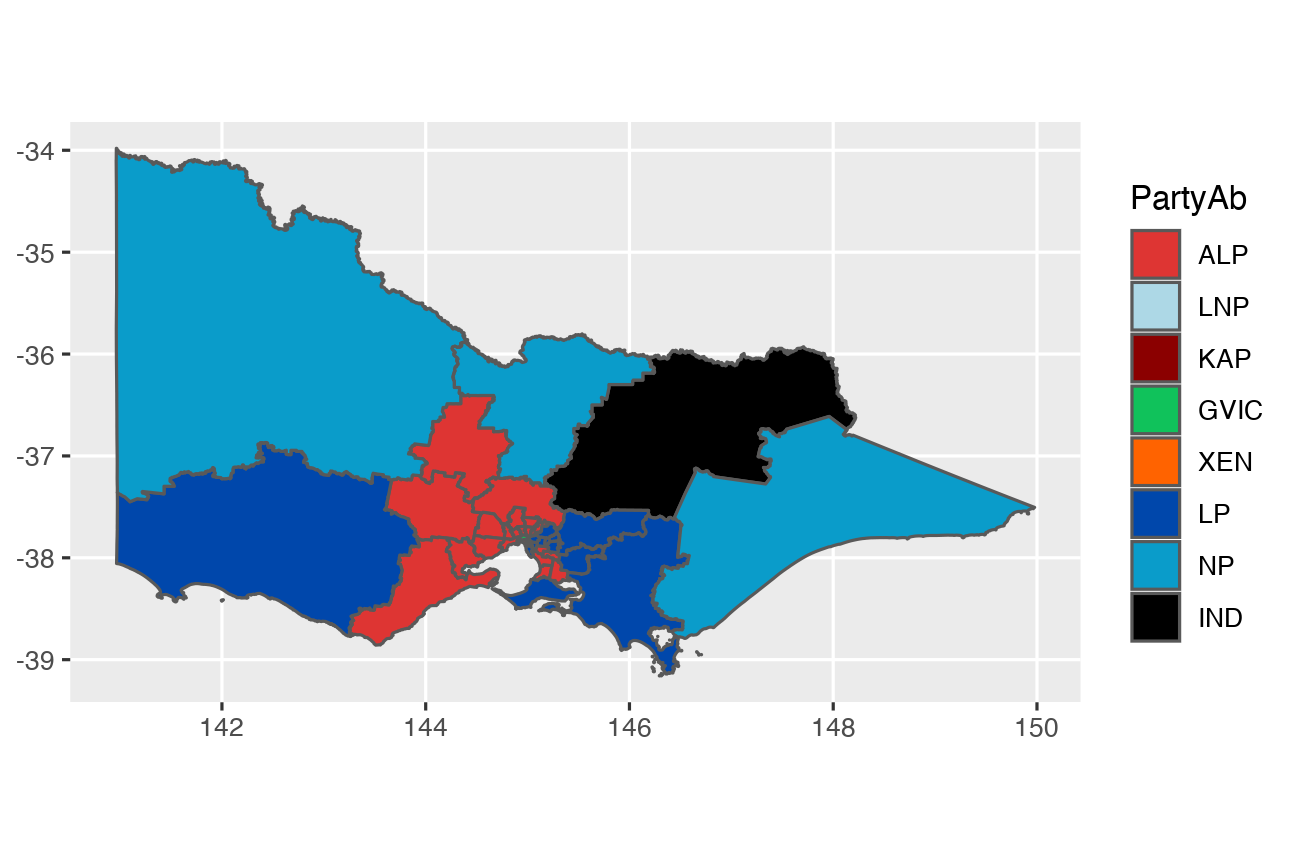

ggplot(winners_fix) +
  geom_sf(aes(fill = PartyAb, geometry = geometry)) +
  scale_fill_manual(values = auscolours)
```

]

.flex[
.w-50[
<img src="images/lecture-06/aec-map-1.png" width="432" style="display: block; margin: auto;" />

]
.w-50[

There are two sources of data:

1. Electoral boundary
2. The votes for candidates in each electorate

]
]

---

# Recall 2016 ABS Census Data

* DataPacks https://datapacks.censusdata.abs.gov.au/datapacks/
* GeoPackages https://datapacks.censusdata.abs.gov.au/geopackages/

<img src="images/lecture-07/datapack-download.png" width = "70%"/>
---

# ABS Census 2016

# GeoPackages

---

# GeoPackage

.blockquote[
A **GeoPackage** (GPKG) is an open, non-proprietary, platform-independent and standards-based data format for geographic information system implemented as a SQLite database container. Defined by the **Open Geospatial Consortium** (OGC) with the backing of the US military and published in 2014, GeoPackage has seen widespread support from various government, commercial, and open source organizations.

Recall: OGC also defines the WKT

---

# ABS GeoPackage

1. Victoria
2. Employment, Income and Unpaid Work (EIUW)
3. EIUW GeoPackage A
]

* **Or use the [`strayr`](https://github.com/runapp-aus/strayr) package!** We'll use the one from the ABS website instead.

.f4.overflow-scroll.h-40[

```r
geopath <- here::here("data/Geopackage_2016_EIUWA_for_VIC/census2016_eiuwa_vic_short.gpkg")
st_layers(geopath)
```

```
## Driver: GPKG
## Available layers:
##                          layer_name geometry_type features fields
## 1    census2016_eiuwa_vic_ced_short                     39    489
## 2  census2016_eiuwa_vic_gccsa_short                      4    489
## 3    census2016_eiuwa_vic_lga_short                     82    489
## 4    census2016_eiuwa_vic_poa_short                    698    489
## 5     census2016_eiuwa_vic_ra_short                      6    489
## 6    census2016_eiuwa_vic_sa1_short                  14073    489
## 7    census2016_eiuwa_vic_sa2_short                    464    489
## 8    census2016_eiuwa_vic_sa3_short                     68    489
## 9    census2016_eiuwa_vic_sa4_short                     19    489
## 10   census2016_eiuwa_vic_sed_short                     90    489
## 11   census2016_eiuwa_vic_sos_short                      6    489
## 12  census2016_eiuwa_vic_sosr_short                     12    489
## 13   census2016_eiuwa_vic_ssc_short                   2931    489
## 14   census2016_eiuwa_vic_ste_short                      1    489
## 15   census2016_eiuwa_vic_sua_short                     22    489
## 16   census2016_eiuwa_vic_ucl_short                    353    489
```
]
---

# The Australian Statistical Geography Standard (ASGS)

]

---

# The number of regions for each layer

```r
st_layers(geopath) %>%
  # make it into a data.frame first
  tibble(!!!.) %>%
  # then you can the dplyr operations
  dplyr::arrange(features)
```

```
## # A tibble: 16 × 5
## name geomtype driver features fields
## <chr> <list> <chr> <dbl> <dbl>
## 1 census2016_eiuwa_vic_ste_short <chr [1]> GPKG 1 489
## 2 census2016_eiuwa_vic_gccsa_short <chr [1]> GPKG 4 489
## 3 census2016_eiuwa_vic_ra_short <chr [1]> GPKG 6 489
## 4 census2016_eiuwa_vic_sos_short <chr [1]> GPKG 6 489
## 5 census2016_eiuwa_vic_sosr_short <chr [1]> GPKG 12 489
## 6 census2016_eiuwa_vic_sa4_short <chr [1]> GPKG 19 489
## 7 census2016_eiuwa_vic_sua_short <chr [1]> GPKG 22 489
## 8 census2016_eiuwa_vic_ced_short <chr [1]> GPKG 39 489
## 9 census2016_eiuwa_vic_sa3_short <chr [1]> GPKG 68 489
## 10 census2016_eiuwa_vic_lga_short <chr [1]> GPKG 82 489
## 11 census2016_eiuwa_vic_sed_short <chr [1]> GPKG 90 489
## 12 census2016_eiuwa_vic_ucl_short <chr [1]> GPKG 353 489
## 13 census2016_eiuwa_vic_sa2_short <chr [1]> GPKG 464 489
## 14 census2016_eiuwa_vic_poa_short <chr [1]> GPKG 698 489
## 15 census2016_eiuwa_vic_ssc_short <chr [1]> GPKG 2931 489
## 16 census2016_eiuwa_vic_sa1_short <chr [1]> GPKG 14073 489
```

]

---

# Data in the layer

.f5.overflow-scroll.h-90[

```r
vicmap_ste <- read_sf(geopath, layer = "census2016_eiuwa_vic_sa1_short")
vicmap_ste$geom
```

```
## Geometry set for 14073 features  (with 4 geometries empty)
## Geometry type: MULTIPOLYGON
## Dimension:     XY
## Bounding box:  xmin: 140.9617 ymin: -39.15919 xmax: 149.9763 ymax: -33.98043
## Geodetic CRS:  GDA94
## First 5 geometries:
```

```r
str(vicmap_ste)
```

```
## sf [14,073 × 490] (S3: sf/tbl_df/tbl/data.frame)
##  $ sa1_7digitcode_2016          : chr [1:14073] "2145523" "2111727" "2104305" "2128614" ...
##  $ Median_age_persons           : num [1:14073] 35 26 45 39 43 43 38 48 35 54 ...
##  $ Median_mortgage_repay_monthly: num [1:14073] 1419 2134 2167 1517 2600 ...
##  $ Median_tot_prsnl_inc_weekly  : num [1:14073] 659 403 672 671 763 477 595 586 521 445 ...
##  $ Median_rent_weekly           : num [1:14073] 350 462 340 250 400 312 418 215 280 150 ...
##  $ Median_tot_fam_inc_weekly    : num [1:14073] 1640 1624 1906 1542 2437 ...
##  $ Average_num_psns_per_bedroom : num [1:14073] 0.8 1 0.8 0.8 0.8 0.8 0.8 0.7 0.8 0.8 ...
##  $ Median_tot_hhd_inc_weekly    : num [1:14073] 1525 1031 1805 1279 1906 ...
##  $ Average_household_size       : num [1:14073] 2.7 2.1 2.8 2.5 2.7 3 2.7 2.1 2.4 1.8 ...
##  $ M_Neg_Nil_income_15_19_yrs   : num [1:14073] 9 7 8 6 6 0 3 0 3 3 ...
##  $ M_Neg_Nil_income_20_24_yrs   : num [1:14073] 0 6 0 0 0 0 4 0 4 0 ...
##  $ M_Neg_Nil_income_25_34_yrs   : num [1:14073] 0 5 0 0 0 0 0 0 3 0 ...
##  $ M_Neg_Nil_income_35_44_yrs   : num [1:14073] 0 4 0 0 0 0 0 0 0 0 ...
##  $ M_Neg_Nil_income_45_54_yrs   : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_Neg_Nil_income_55_64_yrs   : num [1:14073] 0 3 3 0 0 0 0 0 0 0 ...
##  $ M_Neg_Nil_income_65_74_yrs   : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_Neg_Nil_income_75_84_yrs   : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_Negtve_Nil_incme_85_yrs_ovr: num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_Neg_Nil_income_Tot         : num [1:14073] 11 25 14 7 11 8 14 4 10 7 ...
##  $ M_1_149_15_19_yrs            : num [1:14073] 0 0 0 3 9 0 3 4 3 0 ...
##  $ M_1_149_20_24_yrs            : num [1:14073] 0 3 0 0 0 0 3 4 0 0 ...
##  $ M_1_149_25_34_yrs            : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1_149_35_44_yrs            : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1_149_45_54_yrs            : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1_149_55_64_yrs            : num [1:14073] 0 0 0 3 0 0 0 0 0 0 ...
##  $ M_1_149_65_74_yrs            : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1_149_75_84_yrs            : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1_149_85ov                 : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1_149_Tot                  : num [1:14073] 3 3 3 9 8 0 6 5 5 0 ...
##  $ M_150_299_15_19_yrs          : num [1:14073] 0 0 3 0 0 0 0 0 0 0 ...
##  $ M_150_299_20_24_yrs          : num [1:14073] 0 10 0 0 4 0 0 0 0 0 ...
##  $ M_150_299_25_34_yrs          : num [1:14073] 3 3 0 0 0 0 3 0 0 0 ...
##  $ M_150_299_35_44_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_150_299_45_54_yrs          : num [1:14073] 0 0 0 0 4 3 0 3 0 0 ...
##  $ M_150_299_55_64_yrs          : num [1:14073] 0 0 0 0 0 0 3 0 0 0 ...
##  $ M_150_299_65_74_yrs          : num [1:14073] 4 0 0 0 3 4 0 0 0 0 ...
##  $ M_150_299_75_84_yrs          : num [1:14073] 0 0 0 3 0 0 3 0 0 0 ...
##  $ M_150_299_85ov               : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_150_299_Tot                : num [1:14073] 10 12 11 5 9 7 11 7 10 8 ...
##  $ M_300_399_15_19_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_300_399_20_24_yrs          : num [1:14073] 0 9 0 0 0 0 0 0 0 3 ...
##  $ M_300_399_25_34_yrs          : num [1:14073] 0 4 0 3 0 0 0 0 0 0 ...
##  $ M_300_399_35_44_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_300_399_45_54_yrs          : num [1:14073] 0 3 3 0 0 0 3 0 0 0 ...
##  $ M_300_399_55_64_yrs          : num [1:14073] 0 0 0 0 3 0 0 0 0 3 ...
##  $ M_300_399_65_74_yrs          : num [1:14073] 0 0 7 3 6 4 0 11 0 5 ...
##  $ M_300_399_75_84_yrs          : num [1:14073] 0 0 0 0 0 3 0 4 3 3 ...
##  $ M_300_399_85ov               : num [1:14073] 0 0 0 0 3 0 0 0 0 3 ...
##  $ M_300_399_Tot                : num [1:14073] 3 16 7 7 15 9 3 16 6 20 ...
##  $ M_400_499_15_19_yrs          : num [1:14073] 3 0 0 0 0 0 0 0 0 0 ...
##  $ M_400_499_20_24_yrs          : num [1:14073] 0 0 0 3 0 0 0 0 0 0 ...
##  $ M_400_499_25_34_yrs          : num [1:14073] 3 0 0 0 0 0 3 0 0 0 ...
##  $ M_400_499_35_44_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_400_499_45_54_yrs          : num [1:14073] 0 0 0 0 0 0 3 3 0 0 ...
##  $ M_400_499_55_64_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 3 3 ...
##  $ M_400_499_65_74_yrs          : num [1:14073] 0 3 0 3 0 0 3 0 0 3 ...
##  $ M_400_499_75_84_yrs          : num [1:14073] 0 0 0 3 0 0 0 0 3 0 ...
##  $ M_400_499_85ov               : num [1:14073] 0 0 0 0 0 0 0 0 4 0 ...
##  $ M_400_499_Tot                : num [1:14073] 11 10 4 10 3 3 16 9 14 12 ...
##  $ M_500_649_15_19_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_500_649_20_24_yrs          : num [1:14073] 7 3 0 3 0 0 0 0 0 0 ...
##  $ M_500_649_25_34_yrs          : num [1:14073] 0 8 0 0 0 0 0 0 0 0 ...
##  $ M_500_649_35_44_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 3 0 ...
##  $ M_500_649_45_54_yrs          : num [1:14073] 3 0 0 0 4 0 0 0 0 0 ...
##  $ M_500_649_55_64_yrs          : num [1:14073] 3 0 3 0 0 3 0 0 0 0 ...
##  $ M_500_649_65_74_yrs          : num [1:14073] 0 0 3 0 0 0 0 3 0 0 ...
##  $ M_500_649_75_84_yrs          : num [1:14073] 0 0 0 0 0 0 0 5 0 0 ...
##  $ M_500_649_85ov               : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_500_649_Tot                : num [1:14073] 8 18 13 12 7 9 11 13 3 3 ...
##  $ M_650_799_15_19_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_650_799_20_24_yrs          : num [1:14073] 0 4 3 3 0 0 0 0 0 0 ...
##  $ M_650_799_25_34_yrs          : num [1:14073] 5 0 0 4 0 3 3 3 3 0 ...
##  $ M_650_799_35_44_yrs          : num [1:14073] 7 3 4 0 0 3 3 3 0 0 ...
##  $ M_650_799_45_54_yrs          : num [1:14073] 8 0 5 0 0 0 0 0 0 0 ...
##  $ M_650_799_55_64_yrs          : num [1:14073] 4 0 0 4 3 3 0 4 0 0 ...
##  $ M_650_799_65_74_yrs          : num [1:14073] 0 0 4 6 0 3 0 0 0 0 ...
##  $ M_650_799_75_84_yrs          : num [1:14073] 0 0 0 0 3 0 0 0 0 0 ...
##  $ M_650_799_85ov               : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_650_799_Tot                : num [1:14073] 20 8 13 17 10 12 9 14 6 6 ...
##  $ M_800_999_15_19_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_800_999_20_24_yrs          : num [1:14073] 0 3 0 0 0 0 0 0 0 3 ...
##  $ M_800_999_25_34_yrs          : num [1:14073] 7 3 0 6 3 0 3 0 4 0 ...
##  $ M_800_999_35_44_yrs          : num [1:14073] 6 0 3 5 0 0 3 0 0 0 ...
##  $ M_800_999_45_54_yrs          : num [1:14073] 0 0 3 9 0 3 0 0 0 3 ...
##  $ M_800_999_55_64_yrs          : num [1:14073] 3 0 3 3 0 0 0 3 3 0 ...
##  $ M_800_999_65_74_yrs          : num [1:14073] 0 0 0 0 0 5 0 0 0 0 ...
##  $ M_800_999_75_84_yrs          : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_800_999_85ov               : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_800_999_Tot                : num [1:14073] 17 9 14 22 5 16 4 14 13 9 ...
##  $ M_1000_1249_15_19_yrs        : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1000_1249_20_24_yrs        : num [1:14073] 0 3 0 0 3 0 0 0 0 0 ...
##  $ M_1000_1249_25_34_yrs        : num [1:14073] 0 8 0 3 3 4 4 3 9 3 ...
##  $ M_1000_1249_35_44_yrs        : num [1:14073] 3 0 9 8 0 0 8 0 4 0 ...
##  $ M_1000_1249_45_54_yrs        : num [1:14073] 3 0 4 7 3 3 4 3 3 3 ...
##  $ M_1000_1249_55_64_yrs        : num [1:14073] 3 0 7 5 0 3 0 0 0 0 ...
##  $ M_1000_1249_65_74_yrs        : num [1:14073] 0 0 0 0 0 5 0 0 0 0 ...
##  $ M_1000_1249_75_84_yrs        : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1000_1249_85ov             : num [1:14073] 0 0 0 0 0 0 0 0 0 0 ...
##  $ M_1000_1249_Tot              : num [1:14073] 13 13 14 30 18 13 12 7 14 4 ...
##   [list output truncated]
##  - attr(*, "sf_column")= chr "geom"
##  - attr(*, "agr")= Factor w/ 3 levels "constant","aggregate",..: NA NA NA NA NA NA NA NA NA NA ...
##   ..- attr(*, "names")= chr [1:489] "sa1_7digitcode_2016" "Median_age_persons" "Median_mortgage_repay_monthly" "Median_tot_prsnl_inc_weekly" ...
```

]

---

# State or Territory (STE)

```r
vicmap_ste <- read_sf(geopath, layer = "census2016_eiuwa_vic_ste_short")
ggplot(vicmap_ste) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_ste)
```

```
## [1] 1
```

---

# Greater Capital City Statistical Areas (GCCSA)

* Each region with variable population

```r
vicmap_gccsa <- read_sf(geopath, layer = "census2016_eiuwa_vic_gccsa_short")
ggplot(vicmap_gccsa) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_gccsa)
```

```
## [1] 4
```

---

# Section of State (SOS)

* Major urban, other urban, bounded locally & rural balance

```r
vicmap_sos <- read_sf(geopath, layer = "census2016_eiuwa_vic_sos_short")
ggplot(vicmap_sos) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sos)
```

```
## [1] 6
```

---

# Remoteness Areas (RA)

```r
vicmap_ra <- read_sf(geopath, layer = "census2016_eiuwa_vic_ra_short")
ggplot(vicmap_ra) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_ra)
```

```
## [1] 6
```

---

# Section of State Ranges (SOSR)

```r
vicmap_sosr <- read_sf(geopath, layer = "census2016_eiuwa_vic_sosr_short")
ggplot(vicmap_sosr) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sosr)
```

```
## [1] 12
```

---

# Statistical Area Level 4 (SA4)

* Each region with population of 100,000 - 500,000

```r
vicmap_sa4 <- read_sf(geopath, layer = "census2016_eiuwa_vic_sa4_short")
ggplot(vicmap_sa4) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sa4)
```

```
## [1] 19
```

---

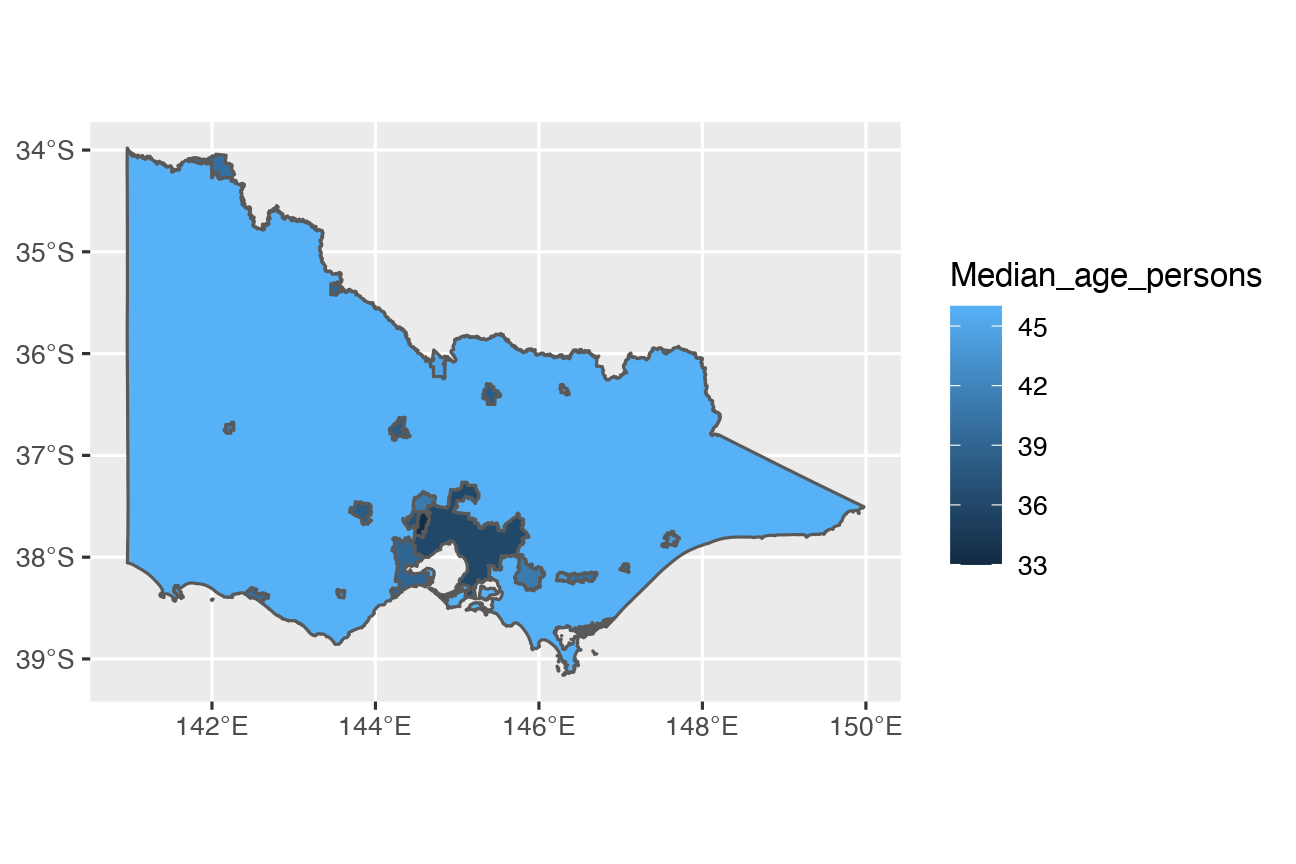

# Significant Urban Areas (SUA)

```r
vicmap_sua <- read_sf(geopath, layer = "census2016_eiuwa_vic_sua_short")
ggplot(vicmap_sua) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sua)
```

```
## [1] 22
```

---

# Commonwealth Electoral Division (CED)

```r
vicmap_ced <- read_sf(geopath, layer = "census2016_eiuwa_vic_ced_short")
ggplot(vicmap_ced) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_ced)
```

```
## [1] 39
```
---

# Statistical Area Level 3 (SA3)

* Each region with population of 30,000 - 130,000

```r
vicmap_sa3 <- read_sf(geopath, layer = "census2016_eiuwa_vic_sa3_short")
ggplot(vicmap_sa3) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sa3)
```

```
## [1] 68
```
---

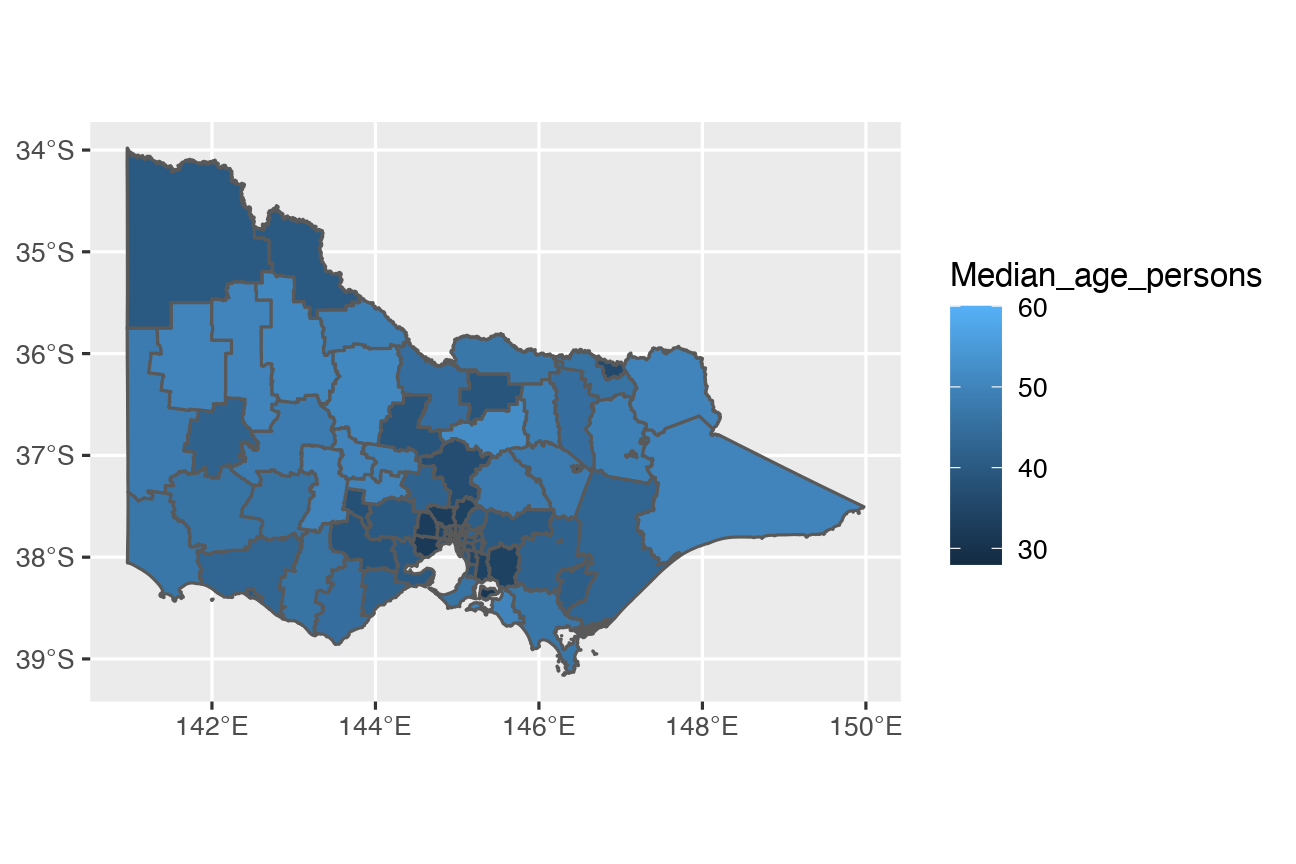

# Local Government Area (LGA)

```r
vicmap_lga <- read_sf(geopath, layer = "census2016_eiuwa_vic_lga_short")
ggplot(vicmap_lga) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_lga)
```

```
## [1] 82
```

---

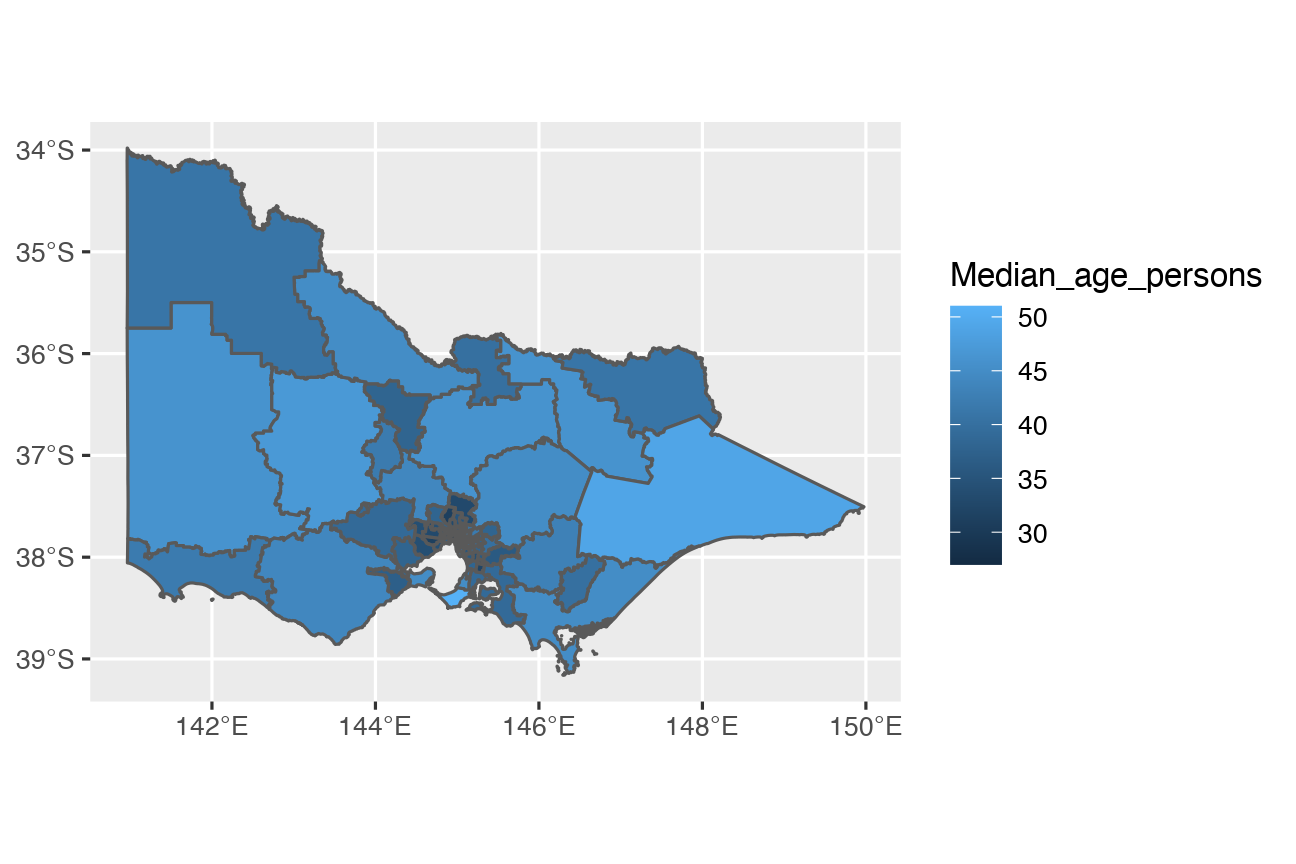

# State Electoral Division (SED)

```r
vicmap_sed <- read_sf(geopath, layer = "census2016_eiuwa_vic_sed_short")
ggplot(vicmap_sed) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sed)
```

```
## [1] 90
```
---

# Urban Centres and Localities (UCL)

```r
vicmap_ucl <- read_sf(geopath, layer = "census2016_eiuwa_vic_ucl_short")
ggplot(vicmap_ucl) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_ucl)
```

```
## [1] 353
```

---

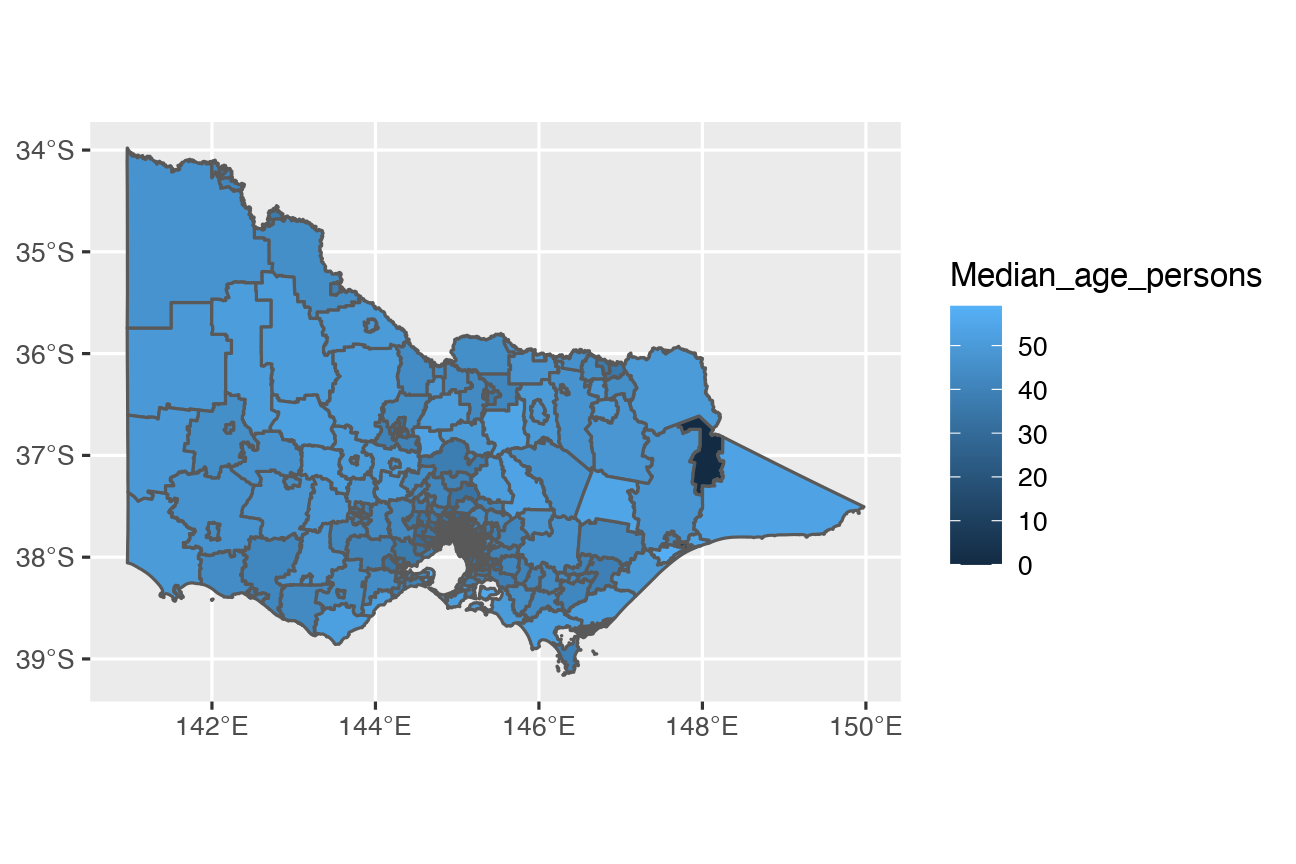

# Statistical Area Level 2 (SA2)

* Each region with populations in the range of 3,000-25,000

```r
vicmap_sa2 <- read_sf(geopath, layer = "census2016_eiuwa_vic_sa2_short")
ggplot(vicmap_sa2) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sa2)
```

```
## [1] 464
```

---

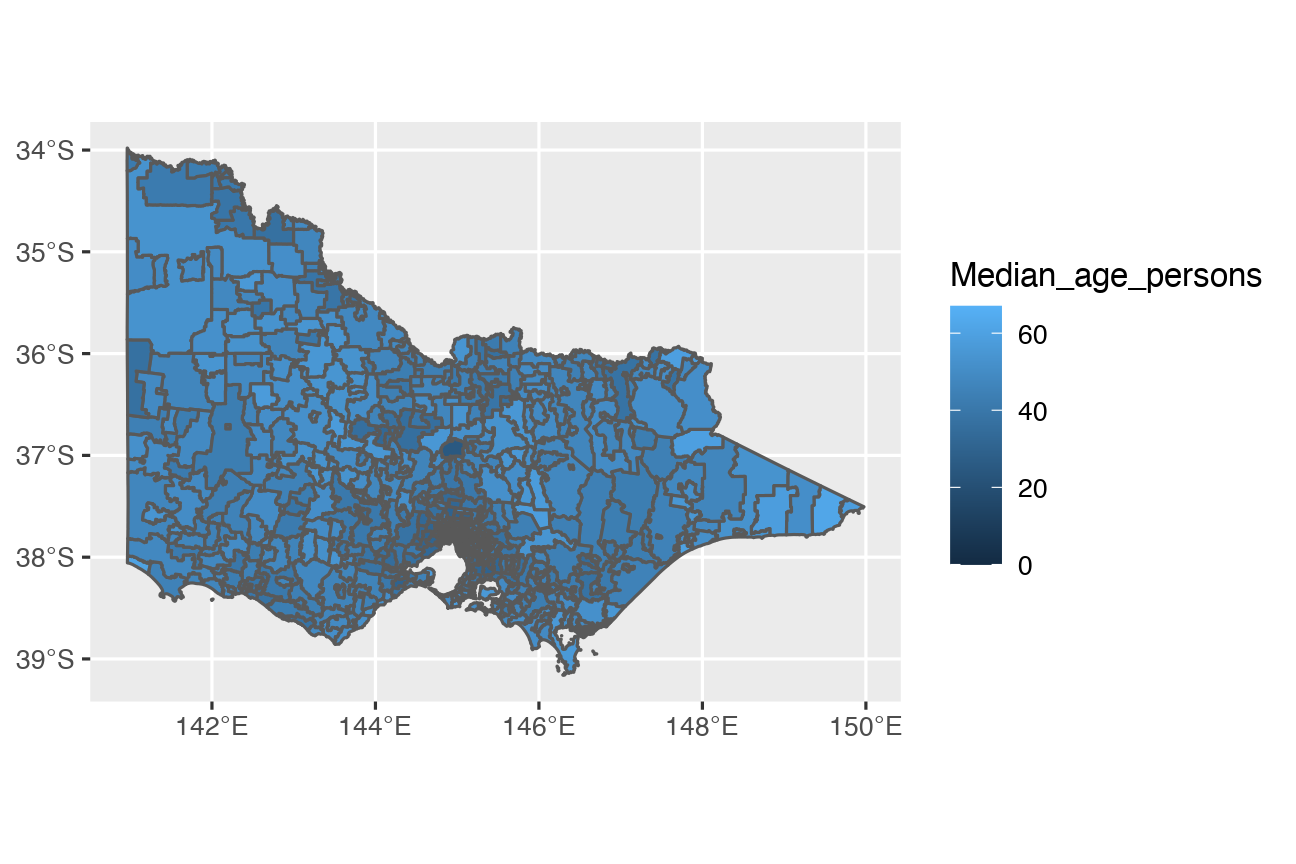

# Postal Areas (POA)

```r
vicmap_poa <- read_sf(geopath, layer = "census2016_eiuwa_vic_poa_short")
ggplot(vicmap_poa) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_poa)
```

```
## [1] 698
```

---

# State Suburbs (SSC)

```r
vicmap_ssc <- read_sf(geopath, layer = "census2016_eiuwa_vic_ssc_short")
ggplot(vicmap_ssc) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_ssc)
```

```
## [1] 2931
```

---

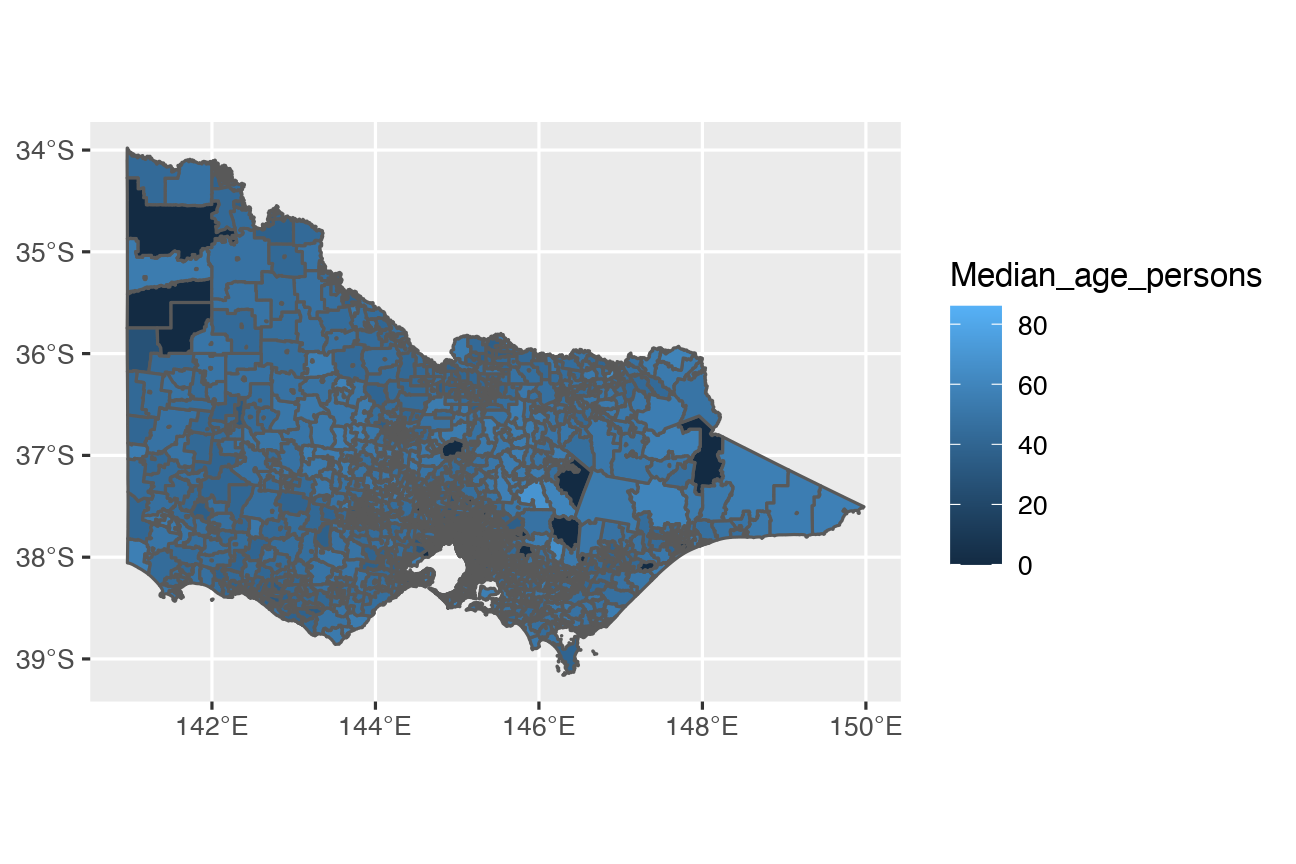

# Statistical Area Level 1 (SA1)

* Each region with a population of range 200-800

```r
vicmap_sa1 <- read_sf(geopath, layer = "census2016_eiuwa_vic_sa1_short")
ggplot(vicmap_sa1) +
 geom_sf(aes(geometry = geom, fill = Median_age_persons))
```

```r
nrow(vicmap_sa1)
```

```
## [1] 14073
```

---

# Electorate boundary vs Census boundary

🎯 Estimate a median age for an electorate

---

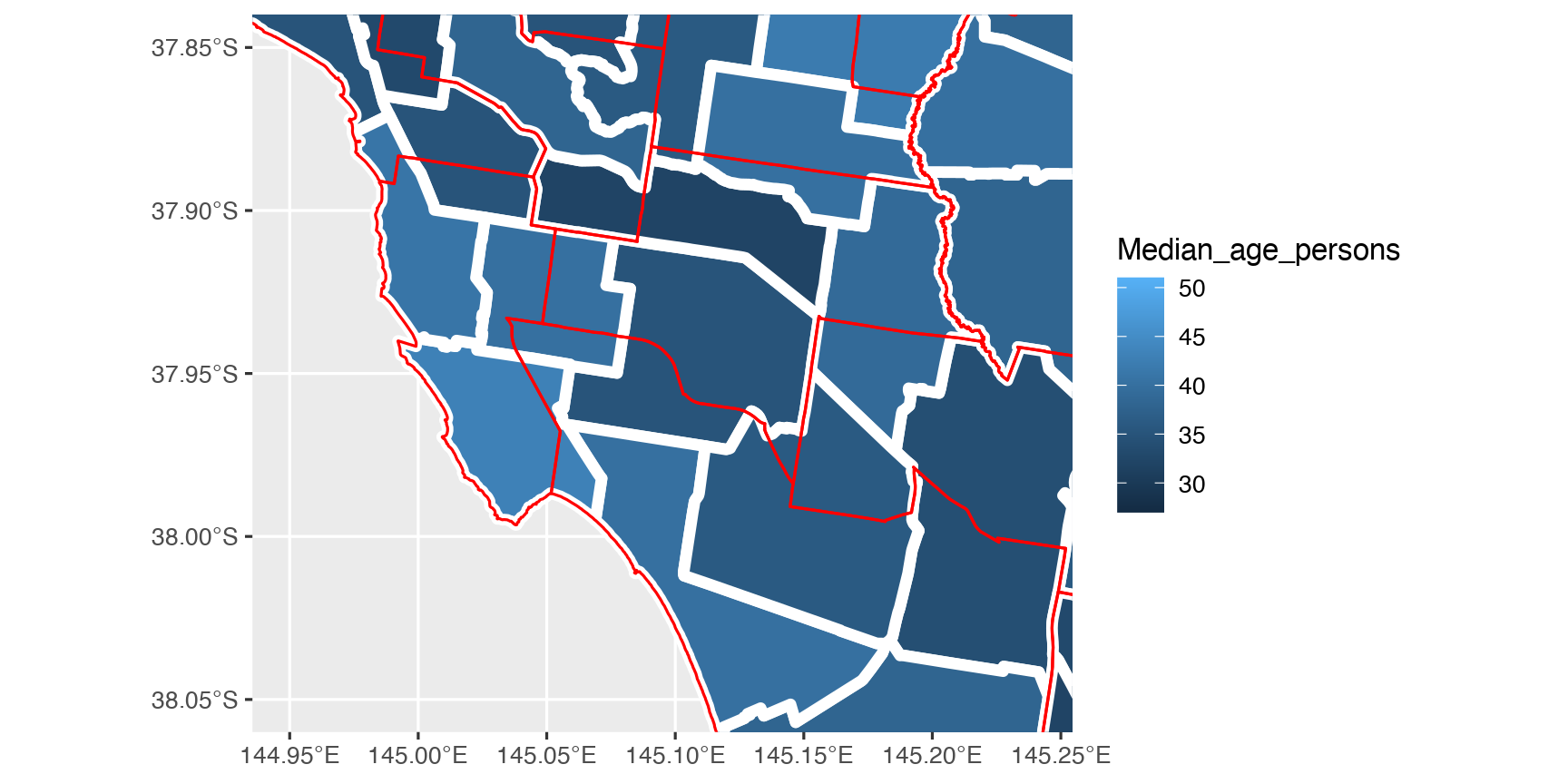

# Comparing SED 2016 and electorates divisions 2019

```r
ggplot(winners_fix) +
  geom_sf(data = vicmap_sed, aes(geometry = geom, fill = Median_age_persons),
          alpha = 1, color = "white", size = 2) +
  geom_sf(aes(geometry = geometry),
          fill = "transparent", color = "red") +
  coord_sf(xlim = c(144.95, 145.24), ylim = c(-38.05, -37.85))
```

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[1]

```r
electorate <- winners_fix %>%
 filter(DivisionNm=="Hotham")

*sed_intersect <- vicmap_sed %>%
* filter(st_intersects(geom,
* electorate$geometry,
* sparse = FALSE)[,1])

ggplot(electorate, aes(geometry = geometry)) +
  geom_sf() +
  geom_sf_text(aes(label = DivisionNm)) +
  geom_sf(data = sed_intersect,
          aes(geometry = geom),
          color = "red", fill = "transparent") +
  geom_sf_text(data = sed_intersect,
            aes(label = sed_code_2016,
                geometry = geom),
            color = "red")
```

]

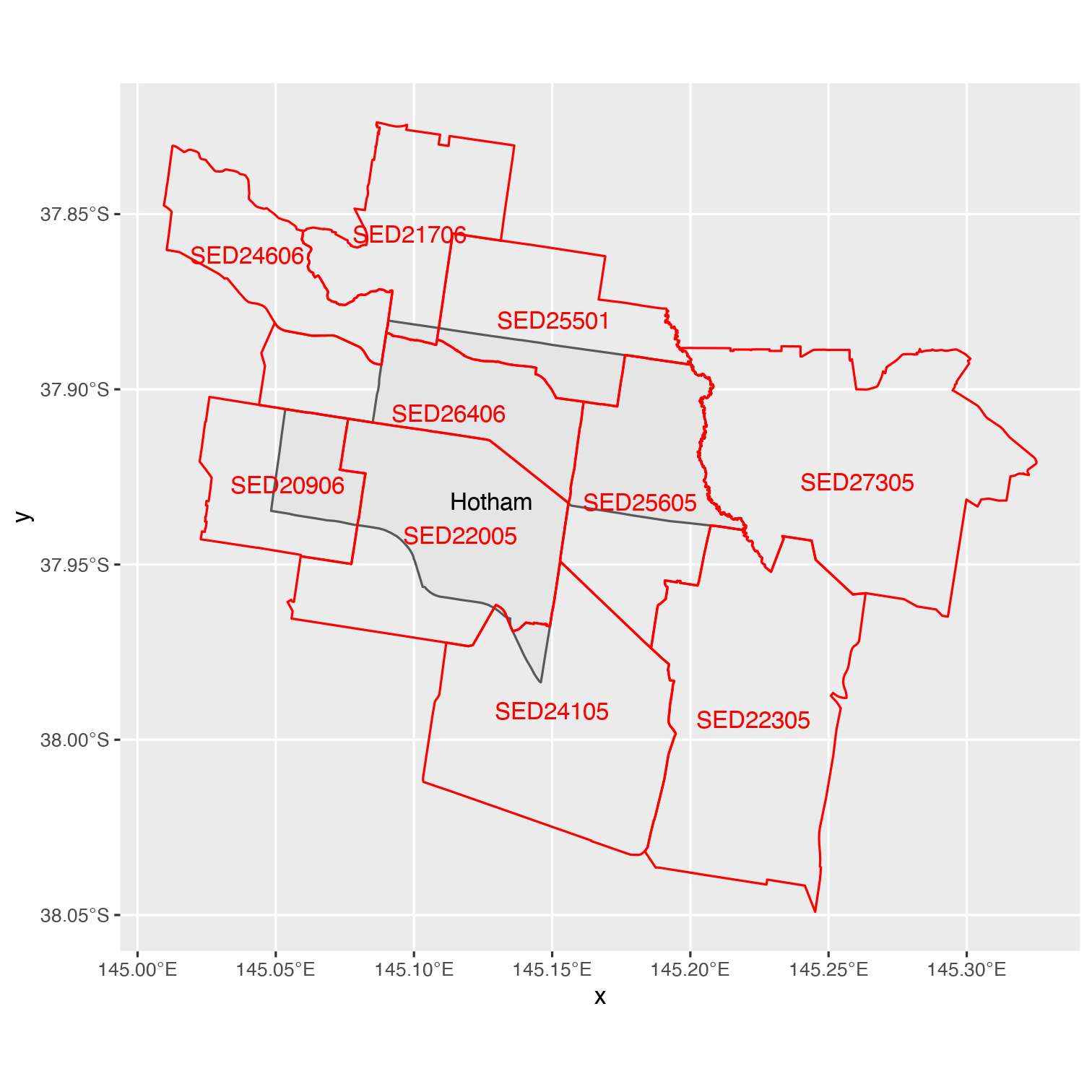

* There are 10 SED regions that intersect with Hotham electorate.

]
.w-50[
<img src="images/lecture-06/district-map-1.png" width="504" style="display: block; margin: auto;" />
]
]

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[2]

```r
*sed_intersect2 <- sed_intersect %>%
* mutate(geometry = st_intersection(geom, electorate$geometry),
* perc_area = 100 * st_area(geometry) / st_area(geom),
* perc_area = as.numeric(perc_area)) %>%
* filter(perc_area > 5)

ggplot(sed_intersect2, aes(geometry = geometry)) +
  geom_sf(data = electorate) +
  geom_sf_text(data = electorate,
               aes(label = DivisionNm)) +
  geom_sf(color = "red", aes(fill = Median_age_persons)) +
  geom_sf_text(aes(
    label = glue::glue("{sed_code_2016}
                        ({scales::comma(perc_area, 1)}%, {Median_age_persons})")),
    color = "red") +
  theme(legend.position = "bottom")
```

]

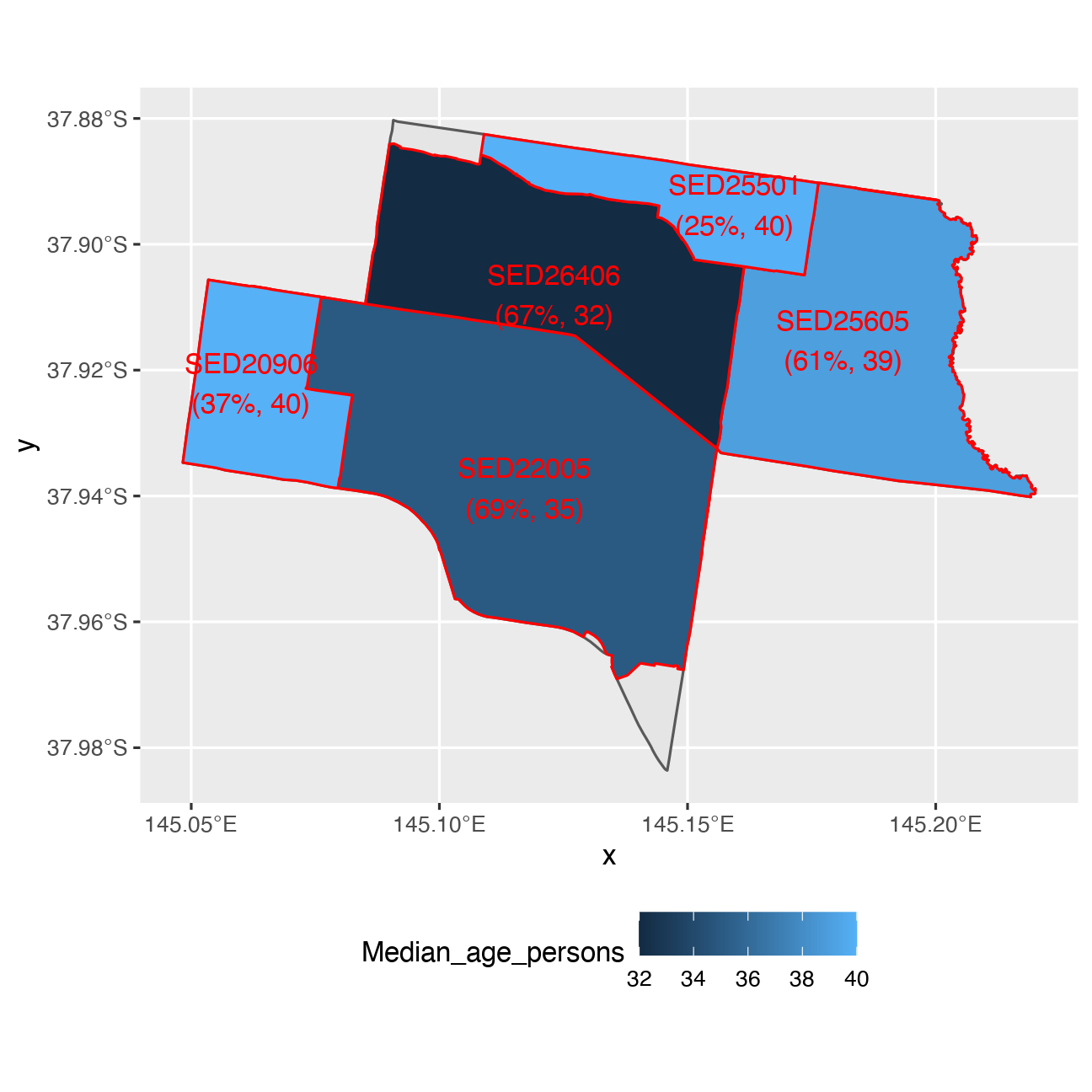

* There are 5 SED areas with at least 5% intersection with the electoral area.
* **How would you characterise the median age for Hotham?**
]
.w-40[
<img src="images/lecture-06/district-map2-1.png" width="432" style="display: block; margin: auto;" />
]

]

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[3]

.flex[
.w-40[
<img src="images/lecture-06/district-map2-1.png" width="432" style="display: block; margin: auto;" />
]
.w-60.f5[
**Strategy 1**

```r
sort(sed_intersect2$Median_age_persons)
```

```
## [1] 32 35 39 40 40
```

]]

**Strategy 2**

```r
mean(sed_intersect2$Median_age_persons)
```

```
## [1] 37.2
```

**Strategy 3**

```r
weighted.mean(sed_intersect2$Median_age_persons,
              sed_intersect2$perc_area)
```

```
## [1] 36.35205
```

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[4]

```r
*sa1_intersect <- vicmap_sa1 %>%
 filter(st_intersects(geom,
 electorate$geometry,
 sparse = FALSE)[,1])
sa1_intersect2 <- sa1_intersect %>%
 mutate(geometry = st_intersection(geom, electorate$geometry),
 perc_area = 100 * st_area(geometry) / st_area(geom),
* perc_area = as.numeric(perc_area)) %>%
 filter(perc_area > 5)

ggplot(sa1_intersect) +
  geom_sf(color = "red",
          aes(fill = Median_age_persons,
              geometry = geom)) +
  geom_sf(data = electorate, color = "white", size = 2,
          fill = "transparent",
          aes(geometry = geometry)) +
  theme(legend.position = "bottom")
```
]]

.w-50[
<img src="images/lecture-06/sa1-intersect-1.png" width="432" style="display: block; margin: auto;" />
]]

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[5]

.flex[
.w-40[
<img src="images/lecture-06/sa1-intersect-1.png" width="432" style="display: block; margin: auto;" />
]
.w-60.f5[
**Strategy 1**

```r
fivenum(sa1_intersect2$Median_age_persons)
```

```
## [1]  0 34 38 42 82
```

]]

**Strategy 2**

```r
mean(sa1_intersect2$Median_age_persons)
```

```
## [1] 37.38235
```

**Strategy 3**

```r
weighted.mean(sa1_intersect2$Median_age_persons, sa1_intersect2$perc_area)
```

```
## [1] 37.35034
```

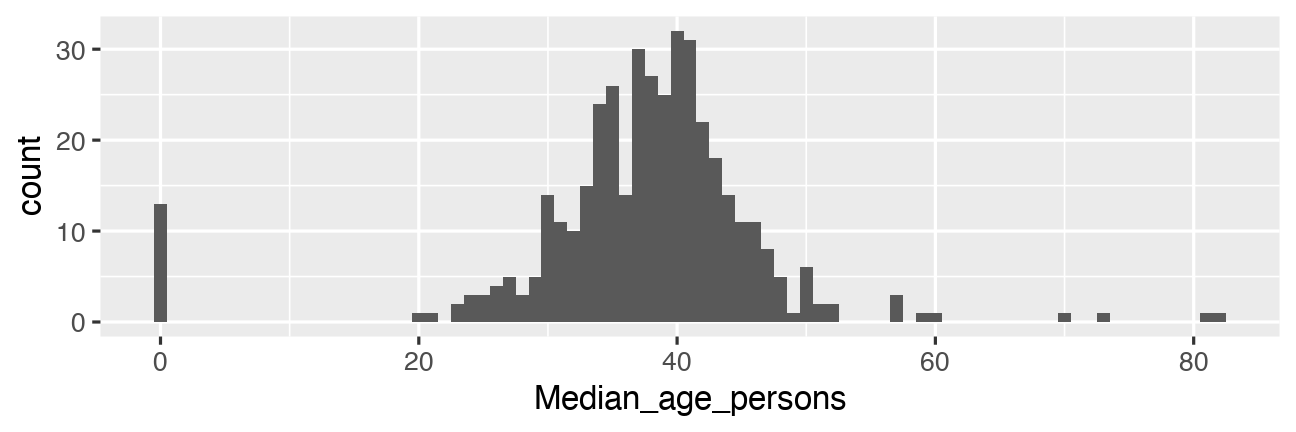

**Strategy 4**

```r
ggplot(sa1_intersect2, aes(x = Median_age_persons)) +
  geom_histogram(binwidth = 1)
```

---

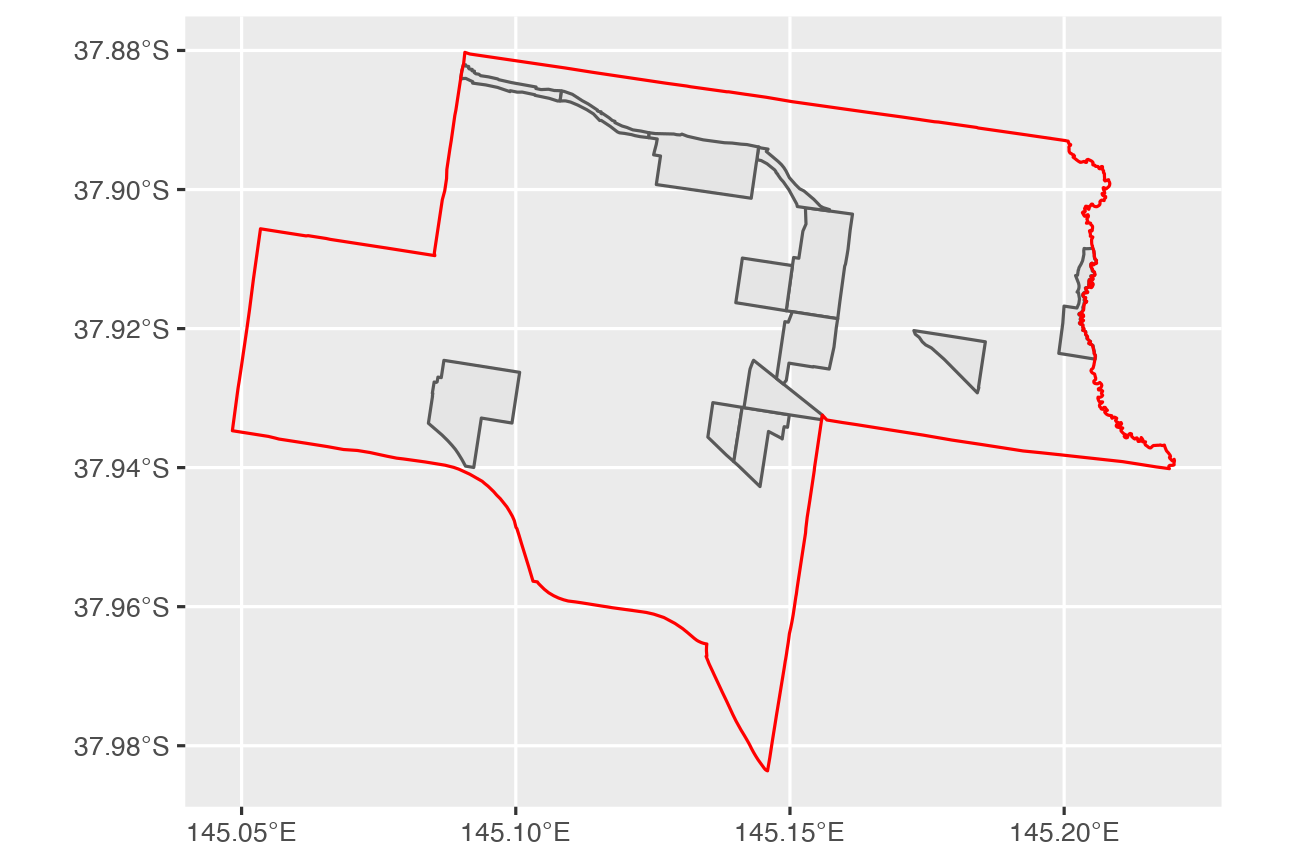

# Closer look 🕵️ Zero median age

```r
sa1_intersect2 %>%
  filter(Median_age_persons==0) %>%
  ggplot() +
  geom_sf() +
  geom_sf(data = electorate, color = "red",
          fill = "transparent",
          aes(geometry = geometry))
```

]
]

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[6]

## Before

**Strategy 1**

```r
fivenum(sa1_intersect2$Median_age_persons)
```

```
## [1]  0 34 38 42 82
```

**Strategy 2**

```r
mean(sa1_intersect2$Median_age_persons)
```

```
## [1] 37.38235
```

**Strategy 3**

```r
weighted.mean(sa1_intersect2$Median_age_persons, sa1_intersect2$perc_area)
```

```
## [1] 37.35034
```
]
.w-60.f5.pl3[

## After

```r
sa1_intersect3 <- sa1_intersect2 %>%
 filter(Median_age_persons != 0)
```

]]

**Strategy 1**

```r
fivenum(sa1_intersect3$Median_age_persons)
```

```
## [1] 20 34 38 42 82
```

**Strategy 2**

```r
mean(sa1_intersect3$Median_age_persons)
```

```
## [1] 38.61266
```

**Strategy 3**

```r
weighted.mean(sa1_intersect3$Median_age_persons, sa1_intersect3$perc_area)
```

```
## [1] 38.58491
```

---

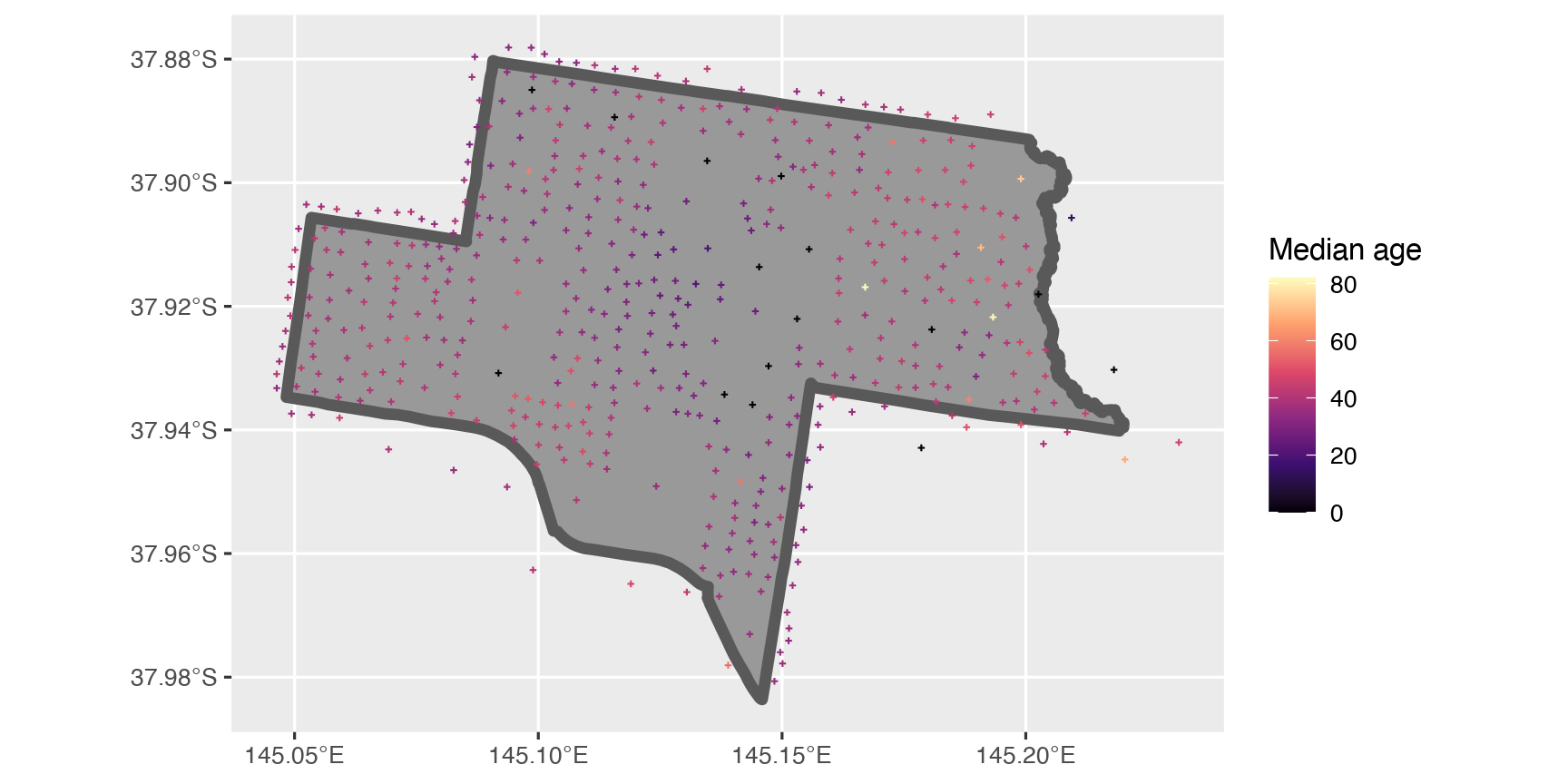

# Dorling Cartogram

```r
sa1_intersect4 <- sa1_intersect %>%
 mutate(centroid = st_centroid(geom))
ggplot(sa1_intersect4) +
 geom_sf(data = electorate,
 aes(geometry = geometry), size = 2, fill = "grey60") +
 geom_sf(aes(geometry = centroid, color = Median_age_persons),
 size = 0.5, shape = 3) +
 scale_color_viridis_c(name = "Median age", option = "magma")
```

---

# Closer look 🔬 Hotham electorate .circle.monash-bg-black.white[7]

```r
sa1_intersect5 <- sa1_intersect4 %>%
 filter(st_intersects(centroid,
 electorate$geometry,
 sparse = FALSE)[,1],
 Median_age_persons!=0)
```

**Strategy 1**

```r
fivenum(sa1_intersect5$Median_age_persons)
```

```
## [1] 20 34 38 42 82
```

**Strategy 2**

```r
mean(sa1_intersect5$Median_age_persons)
```

```
## [1] 38.58015
```

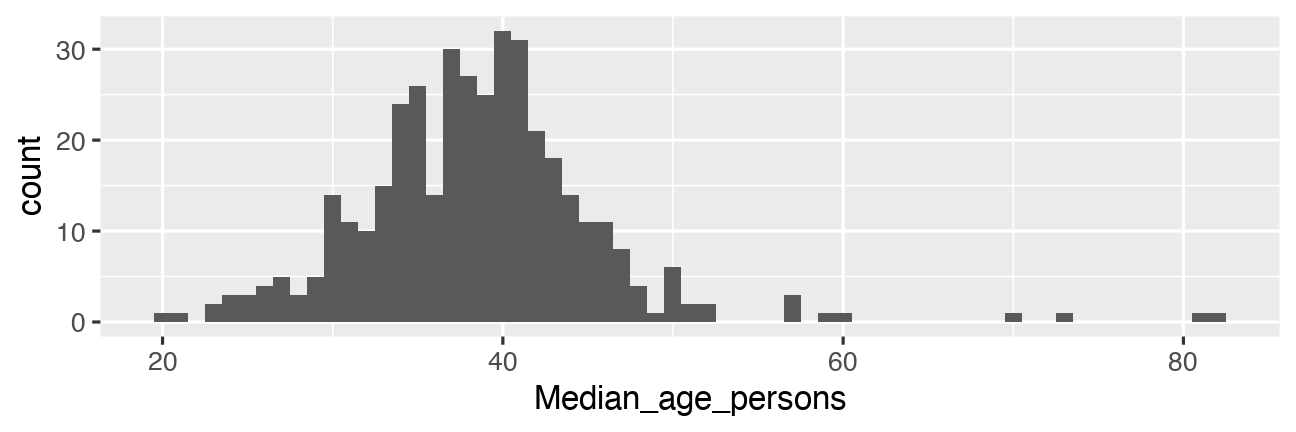

**Strategy 4**

```r
ggplot(sa1_intersect5, aes(x = Median_age_persons)) +
  geom_histogram(binwidth = 1)
```

]
.w-60[

]]

<div class="idea-box">
<ul>
<li>There are many ways to characterise an electorate.</li>
<li>Estimates of median age of an electorate is more consistent using SA1 map data than SED map data.</li>
</ul>
</div>

---

.idea-box.tl.w-70[

## Summary

* We looked at mapping the 2016 census boundaries and projected a summary of the census variable (i.e. median age) onto a 2019 electoral district

]

.info-box.tl.w-70[
Read [Forbes, Cook & Hyndman (2020) Spatial modelling of the two-party preferred vote in Australian federal elections: 2001–2016. *Australian & New Zealand Journal of Statisitcs*. ](https://onlinelibrary.wiley.com/doi/abs/10.1111/anzs.12292) for a more sophisticated approach to studying the census variables and election results together.
]

---

background-size: cover
class: title-slide
background-image: url("images/bg-01.png")

<a rel="license" href="http://creativecommons.org/licenses/by-sa/4.0/"><img alt="Creative Commons License" style="border-width:0" src="https://i.creativecommons.org/l/by-sa/4.0/88x31.png" /></a> This work is licensed under a <a rel="license" href="http://creativecommons.org/licenses/by-sa/4.0/">Creative Commons Attribution-ShareAlike 4.0 International License</a>.

.bottom_abs.width100[

Lecturer: *Emi Tanaka*

Department of Econometrics and Business Statistics

ETC5512.Clayton-x@monash.edu

Week 6

]
