## ETC3250/5250

Introduction to Machine Learning

### Support vector machines

Lecturer: Emi Tanaka

Department of Econometrics and Business Statistics

## Hyperplane

• In a p-dimensional space, a hyperplane is a linear subspace of dimension p - 1.

• A p-dimensional hyperplane is given as

\beta_0 + \beta_1 x_1 + \dots + \beta_p x_p = 0.

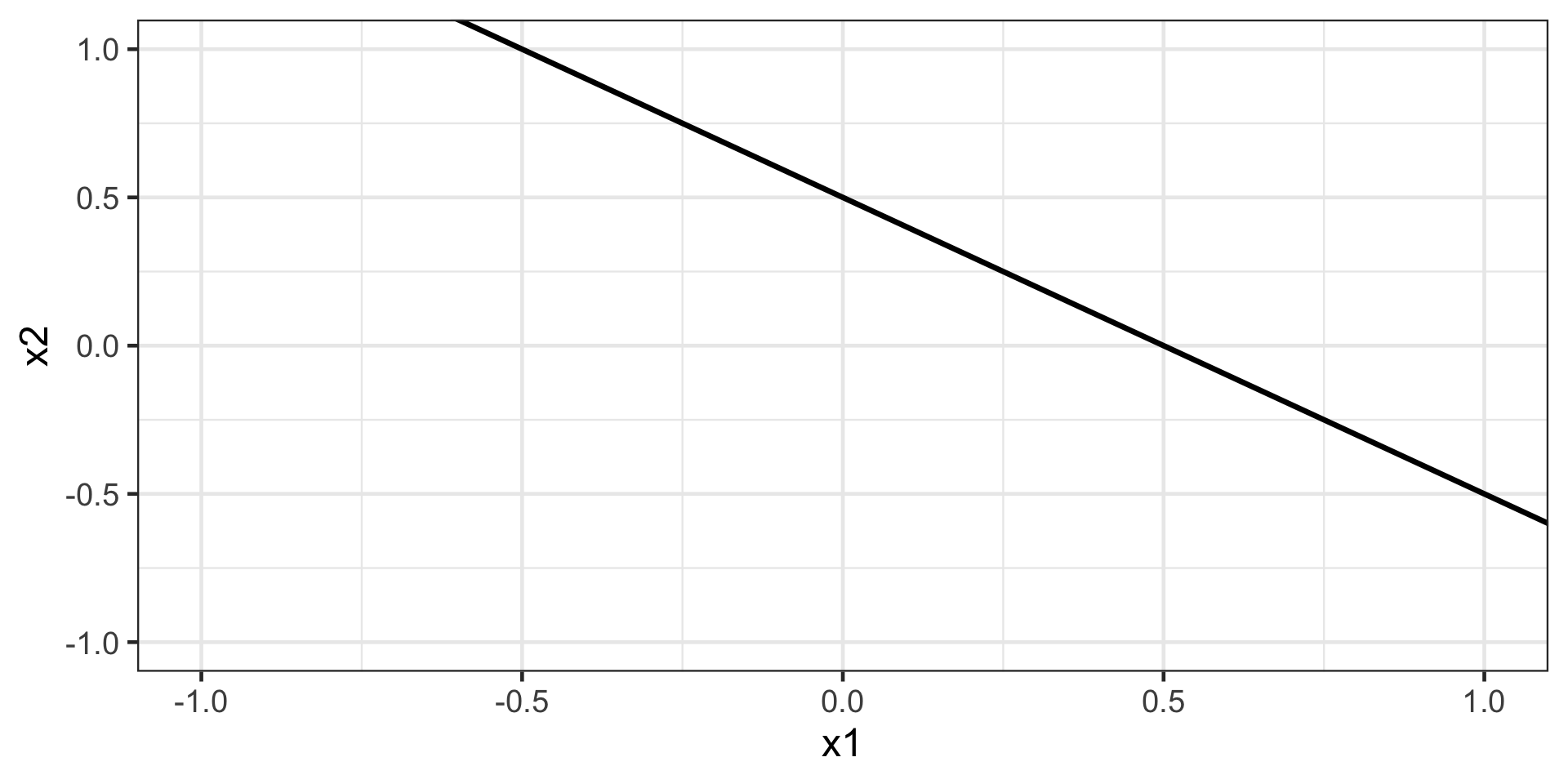

## Hyperplane in 2D

• For p = 2, a hyperplane is a line.

## Hyperplane in 3D

• For p = 3, a hyperplane is a plane.

## Separating hyperplanes

• A hyperplane divides the p-space into two sides.
• Suppose we have a new observation \boldsymbol{x}_0 = (x_{01}, x_{02}, \dots, x_{0p})^\top with g(x_0) = \beta_0 + \beta_1 x_{01} + \dots + \beta_p x_{0p}.
• \boldsymbol{x}_0 is on side 1 if g(\boldsymbol{x}_0) > 0.
• \boldsymbol{x}_0 is on side 2 if g(\boldsymbol{x}_0) < 0.
• \boldsymbol{x}_0 is on the hyperplane if g(\boldsymbol{x}_0) = 0.
• The magnitude of g(\boldsymbol{x}_0) tells us how far from \boldsymbol{x}_0 is from the hyperplane.

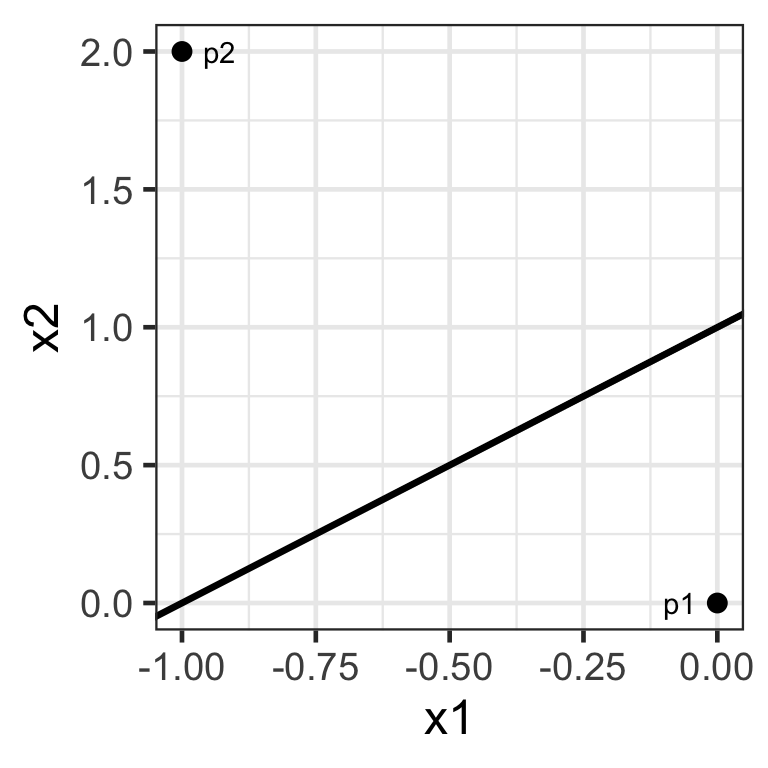

## Example

• Suppose we have g(\boldsymbol{x}) = 1 + x_{1} - x_2.
• Consider the points \boldsymbol{p}_1 = (0, 0)^\top and \boldsymbol{p}_2 = (0, 2)^\top.
• \boldsymbol{p}_1 is on side 1.
• \boldsymbol{p}_2 is on side 2.

## SVM disambiguation

• Support vector machine methods refer to three main approaches:
• Maximal margin classifier.
• Support vector classifier.
• Support vector machines.
• To avoid confusion, we call these as support vector machine methods and reserve the name support vector machines for the third approach.

# Maximal marginal classifier

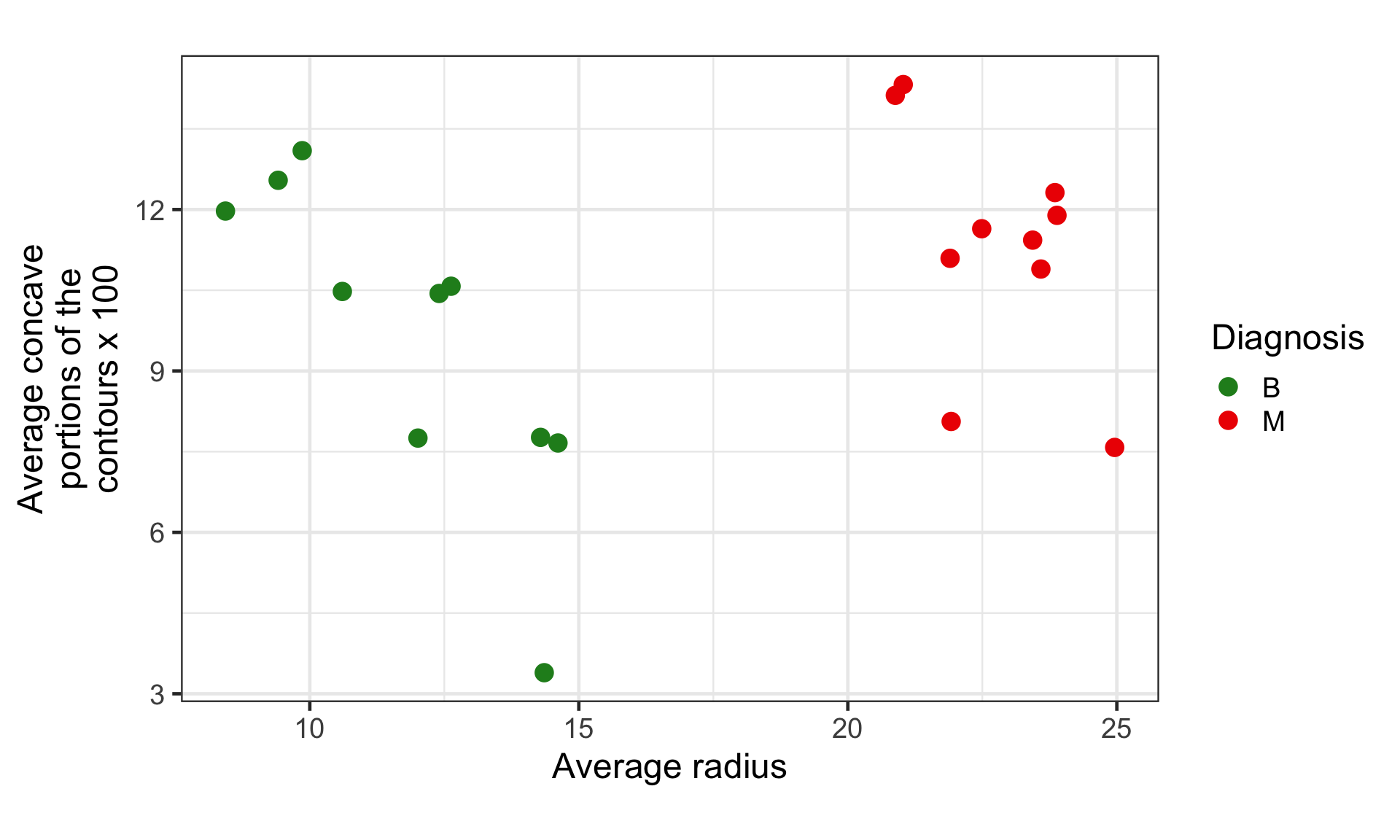

## Infinite hyperplanes

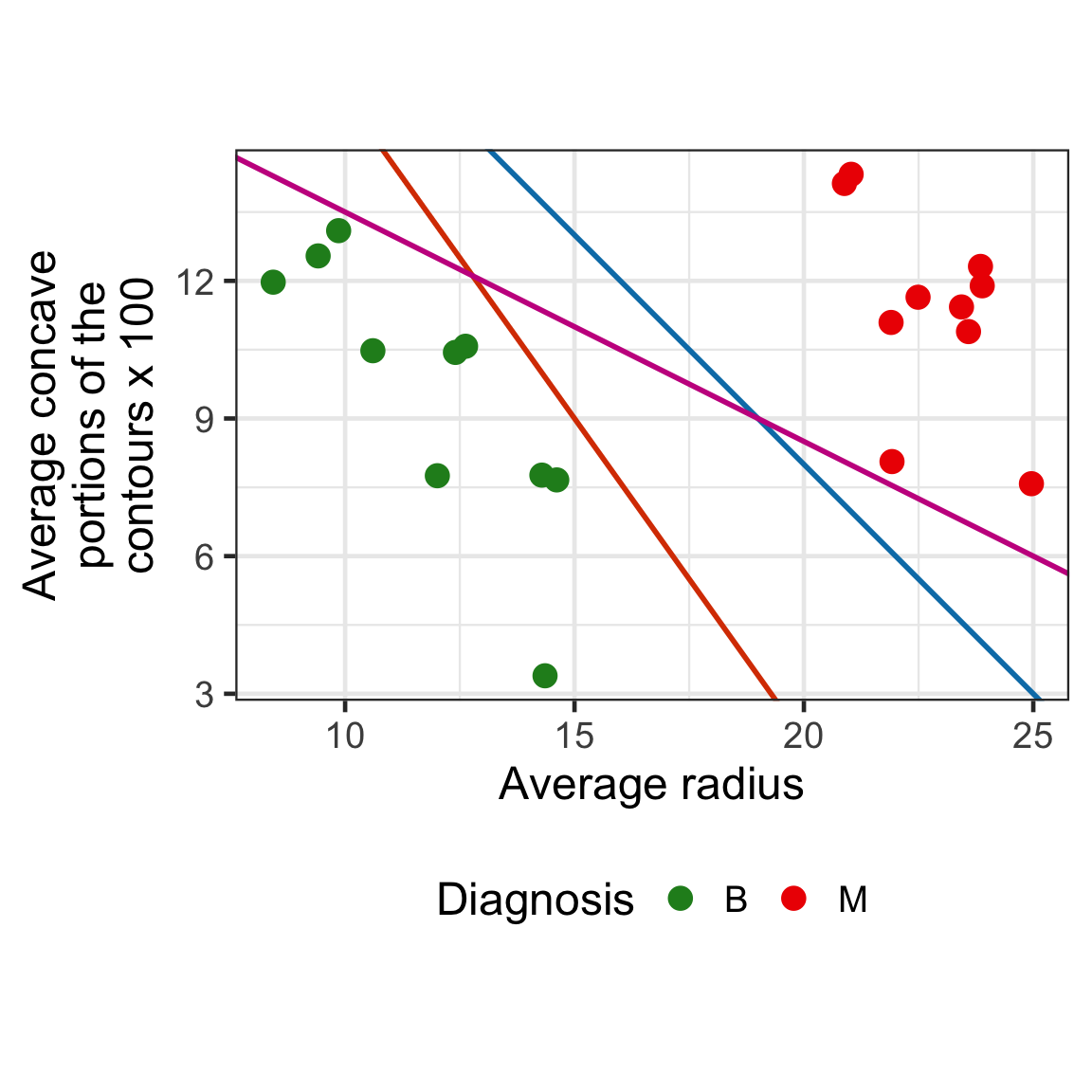

• There are infinite number of hyperplanes to perfectly classify these points. E.g.,
1. 28 - x_{1} - x_{2} = 0
2. 30 - 1.4x_{1} - x_{2} = 0
3. 18.5 - 0.5x_{1} - x_{2} = 0
• All three do a perfect job to separate the classes.
• Which one should be we choose?

## Distance to hyperplane

• We compute the (perpendicular) distance from each training observation to a given separating hyperplane.
• The smallest such distance is known as the margin (M).
• The maximal margin hyperplane is the separating hyperplane for which the margin is largest.
• We can then classify a test observation based on which side of the maximal margin hyperplane it lies.
• This is known as the maximal margin classifier.

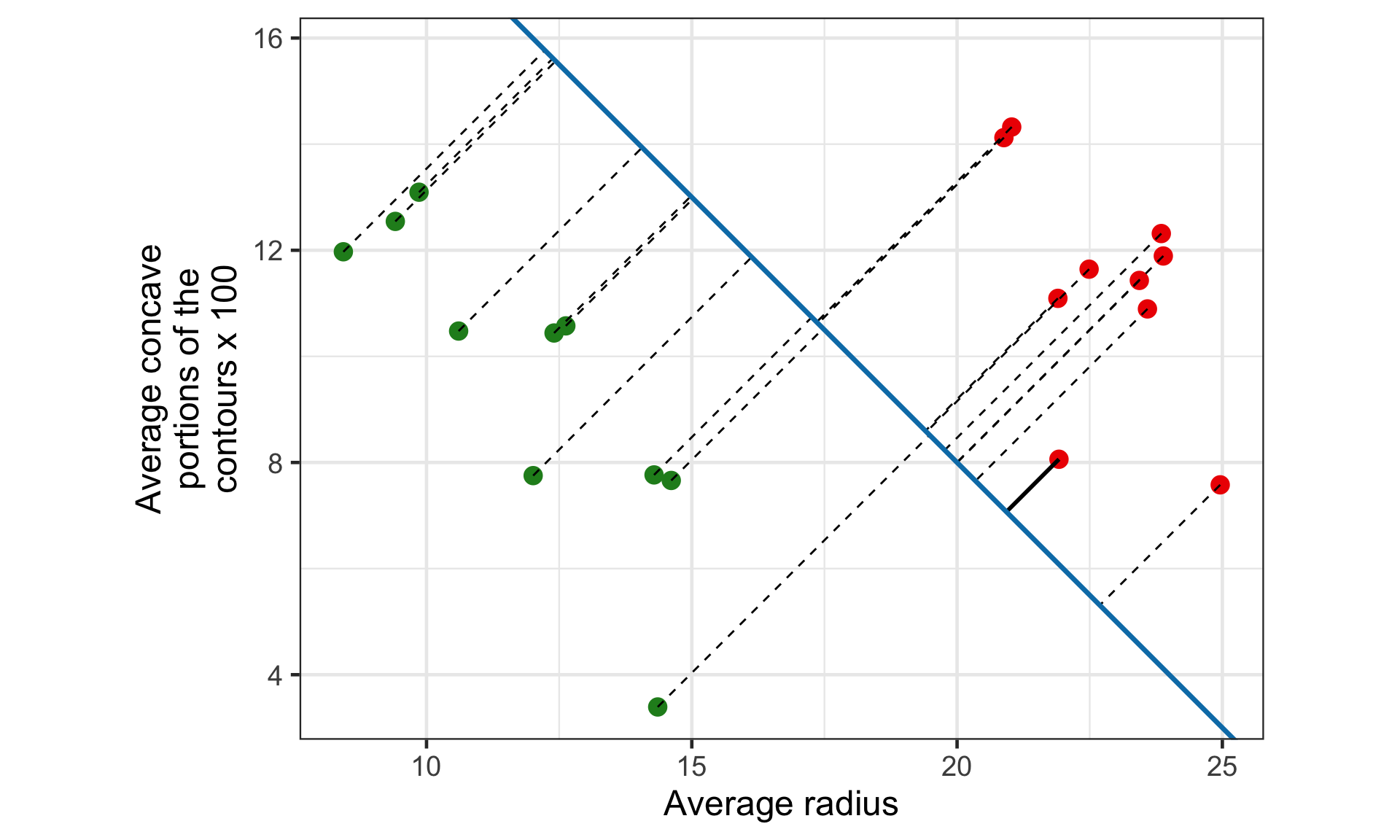

## Margin for hyperplane (a)

The margin for this hyperplane is 1.4.

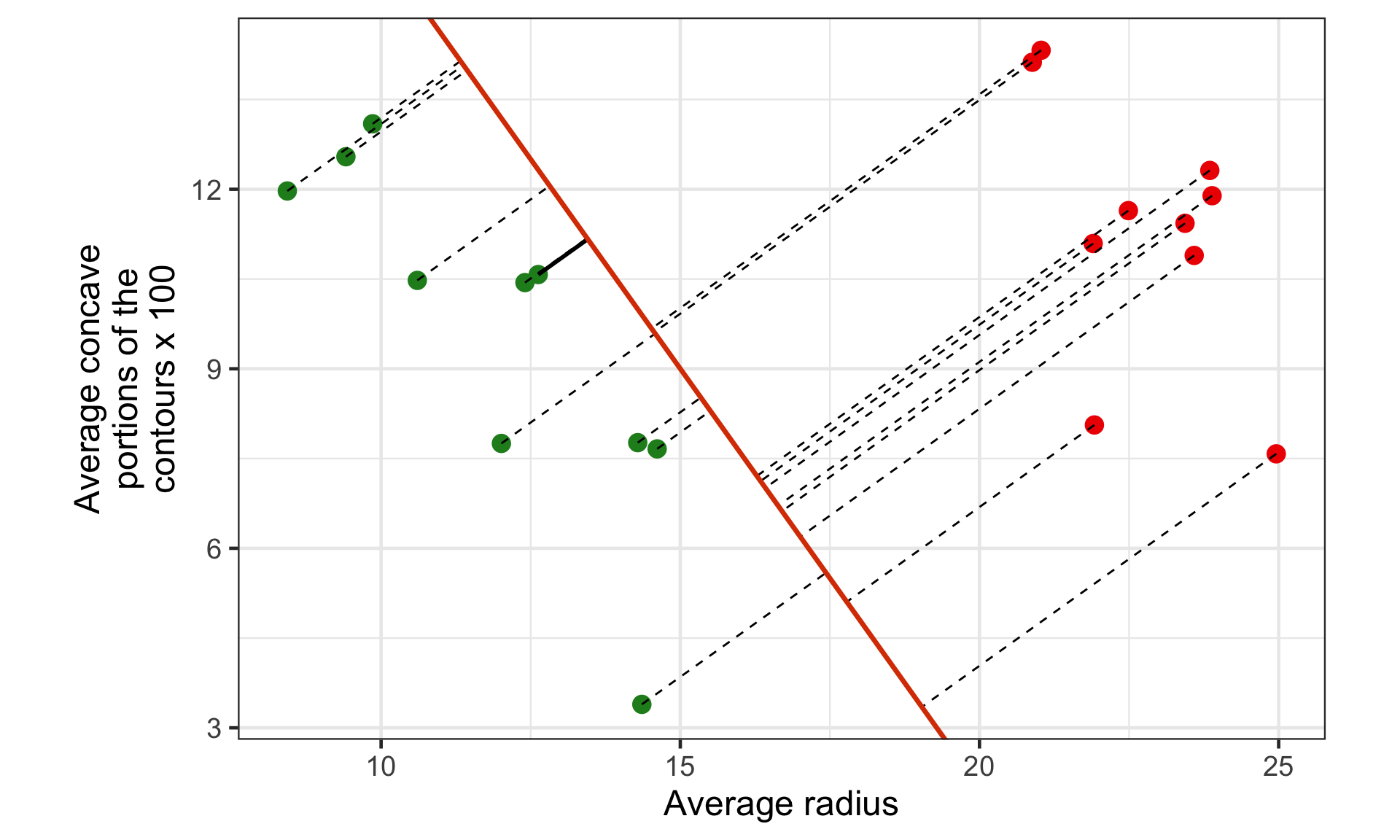

## Margin for hyperplane (b)

The margin for this hyperplane is 1.02.

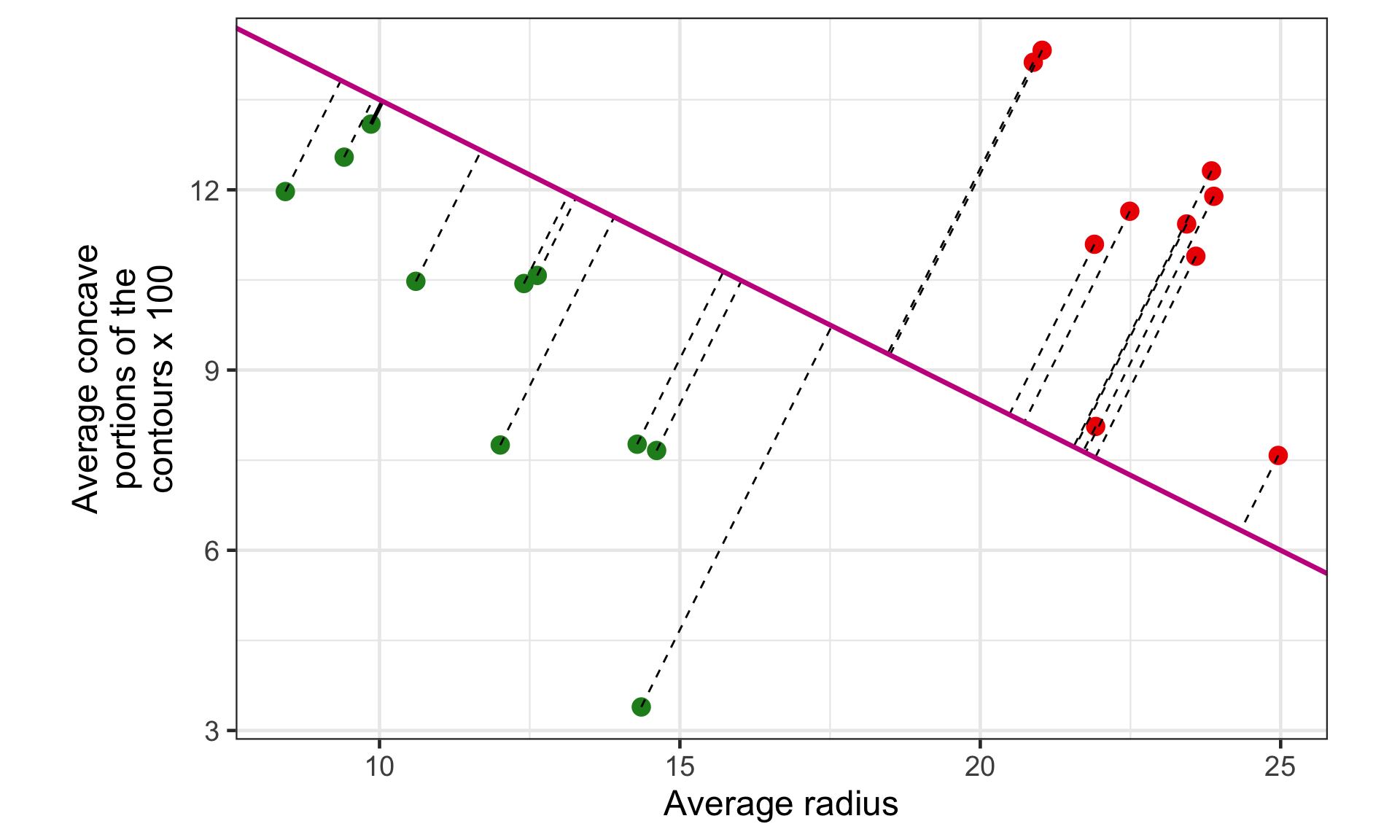

## Margin for hyperplane (c)

The margin for this hyperplane is 0.43.

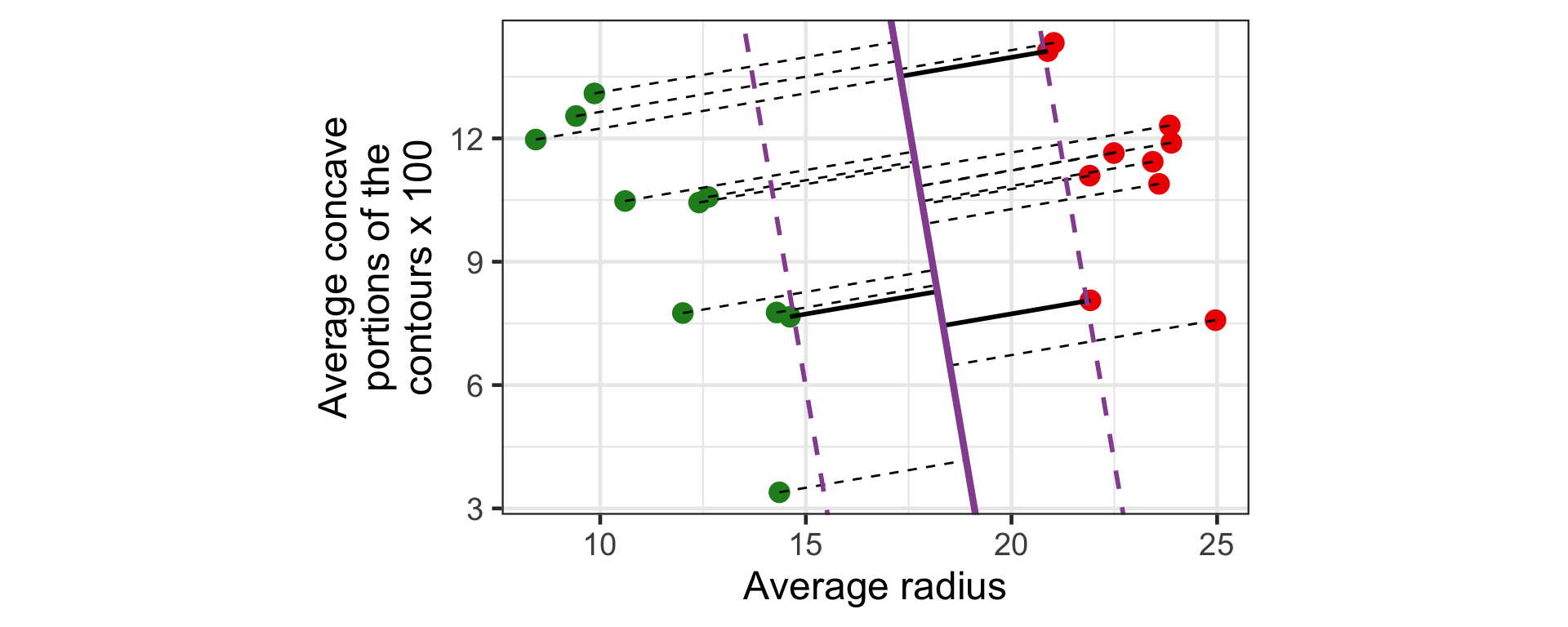

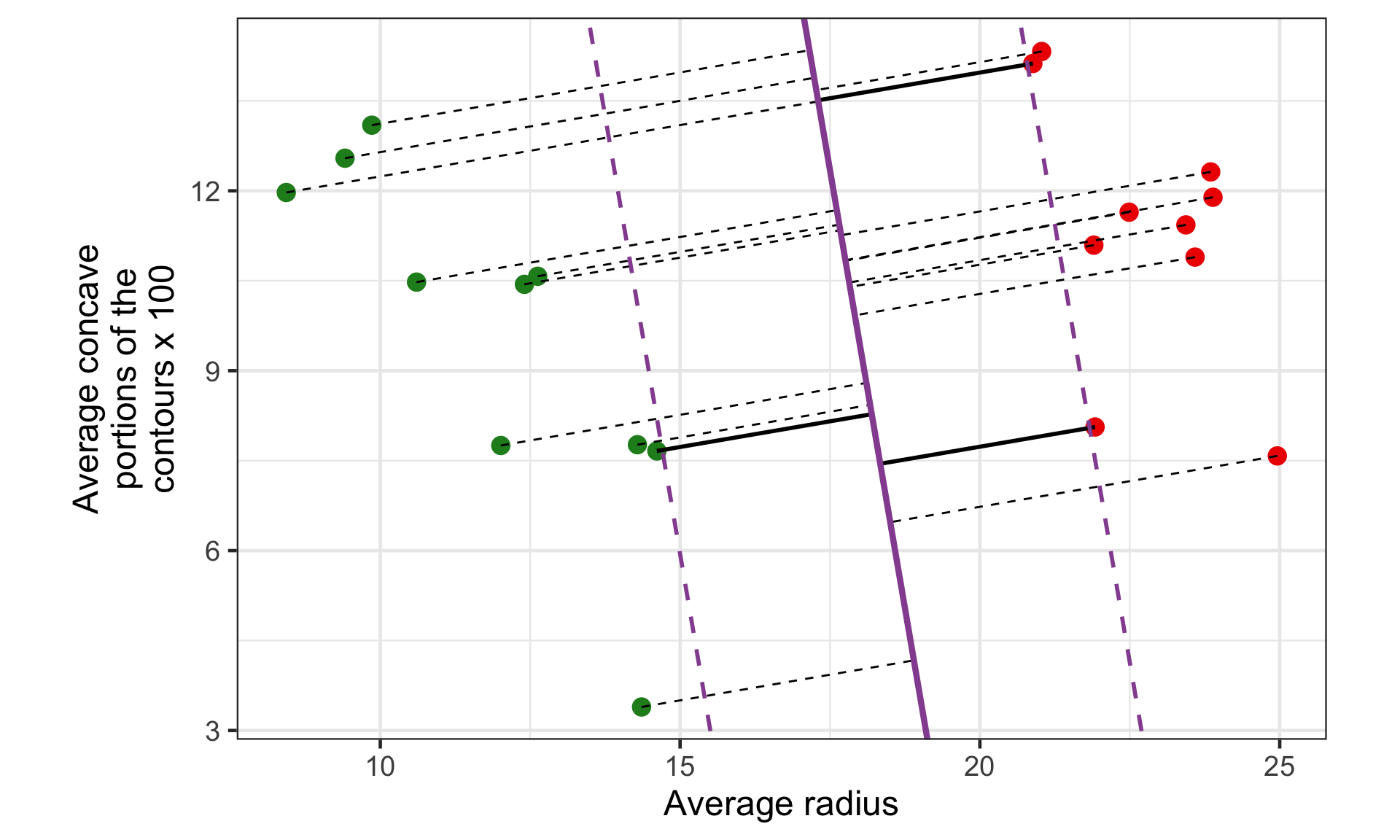

## Maximal margin classifier

The maximal margin hyperplane is the plane that correctly classifies all observations but also is farthest away from them.

## Support vectors

• There will always be at least two equidistant vectors vectors to the maximal margin hyperplane.
• These are called support vectors – there are three in this example.

## Maximal margin hyperplane

• Suppose that y_i = \begin{cases}1 & \text{if observation $i$ in class 1}\\-1& \text{if observation $i$ in class 2}\end{cases}.
• The maximal margin hyperplane is found from solving the optimisation problem: \hat{\boldsymbol{\beta}} = \arg\max_{\boldsymbol{\beta}\in\mathbb{R}^{p+1}}M subject to \sum_{j=1}^p \beta_j^2 = 1 and y_i \times g(\boldsymbol{x}_i) \geq M.

## Non-separable case

• The maximal margin classifier only works when we have perfect separability in our data.

• What do we do if data is not perfectly separable by a hyperplane?

• The support vector classifier allows points to either lie on the wrong side of the margin, or on the wrong side of the hyperplane altogether.

# Support vector classifier

## Support vector classifier

• Support vector classifier allows some observation to be closer to the hyperplane than the support vectors.
• It also allows some observations to be on the incorrect side of the hyperplane (i.e. allows for some misclassification).
• It will try to classify the remaining observations to be classified correctly.

## Optimisation

• For support vector classification, we solve the optimisation problem: \hat{\boldsymbol{\beta}} = \arg\max_{\boldsymbol{\beta}\in\mathbb{R}^{p+1}}M subject to \sum_{j=1}^p \beta_j^2 = 1 and y_i \times g(\boldsymbol{x}_i) \geq M(1 - \varepsilon_i).
• \varepsilon_i \geq 0 is called the slack variable and \sum_{i=1}^n\varepsilon_i \leq C.
• If 0 < \varepsilon_i \leq 1, observation i is correctly classified but it violates the margin.
• If \varepsilon_i > 1, observation is incorrectly classified.

## Tuning parameter C

• C restricts the magnitude of \varepsilon_i.
• If C = 0, then all \varepsilon_i = 0 thus support vector classifier is equivalent to maximum margin classifier.
• You can select C using cross-validation.

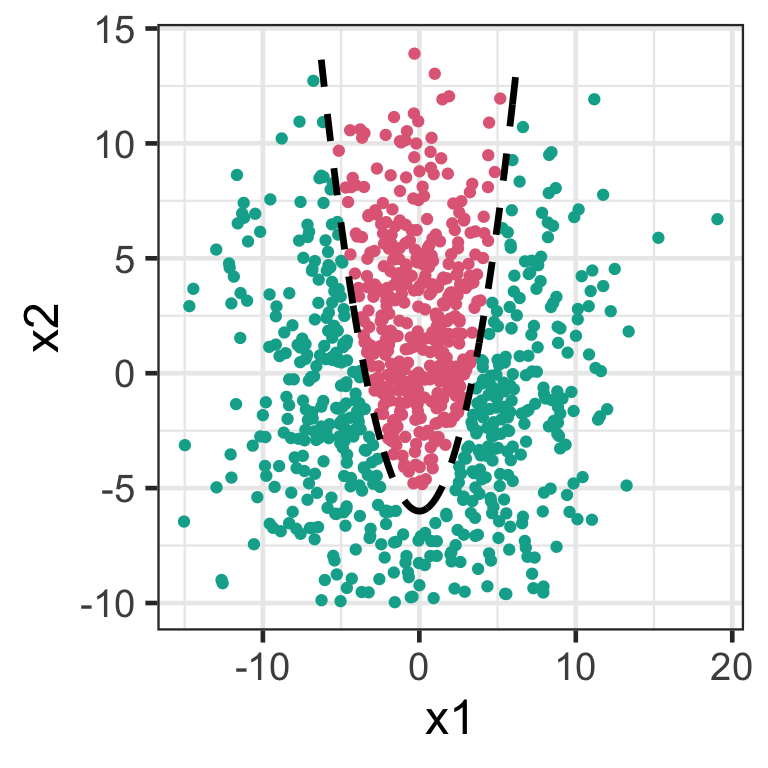

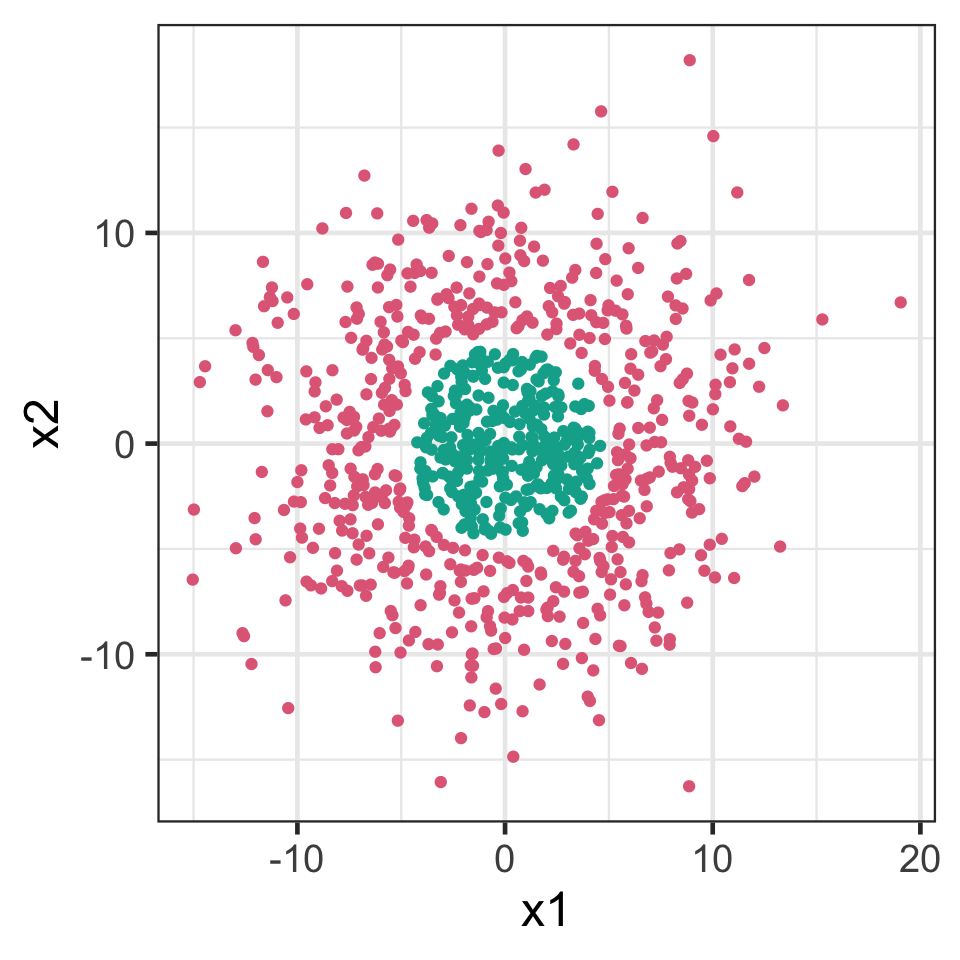

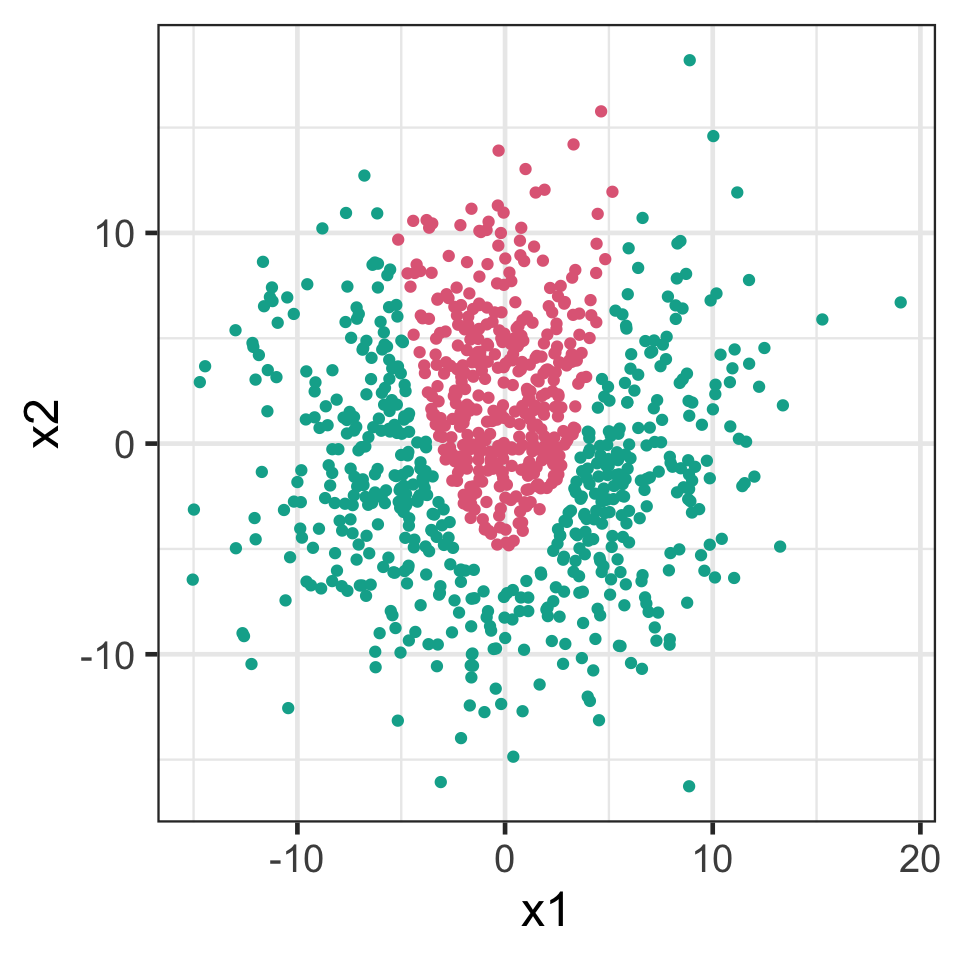

## Nonlinear boundaries

• The support vector classifier is a linear classifier.
• It doesn’t work well for nonlinear boundaries.

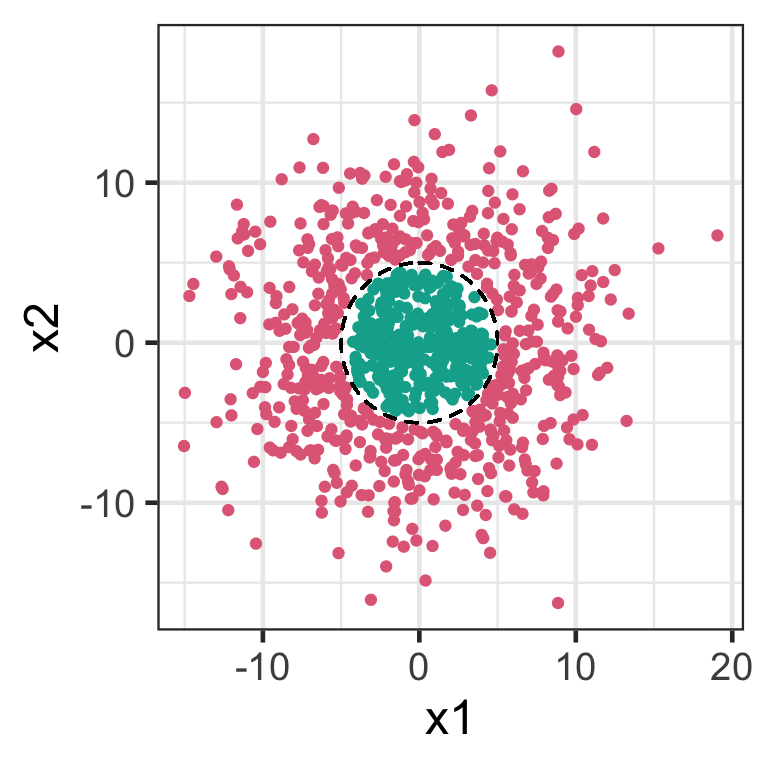

## Enlarging the feature space

• We can make support vector classifier more flexible by adding higher order polynomial terms, e.g. x_1^2 and x_2^3.
• We treat these new terms as predictors (referred to as enlarging the feature space).

# Support vector machines

## Support vector machines

• Adding polynomial terms makes support vector classifiers more flexible, but we have to explicitly specify this apriori.
• Support vector machines enlarges the feature space without explicit specification of nonlinear terms apriori.
• To understand support vector machines, we need to know about:
• the inner product,
• the dual representation, and
• kernel functions.

## The inner product

• Consider two p-vectors \begin{align*} \boldsymbol{x}_i & = (x_{i1}, x_{i2}, \dots, x_{ip}) \in \mathbb{R}^p \\ \text{and} \quad \boldsymbol{x}_k & = (x_{k1}, x_{k2}, \dots, x_{kp}) \in \mathbb{R}^p. \end{align*}
• The inner product is defined as

\langle \boldsymbol{x}_i, \boldsymbol{x}_k\rangle = \boldsymbol{x}_i^\top \boldsymbol{x}_k = x_{i1}x_{k1} + x_{i2}x_{k2} + \dots + x_{ip}x_{kp} = \sum_{j=1}^{p} x_{ij}x_{kj}.

## Dual representation

• In support vector machines, we write \beta_j = \sum_{k=1}^n\alpha_ky_kx_{kj}.
• This re-expresses g(\boldsymbol{x}) as g(\boldsymbol{x}_i) = \beta_0 + \sum_{j=1}^p\beta_jx_{ij} = \beta_0 + \sum_{k=1}^n\alpha_ky_k\langle\boldsymbol{x}_i, \boldsymbol{x}_k\rangle.

## Dual representation

• We can generalise the expression by replacing the inner product with a kernel function: g(\boldsymbol{x}_i) = \beta_0 + \sum_{j=1}^p\beta_jx_{ij} = \beta_0 + \sum_{k=1}^n\alpha_ky_k\color{#006DAE}{\mathcal{K}(\boldsymbol{x}_i, \boldsymbol{x}_k)}.
• Under this representation, we don’t need to manually enlarge the feature space.
• Instead we choose a kernel function.

## Kernel functions

• A kernel function is an inner product of vectors mapped to a (higher dimensional) feature space \mathcal{K}(\boldsymbol{x}_i, \boldsymbol{x}_k) = \langle \psi(\boldsymbol{x}_i), \psi(\boldsymbol{x}_j) \rangle \psi: \mathbb{R}^p \rightarrow \mathbb{R}^d where d > p.

## Examples of kernels

• Standard kernels include: \begin{align*} \text{Linear} \quad \mathcal{K}(\boldsymbol{x}_i, \boldsymbol{x}_k) & = \langle\boldsymbol{x}_i, \boldsymbol{x}_k \rangle \\ \text{Polynomial} \quad \mathcal{K}(\boldsymbol{x}, \boldsymbol{y}) & = (\langle\boldsymbol{x}_i, \boldsymbol{x}_k \rangle + 1)^d \\ \text{Radial} \quad \mathcal{K}(\boldsymbol{x}_i, \boldsymbol{x}_k) & = \exp(-\gamma\lvert\lvert\boldsymbol{x}_i-\boldsymbol{x}_k\lvert\lvert^2) \end{align*}

# An application to breast cancer diagnosis

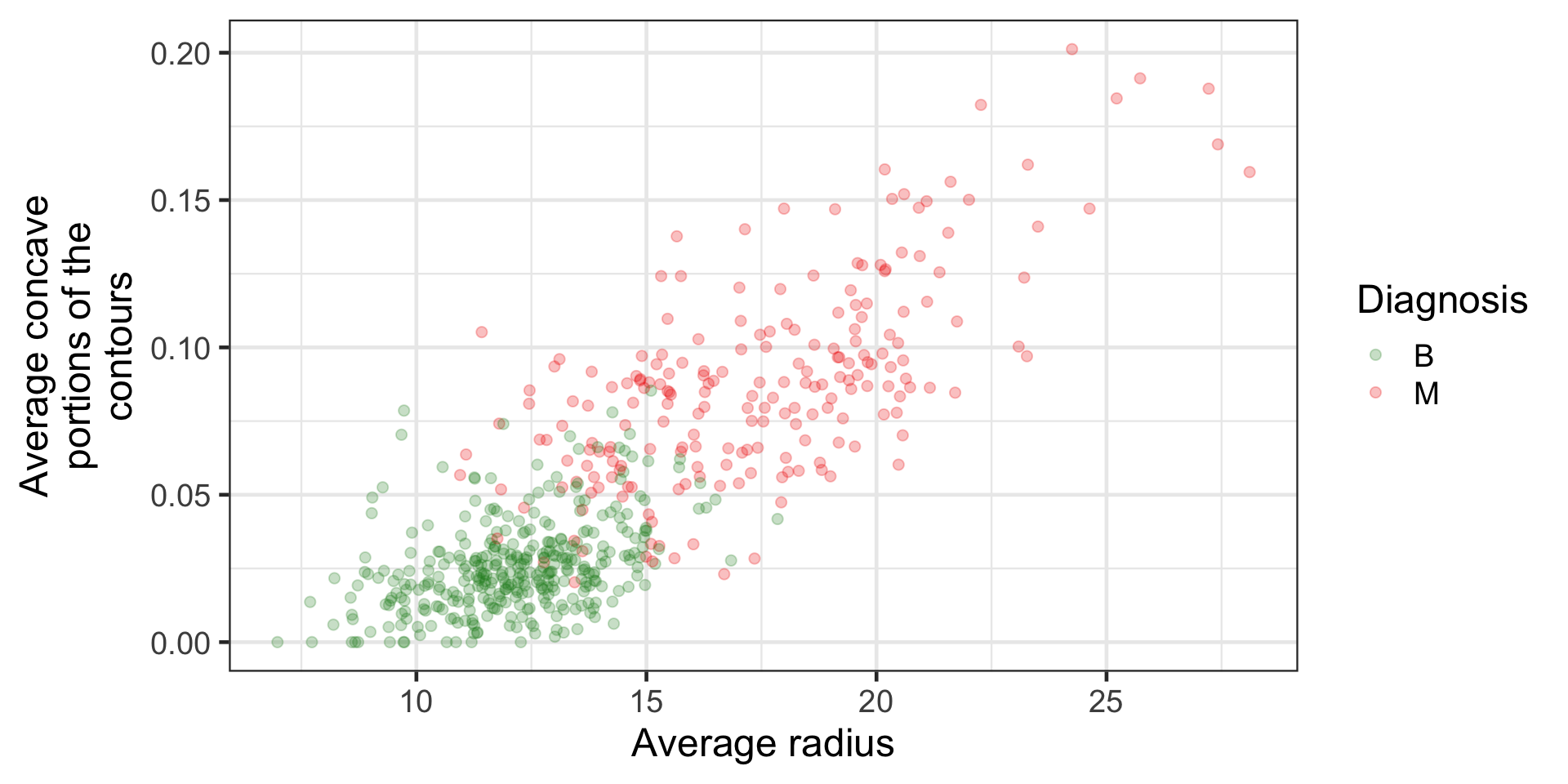

## Breast cancer diagnosis

Code
library(tidyverse)
mutate(diagnosis_malignant = ifelse(diagnosis=="M", 1, 0),
diagnosis = factor(diagnosis, levels = c("B", "M"))) %>%
janitor::clean_names()

cancer %>%
geom_point(alpha = 0.25, size = 2, aes(color = diagnosis)) +
scale_color_manual(values = c("forestgreen", "red2")) +
y = str_wrap("Average concave portions of the contours", 20),
color = "Diagnosis")

## Support vector machine with R

library(e1071)
svmfitl <- svm(diagnosis ~ radius_mean + concave_points_mean,
data = cancer,
kernel = "linear",
cost = 1,
scale = FALSE)
• cost is related to C
• Large cost tolerates less classification error.
• Small cost tolerates more classification error.

## Main output of svm

• svmfitl$index: The indexes of the support vectors. • svmfitl$coefs: The y_k\alpha_k from the dual representation.
• svmfitl$SV: The support vectors. • svmfitl$b: Negative intercept -\hat{\beta}_0.
• For linear kernels, \hat{\beta}_k can be calculated as t(svmfitl$coefs) %*% svmfitl$SV.

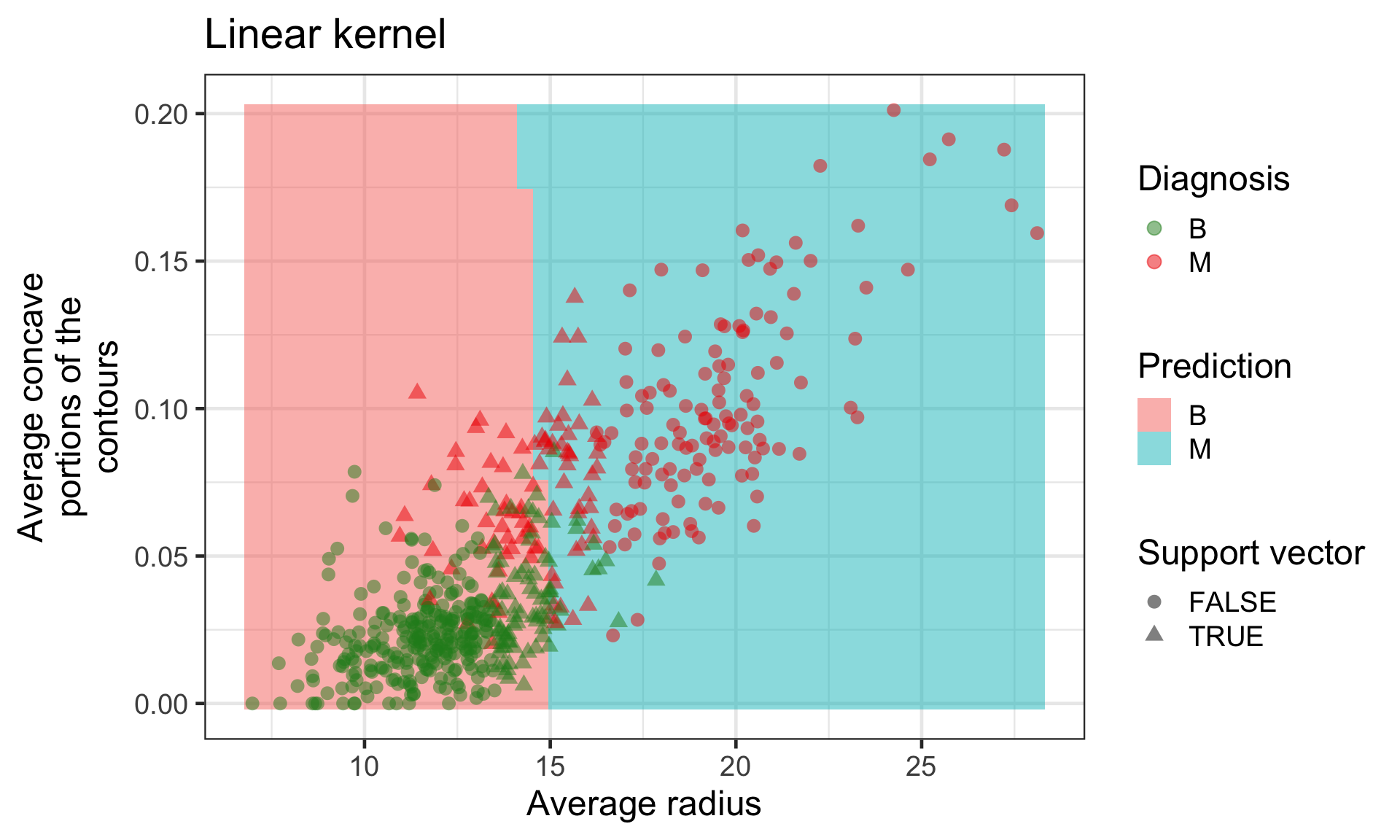

## Classification plot for linear kernel

Code
cancer_grid <- expand_grid(radius_mean = seq(min(cancer$radius_mean), max(cancer$radius_mean),
length.out = 50),
concave_points_mean = seq(min(cancer$concave_points_mean), max(cancer$concave_points_mean),
length.out = 50)) %>%
mutate(predl = predict(svmfitl, .))

cancer %>%

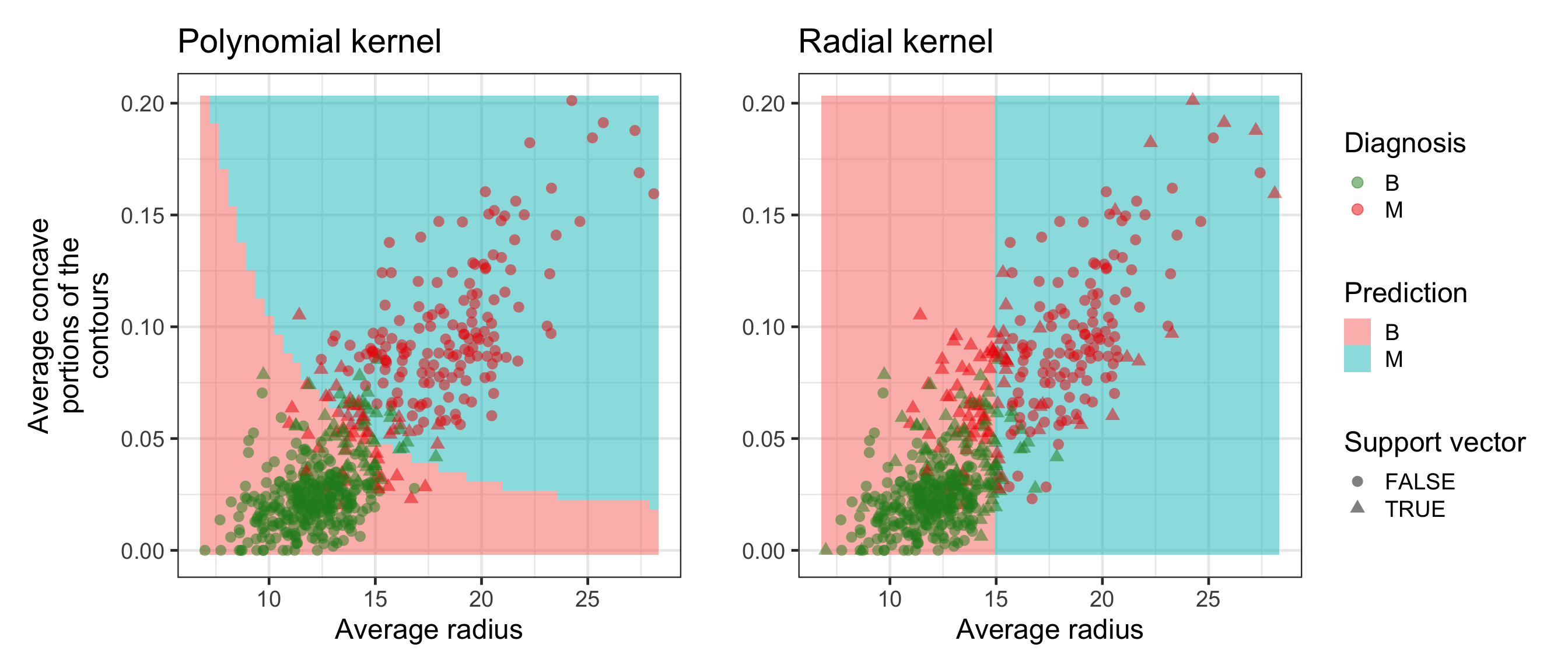

mutate(support_vector = 1:n() %in% svmfitl$index) %>% ggplot(aes(radius_mean, concave_points_mean)) + geom_tile(data = cancer_grid, aes(fill = predl), alpha = 0.5) + geom_point(alpha = 0.5, size = 3, aes(color = diagnosis, shape = support_vector)) + scale_color_manual(values = c("forestgreen", "red2")) + labs(x = "Average radius", y = str_wrap("Average concave portions of the contours", 20), color = "Diagnosis", shape = "Support vector", fill = "Prediction", title = "Linear kernel") ## Support vector machine with other kernels • Polynomial kernel svmfitp <- svm(diagnosis ~ radius_mean + concave_points_mean, data = cancer, kernel = "polynomial", cost = 1, scale = FALSE) • Radial kernel: svmfitr <- svm(diagnosis ~ radius_mean + concave_points_mean, data = cancer, kernel = "radial", cost = 1, scale = FALSE) ## Classification plots for polynomial & radial kernels Code library(patchwork) cancer_grid <- cancer_grid %>% mutate(predp = predict(svmfitp, .), predr = predict(svmfitr, .)) p1 <- cancer %>% mutate(support_vector = 1:n() %in% svmfitp$index) %>%
geom_tile(data = cancer_grid, aes(fill = predp), alpha = 0.5) +
geom_point(alpha = 0.5, size = 3, aes(color = diagnosis, shape = support_vector)) +
scale_color_manual(values = c("forestgreen", "red2")) +
y = str_wrap("Average concave portions of the contours", 20),
color = "Diagnosis",
shape = "Support vector",
fill = "Prediction",
title = "Polynomial kernel")

p2 <- cancer %>%
mutate(support_vector = 1:n() %in% svmfitr\$index) %>%
geom_tile(data = cancer_grid, aes(fill = predr), alpha = 0.5) +
geom_point(alpha = 0.5, size = 3, aes(color = diagnosis, shape = support_vector)) +
scale_color_manual(values = c("forestgreen", "red2")) +
y = "",
color = "Diagnosis",
shape = "Support vector",
fill = "Prediction",

p1 + p2 + plot_layout(guides = "collect")

## Limitations of support vector machine methods

• The optimisation problem in the support vector machine methods is hard to solve for large sample size.
• It often fails when class overlap in the feature space is large.
• It does not have statistical foundation.

# Takeaways

• There are three types of support vector machine methods:
• Maximal margin classifier is for when the data is perfectly separated by a hyperplane
• Support vector classifier/soft margin classifier for when data is not perfectly separated by a hyperplane but still has a linear decision boundary, and
• Support vector machines used for when the data has nonlinear decision boundaries.
