Classification trees

Classification tree

• In a classification tree we use a recursive two-way partition (or branches) of predictors.

Classification trees with R

• There are a number of R packages π¦ that can fit classification trees, e.g. tree and rpart.
• Again, be sure to read the documentation and try fitting a model to toy data to check you know how it works.
Code for data
library(tidyverse)
mutate(diagnosis_binary = ifelse(diagnosis=="M", 1, 0),
diagnosis = factor(diagnosis, levels = c("M", "B"))) %>%
janitor::clean_names()
library(rpart)
library(rsample)
set.seed(2023)
cancer_split <- initial_split(cancer)
cancer_train <- training(cancer_split)
cancer_rpart <- rpart(diagnosis ~ radius_mean + concave_points_mean,
data = cancer_train,
method = "class")

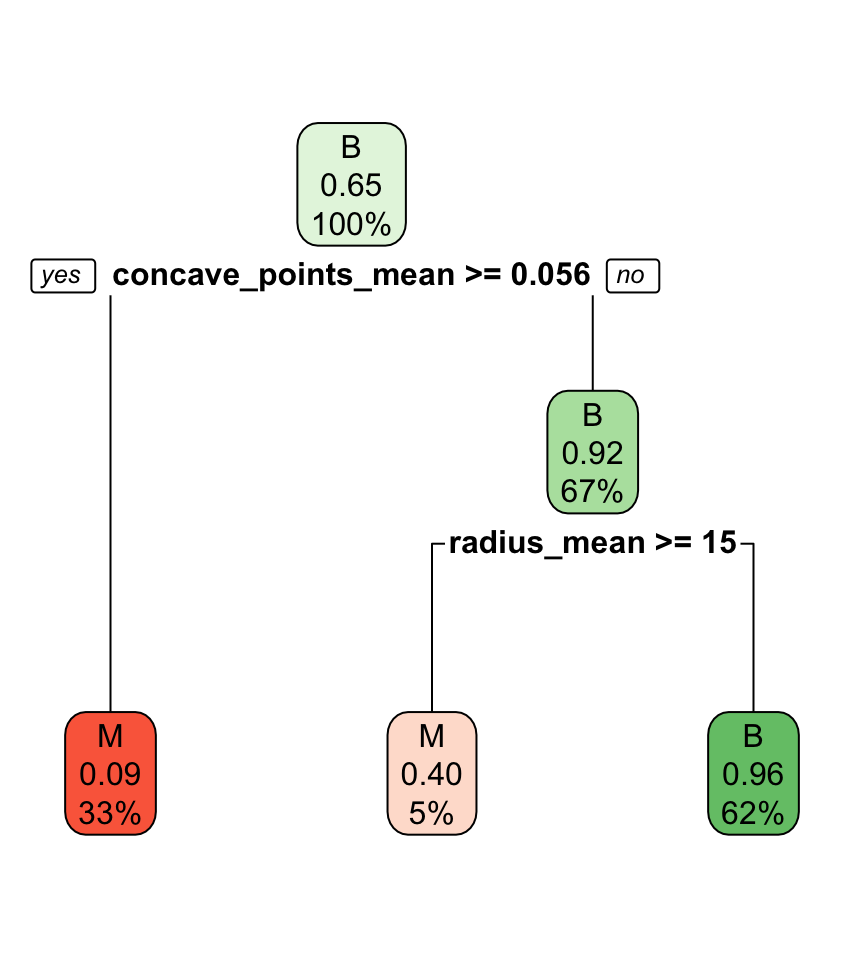

Interpreting classification tree plot

Code
library(rpart.plot)
rpart.plot(cancer_rpart, box.palette = "RdGn")
• The rectangles are nodes that contain:
• class identifier,
• proportion of the reference class, and
• percentage of observations in node.
• The bottom rectangles are terminal nodes (or leaves).
• The bold text shows the splitting rules (branches).
• Colors indicate class, with a darker color indicating lower impurity.

Classifying new observations

Code
library(rpart.plot)
rpart.plot(cancer_rpart, box.palette = "RdGn")
id concave_points_mean radius_mean
1 0.8 4.1
2 0.04 8.3
3 0.005 18.1

What class would above observations belong to according to this tree?

1. M
2. B
3. M

Partition notation

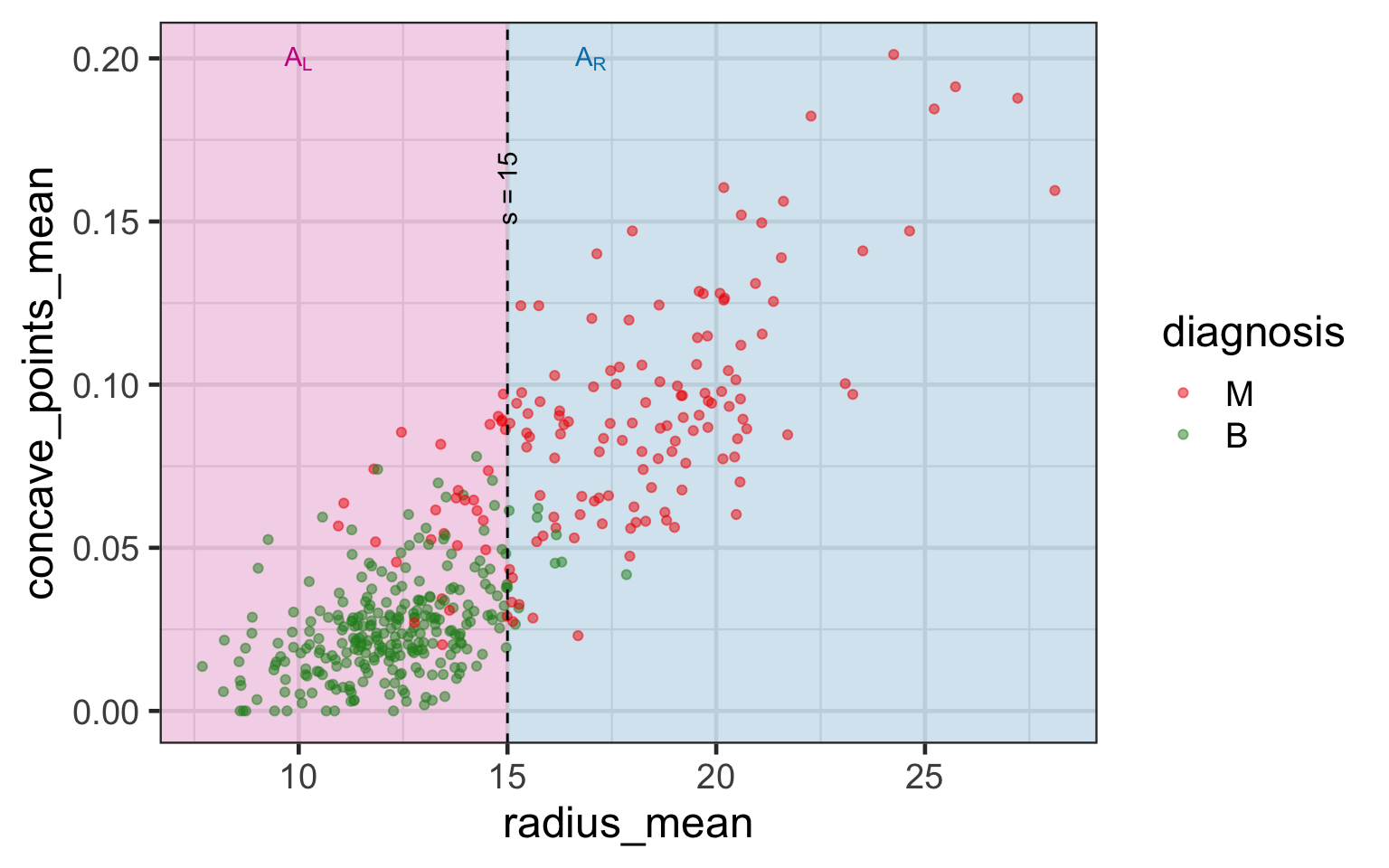

• Suppose s is the value to split in variable j.
• Then we have two sets (or nodes):
• \color{#C8008F}{\mathcal{A}_L} = \{\{y_i, \boldsymbol{x}_i\}:x_{ij}<s\} and
• \color{#027EB6}{\mathcal{A}_R} = \{\{y_i, \boldsymbol{x}_i\}:x_{ij}\geq s\}.
• Different choices of j and s encode different partitions.
• Suppose p_{k\mathcal{A}} is the proportion of observations in class k in a set \mathcal{A}.
\mathcal{A}_L \mathcal{A}_R
p_{M} 10.2% (30) 92.4% (121)
p_{B} 89.8% (265) 7.6% (10)

Impurity metrics

• We need an algorithm to find the optimal \{j^*, s^*\}.
• Some popular impurity metrics are the:
• Gini index: f_{Gini}(\mathcal{A})= \sum_{k = 1}^K p_{k\mathcal{A}}(1 - p_{k\mathcal{A}}) = 1 - \sum_{k = 1}^K p_{k\mathcal{A}}^2
• entropy index: f_{entropy}(\mathcal{A}) = -\sum_{k = 1}^K p_{k\mathcal{A}}\log_2(p_{k\mathcal{A}}).
• Smaller values of the impurity index means higher purity.
• An overall impurity can be calculated from the weighted average: \frac{|\mathcal{A}_L|}{|\mathcal{A}_L| + |\mathcal{A}_R|}f(\mathcal{A}_L) + \frac{|\mathcal{A}_R|}{|\mathcal{A}_L| + |\mathcal{A}_R|}f(\mathcal{A}_R).

Example calculation of Gini impurity index

\mathcal{A}_L \mathcal{A}_R
p_{M} 10.2% (30) 92.4% (121)
p_{B} 89.8% (265) 7.6% (10)
• f_{Gini}(\mathcal{A}_L) = 1 - \frac{(30^2 + 265^2)}{(30 + 265)^2} \approx 0.183
• f_{Gini}(\mathcal{A}_R) = 1 - \frac{(121^2 + 10^2)}{(121 + 10)^2} \approx 0.141
• \text{Overall impurity} = \frac{30 + 265}{30 + 265 + 121 + 10} 0.183 + \frac{121 + 10}{30 + 265 + 121 + 10} 0.141 \approx 0.17

Search for the optimal partition

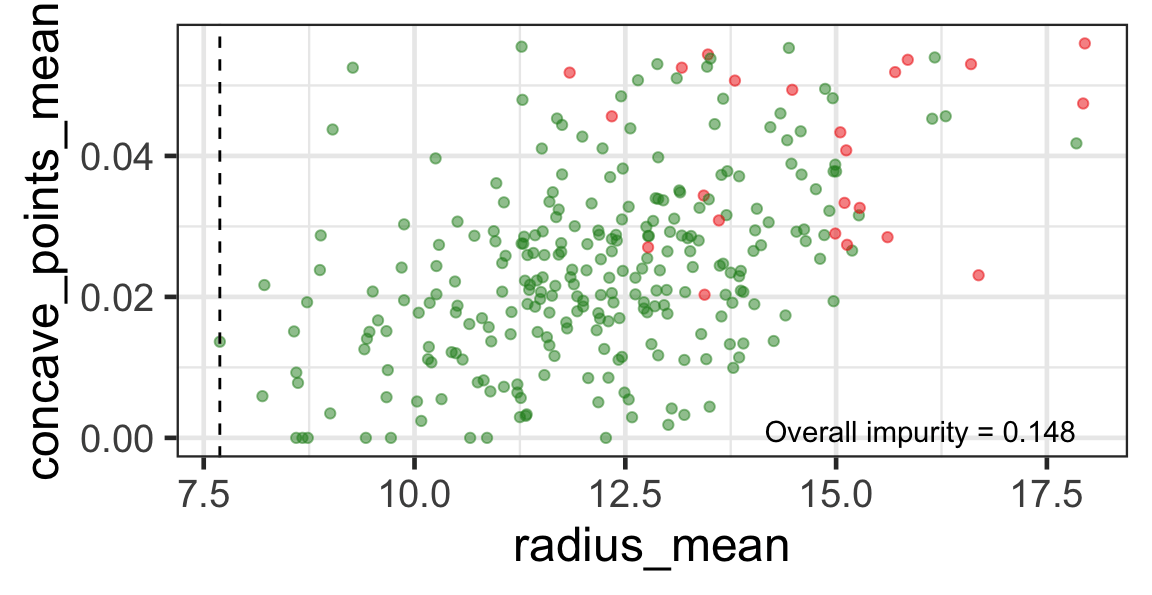

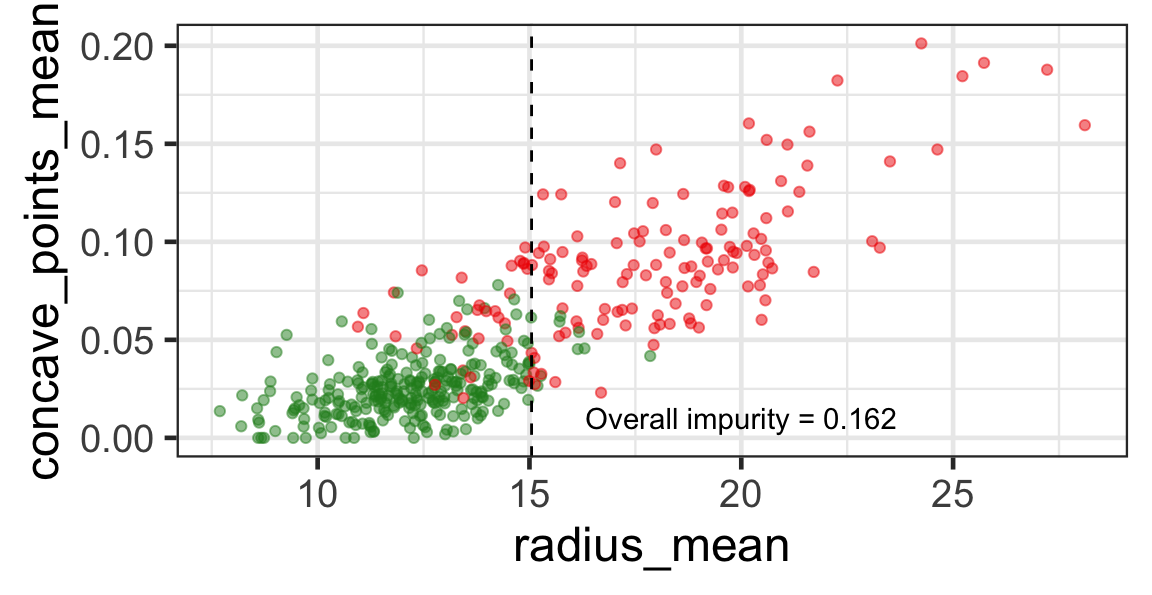

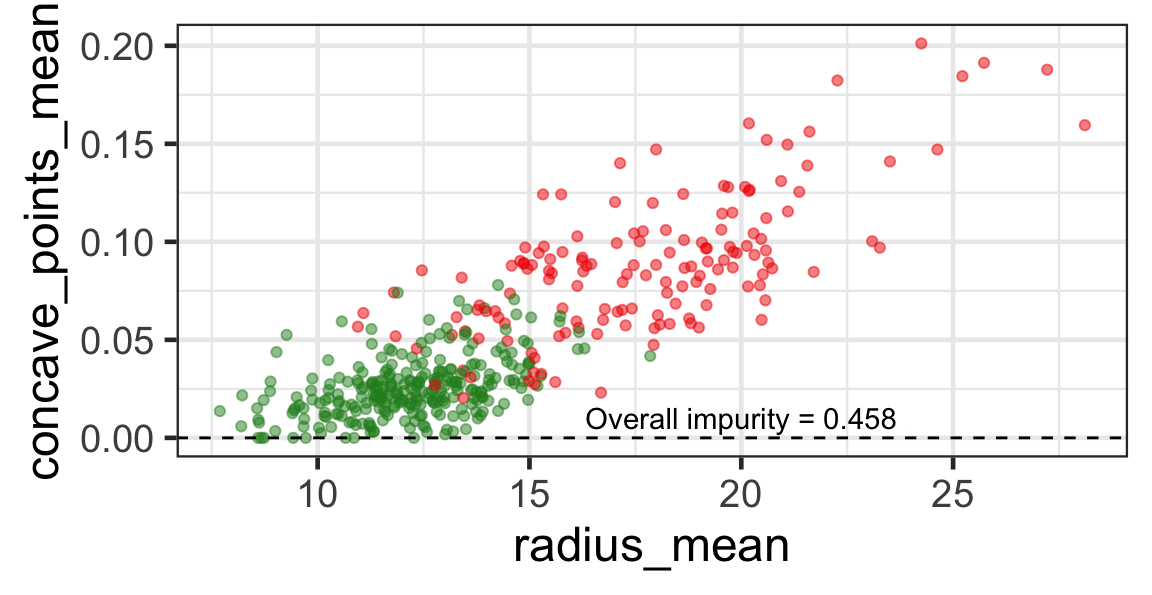

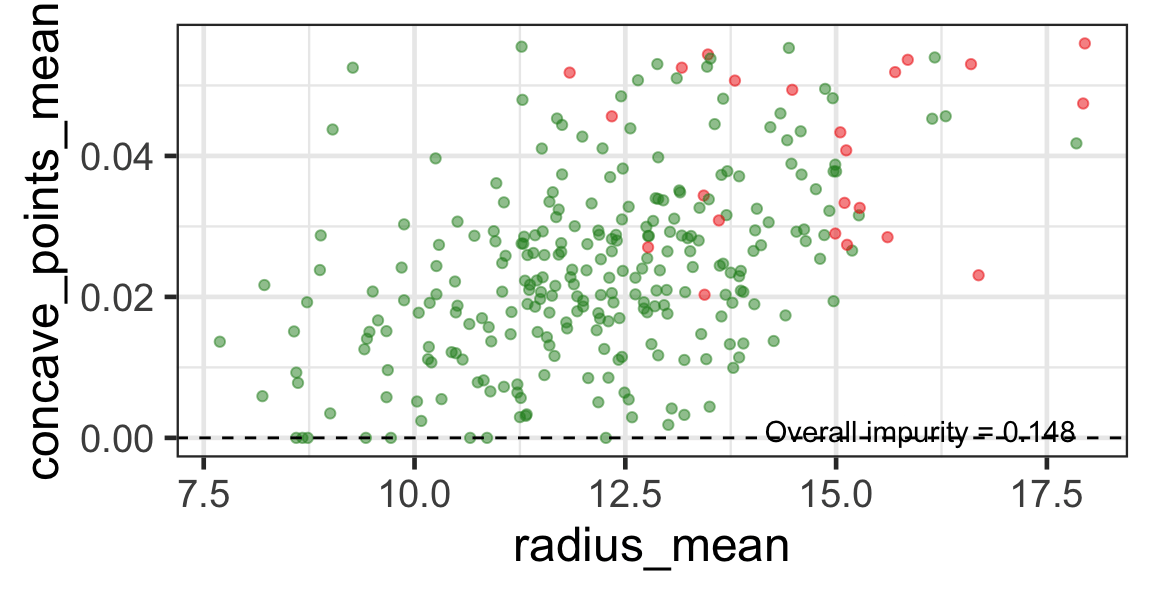

• The goal is to find j and s such that it minimises the overall impurity: \{j^*, s^*\} = \underset{j\in \{1, \dots, p\}, s \in \mathbb{R}}{\text{argmin}}~\text{Overall impurity}(\mathcal{A}_L, \mathcal{A}_R).

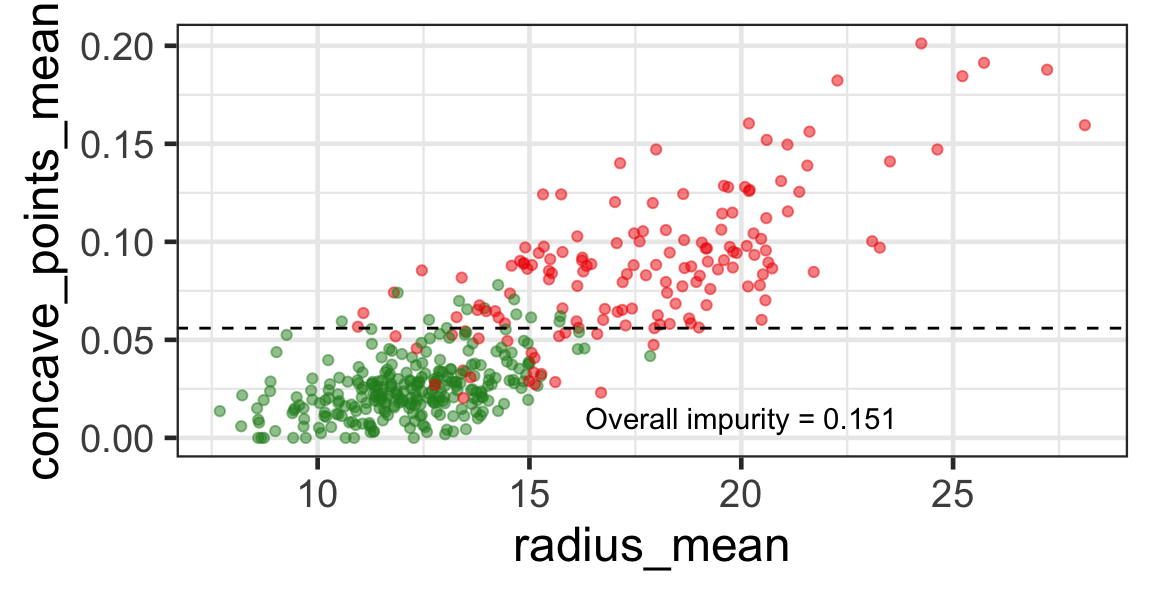

Selected partition

• Selected predictor: j^* = \texttt{concave\_points\_mean}
• Selected threshold: s^* = 0.056

Search for the next optimal partition

• We find the next j and s such that it minimises the overall impurity for the partitioned subset.
• We repeat again for the next subset and so on β¦
until we reach the stopping rule.

Stopping rules

• The partitioning will be recursively applied until it meets the selected stopping rule.
• Some stopping rules in rpart.control() include:
• minsplit: the minimum number of observations in any non-terminal node.
• minbucket: the minimum number of observations allowed in a terminal node.
• cp: complexity parameter β minimum difference between impurity values required to continue splitting.

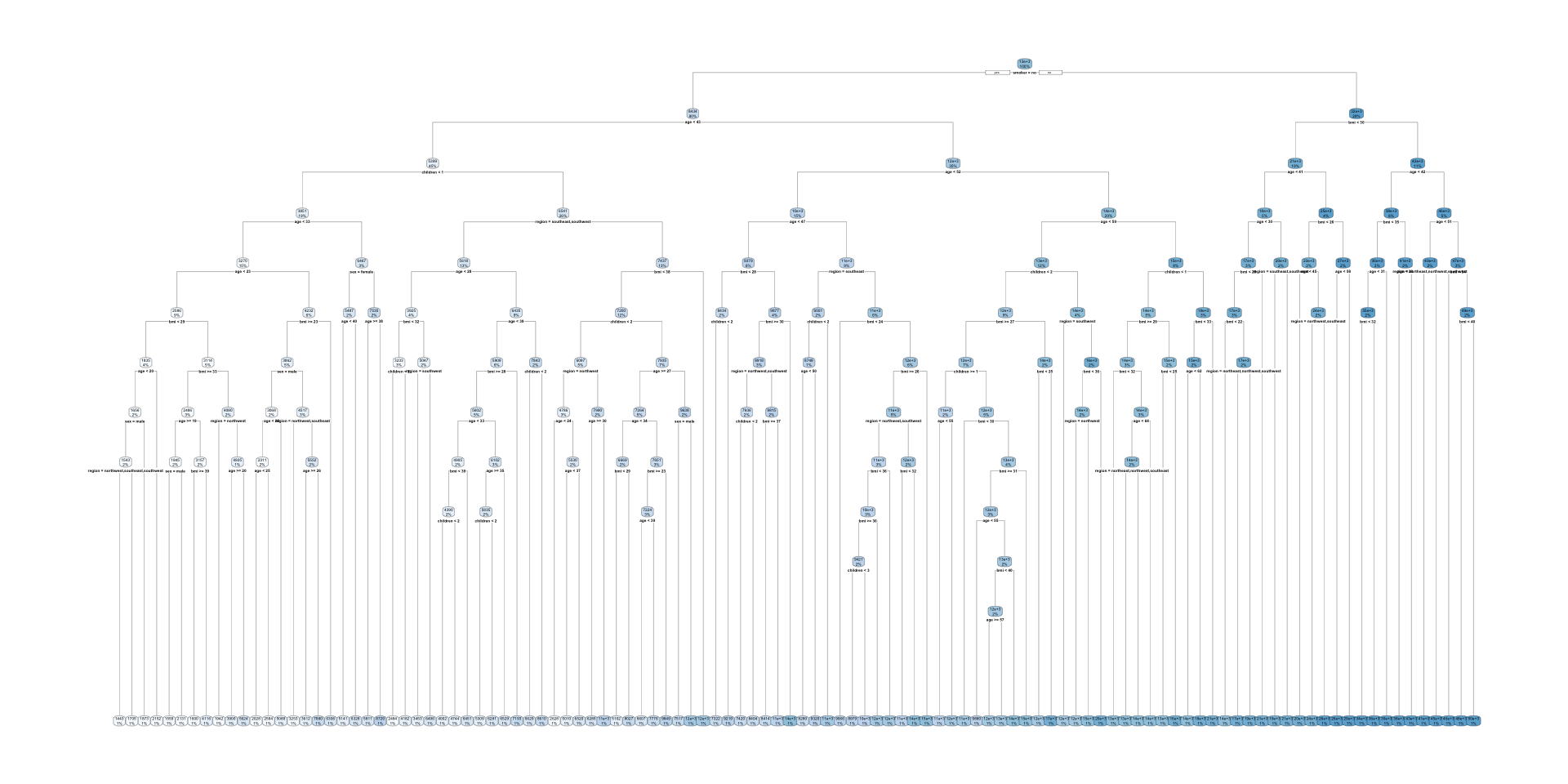

Changing the stopping rules in rpart

cancer_rpart_stop <- rpart(diagnosis ~ radius_mean + concave_points_mean,
data = cancer_train, method = "class",
control = rpart.control(minbucket = 0.03 * nrow(cancer),
minsplit = 10,
cp = 0))

rpart.plot(cancer_rpart_stop, box.palette = "RdGn")

Algorithm in a nutshell

2. Sort values on first variable.
3. Compute overall impurity for all possible partitions into two sets.
4. Choose the best partition on this variable.
5. Repeat 2-4 for all other variables.
6. Choose the best partition among all variables. Your data is now split into two subsets.
7. Repeat 1-6 on each subset.
8. Stop when stopping rule is achieved.

Tuning parameters: search space

• First we define the search space of the parameters.
search_df <- expand_grid(minbucket = seq(10, 100, length.out = 4),
minsplit = seq(10, 100, length.out = 4),
cp = seq(0, 1, length.out = 50))
search_df
# A tibble: 800 Γ 3
minbucket minsplit     cp
<dbl>    <dbl>  <dbl>
1        10       10 0
2        10       10 0.0204
3        10       10 0.0408
4        10       10 0.0612
5        10       10 0.0816
6        10       10 0.102
7        10       10 0.122
8        10       10 0.143
9        10       10 0.163
10        10       10 0.184
# βΉ 790 more rows

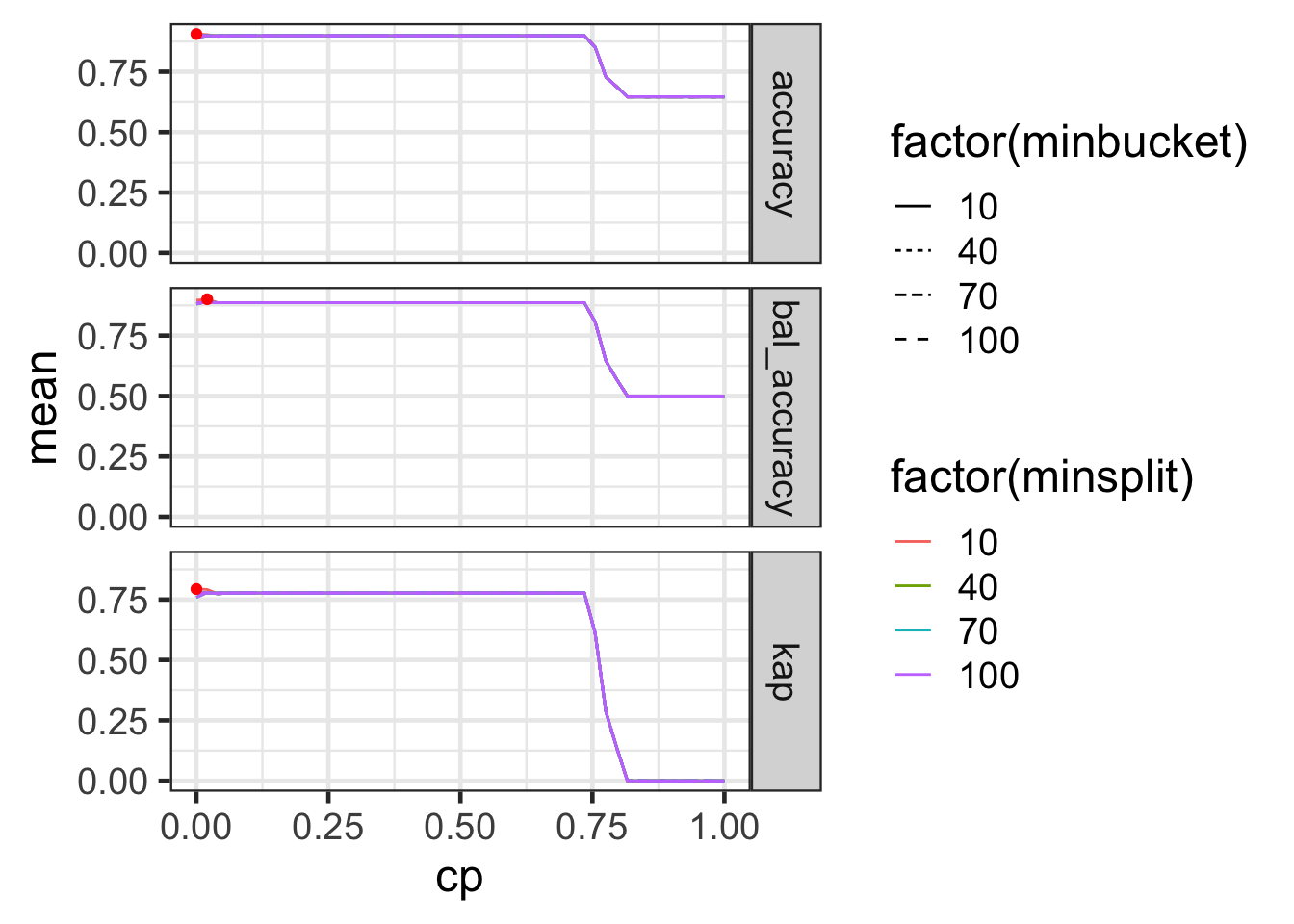

Tuning parameters: fit and predict

scroll

library(yardstick)
set.seed(2023)
cancer_folds <- cancer_train %>%
vfold_cv(v = 5)

search_res <- cancer_folds %>%
mutate(search = map(splits, function(asplit) {
search_df %>%
rowwise() %>%
# fit the model for each row
# different row contains unique combination of
# minbucket, minsplit, and cp
mutate(fit = list(rpart(diagnosis ~ radius_mean + concave_points_mean,
data = training(asplit), method = "class",
control = rpart.control(minbucket = .data$minbucket, minsplit = .data$minsplit,
cp = .data$cp)))) %>% ungroup() %>% # compute classification metric on validation fold mutate(metrics = map(fit, function(afit) { # get validation fold testing(asplit) %>% # predict from fitted model for this validation fold mutate(pred = predict(afit, ., type = "class")) %>% # get classification metrics metric_set(accuracy, bal_accuracy, kap)(., truth = diagnosis, estimate = pred) })) %>% unnest(metrics) %>% select(-c(fit, .estimator)) })) %>% unnest(search) # summarise the data for easy view search_res_summary <- search_res %>% group_by(minbucket, minsplit, cp, .metric) %>% summarise(mean = mean(.estimate), sd = sd(.estimate)) search_res_summary # A tibble: 2,400 Γ 6 # Groups: minbucket, minsplit, cp [800] minbucket minsplit cp .metric mean sd <dbl> <dbl> <dbl> <chr> <dbl> <dbl> 1 10 10 0 accuracy 0.906 0.0275 2 10 10 0 bal_accuracy 0.896 0.0366 3 10 10 0 kap 0.794 0.0583 4 10 10 0.0204 accuracy 0.904 0.0409 5 10 10 0.0204 bal_accuracy 0.900 0.0417 6 10 10 0.0204 kap 0.792 0.0864 7 10 10 0.0408 accuracy 0.897 0.0314 8 10 10 0.0408 bal_accuracy 0.886 0.0260 9 10 10 0.0408 kap 0.774 0.0633 10 10 10 0.0612 accuracy 0.899 0.0306 # βΉ 2,390 more rows Tuning parameters: results Code search_res_summary_max <- search_res_summary %>% group_by(.metric) %>% filter(mean == max(mean)) search_res_summary %>% ggplot(aes(cp, mean)) + geom_line(aes(color = factor(minsplit), linetype = factor(minbucket))) + geom_point(data = search_res_summary_max, color = "red") + facet_grid(.metric ~ .) minbucket minsplit cp .metric mean sd 10 10 0.0000000 accuracy 0.9061286 0.0274646 10 10 0.0000000 kap 0.7935643 0.0583496 10 10 0.0204082 bal_accuracy 0.9004277 0.0417005 • minbucket and minsplit doesnβt seem to make much difference (for the range searched at least). • cp = 0 seems sufficient in this case. Tuning cp with cross validation error in rpart • rpart automatically stores the cross validation error in the resulting model object fit <- rpart(diagnosis ~ radius_mean + concave_points_mean, data = cancer_train, method = "class", control = rpart.control(cp = 0, xval = 10)) # 10 folds (default) fit$cptable
           CP nsplit rel error    xerror       xstd
1 0.768211921      0 1.0000000 1.0000000 0.06538424
2 0.026490066      1 0.2317881 0.2781457 0.04074821
3 0.006622517      2 0.2052980 0.2715232 0.04031258
4 0.000000000      3 0.1986755 0.2847682 0.04117673
• rel error is the in-sample error (always decreases with more split)
• xerror is the cross-validation error
• xstd is the standard deviation of the cross-validation error

Bank marketing data

scroll

• This data found here contains direct marketing campaigns of a Portuguese banking institution.
• π― The goal is to predict if the client will subscribe to a term deposit (y = "yes" or "no").
library(tidyverse)
bank <- read_delim("https://emitanaka.org/iml/data/bank-full.csv", delim = ";")
skimr::skim(bank)
 Name bank Number of rows 45211 Number of columns 17 _______________________ Column type frequency: character 10 numeric 7 ________________________ Group variables None

Variable type: character

skim_variable n_missing complete_rate min max empty n_unique whitespace
job 0 1 6 13 0 12 0
marital 0 1 6 8 0 3 0
education 0 1 7 9 0 4 0
default 0 1 2 3 0 2 0
housing 0 1 2 3 0 2 0
loan 0 1 2 3 0 2 0
contact 0 1 7 9 0 3 0
month 0 1 3 3 0 12 0
poutcome 0 1 5 7 0 4 0
y 0 1 2 3 0 2 0

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
age 0 1 40.94 10.62 18 33 39 48 95 βββββ
balance 0 1 1362.27 3044.77 -8019 72 448 1428 102127 βββββ
day 0 1 15.81 8.32 1 8 16 21 31 βββββ
duration 0 1 258.16 257.53 0 103 180 319 4918 βββββ
campaign 0 1 2.76 3.10 1 1 2 3 63 βββββ
pdays 0 1 40.20 100.13 -1 -1 -1 -1 871 βββββ
previous 0 1 0.58 2.30 0 0 0 0 275 βββββ

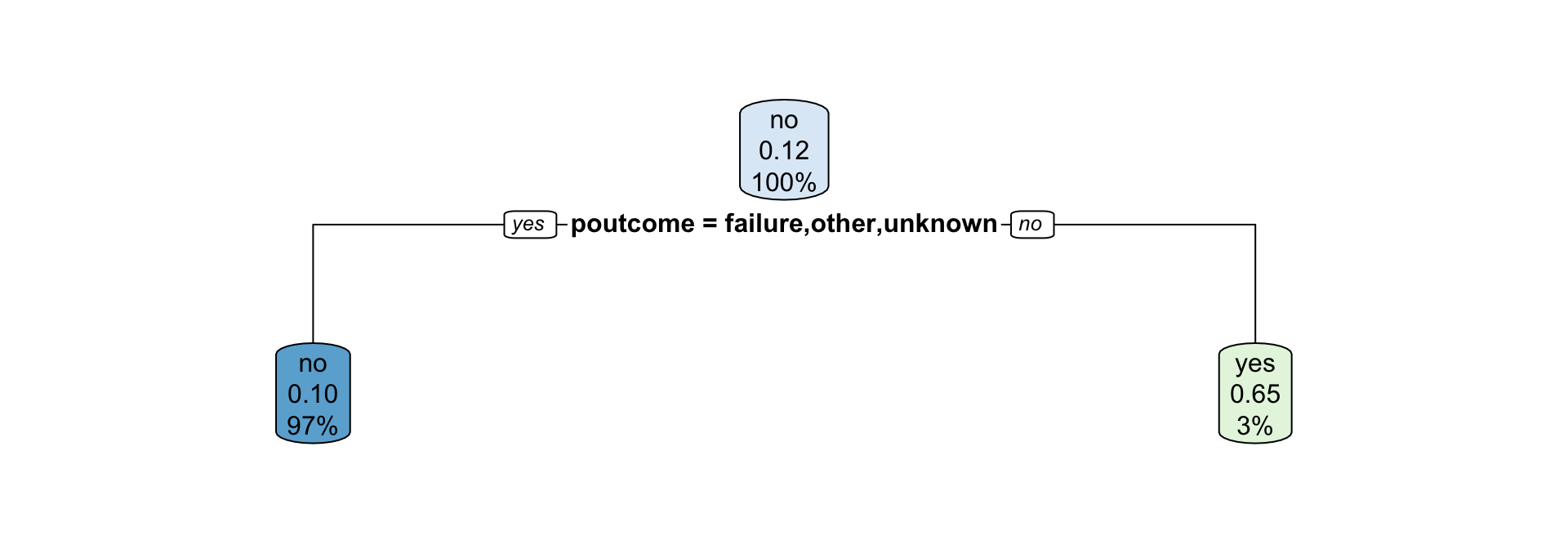

Fitting and visualising the model

duration is omitted as a predictor in the model as it is computed based on the response.

fit_rpart <- rpart(y ~ . - duration, data = bank, method = "class")
rpart.plot(fit_rpart)
• How are partitions determined for categorical variables?

Partitions for categorical variables

• When the variable is a categorical variable, the partition of observations is based on whether it belongs to a particular class or not.
• E.g., there are 4 classes for poutcome and so 4 overall impurities are calculated, one for each class vs other.

Benefits of classification trees

• The decision rules provided by trees are easy to explain and follow.
• Trees search for optimal overall impurity independently for each predictor, therefore missing values in predictors can be better handled in trees.
• Trees:
• can handle a mix of predictor types, categorical and quantitative,
• are robust to outliers,
• can capture non-linear relationships,
• invariant to transformations of predictors (as it is based on ordering).

Limitations of classification trees

• Trees cannot model interaction between predictors.
• The algorithm is greedy!
• This can result in a local optimal solution.
• It can often overfit the data (i.e. have high variance).
• When separation is in linear combinations of variables trees struggle to provide a good classification.

Regression tree

Insurance cost

scroll

library(tidyverse)
skimr::skim(insurance)
 Name insurance Number of rows 1338 Number of columns 7 _______________________ Column type frequency: character 3 numeric 4 ________________________ Group variables None

Variable type: character

skim_variable n_missing complete_rate min max empty n_unique whitespace
sex 0 1 4 6 0 2 0
smoker 0 1 2 3 0 2 0
region 0 1 9 9 0 4 0

Variable type: numeric

skim_variable n_missing complete_rate mean sd p0 p25 p50 p75 p100 hist
age 0 1 39.21 14.05 18.00 27.00 39.00 51.00 64.00 βββββ
bmi 0 1 30.66 6.10 15.96 26.30 30.40 34.69 53.13 βββββ
children 0 1 1.09 1.21 0.00 0.00 1.00 2.00 5.00 βββββ
charges 0 1 13270.42 12110.01 1121.87 4740.29 9382.03 16639.91 63770.43 βββββ

Fitting regression tree with R

fit <- rpart(charges ~ ., data = insurance, method = "anova")
rpart.plot(fit)

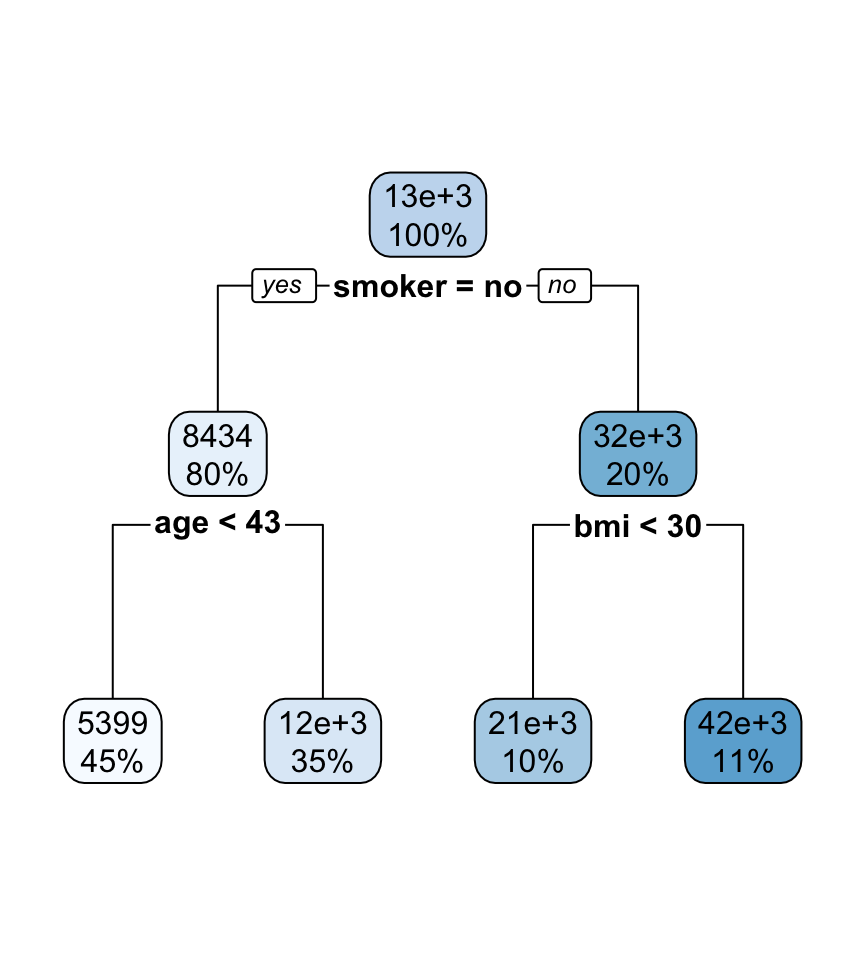

Interpreting regression tree plot

• The nodes contain:
• average of the response, and
• percentage of observations in node.
• The bold text shows the splitting rules (branches).
• Colors indicate class, with a darker color indicating lower impurity.
• The prediction is the average of the response in the terminal node.

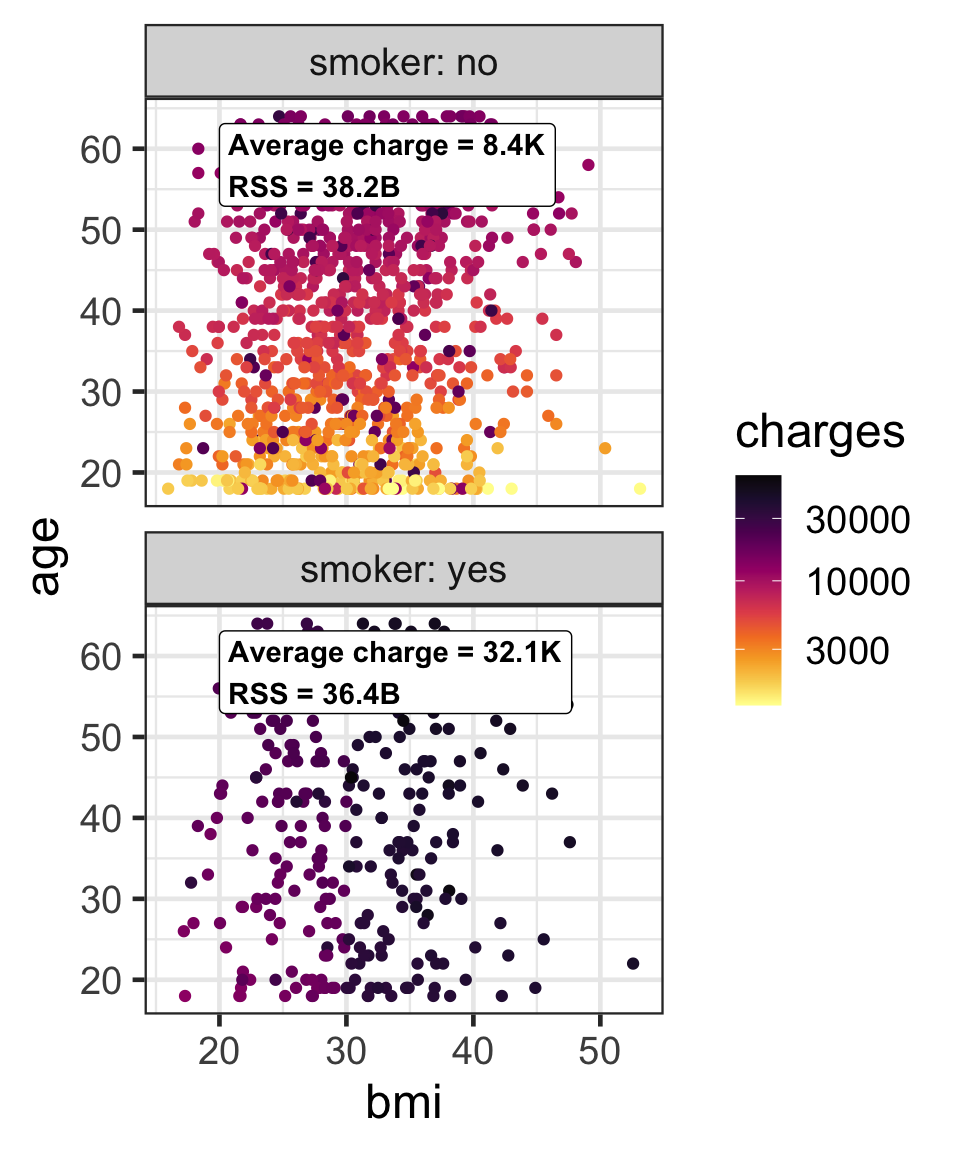

Partition based on a binary predictor

• For a binary variable, \mathcal{A}_L and \mathcal{A}_R is based on its class.
• Then find the average responses, \bar{y}_L and \bar{y}_R, for \mathcal{A}_L and \mathcal{A}_R, respectively.
• We can use the residual sum of squares, e.g. \text{RSS}(\mathcal{A}_L) = \sum_{i \in \mathcal{A}_L}(y_i - \bar{y}_L)^2, to measure the impurity.

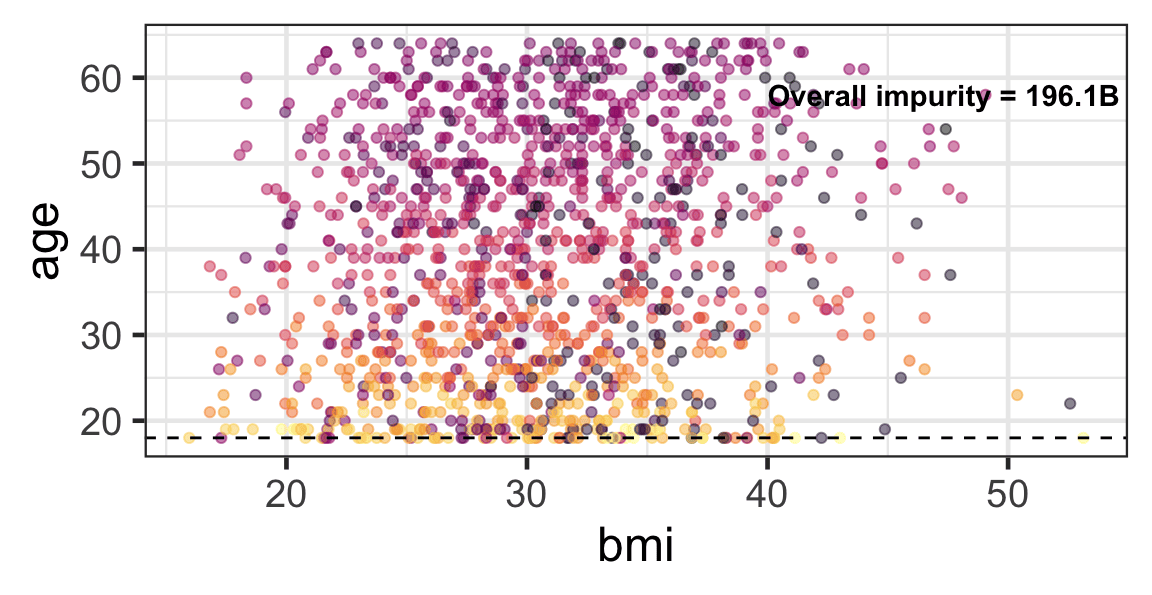

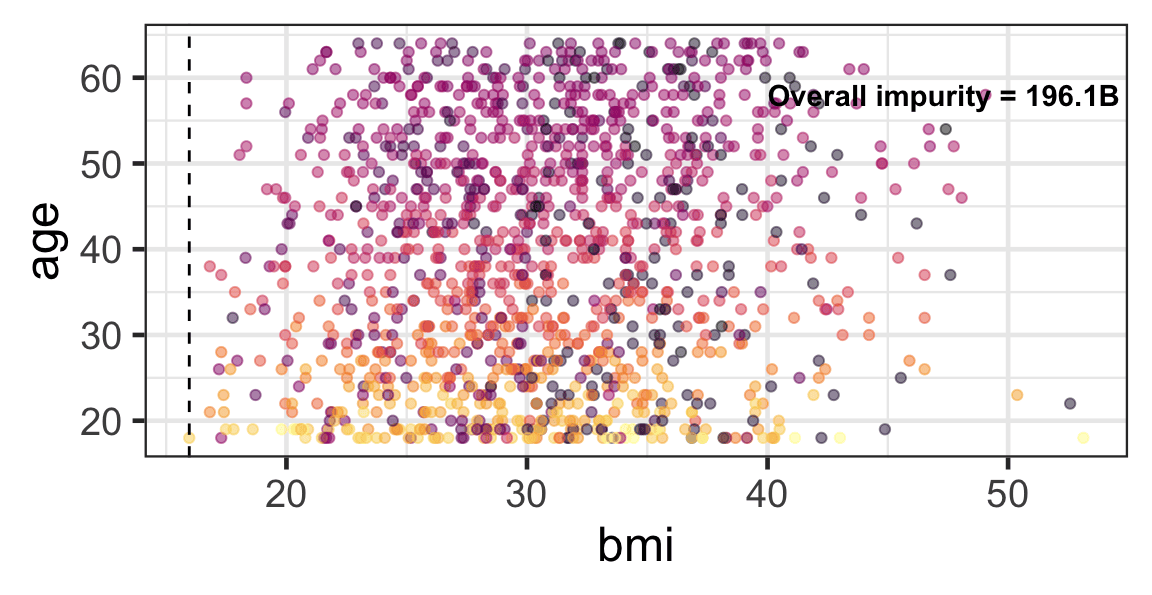

Partition based on a quantitative predictor

• Like for classification trees, a quantitative predictor is partitioned based on the split value.
• The overall impurity is based on a combined impurity measure for quantitative response (RSS here).

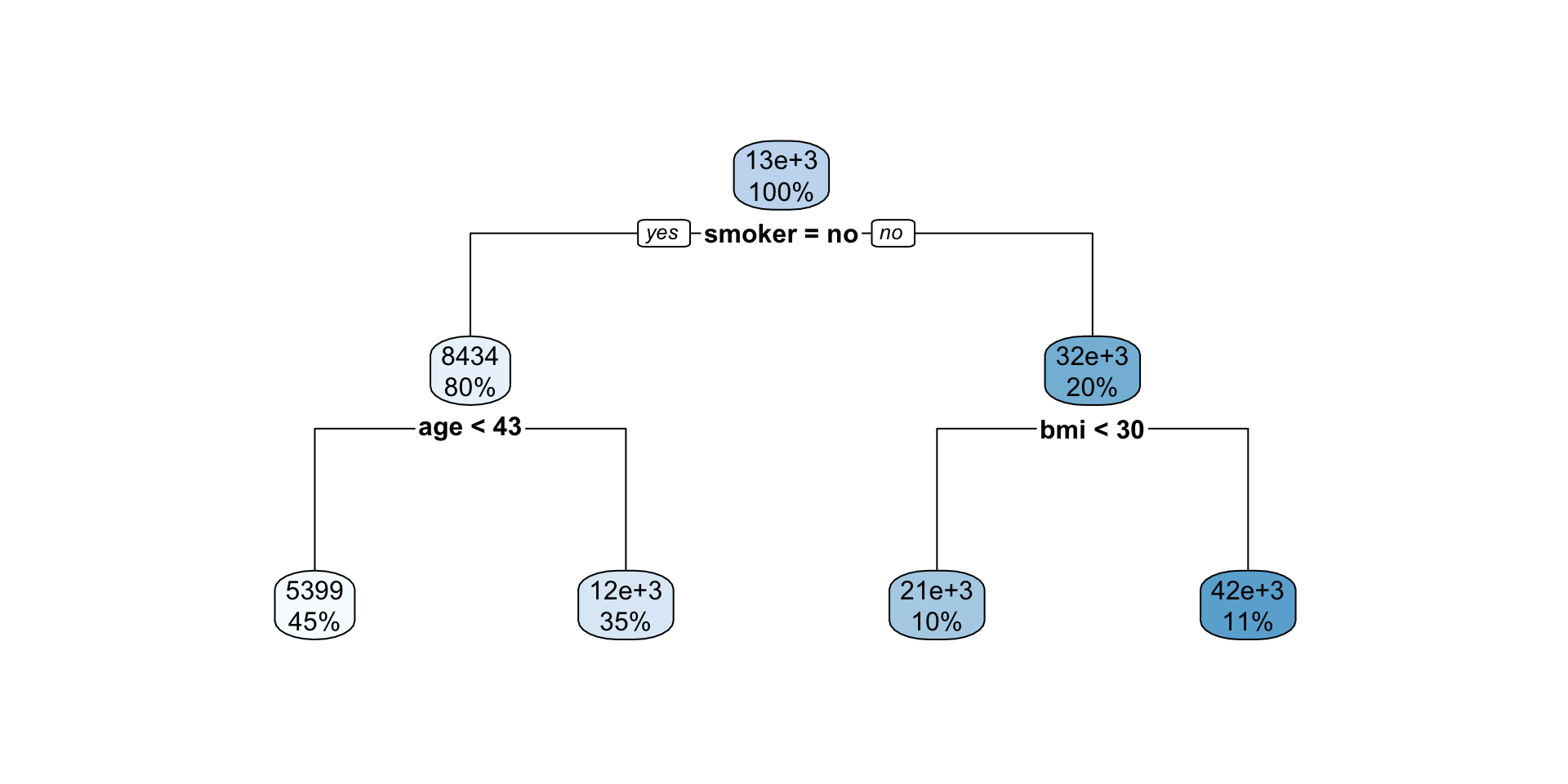

Pruning

• We can grow a tree, T_0, and then prune it to a shorter tree (T_1).

T_0

T0 <- rpart(charges ~ .,
data = insurance,
method = "anova",
cp = 0)
rpart.plot(T0)

T_1

T1 <- prune(T0, cp = 0.01)
rpart.plot(T1)

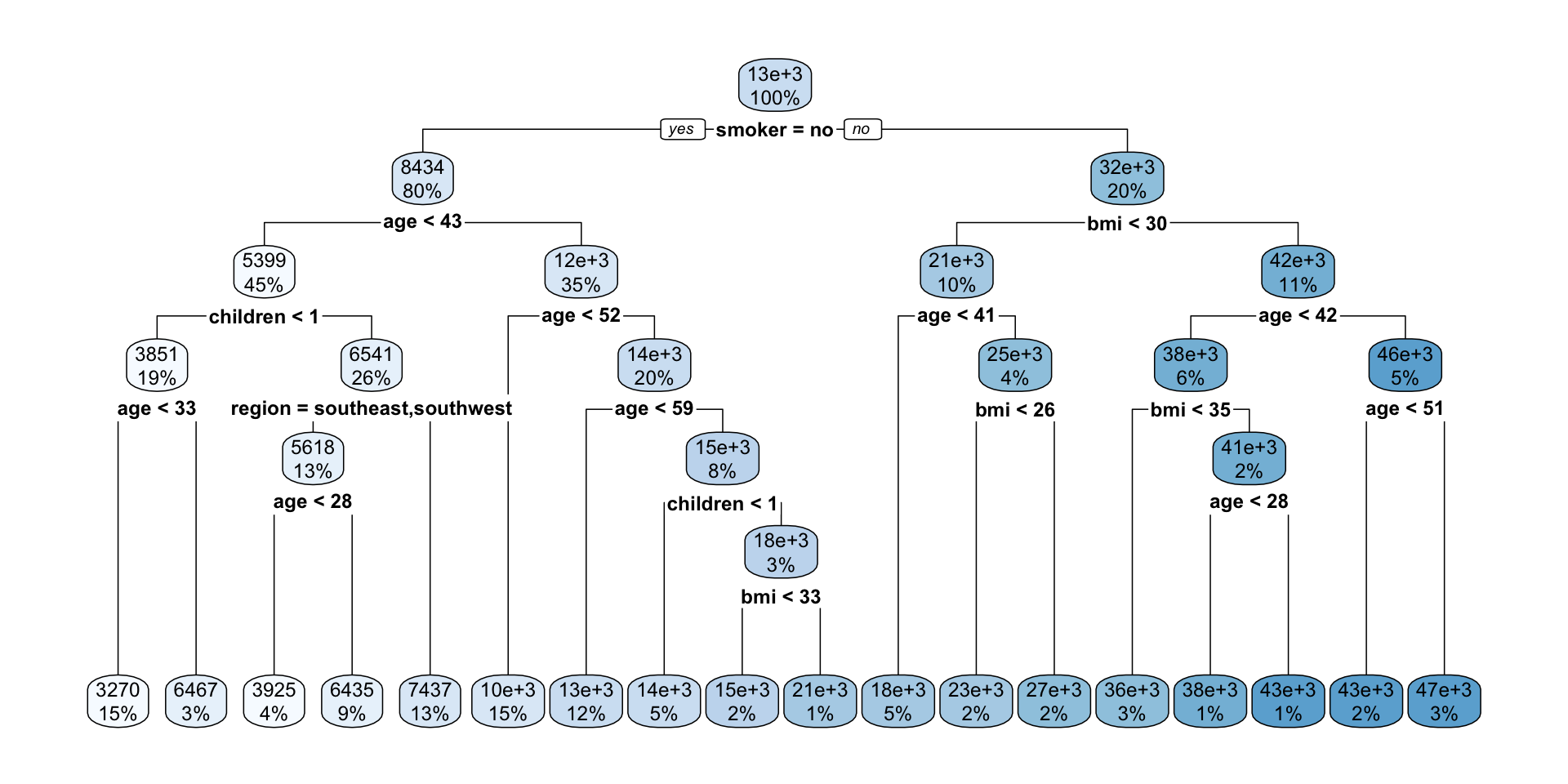

Pruning to optimal cp based on xerror

scroll

• We can select optimal cp based on xerror
T0$cptable %>% as_tibble() # A tibble: 86 Γ 5 CP nsplit rel error xerror xstd <dbl> <dbl> <dbl> <dbl> <dbl> 1 0.620 0 1 1.00 0.0519 2 0.144 1 0.380 0.382 0.0190 3 0.0637 2 0.236 0.239 0.0145 4 0.00967 3 0.173 0.178 0.0133 5 0.00784 4 0.163 0.172 0.0135 6 0.00712 5 0.155 0.165 0.0131 7 0.00537 6 0.148 0.157 0.0131 8 0.00196 7 0.143 0.153 0.0132 9 0.00190 8 0.141 0.156 0.0133 10 0.00173 9 0.139 0.154 0.0132 # βΉ 76 more rows optimal_cp <- T0$cptable %>%
as.data.frame() %>%
filter(xerror == min(xerror)) %>%
# if multiple optimal points, then select one
slice(1) %>%
pull(CP)
optimal_cp
[1] 0.0009125473
T2 <- prune(T0, cp = optimal_cp)
rpart.plot(T2)

Decision tree algorithm

• Top-down: it begins at the top of the tree (all observations belong to a single region) and then successively splits the predictor space; each split is indicated via two new branches further down on the tree.
• Greedy: at each step of the tree-building process, the best split is made at that particular step, rather than looking ahead and picking a split that will lead to a better tree in some future step.

Takeaway

• Tree-based models consist of one or more of nested conditions for the predictors that partition the data.
• Decision trees can be used for both regression and classification problems.
• Decision trees used for:
• classification problems is referred to as classification trees, and
• regression problems is referred to as regression trees.
