ETC5521: Exploratory Data Analysis


Using computational tools to determine whether what is seen in the data can be assumed to apply more broadly

Lecturer: Emi Tanaka

ETC5521.Clayton-x@monash.edu

Week 11 - Session 1


1/26

Revisiting
hypothesis testing

2/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
  • Yup, the probability should be 0.5.
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
  • Yup, the probability should be 0.5.
  • So how would I test if a coin is biased or unbiased?
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
  • Yup, the probability should be 0.5.
  • So how would I test if a coin is biased or unbiased?
  • We'll collect some data.
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
  • Yup, the probability should be 0.5.
  • So how would I test if a coin is biased or unbiased?
  • We'll collect some data.
  • Experiment 1: I flipped the coin 10 times and this is the result:
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
  • Yup, the probability should be 0.5.
  • So how would I test if a coin is biased or unbiased?
  • We'll collect some data.
  • Experiment 1: I flipped the coin 10 times and this is the result:
  • The result is 7 head and 3 tails. So 70% are heads.
3/26

Testing coin bias Part 1/2

  • Suppose I have a coin that I'm going to flip
  • If the coin is unbiased, what is the probability it will show heads?
  • Yup, the probability should be 0.5.
  • So how would I test if a coin is biased or unbiased?
  • We'll collect some data.
  • Experiment 1: I flipped the coin 10 times and this is the result:
  • The result is 7 head and 3 tails. So 70% are heads.
  • Do you believe the coin is biased based on this data?
3/26

Testing coin bias Part 2/2

  • Experiment 2: Suppose now I flip the coin 100 times and this is the outcome:

4/26

Testing coin bias Part 2/2

  • Experiment 2: Suppose now I flip the coin 100 times and this is the outcome:

  • We observe 70 heads and 30 tails. So again 70% are heads.
4/26

Testing coin bias Part 2/2

  • Experiment 2: Suppose now I flip the coin 100 times and this is the outcome:

  • We observe 70 heads and 30 tails. So again 70% are heads.
  • Based on this data, do you think the coin is biased?
4/26

(Frequentist) hypotheses testing framework

  • Suppose X is the number of heads out of n independent tosses.
  • Let p be the probability of getting a head for this coin.
Hypotheses H0:p=0.5 vs. H1:p≠0.5
5/26

(Frequentist) hypotheses testing framework

  • Suppose X is the number of heads out of n independent tosses.
  • Let p be the probability of getting a head for this coin.
Hypotheses H0:p=0.5 vs. H1:p≠0.5
Assumptions Each toss is independent with equal chance of getting a head.
5/26

(Frequentist) hypotheses testing framework

  • Suppose X is the number of heads out of n independent tosses.
  • Let p be the probability of getting a head for this coin.
Hypotheses H0:p=0.5 vs. H1:p≠0.5
Assumptions Each toss is independent with equal chance of getting a head.
Test statistic X∼B(n,p). Recall E(X)=np.
The observed test statistic is denoted x.
5/26

(Frequentist) hypotheses testing framework

  • Suppose X is the number of heads out of n independent tosses.
  • Let p be the probability of getting a head for this coin.
Hypotheses H0:p=0.5 vs. H1:p≠0.5
Assumptions Each toss is independent with equal chance of getting a head.
Test statistic X∼B(n,p). Recall E(X)=np.
The observed test statistic is denoted x.
P-value
(or critical value or confidence interval)		 P(∣Xβˆ’np∣β‰₯∣xβˆ’np∣)
5/26

(Frequentist) hypotheses testing framework

  • Suppose X is the number of heads out of n independent tosses.
  • Let p be the probability of getting a head for this coin.
Hypotheses H0:p=0.5 vs. H1:p≠0.5
Assumptions Each toss is independent with equal chance of getting a head.
Test statistic X∼B(n,p). Recall E(X)=np.
The observed test statistic is denoted x.
P-value
(or critical value or confidence interval)		 P(∣Xβˆ’np∣β‰₯∣xβˆ’np∣)
Conclusion Reject null hypothesis when the p-value is less than
some significance level Ξ±. Usually Ξ±=0.05.
5/26

(Frequentist) hypotheses testing framework

  • Suppose X is the number of heads out of n independent tosses.
  • Let p be the probability of getting a head for this coin.
Hypotheses H0:p=0.5 vs. H1:p≠0.5
Assumptions Each toss is independent with equal chance of getting a head.
Test statistic X∼B(n,p). Recall E(X)=np.
The observed test statistic is denoted x.
P-value
(or critical value or confidence interval)		 P(∣Xβˆ’np∣β‰₯∣xβˆ’np∣)
Conclusion Reject null hypothesis when the p-value is less than
some significance level Ξ±. Usually Ξ±=0.05.
  • The p-value for experiment 1 is P(|Xβˆ’5|β‰₯2)β‰ˆ0.34.
  • The p-value for experiment 2 is P(|Xβˆ’50|β‰₯20)β‰ˆ0.00008.
5/26

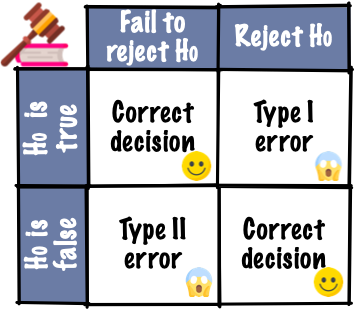

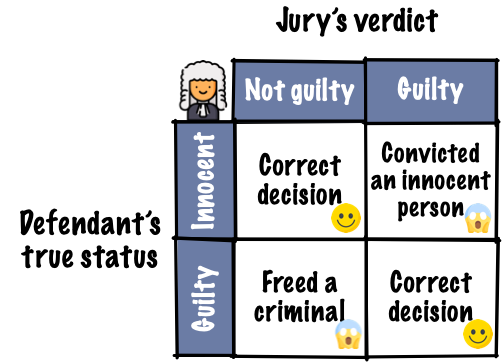

Judicial system



6/26

Judicial system



  • Evidence by test statistic
  • Judgement by p-value, critical value or confidence interval
6/26

Judicial system



  • Evidence by test statistic
  • Judgement by p-value, critical value or confidence interval

Does the test statistic have to be a numerical summary statistics?

6/26

Visual inference

7/26

Visual inference

  • Hypothesis testing in visual inference framework is where:
    • the test statistic is a plot and
    • judgement is by human perceptions.

From Exercise 4 in week 9 tutorial: a residual plot after modelling high-density lipoprotein in human blood.

8/26

Visual inference

  • Hypothesis testing in visual inference framework is where:

    • the test statistic is a plot and
    • judgement is by human perceptions.

  • You (and many other people) actually do visual inference many times but generally in an informal fashion.

From Exercise 4 in week 9 tutorial: a residual plot after modelling high-density lipoprotein in human blood.

8/26

Visual inference

  • Hypothesis testing in visual inference framework is where:

    • the test statistic is a plot and
    • judgement is by human perceptions.

  • You (and many other people) actually do visual inference many times but generally in an informal fashion.

  • Here, we are making an inference on whether the residual plot has any patterns based on a single data plot.

From Exercise 4 in week 9 tutorial: a residual plot after modelling high-density lipoprotein in human blood.

8/26

Data plots tend to be over-interpreted


Reading data plots require calibration

9/26

Visual inference more formally

  1. State your null and alternate hypotheses.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.

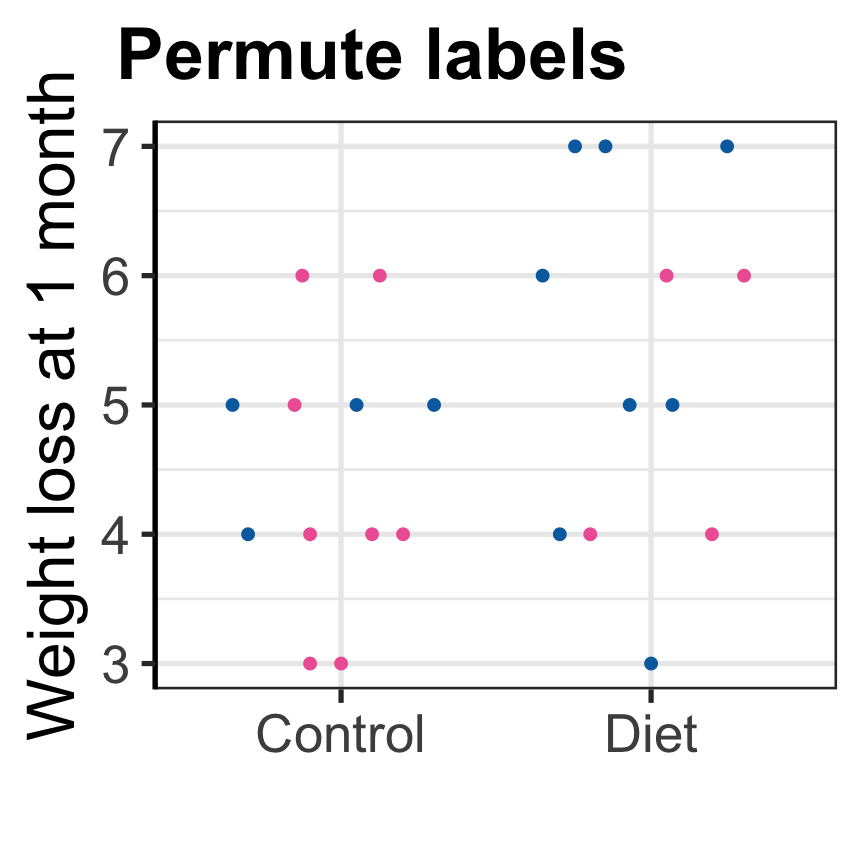

  3. Define a method to generate null data, \boldsymbol{y}_0.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.
  3. Define a method to generate null data, \boldsymbol{y}_0.
  4. V(\boldsymbol{y}) maps the actual data, \boldsymbol{y}, to the plot. We call this the data plot.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.
  3. Define a method to generate null data, \boldsymbol{y}_0.
  4. V(\boldsymbol{y}) maps the actual data, \boldsymbol{y}, to the plot. We call this the data plot.
  5. V(\boldsymbol{y}_0) maps a null data to a plot of the same form. We call this the null plot. We repeat this m - 1 times to generate m-1 null plots.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.
  3. Define a method to generate null data, \boldsymbol{y}_0.
  4. V(\boldsymbol{y}) maps the actual data, \boldsymbol{y}, to the plot. We call this the data plot.
  5. V(\boldsymbol{y}_0) maps a null data to a plot of the same form. We call this the null plot. We repeat this m - 1 times to generate m-1 null plots.
  6. A lineup displays these m plots in a random order.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.
  3. Define a method to generate null data, \boldsymbol{y}_0.
  4. V(\boldsymbol{y}) maps the actual data, \boldsymbol{y}, to the plot. We call this the data plot.
  5. V(\boldsymbol{y}_0) maps a null data to a plot of the same form. We call this the null plot. We repeat this m - 1 times to generate m-1 null plots.
  6. A lineup displays these m plots in a random order.
  7. Ask n human viewers to select a plot in the lineup that looks different to others without any context given.
10/26

Visual inference more formally

  1. State your null and alternate hypotheses.
  2. Define a visual test statistic, V(.), i.e. a function of a sample to a plot.
  3. Define a method to generate null data, \boldsymbol{y}_0.
  4. V(\boldsymbol{y}) maps the actual data, \boldsymbol{y}, to the plot. We call this the data plot.
  5. V(\boldsymbol{y}_0) maps a null data to a plot of the same form. We call this the null plot. We repeat this m - 1 times to generate m-1 null plots.
  6. A lineup displays these m plots in a random order.
  7. Ask n human viewers to select a plot in the lineup that looks different to others without any context given.

Suppose x out of n people detected the data plot from a lineup, then

  • the visual inference p-value is given as P(X \geq x) where X \sim B(n, 1/m), and
  • the power of a lineup is estimated as x/n.
10/26

Lineup 1 In which plot is the pink group higher than the blue group?

  • Note: there is no correct answer here.

11/26

Visual inference p-value (or "see"-value)

  • So    x    out of    n    of you chose the data plot.
  • So the visual inference p-value is P(X \geq x) where X \sim B(n, 1/10).
  • In R, this is
    1 - pbinom(x - 1, n, 1/10)
    # OR
    nullabor::pvisual(x, n, 10)
12/26

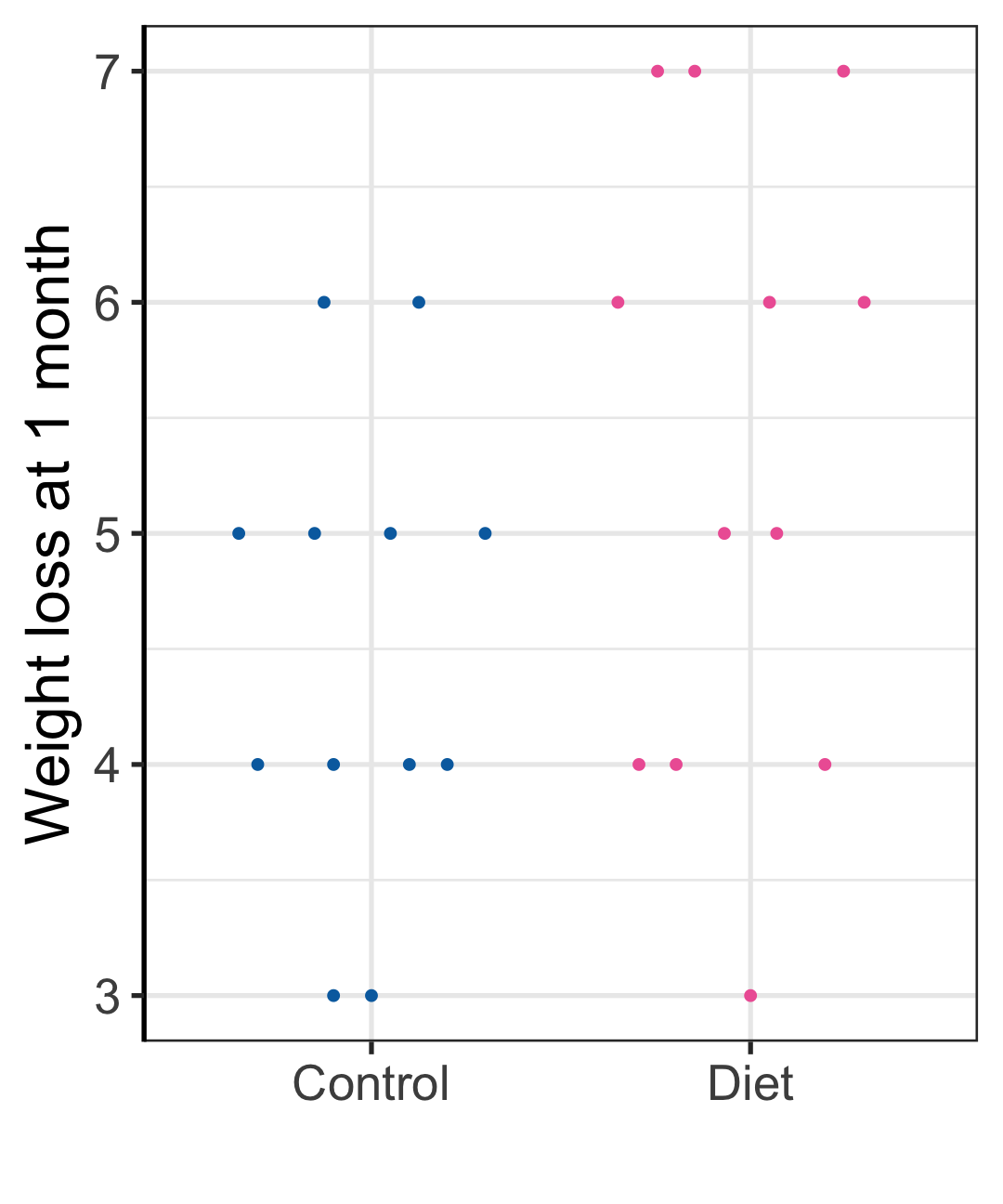

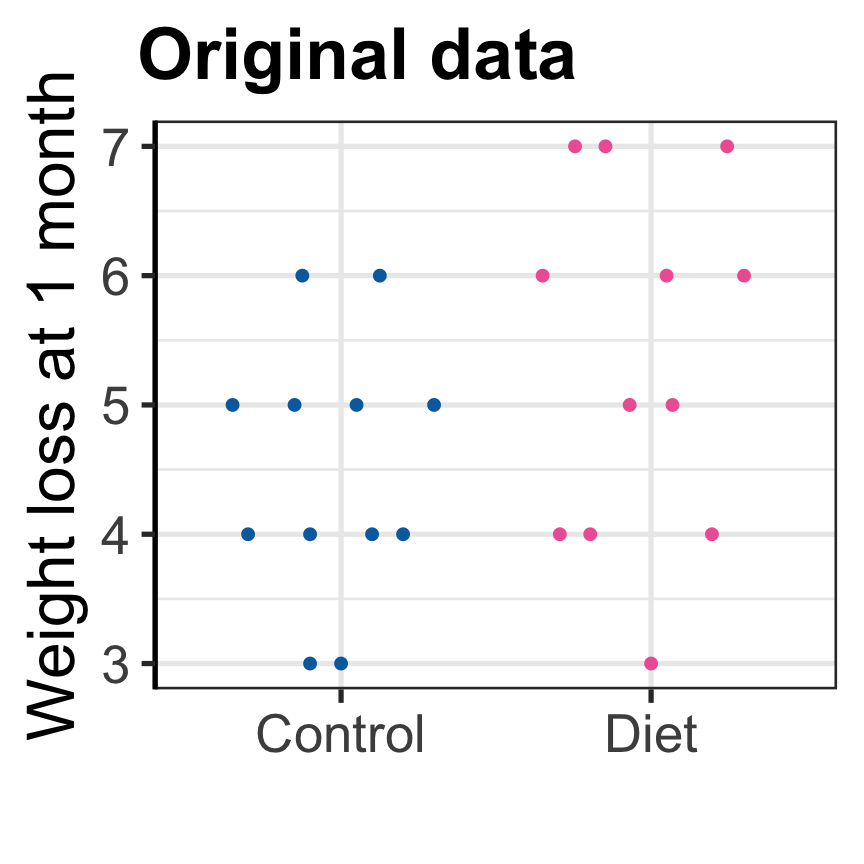

Case study 1 Weight loss by diet

This is actually Plot 4 in the previous lineup.

data("WeightLoss", package = "carData")
# purposefully make it 2 groups
df <- filter(WeightLoss, group!="DietEx")
skimr::skim(df)
## ── Data Summary ────────────────────────
##                            Values
## Name                       df
## Number of rows             24
## Number of columns          7
## _______________________
## Column type frequency:
##   factor                   1
##   numeric                  6
## ________________________
## Group variables            None
##
## ── Variable type: factor ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate ordered n_unique top_counts
## 1 group                 0             1 FALSE          2 Con: 12, Die: 12, Die: 0
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean    sd    p0   p25   p50   p75  p100 hist
## 1 wl1                   0             1  4.92  1.25     3   4     5    6        7 β–ƒβ–‡β–‡β–†β–ƒ
## 2 wl2                   0             1  3.62  1.24     2   3     3.5  4.25     6 β–†β–‡β–‡β–…β–‚
## 3 wl3                   0             1  2.17  1.13     1   1     2    3        4 ▇▅▁▅▃
## 4 se1                   0             1 14.8   2.11    11  13    15   16.2     19 ▃▆▂▇▁
## 5 se2                   0             1 14.0   2.35    11  11.8  14   15.2     19 β–‡β–‡β–†β–…β–‚
## 6 se3                   0             1 15.6   2.45    11  14    15   18       19 β–ƒβ–ƒβ–†β–ƒβ–‡
gweight <- ggplot(df, aes(group, wl1, color = group)) +
  ggbeeswarm::geom_quasirandom() +
  labs(x = "", y = "Weight loss at 1 month") +
  theme(text = element_text(size = 22)) +
  guides(color = "none") +
  scale_color_manual(values = c("#006DAE", "#ee64a4"))
gweight
  • Is weight loss greater with diet after 1 month?
13/26

Case study 1 Weight loss by diet

This is actually Plot 4 in the previous lineup.

data("WeightLoss", package = "carData")
# purposefully make it 2 groups
df <- filter(WeightLoss, group!="DietEx")
skimr::skim(df)
## ── Data Summary ────────────────────────
##                            Values
## Name                       df
## Number of rows             24
## Number of columns          7
## _______________________
## Column type frequency:
##   factor                   1
##   numeric                  6
## ________________________
## Group variables            None
##
## ── Variable type: factor ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate ordered n_unique top_counts
## 1 group                 0             1 FALSE          2 Con: 12, Die: 12, Die: 0
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean    sd    p0   p25   p50   p75  p100 hist
## 1 wl1                   0             1  4.92  1.25     3   4     5    6        7 β–ƒβ–‡β–‡β–†β–ƒ
## 2 wl2                   0             1  3.62  1.24     2   3     3.5  4.25     6 β–†β–‡β–‡β–…β–‚
## 3 wl3                   0             1  2.17  1.13     1   1     2    3        4 ▇▅▁▅▃
## 4 se1                   0             1 14.8   2.11    11  13    15   16.2     19 ▃▆▂▇▁
## 5 se2                   0             1 14.0   2.35    11  11.8  14   15.2     19 β–‡β–‡β–†β–…β–‚
## 6 se3                   0             1 15.6   2.45    11  14    15   18       19 β–ƒβ–ƒβ–†β–ƒβ–‡
gweight <- ggplot(df, aes(group, wl1, color = group)) +
  ggbeeswarm::geom_quasirandom() +
  labs(x = "", y = "Weight loss at 1 month") +
  theme(text = element_text(size = 22)) +
  guides(color = "none") +
  scale_color_manual(values = c("#006DAE", "#ee64a4"))
gweight
  • Is weight loss greater with diet after 1 month?
Group N Mean Std. Dev
Control 12 4.50 1.00
Diet 12 5.33 1.37
13/26

Case study 1 Weight loss by diet

This is actually Plot 4 in the previous lineup.

data("WeightLoss", package = "carData")
# purposefully make it 2 groups
df <- filter(WeightLoss, group!="DietEx")
skimr::skim(df)
## ── Data Summary ────────────────────────
##                            Values
## Name                       df
## Number of rows             24
## Number of columns          7
## _______________________
## Column type frequency:
##   factor                   1
##   numeric                  6
## ________________________
## Group variables            None
##
## ── Variable type: factor ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate ordered n_unique top_counts
## 1 group                 0             1 FALSE          2 Con: 12, Die: 12, Die: 0
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean    sd    p0   p25   p50   p75  p100 hist
## 1 wl1                   0             1  4.92  1.25     3   4     5    6        7 β–ƒβ–‡β–‡β–†β–ƒ
## 2 wl2                   0             1  3.62  1.24     2   3     3.5  4.25     6 β–†β–‡β–‡β–…β–‚
## 3 wl3                   0             1  2.17  1.13     1   1     2    3        4 ▇▅▁▅▃
## 4 se1                   0             1 14.8   2.11    11  13    15   16.2     19 ▃▆▂▇▁
## 5 se2                   0             1 14.0   2.35    11  11.8  14   15.2     19 β–‡β–‡β–†β–…β–‚
## 6 se3                   0             1 15.6   2.45    11  14    15   18       19 β–ƒβ–ƒβ–†β–ƒβ–‡
gweight <- ggplot(df, aes(group, wl1, color = group)) +
  ggbeeswarm::geom_quasirandom() +
  labs(x = "", y = "Weight loss at 1 month") +
  theme(text = element_text(size = 22)) +
  guides(color = "none") +
  scale_color_manual(values = c("#006DAE", "#ee64a4"))
gweight
  • Is weight loss greater with diet after 1 month?
Group N Mean Std. Dev
Control 12 4.50 1.00
Diet 12 5.33 1.37
with(df,
     t.test(wl1[group=="Diet"], wl1[group=="Control"],
            alternative = "greater"))
##
##     Welch Two Sample t-test
##
## data:  wl1[group == "Diet"] and wl1[group == "Control"]
## t = 1.7014, df = 20.125, p-value = 0.05213
## alternative hypothesis: true difference in means is greater than 0
## 95 percent confidence interval:
##  -0.01117097         Inf
## sample estimates:
## mean of x mean of y
##  5.333333  4.500000
13/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.
14/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.

  • There are a number of ways to generate null data under H_0, e.g.

14/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.

  • There are a number of ways to generate null data under H_0, e.g.

    • we could assume a parametric distribution of the data and estimate the parameters from the data, or
14/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.

  • There are a number of ways to generate null data under H_0, e.g.

    • we could assume a parametric distribution of the data and estimate the parameters from the data, or

    • we could permute the labels for the diet and control group.

14/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.

  • There are a number of ways to generate null data under H_0, e.g.

    • we could assume a parametric distribution of the data and estimate the parameters from the data, or

    • we could permute the labels for the diet and control group.

14/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.

  • There are a number of ways to generate null data under H_0, e.g.

    • we could assume a parametric distribution of the data and estimate the parameters from the data, or

    • we could permute the labels for the diet and control group.

14/26

Null data generation method

  • We are testing H_0: \mu_{diet} = \mu_{control} vs. H_1: \mu_{diet} > \mu_{control} where \mu_{diet} and \mu_{control} are the average weight loss for population on diet and no diet, respectively.

  • There are a number of ways to generate null data under H_0, e.g.

    • we could assume a parametric distribution of the data and estimate the parameters from the data, or

    • we could permute the labels for the diet and control group.

14/26

Lineup 2 In which plot is the pink group higher than the blue group?

15/26

Case study 1 Weight loss by diet and exercise

This is actually Plot 10 in the previous lineup.

df2 <- filter(WeightLoss, group!="Diet")
skimr::skim(df2)
## ── Data Summary ────────────────────────
##                            Values
## Name                       df2
## Number of rows             22
## Number of columns          7
## _______________________
## Column type frequency:
##   factor                   1
##   numeric                  6
## ________________________
## Group variables            None
##
## ── Variable type: factor ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate ordered n_unique top_counts
## 1 group                 0             1 FALSE          2 Con: 12, Die: 10, Die: 0
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean    sd    p0   p25   p50   p75  p100 hist
## 1 wl1                   0             1  5.27  1.86     3   4     5    6        9 β–‡β–ƒβ–ƒβ–‚β–‚
## 2 wl2                   0             1  4.59  1.87     2   3     4.5  5.75     9 ▇▅▇▃▁
## 3 wl3                   0             1  2.14  1.17     1   1     2    3        4 ▇▅▁▃▃
## 4 se1                   0             1 15.0   1.65    11  14    15   16       17 ▁▃▂▃▇
## 5 se2                   0             1 13.9   1.93    11  12.2  13.5 15       18 β–‡β–‡β–‡β–ƒβ–‚
## 6 se3                   0             1 16.2   2.22    11  15    17   18       19 β–‚β–‚β–ƒβ–‡β–‡

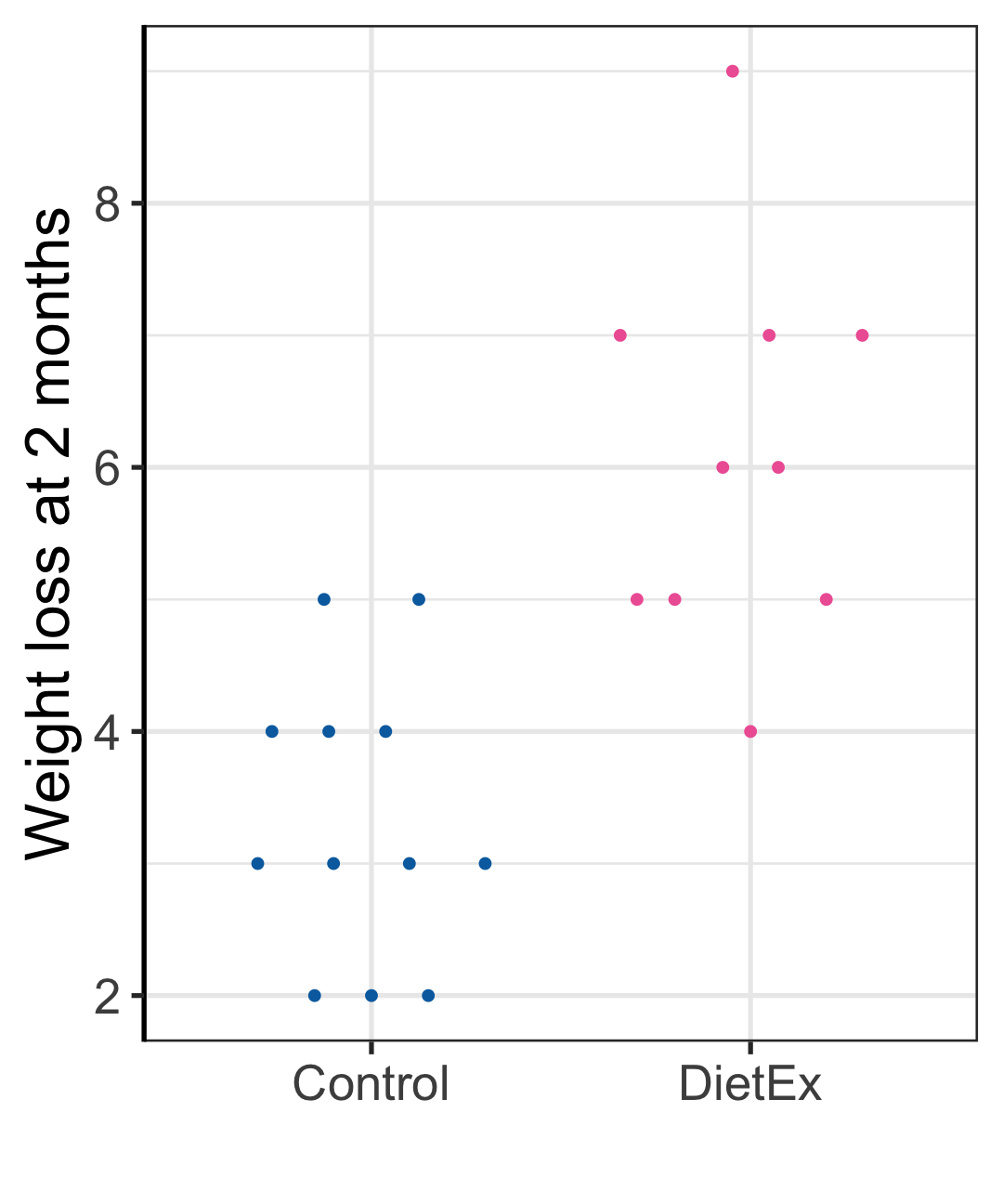

gweight %+% df2 +
  aes(y = wl2) +
  labs(y = "Weight loss at 2 months")
  • Is weight loss greater with diet and exercise after 2 months?
16/26

Case study 1 Weight loss by diet and exercise

This is actually Plot 10 in the previous lineup.

df2 <- filter(WeightLoss, group!="Diet")
skimr::skim(df2)
## ── Data Summary ────────────────────────
##                            Values
## Name                       df2
## Number of rows             22
## Number of columns          7
## _______________________
## Column type frequency:
##   factor                   1
##   numeric                  6
## ________________________
## Group variables            None
##
## ── Variable type: factor ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate ordered n_unique top_counts
## 1 group                 0             1 FALSE          2 Con: 12, Die: 10, Die: 0
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean    sd    p0   p25   p50   p75  p100 hist
## 1 wl1                   0             1  5.27  1.86     3   4     5    6        9 β–‡β–ƒβ–ƒβ–‚β–‚
## 2 wl2                   0             1  4.59  1.87     2   3     4.5  5.75     9 ▇▅▇▃▁
## 3 wl3                   0             1  2.14  1.17     1   1     2    3        4 ▇▅▁▃▃
## 4 se1                   0             1 15.0   1.65    11  14    15   16       17 ▁▃▂▃▇
## 5 se2                   0             1 13.9   1.93    11  12.2  13.5 15       18 β–‡β–‡β–‡β–ƒβ–‚
## 6 se3                   0             1 16.2   2.22    11  15    17   18       19 β–‚β–‚β–ƒβ–‡β–‡
gweight %+% df2 +
  aes(y = wl2) +
  labs(y = "Weight loss at 2 months")
  • Is weight loss greater with diet and exercise after 2 months?
Group N Mean Std. Dev
Control 12 3.33 1.07
DietEx 10 6.10 1.45
16/26

Case study 1 Weight loss by diet and exercise

This is actually Plot 10 in the previous lineup.

df2 <- filter(WeightLoss, group!="Diet")
skimr::skim(df2)
## ── Data Summary ────────────────────────
##                            Values
## Name                       df2
## Number of rows             22
## Number of columns          7
## _______________________
## Column type frequency:
##   factor                   1
##   numeric                  6
## ________________________
## Group variables            None
##
## ── Variable type: factor ───────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate ordered n_unique top_counts
## 1 group                 0             1 FALSE          2 Con: 12, Die: 10, Die: 0
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean    sd    p0   p25   p50   p75  p100 hist
## 1 wl1                   0             1  5.27  1.86     3   4     5    6        9 β–‡β–ƒβ–ƒβ–‚β–‚
## 2 wl2                   0             1  4.59  1.87     2   3     4.5  5.75     9 ▇▅▇▃▁
## 3 wl3                   0             1  2.14  1.17     1   1     2    3        4 ▇▅▁▃▃
## 4 se1                   0             1 15.0   1.65    11  14    15   16       17 ▁▃▂▃▇
## 5 se2                   0             1 13.9   1.93    11  12.2  13.5 15       18 β–‡β–‡β–‡β–ƒβ–‚
## 6 se3                   0             1 16.2   2.22    11  15    17   18       19 β–‚β–‚β–ƒβ–‡β–‡
gweight %+% df2 +
  aes(y = wl2) +
  labs(y = "Weight loss at 2 months")
  • Is weight loss greater with diet and exercise after 2 months?
Group N Mean Std. Dev
Control 12 3.33 1.07
DietEx 10 6.10 1.45
with(df2,
     t.test(wl2[group=="DietEx"], wl2[group=="Control"],
            alternative = "greater"))
##
##     Welch Two Sample t-test
##
## data:  wl2[group == "DietEx"] and wl2[group == "Control"]
## t = 5.0018, df = 16.317, p-value = 6.155e-05
## alternative hypothesis: true difference in means is greater than 0
## 95 percent confidence interval:
##  1.802104      Inf
## sample estimates:
## mean of x mean of y
##  6.100000  3.333333
16/26

What about if we change the visual test statistic?

17/26

Lineup 3 In which plot is the pink group higher than the blue group?

geom_point() Data plot is Plot 3

18/26

Lineup 4 In which plot is the pink group higher than the blue group?

geom_boxplot() Data plot is Plot 2

19/26

Lineup 5 In which plot is the pink group higher than the blue group?

geom_violin() Data plot is Plot 4

20/26

Lineup 6 In which plot is the pink group higher than the blue group?

ggbeeswarm::geom_quasirandom() Data plot is Plot 10

21/26

Case study 1 Weight loss by exercise

df3 <- filter(WeightLoss, group != "Control")
gweight %+% df3 +
  aes(y = wl2) +
  labs(y = "Weight loss at 2 months")
  • Is weight loss greater with exercise after 2 months?
Group N Mean Std. Dev
Diet 12 3.92 1.38
DietEx 10 6.10 1.45
with(df3,
     t.test(wl2[group=="DietEx"], wl2[group=="Diet"],
            alternative = "greater"))
##
##     Welch Two Sample t-test
##
## data:  wl2[group == "DietEx"] and wl2[group == "Diet"]
## t = 3.5969, df = 18.901, p-value = 0.0009675
## alternative hypothesis: true difference in means is greater than 0
## 95 percent confidence interval:
##  1.133454      Inf
## sample estimates:
## mean of x mean of y
##  6.100000  3.916667
22/26

Power of a lineup

  • The power of a lineup is calculated as x/n where x is the number of people who detected the data plot out of n people


Hofmann, H., L. Follett, M. Majumder, and D. Cook. 2012. β€œGraphical Tests for Power Comparison of Competing Designs.” IEEE Transactions on Visualization and Computer Graphics 18 (12): 2441–48.

23/26

Power of a lineup

  • The power of a lineup is calculated as x/n where x is the number of people who detected the data plot out of n people


Plot type x n Power
geom_point x_1 n_1 x_1 / n_1
geom_boxplot x_2 n_2 x_2 / n_2
geom_violin x_3 n_3 x_3 / n_3
ggbeeswarm::geom_quasirandom x_4 n_4 x_4 / n_4


Hofmann, H., L. Follett, M. Majumder, and D. Cook. 2012. β€œGraphical Tests for Power Comparison of Competing Designs.” IEEE Transactions on Visualization and Computer Graphics 18 (12): 2441–48.

23/26

Power of a lineup

  • The power of a lineup is calculated as x/n where x is the number of people who detected the data plot out of n people


Plot type x n Power
geom_point x_1 n_1 x_1 / n_1
geom_boxplot x_2 n_2 x_2 / n_2
geom_violin x_3 n_3 x_3 / n_3
ggbeeswarm::geom_quasirandom x_4 n_4 x_4 / n_4


Hofmann, H., L. Follett, M. Majumder, and D. Cook. 2012. β€œGraphical Tests for Power Comparison of Competing Designs.” IEEE Transactions on Visualization and Computer Graphics 18 (12): 2441–48.

  • The plot type with a higher power is preferable
23/26

Power of a lineup

  • The power of a lineup is calculated as x/n where x is the number of people who detected the data plot out of n people


Plot type x n Power
geom_point x_1 n_1 x_1 / n_1
geom_boxplot x_2 n_2 x_2 / n_2
geom_violin x_3 n_3 x_3 / n_3
ggbeeswarm::geom_quasirandom x_4 n_4 x_4 / n_4


Hofmann, H., L. Follett, M. Majumder, and D. Cook. 2012. β€œGraphical Tests for Power Comparison of Competing Designs.” IEEE Transactions on Visualization and Computer Graphics 18 (12): 2441–48.

  • The plot type with a higher power is preferable

  • You can use this framework to find the optimal plot design

23/26

Some considerations in visual inference

  • In practice you don't want to bias the judgement of the human viewers so for a proper visual inference:
    • you should not show the data plot before the lineup
    • you should not give the context of the data
    • you should remove labels in plots
  • You can crowd source these by paying for services like:
  • If the data is for research purposes, then you may need ethics approval for publication.
24/26

Resources and Acknowledgement

  • Buja, Andreas, Dianne Cook, Heike Hofmann, Michael Lawrence, Eun-Kyung Lee, Deborah F. Swayne, and Hadley Wickham. 2009. β€œStatistical Inference for Exploratory Data Analysis and Model Diagnostics.” Philosophical Transactions. Series A, Mathematical, Physical, and Engineering Sciences 367 (1906): 4361–83.
  • Wickham, Hadley, Dianne Cook, Heike Hofmann, and Andreas Buja. 2010. β€œGraphical Inference for Infovis.” IEEE Transactions on Visualization and Computer Graphics 16 (6): 973–79.
  • Hofmann, H., L. Follett, M. Majumder, and D. Cook. 2012. β€œGraphical Tests for Power Comparison of Competing Designs.” IEEE Transactions on Visualization and Computer Graphics 18 (12): 2441–48.
  • Majumder, M., Heiki Hofmann, and Dianne Cook. 2013. β€œValidation of Visual Statistical Inference, Applied to Linear Models.” Journal of the American Statistical Association 108 (503): 942–56.
  • Data coding using tidyverse suite of R packages
  • Slides constructed with xaringan, remark.js, knitr, and R Markdown.
25/26

Creative Commons License
This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Lecturer: Emi Tanaka

ETC5521.Clayton-x@monash.edu

Week 11 - Session 1


26/26

ETC5521: Exploratory Data Analysis


Using computational tools to determine whether what is seen in the data can be assumed to apply more broadly

Lecturer: Emi Tanaka

ETC5521.Clayton-x@monash.edu

Week 11 - Session 1


1/26
Paused

Help

Keyboard shortcuts

↑, ←, Pg Up, k Go to previous slide
↓, β†’, Pg Dn, Space, j Go to next slide
Home Go to first slide
End Go to last slide
Number + Return Go to specific slide
b / m / f Toggle blackout / mirrored / fullscreen mode
c Clone slideshow
p Toggle presenter mode
t Restart the presentation timer
?, h Toggle this help
Esc Back to slideshow
