ETC5521: Exploratory Data Analysis

Sculpting data using models, checking assumptions, co-dependency and performing diagnostics

Lecturer: Emi Tanaka

ETC5521.Clayton-x@monash.edu

Week 8 - Session 2

1/26

Revisiting outliers

We defined outliers in week 4 as "observations that are significantly different from the majority" when studying univariate variables.
There is actually no hard and fast definition.

We can also define an outlier as a data point that emanates from a different model than do the rest of the data.

2/26

Revisiting outliers

We defined outliers in week 4 as "observations that are significantly different from the majority" when studying univariate variables.
There is actually no hard and fast definition.

We can also define an outlier as a data point that emanates from a different model than do the rest of the data.

Notice that this makes this definition dependent on the model in question.

2/26

Pop Quiz

Would you consider the yellow points below as outliers?

3/26

Outlying values

As with simple linear regression the fitted model should not be used to predict $Y$ values for $\boldsymbol{x}$ combinations that are well away from the set of observed $\boldsymbol{x}_i$ values.
This is not always easy to detect!
Here, a point labelled P has $x_1$ and $x_2$ coordinates well within their respective ranges but P is not close to the observed sample values in 2-dimensional space.
In higher dimensions this type of behaviour is even harder to detect but we need to be on guard against extrapolating to extreme values.

4/26

LeverageThe matrix \mathbf{H} = \mathbf{X}(\mathbf{X}^\top\mathbf{X})^{-1}\mathbf{X}^\top is referred to as the hat matrix.
The i-th diagonal element of \mathbf{H}, h_{ii}, is called the leverage of the i-th observation.
Leverages are always between zero and one,
0 \leq h_{ii} \leq 1.
Notice that leverages are not dependent on the response!
Points with high leverage can exert a lot of influence on the parameter estimates

5/26

Studentized residualsIn order to obtain residuals with equal variance, many texts recommend using the studentised residuals
R_i^* = \dfrac{R_i} {\hat{\sigma} \sqrt{1 - h_{ii}}} for diagnostic checks.

6/26

Cook's distanceCook's distance, D, is another measure of influence:
\begin{eqnarray*}
D_i &=& \dfrac{(\hat{\boldsymbol{\beta}}- \hat{\boldsymbol{\beta}}_{[-i]})^\top Var(\hat{\boldsymbol{\beta}})^{-1}(\hat{\boldsymbol{\beta}}- \hat{\boldsymbol{\beta}}_{[-i]})}{p}\\
&=&\frac{R_i^2 h_{ii}}{(1-h_{ii})^2p\hat\sigma^2},
\end{eqnarray*}
where p is the number of elements in \boldsymbol{\beta}, \hat{\boldsymbol{\beta}}_{[-i]} and \hat Y_{j[-i]} are least squares estimates and the fitted value obtained by fitting the model ignoring the i-th data point (\boldsymbol{x}_i,Y_i), respectively.

7/26

Data collected from advertising experiment to study the impact of three advertising medias (youtube, facebook and newspaper) on sales.

data(marketing, package="datarium")
skimr::skim(marketing)

## ── Data Summary ────────────────────────
##                            Values
## Name                       marketing
## Number of rows             200
## Number of columns          4
## _______________________
## Column type frequency:
##   numeric                  4
## ________________________
## Group variables            None
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean     sd    p0   p25   p50   p75  p100 hist
## 1 youtube               0             1 176.  103.    0.84  89.2 180.  263.  356.  ▇▆▆▇▆
## 2 facebook              0             1  27.9  17.8   0     12.0  27.5  43.8  59.5 ▇▆▆▆▆
## 3 newspaper             0             1  36.7  26.1   0.36  15.3  30.9  54.1 137.  ▇▆▃▁▁
## 4 sales                 0             1  16.8   6.26  1.92  12.4  15.5  20.9  32.4 ▁▇▇▅▂

GGally::ggpairs(marketing, progress=F)

8/26

Extracting values from models in RThe leverage value, studentised residual and Cook's distance can be easily extracted from a model object using broom::augment..hat is the leverage value
.std.resid is the studentised residual
.cooksd is the Cook's distance

fit <- lm(sales ~ youtube * facebook, data = marketing)
(out <- broom::augment(fit))

## # A tibble: 200 × 9
##    sales youtube facebook .fitted  .resid    .hat .sigma   .cooksd .std.resid
##    <dbl>   <dbl>    <dbl>   <dbl>   <dbl>   <dbl>  <dbl>     <dbl>      <dbl>
##  1 26.5    276.     45.4    26.0   0.496  0.0174    1.13 0.000864      0.442
##  2 12.5     53.4    47.2    12.8  -0.281  0.0264    1.13 0.000431     -0.252
##  3 11.2     20.6    55.1    11.1   0.0465 0.0543    1.14 0.0000256     0.0423
##  4 22.2    182.     49.6    21.2   1.04   0.0124    1.13 0.00268       0.923
##  5 15.5    217.     13.0    15.2   0.316  0.0104    1.13 0.000207      0.280
##  6  8.64    10.4    58.7    10.5  -1.91   0.0709    1.13 0.0583       -1.75
##  7 14.2     69      39.4    13.0   1.15   0.0149    1.13 0.00395       1.02
##  8 15.8    144.     23.5    14.6   1.23   0.00577   1.13 0.00173       1.09
##  9  5.76    10.3     2.52    8.39 -2.63   0.0553    1.12 0.0838       -2.39
## 10 12.7    240.      3.12   13.4  -0.727  0.0219    1.13 0.00236      -0.649
## # … with 190 more rows
9/26

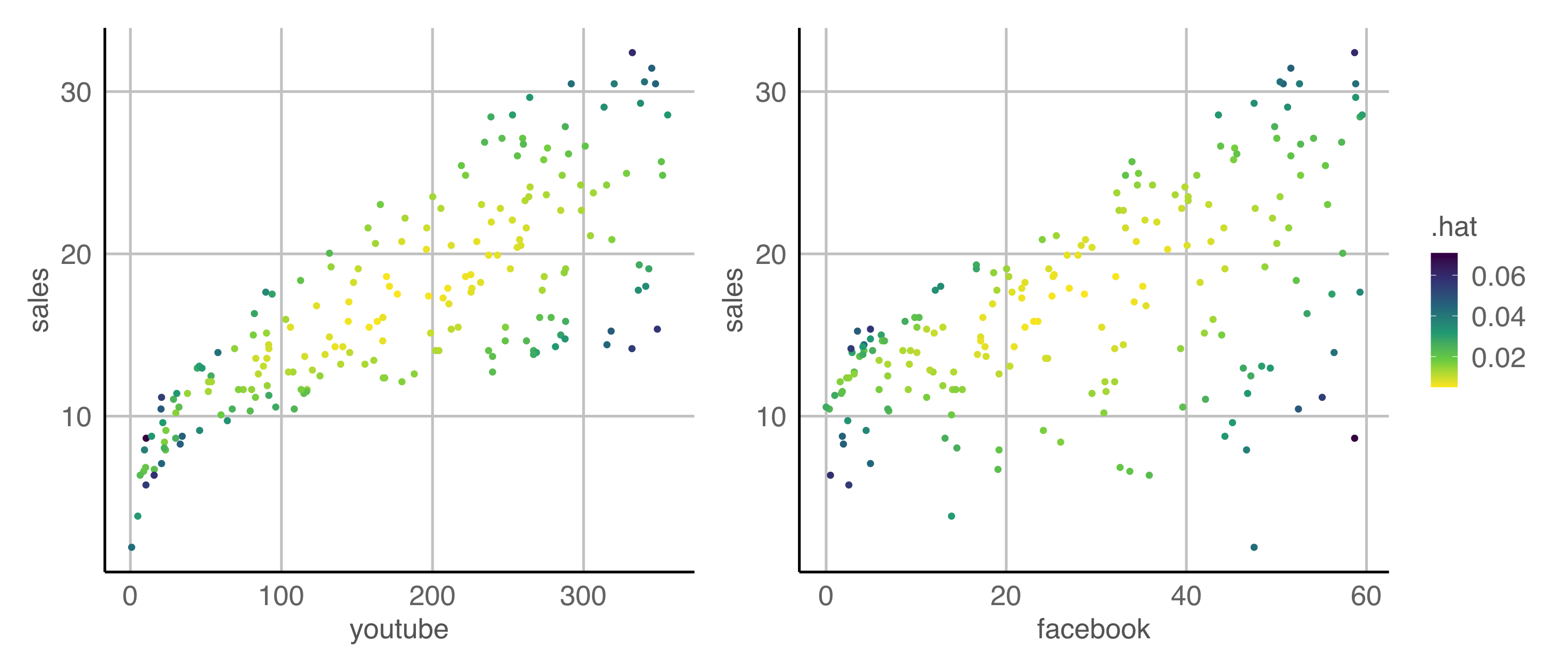

Examining the leverage values

10/26

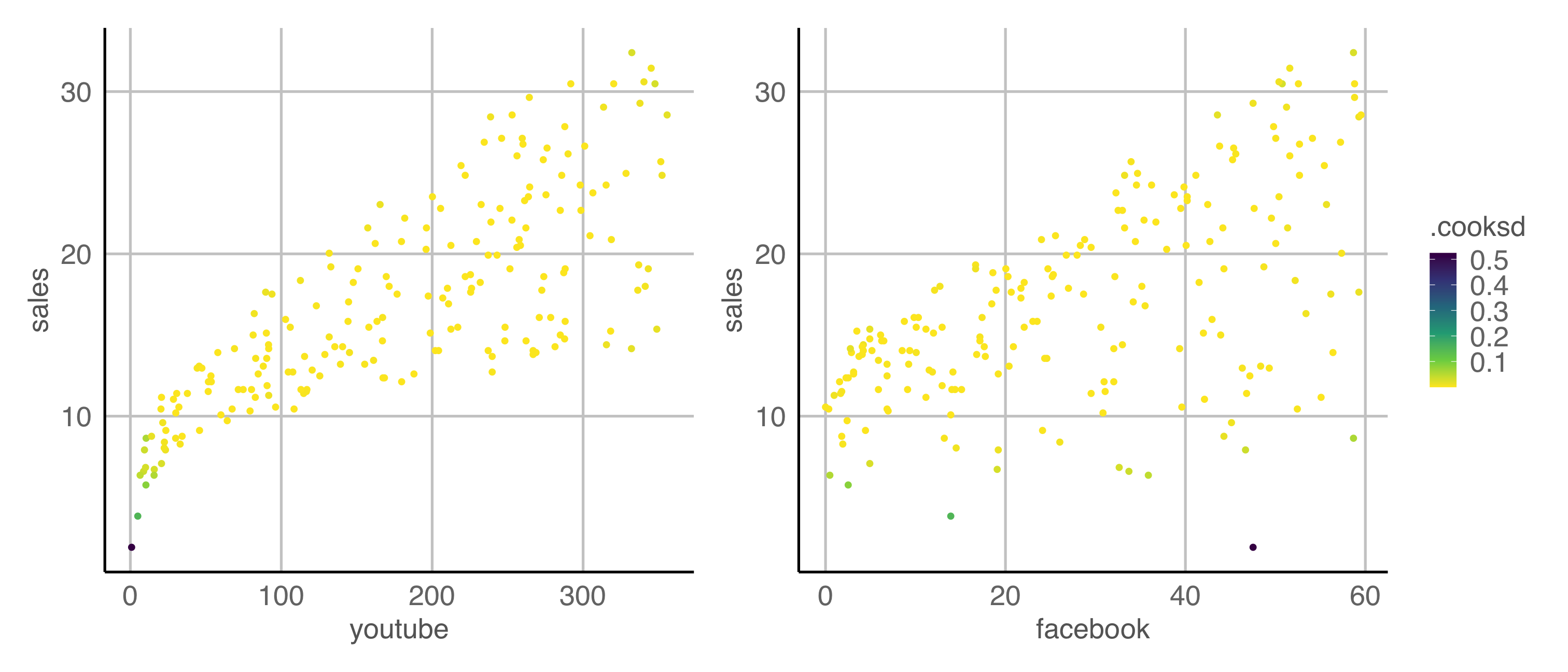

Examining the Cook's distance

11/26

Non-parametric regression12/26

LOESS

LOESS (LOcal regrESSion) and LOWESS (LOcally WEighted Scatterplot Smoothing) are non-parametric regression methods (LOESS is a generalisation of LOWESS)
LOESS fits a low order polynomial to a subset of neighbouring data and can be fitted using loess function in R
a user specified "bandwidth" or "smoothing parameter" $\color{blue}{\alpha}$ determines how much of the data is used to fit each local polynomial.

$\alpha \in \left(\frac{\lambda + 1}{n}, 1\right)$ (default span=0.75) where $\lambda$ is the degree of the local polynomial (default degree=2) and $n$ is the number of observations.
Large $\alpha$ produce a smoother fit.
Small $\alpha$ overfits the data with the fitted regression capturing the random error in the data.

13/26

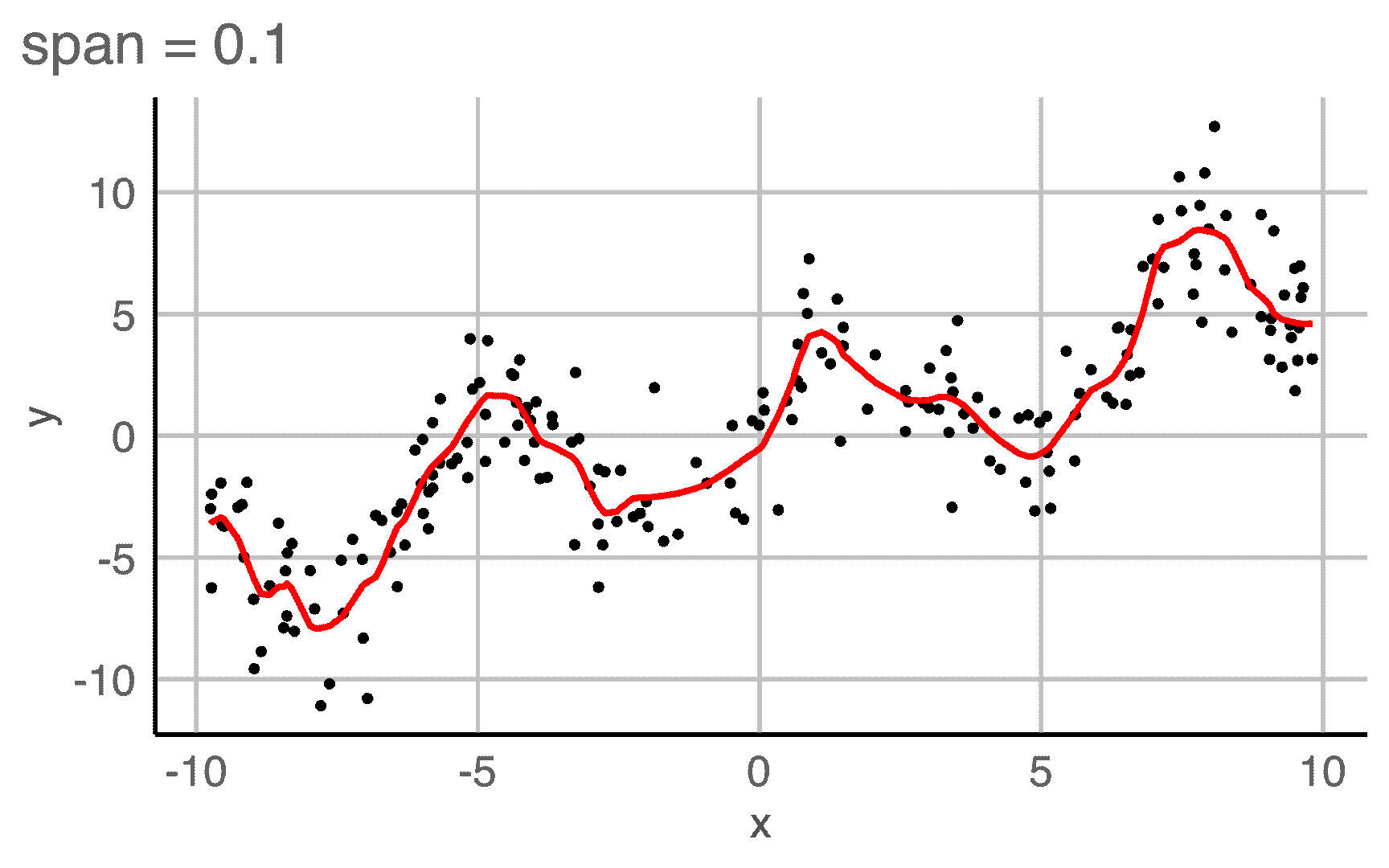

How `span` changes the loess fit

Code inspired by http://varianceexplained.org/files/loess.html

14/26

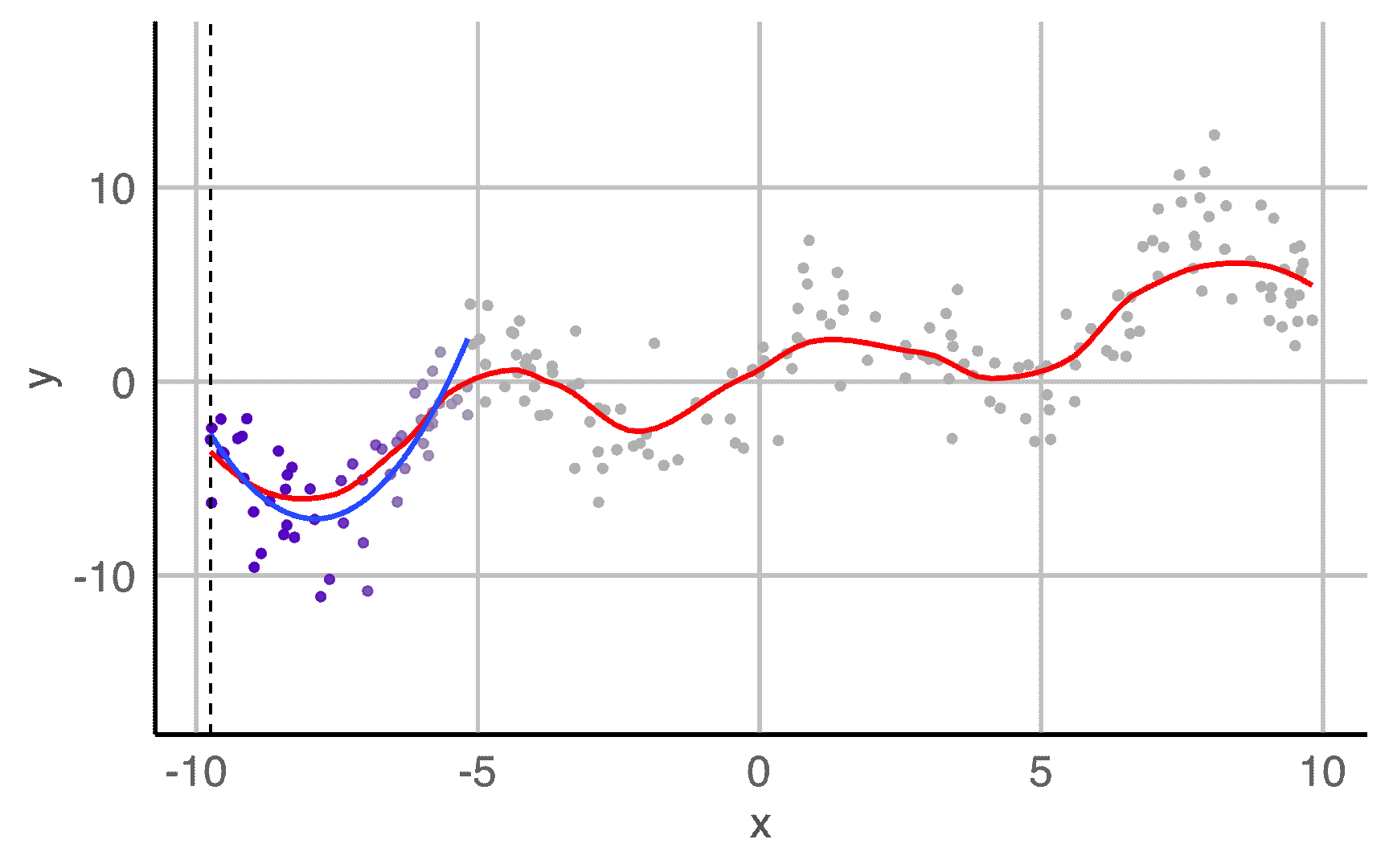

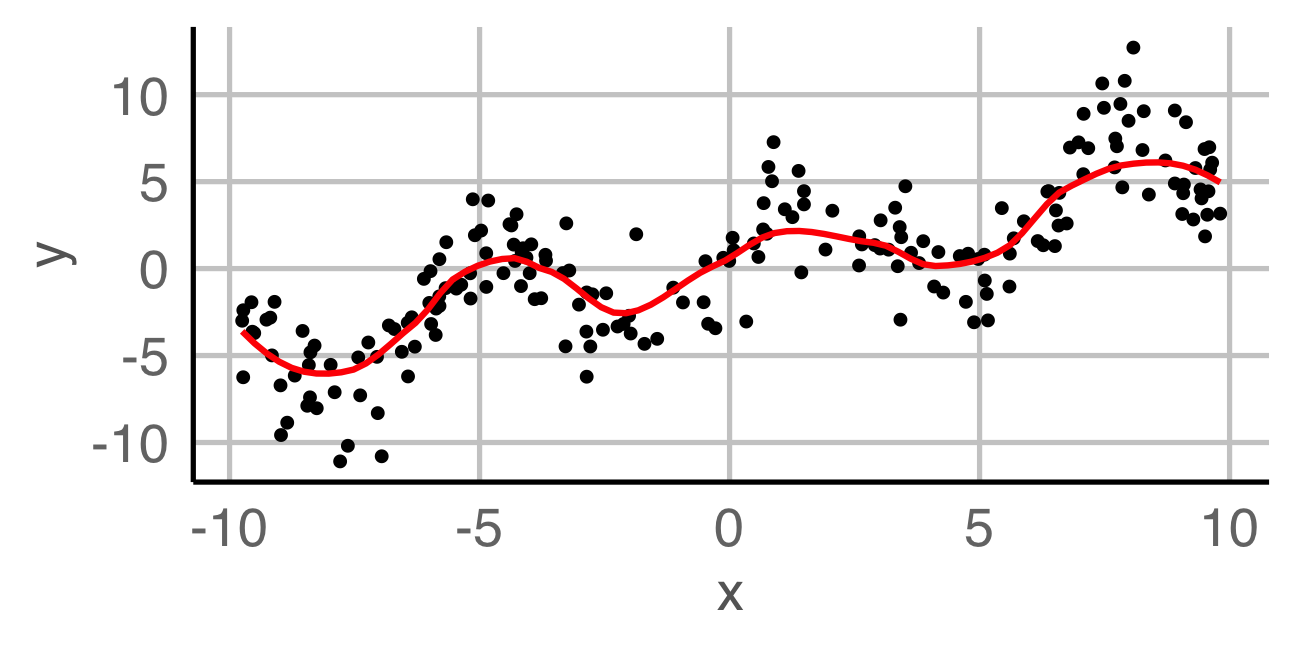

How `loess` works

Code inspired by http://varianceexplained.org/files/loess.html

15/26

Case study 3 US economic time series

This dataset was produced from US economic time series data available from http://research.stlouisfed.org/fred2.

data(economics, package = "ggplot2")
skimr::skim(economics)

## ── Data Summary ────────────────────────
##                            Values
## Name                       economics
## Number of rows             574
## Number of columns          6
## _______________________
## Column type frequency:
##   Date                     1
##   numeric                  5
## ________________________
## Group variables            None
##
## ── Variable type: Date ─────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate min        max        median     n_unique
## 1 date                  0             1 1967-07-01 2015-04-01 1991-05-16      574
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate      mean       sd       p0      p25      p50      p75     p100 hist
## 1 pce                   0             1   4820.    3557.      507.    1578.    3937.    7626.   12194.  ▇▅▃▂▃
## 2 pop                   0             1 257160.   36682.   198712   224896   253060   290291.  320402.  ▇▇▆▆▇
## 3 psavert               0             1      8.57     2.96      2.2      6.4      8.4     11.1     17.3 ▃▇▆▅▁
## 4 uempmed               0             1      8.61     4.11      4        6        7.5      9.1     25.2 ▇▃▁▁▁
## 5 unemploy              0             1   7771.    2642.     2685     6284     7494     8686.   15352   ▃▇▆▂▁

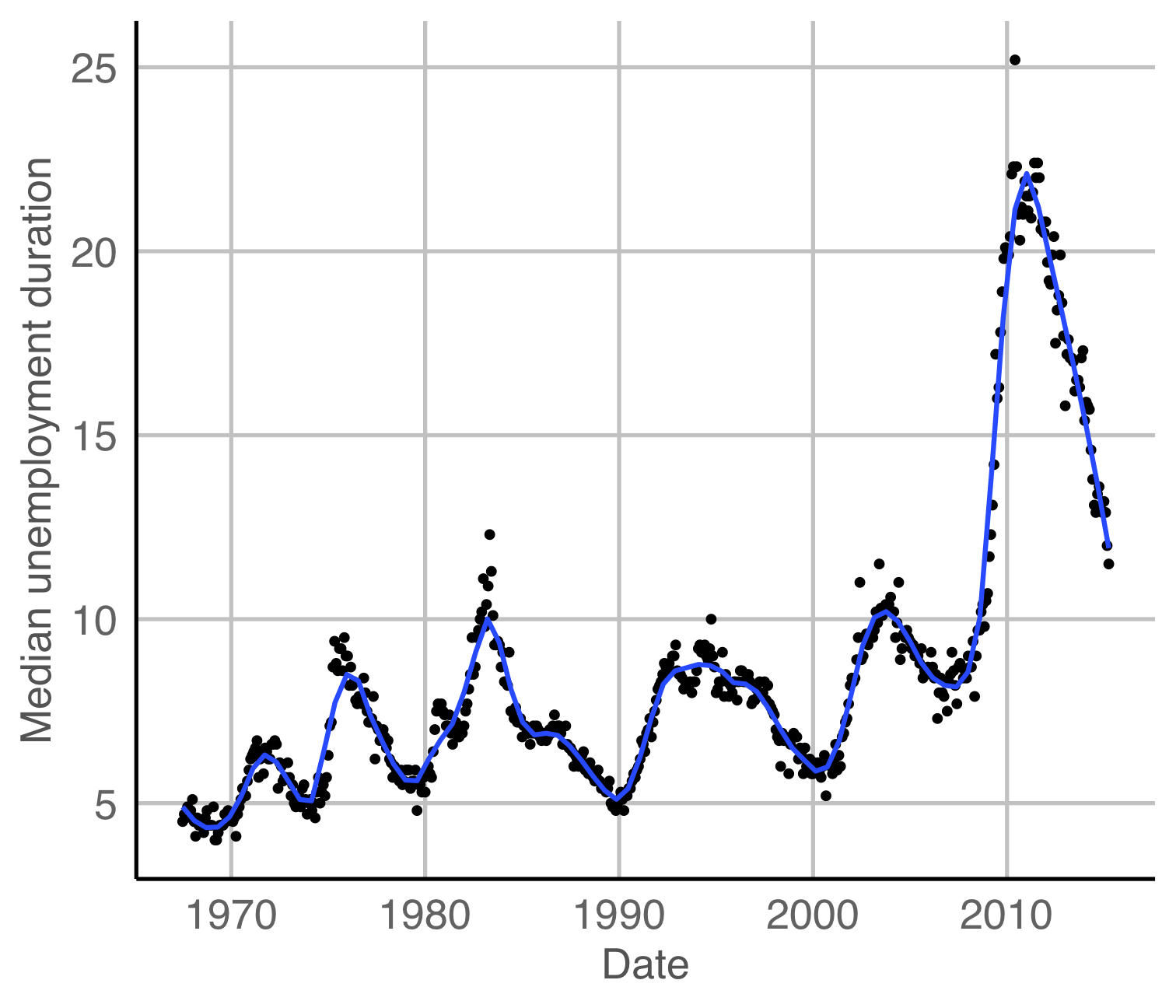

ggplot(economics, aes(date, uempmed)) +
  geom_point() +
  geom_smooth(method = loess, se = FALSE,
              method.args = list(span = 0.1)) +
  labs(x = "Date", y = "Median unemployment duration")

16/26

How to fit LOESS curves in R?

Model fitting

The model can be fitted using the loess function where

the default span is 0.75 and
the default local polynomial degree is 2.

fit <- economics %>%
          mutate(index = 1:n()) %>%
          loess(uempmed ~ index,
                data = .,
                span = 0.75,
                degree = 2)

17/26

How to fit LOESS curves in R?

Model fitting

The model can be fitted using the loess function where

the default span is 0.75 and
the default local polynomial degree is 2.

fit <- economics %>%
          mutate(index = 1:n()) %>%
          loess(uempmed ~ index,
                data = .,
                span = 0.75,
                degree = 2)

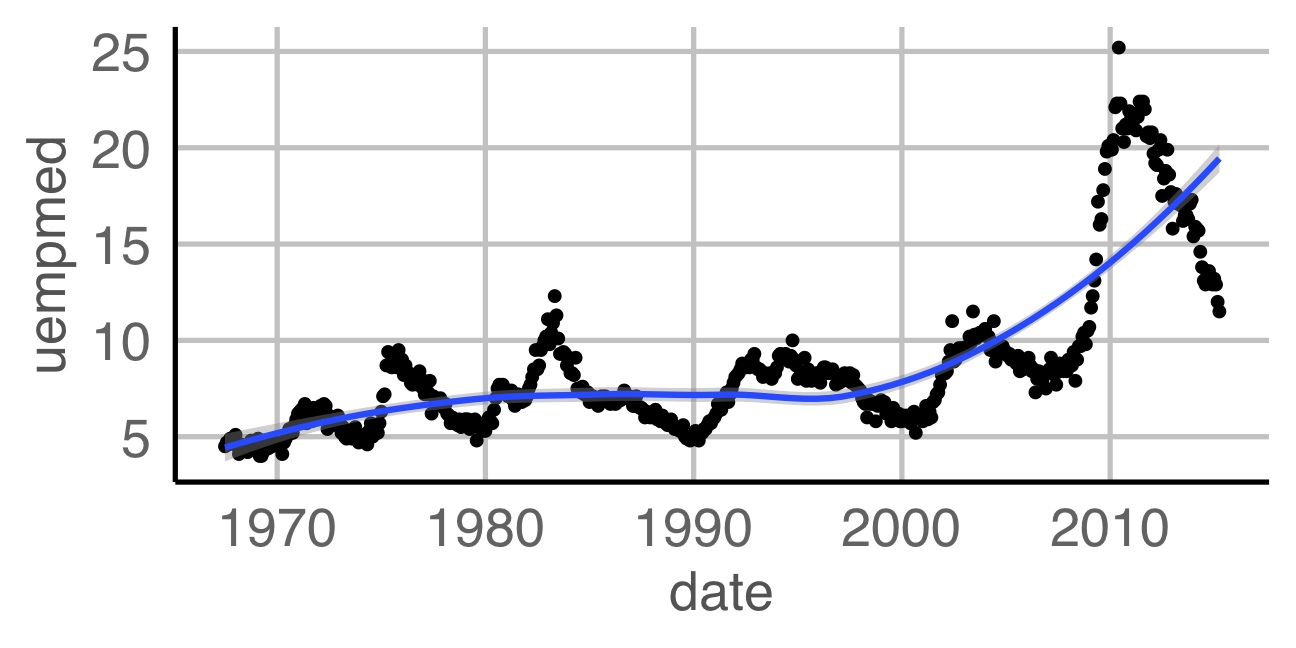

Showing it on the plot

In ggplot, you can add the loess using geom_smooth with method = loess and method arguments passed as list:

ggplot(economics, aes(date, uempmed)) +
  geom_point() +
  geom_smooth(method = loess,
              method.args = list(span = 0.75,
                                 degree = 2))

17/26

Why non-parametric regression?Fitting a line to a scatter plot where noisy data values, sparse data points or weak inter-relationships interfere with your ability to see a line of best fit.

18/26

Why non-parametric regression?

Fitting a line to a scatter plot where noisy data values, sparse data points or weak inter-relationships interfere with your ability to see a line of best fit.
Linear regression where least squares fitting doesn't create a line of good fit or is too labour intensive to use.

18/26

Why non-parametric regression?

Fitting a line to a scatter plot where noisy data values, sparse data points or weak inter-relationships interfere with your ability to see a line of best fit.
Linear regression where least squares fitting doesn't create a line of good fit or is too labour intensive to use.
Data exploration and analysis.

18/26

Why non-parametric regression?

Fitting a line to a scatter plot where noisy data values, sparse data points or weak inter-relationships interfere with your ability to see a line of best fit.
Linear regression where least squares fitting doesn't create a line of good fit or is too labour intensive to use.
Data exploration and analysis.
Recall: In a parametric regression, some type of distribution is assumed in advance; therefore fitted model can lead to fitting a smooth curve that misrepresents the data.

18/26

Why non-parametric regression?

Fitting a line to a scatter plot where noisy data values, sparse data points or weak inter-relationships interfere with your ability to see a line of best fit.
Linear regression where least squares fitting doesn't create a line of good fit or is too labour intensive to use.
Data exploration and analysis.
Recall: In a parametric regression, some type of distribution is assumed in advance; therefore fitted model can lead to fitting a smooth curve that misrepresents the data.
In those cases, non-parametric regression may be a better choice.

18/26

Why non-parametric regression?

Fitting a line to a scatter plot where noisy data values, sparse data points or weak inter-relationships interfere with your ability to see a line of best fit.
Linear regression where least squares fitting doesn't create a line of good fit or is too labour intensive to use.
Data exploration and analysis.
Recall: In a parametric regression, some type of distribution is assumed in advance; therefore fitted model can lead to fitting a smooth curve that misrepresents the data.
In those cases, non-parametric regression may be a better choice.
Can you think of where it might be useful?

18/26

Case study 4 Bluegills Part 1/3

Data were collected on length (in mm) and the age (in years) of 78 bluegills captured from Lake Mary, Minnesota in 1981.

Which fit looks better?

bg_df <- read.table(here::here("data/bluegills.txt"),
           header = TRUE)
skimr::skim(bg_df)

## ── Data Summary ────────────────────────
##                            Values
## Name                       bg_df
## Number of rows             78
## Number of columns          2
## _______________________
## Column type frequency:
##   numeric                  2
## ________________________
## Group variables            None
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate   mean     sd    p0   p25   p50   p75  p100 hist
## 1 age                   0             1   3.63  0.927     1    3      4     4     6 ▂▃▇▂▁
## 2 length                0             1 144.   24.1      62  137.   150   160   188 ▁▁▂▇▂

ggplot(bg_df, aes(age, length)) +
  geom_point() +
  geom_smooth(method = lm, se = FALSE) +
  labs(tag = "(A)", title = "Linear regression", x = "Age (in years)", y = "Length (in mm)")

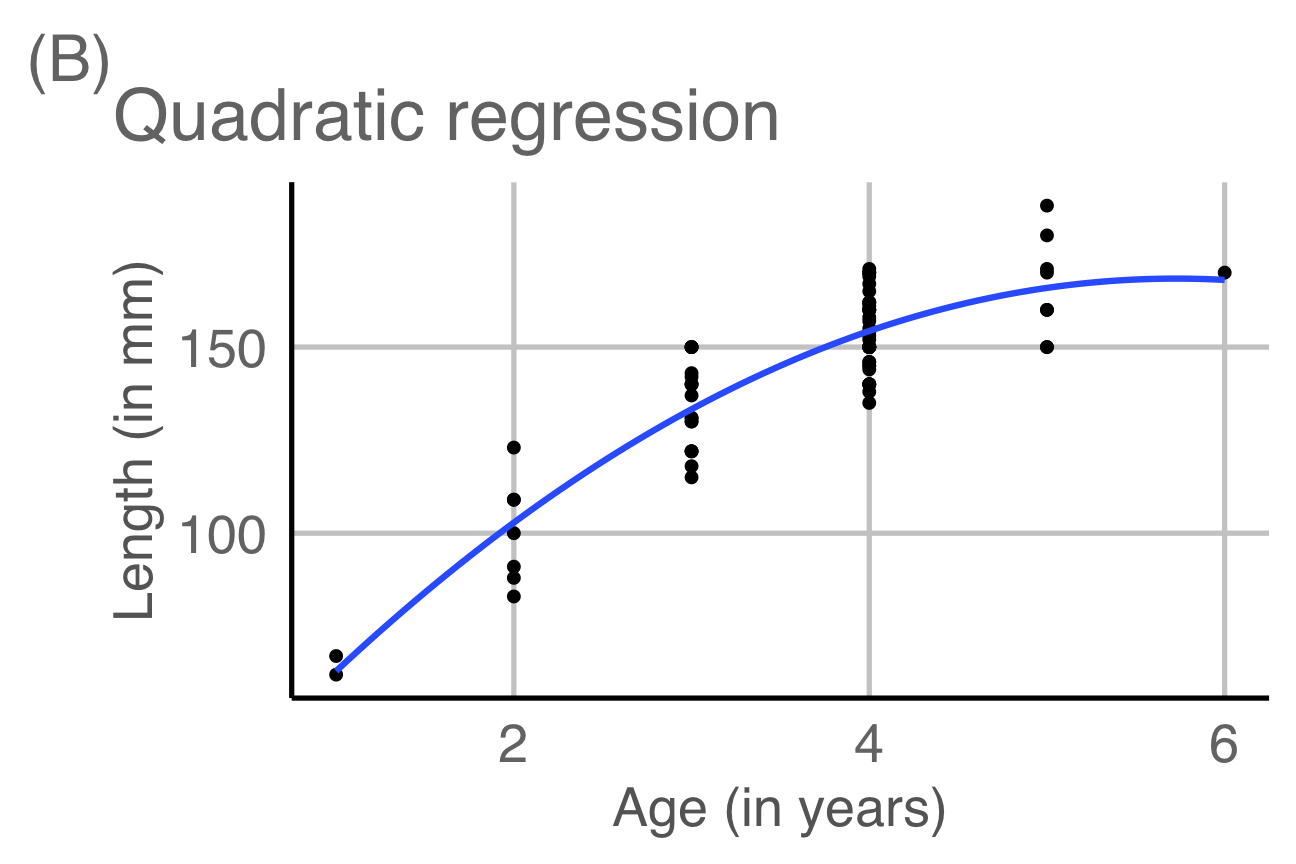

ggplot(bg_df, aes(age, length)) +
  geom_point() +
  geom_smooth(method = lm, se = FALSE,
              formula = y ~ poly(x, 2)) +
  labs(tag = "(B)", title = "Quadratic regression",
       x = "Age (in years)", y = "Length (in mm)")

Weisberg (1986) A linear model approach to backcalculation of fish length, Journal of the American Statistical Association 81 (196) 922-929

19/26

Case study 4 Bluegills Part 2/3

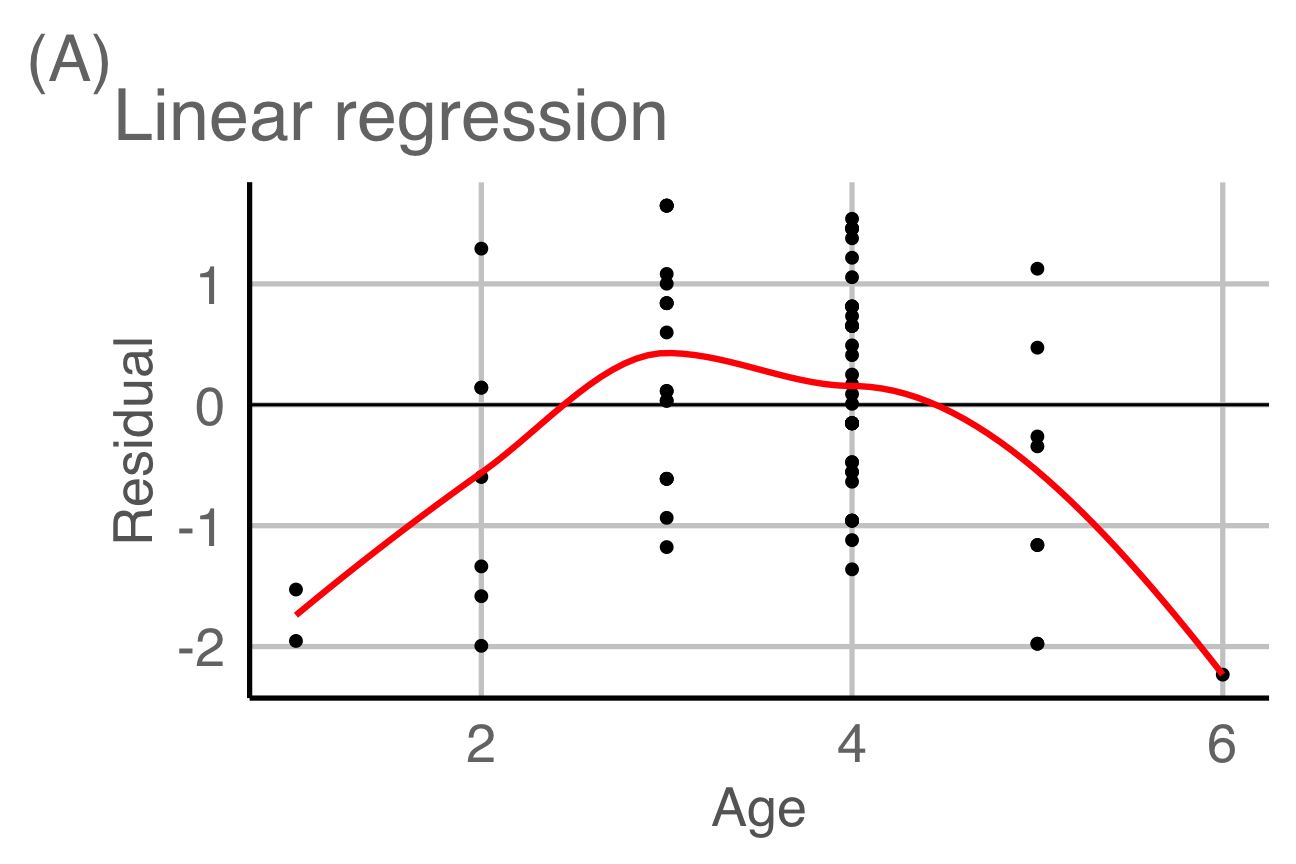

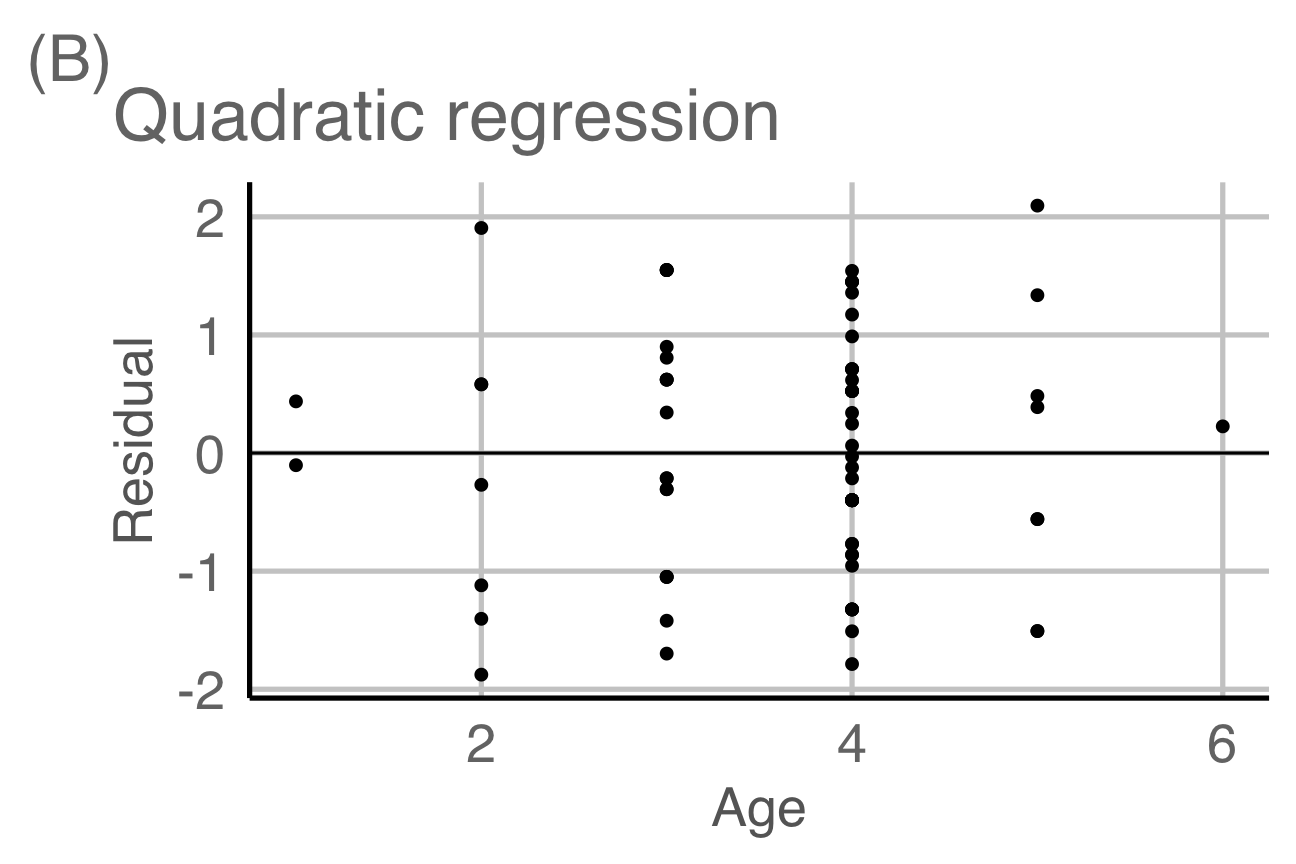

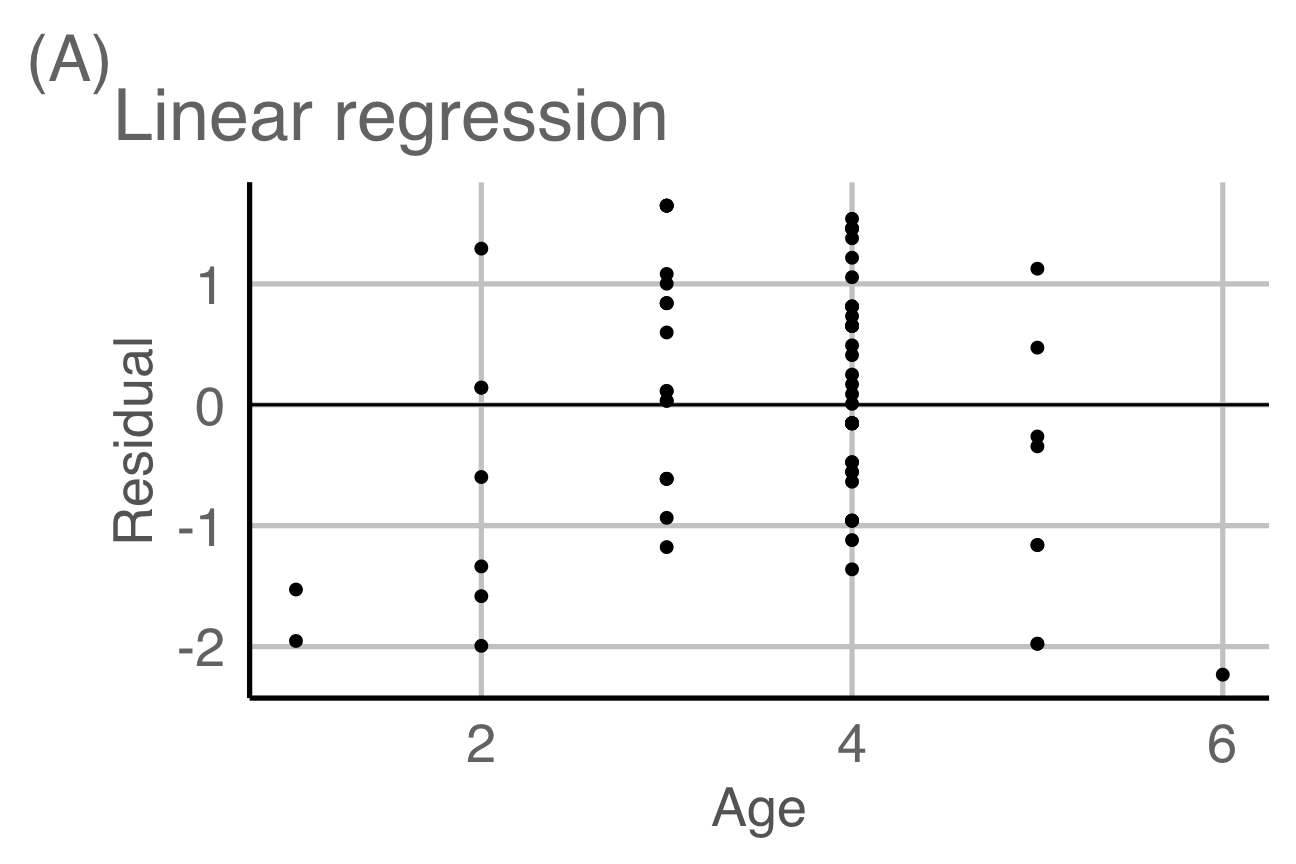

Let's have a look at the residual plots.
Do you see any patterns on either residual plot?

fit1 <- lm(length ~ age, data = bg_df)
fit2 <- lm(length ~ poly(age, 2), data = bg_df)
df1 <- augment(fit1)
df2 <- mutate(augment(fit2), age = bg_df$age)
summary(fit1)

##
## Call:
## lm(formula = length ~ age, data = bg_df)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -26.523  -7.586   0.258  10.102  20.414
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   62.649      5.755   10.89   <2e-16 ***
## age           22.312      1.537   14.51   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 12.51 on 76 degrees of freedom
## Multiple R-squared:  0.7349,    Adjusted R-squared:  0.7314
## F-statistic: 210.7 on 1 and 76 DF,  p-value: < 2.2e-16

summary(fit2)

##
## Call:
## lm(formula = length ~ poly(age, 2), data = bg_df)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -19.846  -8.321  -1.137   6.698  22.098
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)    143.603      1.235 116.290  < 2e-16 ***
## poly(age, 2)1  181.565     10.906  16.648  < 2e-16 ***
## poly(age, 2)2  -54.517     10.906  -4.999 3.67e-06 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 10.91 on 75 degrees of freedom
## Multiple R-squared:  0.8011,    Adjusted R-squared:  0.7958
## F-statistic: 151.1 on 2 and 75 DF,  p-value: < 2.2e-16

ggplot(df1, aes(age, .std.resid)) +
  geom_point() +
  geom_hline(yintercept = 0) +
  labs(x = "Age", y = "Residual",
       tag = "(A)", title = "Linear regression")
ggplot(df2, aes(age, .std.resid)) +
  geom_point() +
  geom_hline(yintercept = 0) +
  labs(x = "Age", y = "Residual",
       tag = "(B)", title = "Quadratic regression")

Weisberg (1986) A linear model approach to backcalculation of fish length, Journal of the American Statistical Association 81 (196) 922-929

20/26

Case study 4 Bluegills Part 3/3

The structure is easily visible with the LOESS curve:

fit1 <- lm(length ~ age, data = bg_df)
fit2 <- lm(length ~ poly(age, 2), data = bg_df)
df1 <- augment(fit1)
df2 <- mutate(augment(fit2), age = bg_df$age)
summary(fit1)

##
## Call:
## lm(formula = length ~ age, data = bg_df)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -26.523  -7.586   0.258  10.102  20.414
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept)   62.649      5.755   10.89   <2e-16 ***
## age           22.312      1.537   14.51   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 12.51 on 76 degrees of freedom
## Multiple R-squared:  0.7349,    Adjusted R-squared:  0.7314
## F-statistic: 210.7 on 1 and 76 DF,  p-value: < 2.2e-16

summary(fit2)

##
## Call:
## lm(formula = length ~ poly(age, 2), data = bg_df)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -19.846  -8.321  -1.137   6.698  22.098
##
## Coefficients:
##               Estimate Std. Error t value Pr(>|t|)
## (Intercept)    143.603      1.235 116.290  < 2e-16 ***
## poly(age, 2)1  181.565     10.906  16.648  < 2e-16 ***
## poly(age, 2)2  -54.517     10.906  -4.999 3.67e-06 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 10.91 on 75 degrees of freedom
## Multiple R-squared:  0.8011,    Adjusted R-squared:  0.7958
## F-statistic: 151.1 on 2 and 75 DF,  p-value: < 2.2e-16

ggplot(df1, aes(age, .std.resid)) +
  geom_point() +
  geom_hline(yintercept = 0) +
  labs(x = "Age", y = "Residual",
       tag = "(A)", title = "Linear regression") +
  geom_smooth(method = loess, color = "red",
              se = FALSE)
ggplot(df2, aes(age, .std.resid)) +
  geom_point() +
  geom_hline(yintercept = 0) +
  labs(x = "Age", y = "Residual",
       tag = "(B)", title = "Quadratic regression") +
  geom_smooth(method = loess, color = "red",
              se = FALSE)

Weisberg (1986) A linear model approach to backcalculation of fish length, Journal of the American Statistical Association 81 (196) 922-929

21/26

Case study 5 Soil resistivity in a field

This data contains measurement of soil resistivity of an agricultural field.

data(cleveland.soil, package = "agridat")
skimr::skim(cleveland.soil)

## ── Data Summary ────────────────────────
##                            Values
## Name                       cleveland.soil
## Number of rows             8641
## Number of columns          5
## _______________________
## Column type frequency:
##   logical                  1
##   numeric                  4
## ________________________
## Group variables            None
##
## ── Variable type: logical ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate  mean count
## 1 is.ns                 0             1 0.242 FAL: 6553, TRU: 2088
##
## ── Variable type: numeric ──────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
##   skim_variable n_missing complete_rate   mean     sd     p0    p25    p50   p75   p100 hist
## 1 northing              0             1  1.90   1.11  -0.01   0.978  1.81   2.91   3.81 ▆▇▅▇▆
## 2 easting               0             1  0.739  0.429 -0.004  0.362  0.729  1.10   1.56 ▆▇▆▆▅
## 3 resistivity           0             1 50.9   28.8    0.89  29.6   47.8   71.0  166.   ▇▇▅▁▁
## 4 track                 0             1 16.9   12.4    1      5     14     29     40    ▇▃▂▃▃

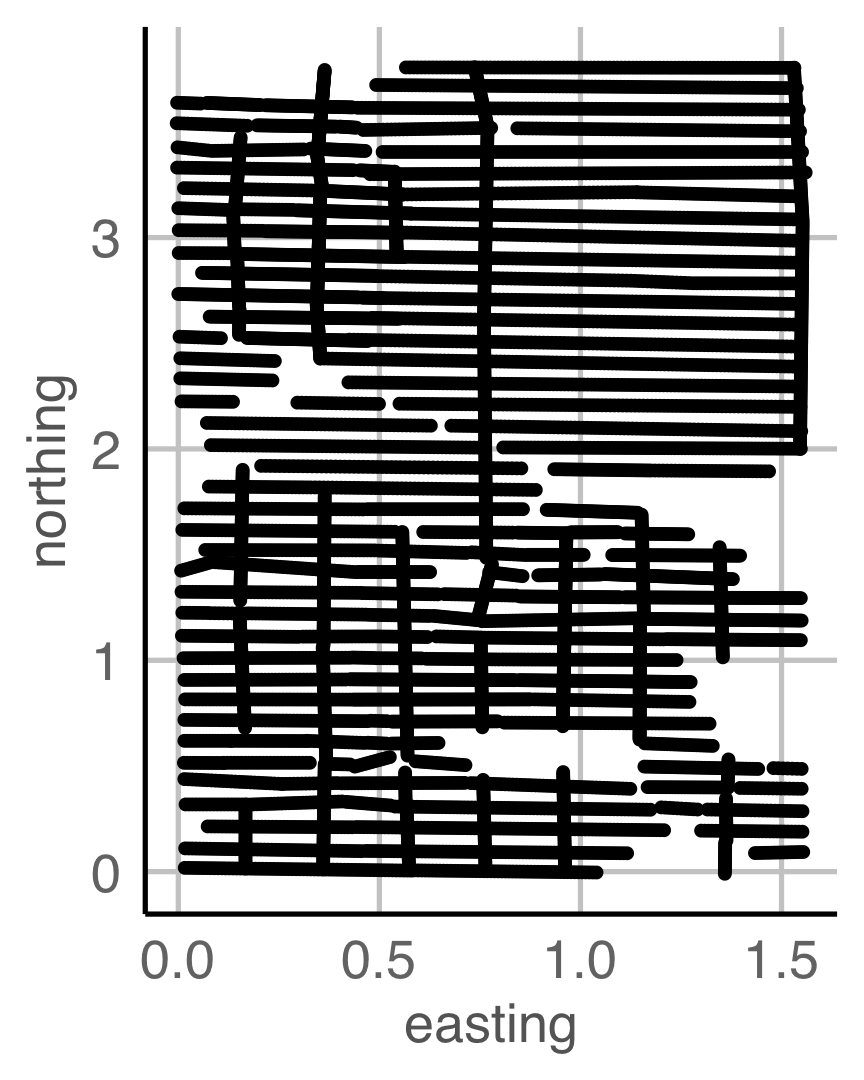

ggplot(cleveland.soil, aes(easting, northing)) +
  geom_point()

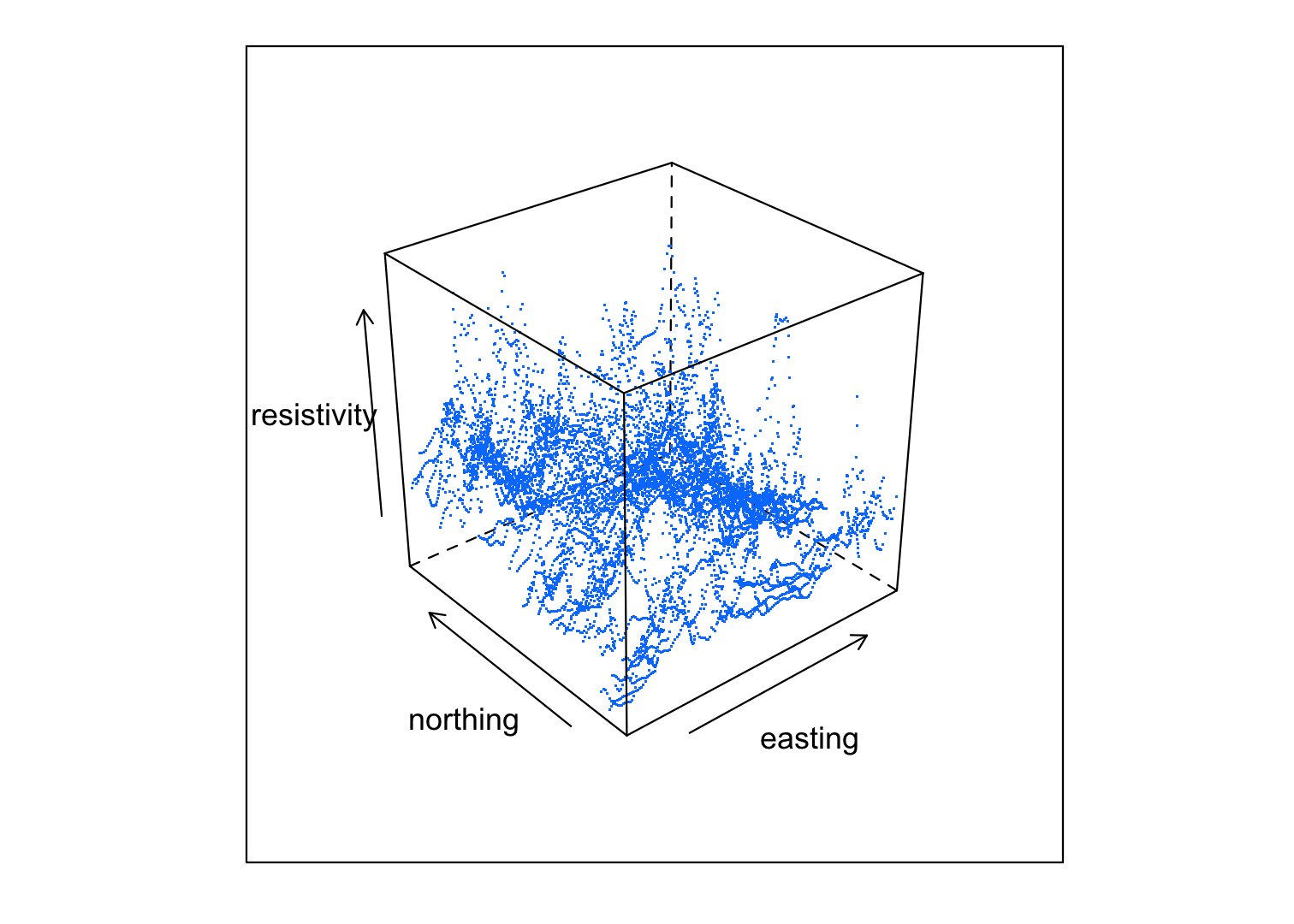

library(lattice)
cloud(resistivity ~ easting * northing, pch = ".", data = cleveland.soil)

22/26

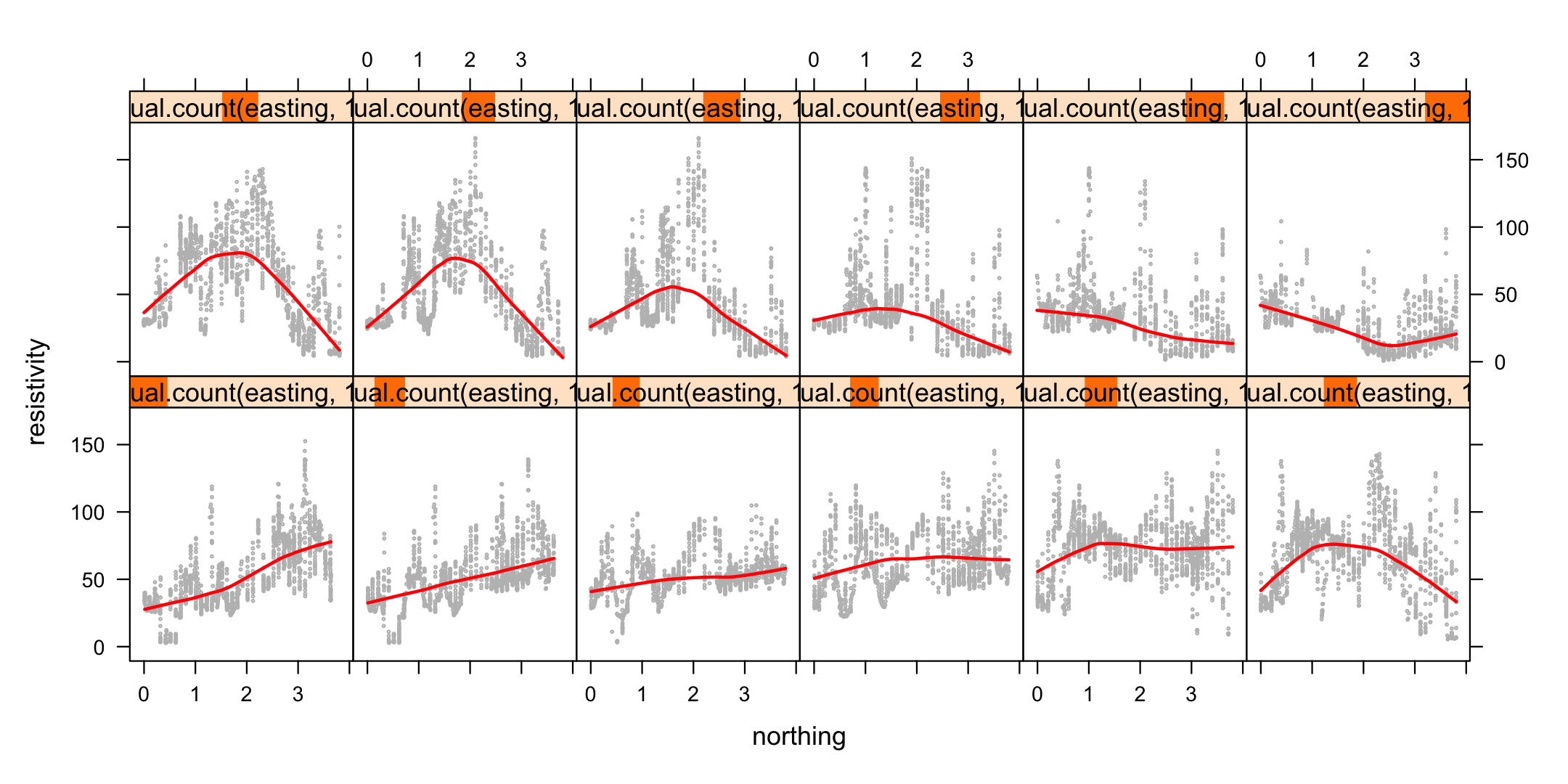

Conditioning plots (Coplots)

library(lattice)
xyplot(resistivity ~ northing | equal.count(easting, 12),
       data = cleveland.soil, cex = 0.2,
       type = c("p", "smooth"), col.line = "red",
       col = "gray", lwd = 2)

23/26

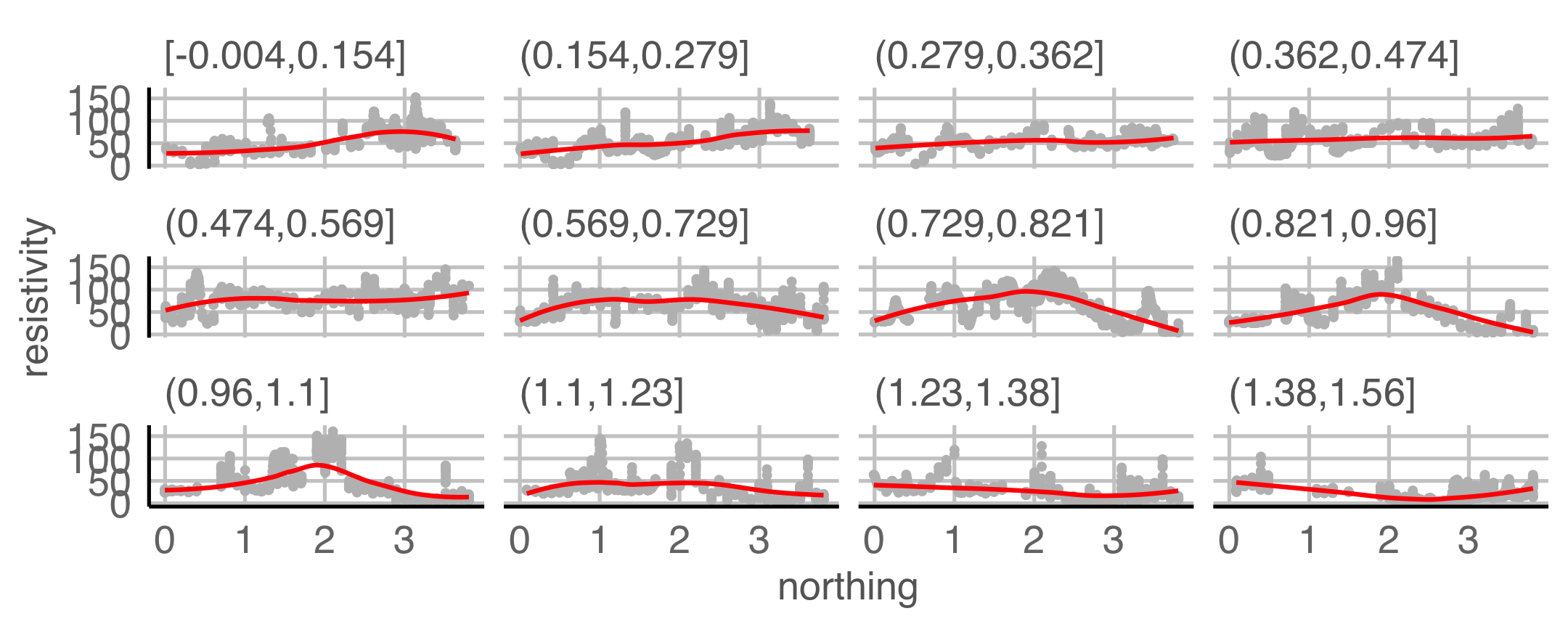

Coplots via `ggplot2`

Coplots with ggplot2 where the panels have overlapping observations is tricky.
Below creates a plot for non-overlapping intervals of easting:

ggplot(cleveland.soil, aes(northing, resistivity)) +
  geom_point(color = "gray") +
  geom_smooth(method = "loess", color = "red", se = FALSE) +
  facet_wrap(~ cut_number(easting, 12))

24/26

Take away messages

25/26

Take away messages You can use leverage values and Cook's distance to query possible unusal values in the data

25/26

Take away messages You can use leverage values and Cook's distance to query possible unusal values in the data
 Non-parametric regression, such as LOESS, can be useful in data exploration and analysis although parameters must be carefully chosen not to overfit the data

25/26

Take away messages You can use leverage values and Cook's distance to query possible unusal values in the data
 Non-parametric regression, such as LOESS, can be useful in data exploration and analysis although parameters must be carefully chosen not to overfit the data
 Conditioning plots are useful in understanding the relationship between pairs of variables given at particular intervals of other variables

25/26

This work is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.

Lecturer: Emi Tanaka

ETC5521.Clayton-x@monash.edu

Week 8 - Session 2

26/26

Help

Keyboard shortcuts

↑, ←, Pg Up, k

Go to previous slide

↓, →, Pg Dn, Space, j

Go to next slide

Home

Go to first slide

End

Go to last slide

Number + Return

Go to specific slide

b / m / f

Toggle blackout / mirrored / fullscreen mode

Clone slideshow

Toggle presenter mode

Restart the presentation timer

?, h

Toggle this help

ETC5521: Exploratory Data Analysis

Sculpting data using models, checking assumptions, co-dependency and performing diagnostics

Revisiting outliers

Revisiting outliers

Pop Quiz

Outlying values

Leverage

Studentized residuals

Cook's distance

Case study 2 Social media marketing

Extracting values from models in R

Examining the leverage values

Examining the Cook's distance

Non-parametric regression

LOESS

How span changes the loess fit

How loess works

Case study 3 US economic time series

How to fit LOESS curves in R?

Model fitting

How to fit LOESS curves in R?

Model fitting

Showing it on the plot

Why non-parametric regression?

Why non-parametric regression?

Why non-parametric regression?

Why non-parametric regression?

Why non-parametric regression?

Why non-parametric regression?

Case study 4 Bluegills Part 1/3

Case study 4 Bluegills Part 2/3

Case study 4 Bluegills Part 3/3

Case study 5 Soil resistivity in a field

Conditioning plots (Coplots)

Coplots via ggplot2

Take away messages

Take away messages

Take away messages

Take away messages

ETC5521: Exploratory Data Analysis

Sculpting data using models, checking assumptions, co-dependency and performing diagnostics

Help

How `span` changes the loess fit

How `loess` works

Coplots via `ggplot2`
