# Software design, selection and estimation for latent variable models

##

.bottom_abs.width100[

Presented by Emi Tanaka

School of Mathematics and Statistics
 dr.emi.tanaka@gmail.com
 @statsgen

29th Nov 2019 @ WOMBAT2019 | Melbourne, Australia
]

::: item

:::

::::::::::

---

# Motivating Data

---

# .circle[1] Marketing: Product testing survey

---

# .circle[2] Psychometrics: Human intelligence test

---

# .circle[3] Bioinformatics: Gene expression data

---

# .circle[4] Ecology: Multi-abundance species data

---

# .circle[5] Agriculture: Multi-environmental field trial

---

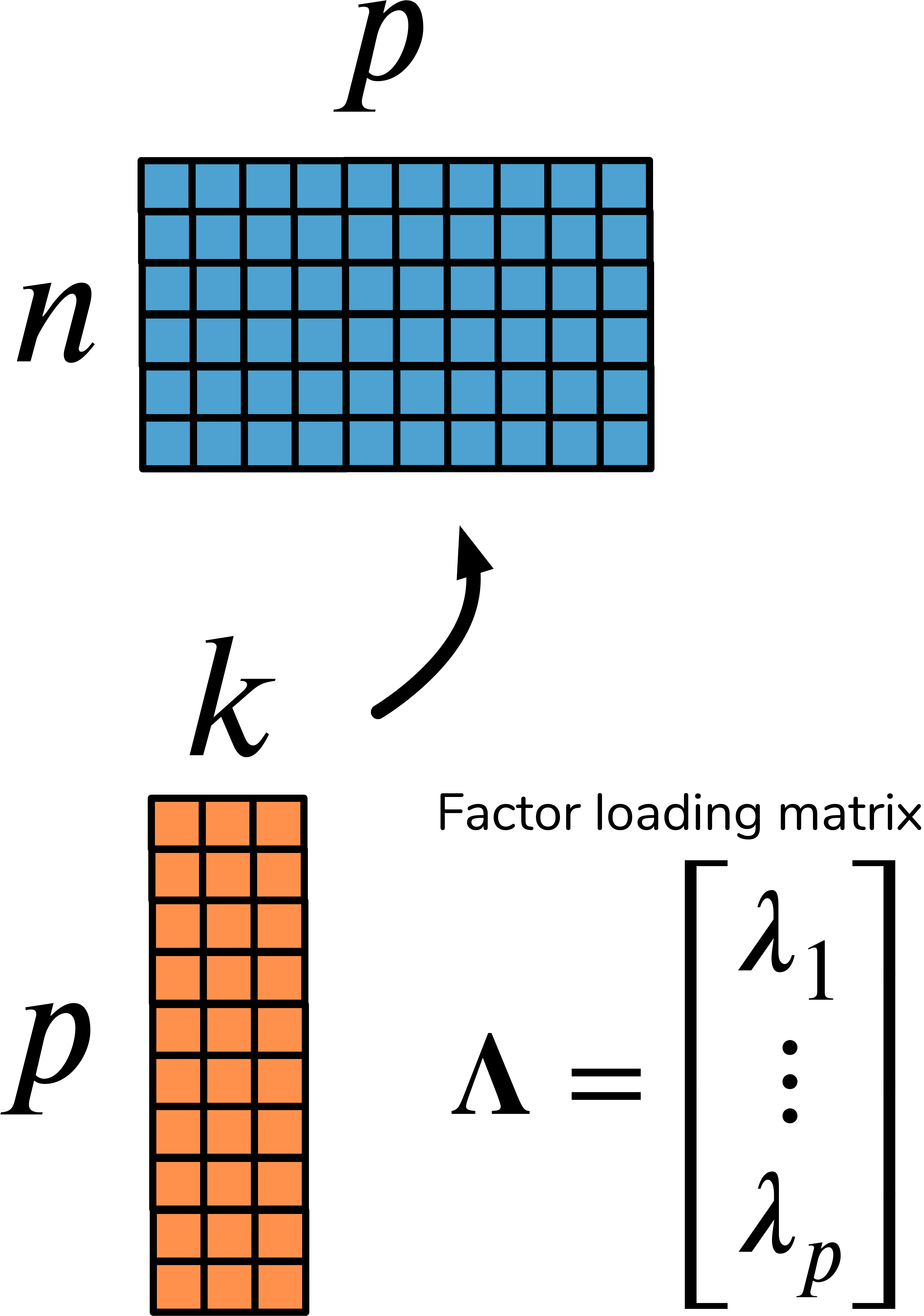

# Multi-variate data .font_small[(where the response variables span multiple columns)]

::: paddings5

* The unit .pink[(row)] response is measured for different variables/traits/attributes .purple[(column)]
* This data structure is common in many disciplines

:::

::: { .grid grid: 1fr / 1fr 1fr; }

::: { .item font-size: 0.7em; .bg-grey }

:::

::: { .item font-size: 0.8em; .bg-grey }

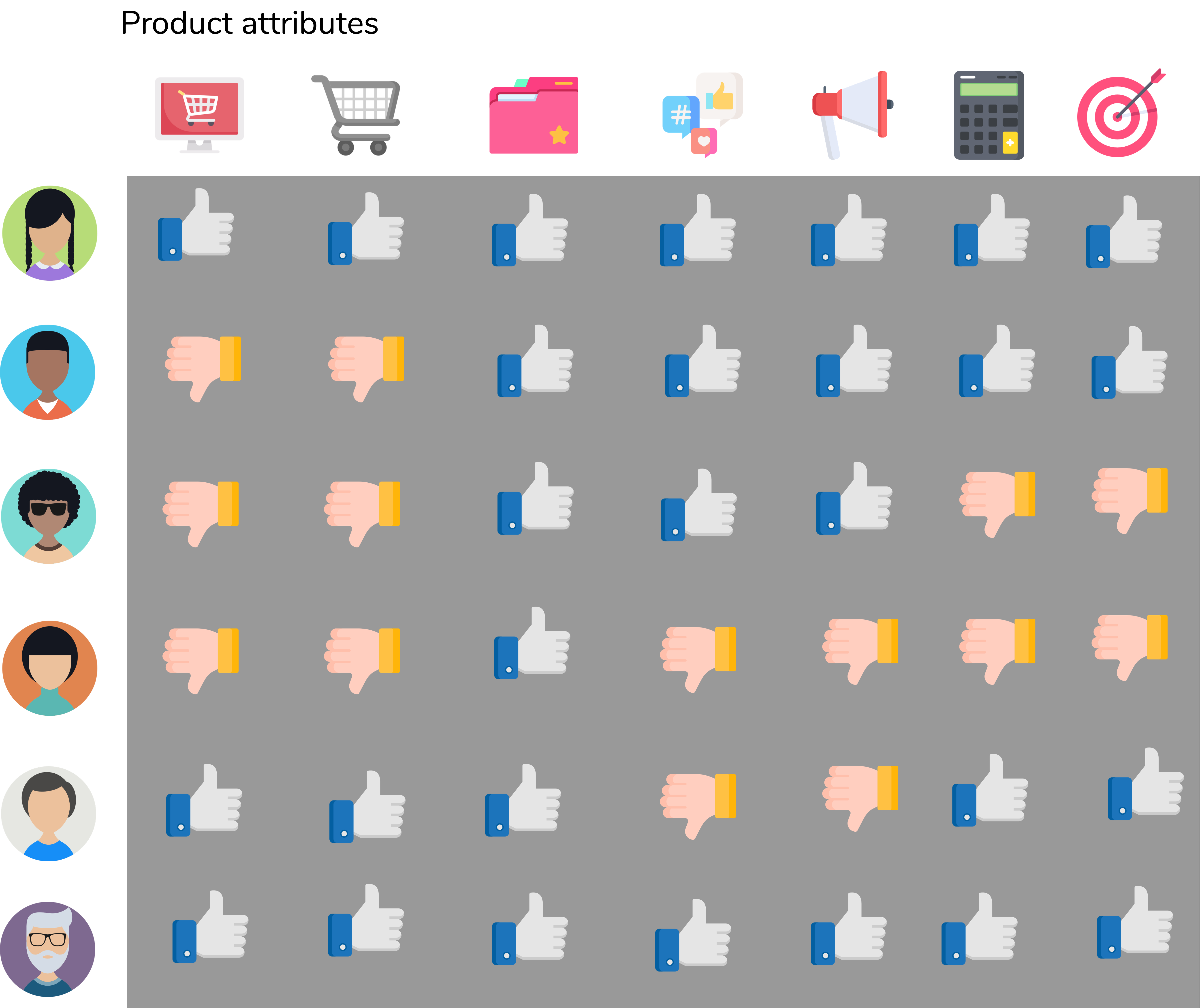

.circle-list[1] **Marketing**: Product testing survey
&emsp; .pink[Person] vs .purple[product attributes]

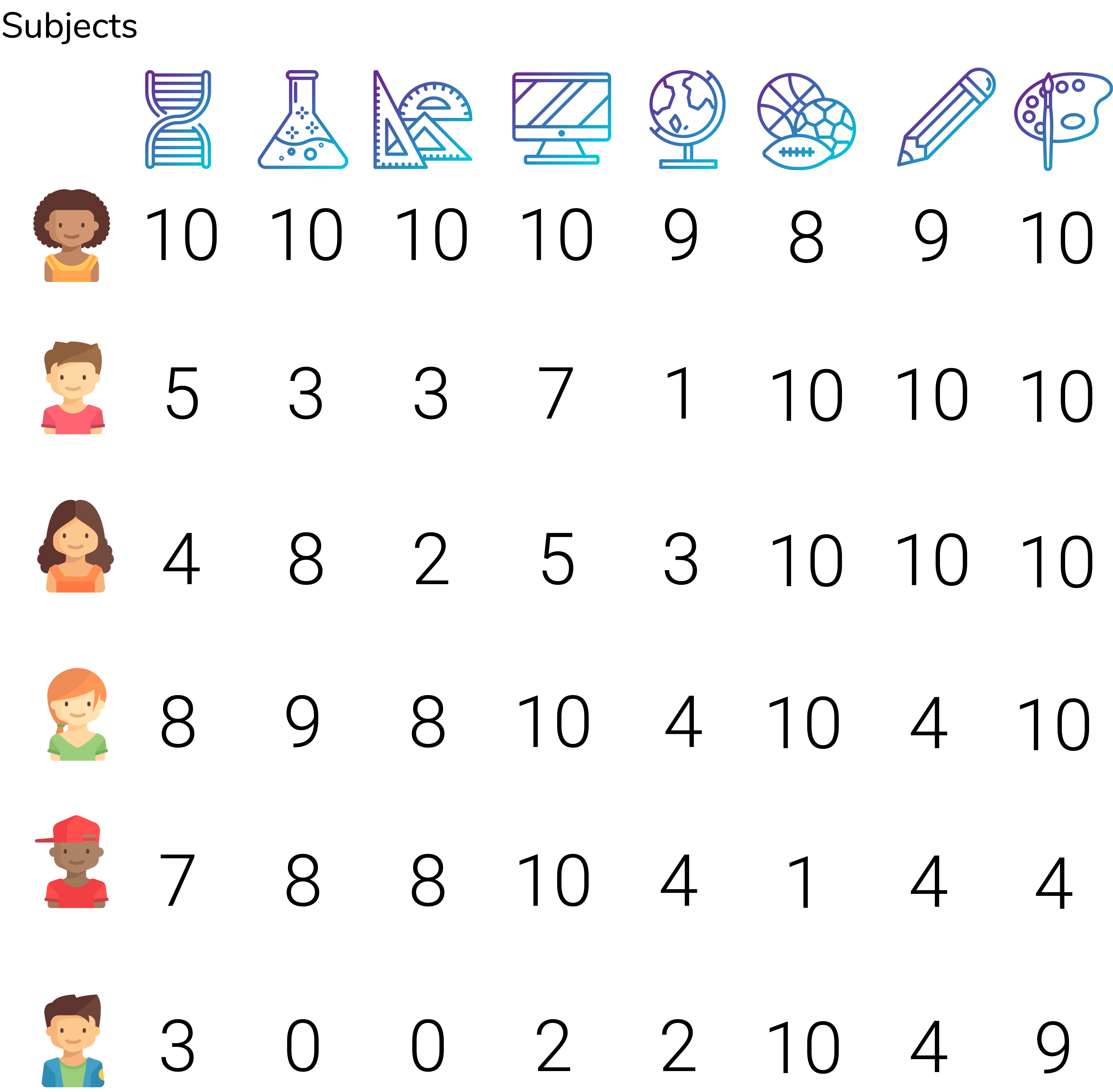

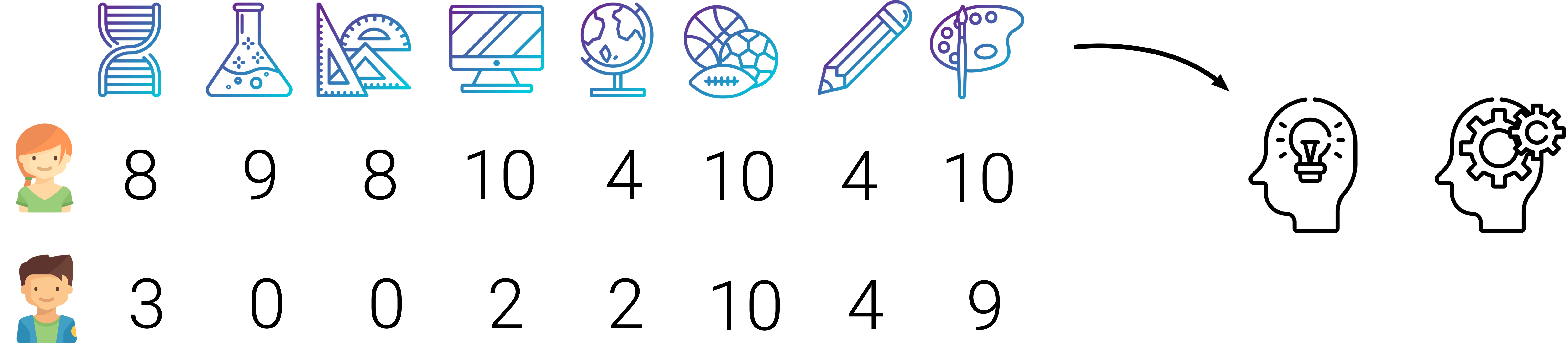

.circle-list[2] **Psychometrics**: Human intelligence test
&emsp; .pink[Student] vs .purple[intellect test]

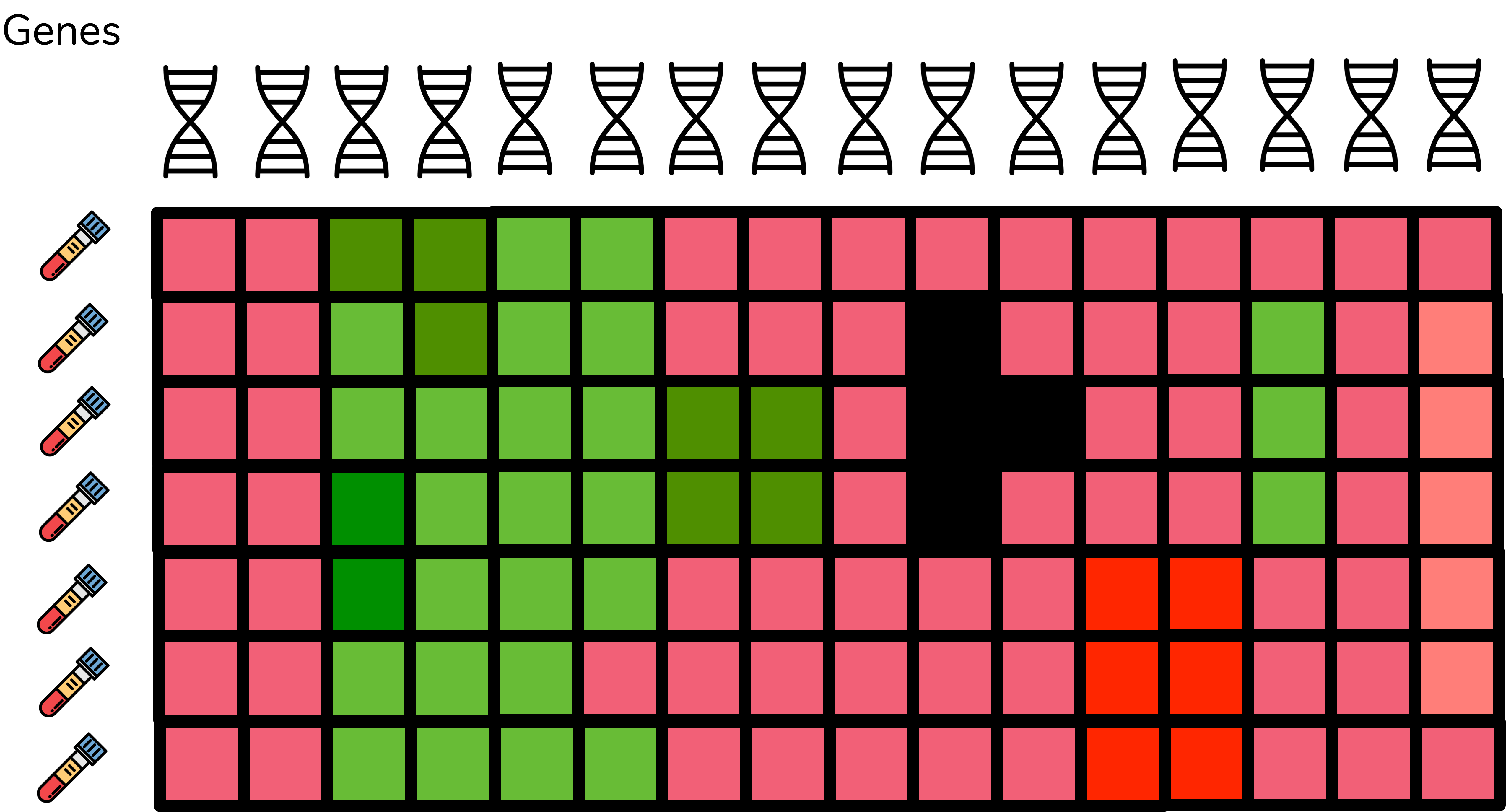

.circle-list[3] **Bioinformatics**: Gene expression data
&emsp; .pink[Sample] vs .purple[genes]
.circle-list[4] **Ecology**: Multi-abundance species data
&emsp; .pink[Site] vs .purple[species]

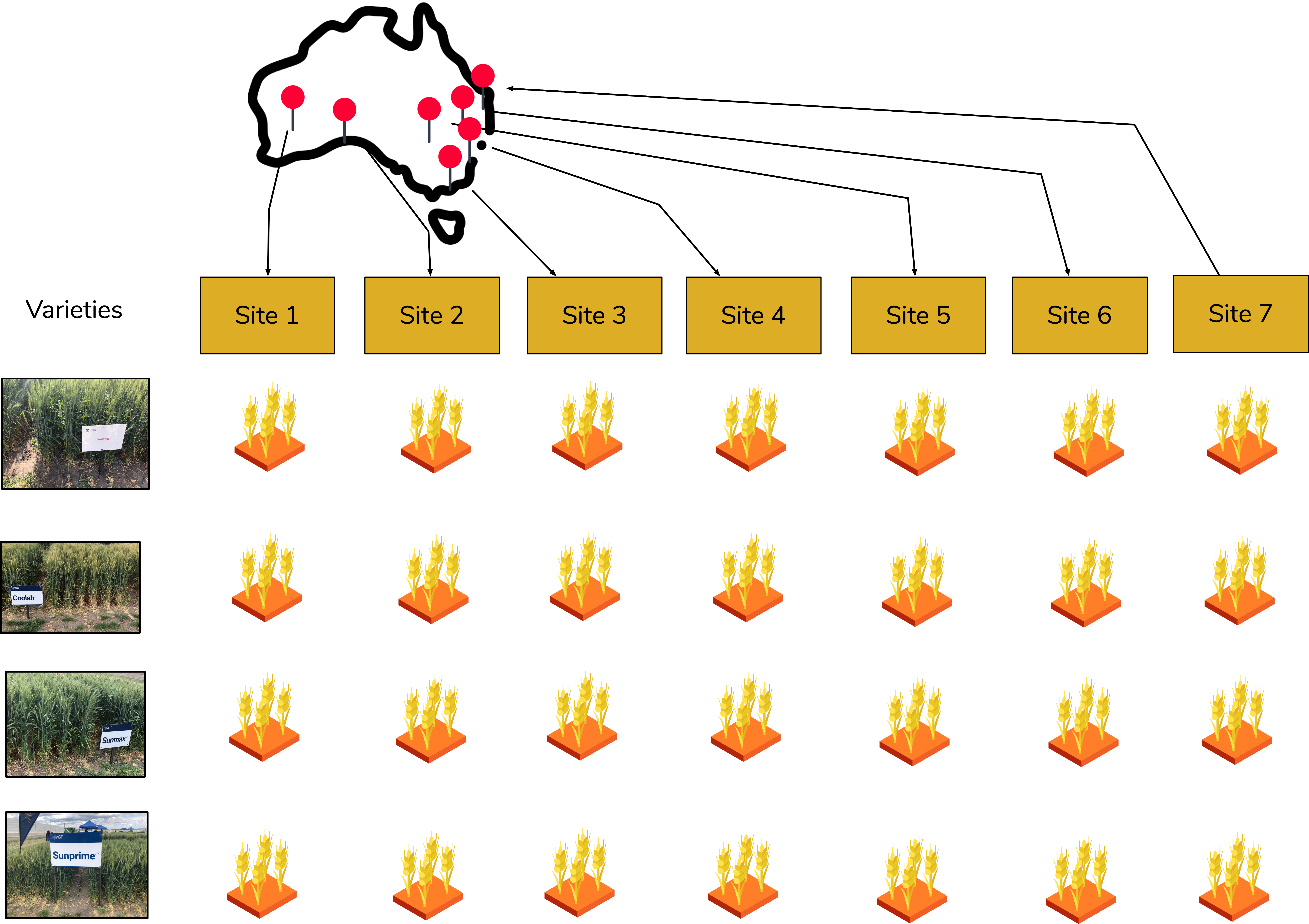

.circle-list[5] **Agriculture**: Multi-environmental field trial
&emsp; .pink[Variety] vs .purple[site]

:::

---

# 🎯 Aim and assumptions

::: { .paddings margin-top: 10px; }

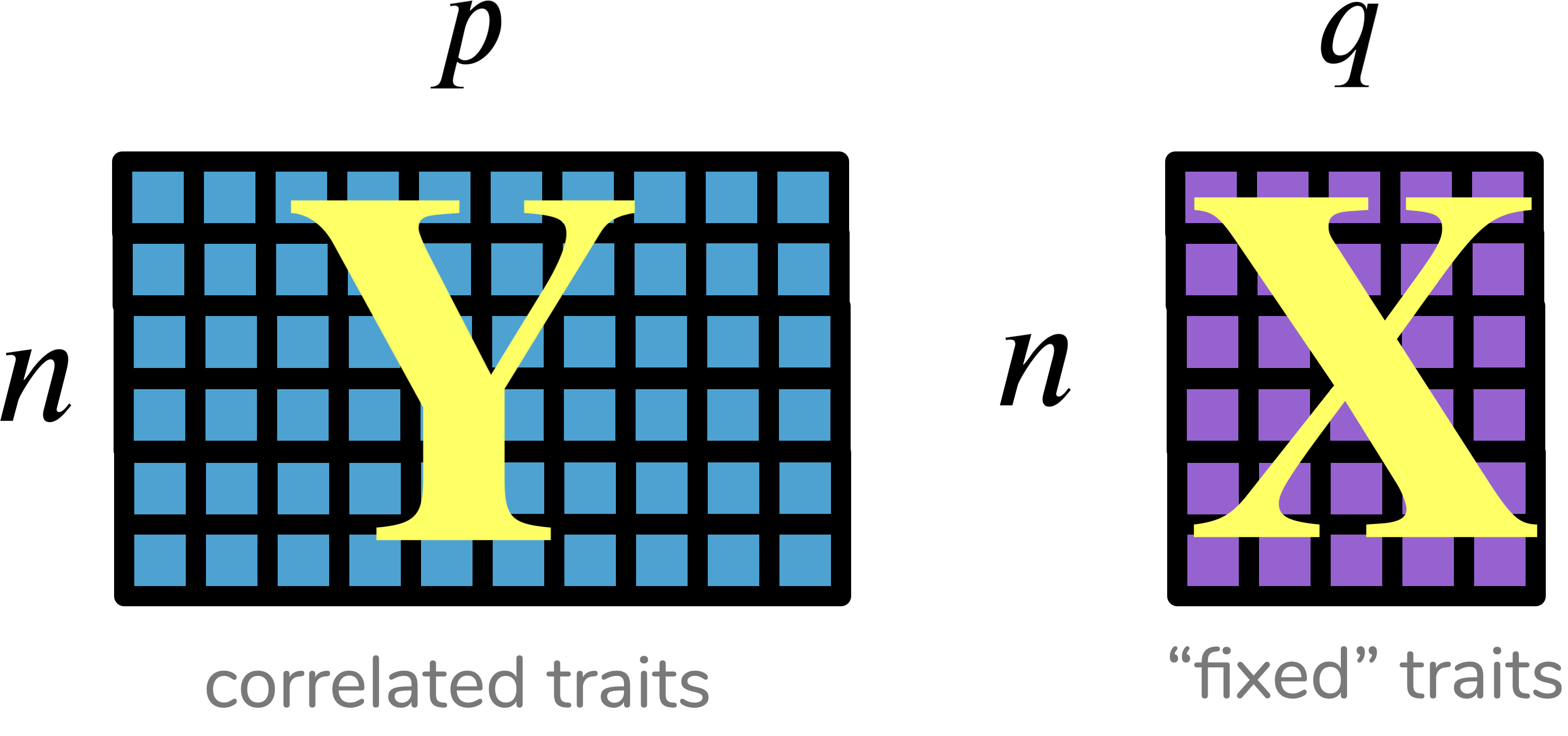

* The typical aim of analysis is to fit a reasonable model to data for inference or prediction
* The observations from a .pink[row] unit would likely be **correlated** across .purple[column]
* Assume responses across .pink[row] are independent for this talk (but in theory does not have to be)

:::

---

# Latent variable models

can model this reasonably well

---

# Latent variable models .font_small[(or **factor analytic models**)]

::: { .paddings margin-top: 10px; }

::: grid

::: { .info-box margin-bottom: 10px; width: 370px; margin-right: 10px; }

Non-Gaussian Distribution

`$$g(\mu_{ij}) = \eta_{ij} = \boldsymbol{x}_i^\top\boldsymbol{\beta}_j + \boldsymbol{u}_i^\top\color{blue}{\boldsymbol{\lambda}_j}$$`

:::

::: { .info-box  width: 370px; }

Gaussian Distribution

`$$y_{ij} =  \boldsymbol{x}_i^\top\boldsymbol{\beta}_j + \boldsymbol{u}_i^\top  \color{blue}{ \boldsymbol{\lambda}_j} + \epsilon_{ij}$$`

:::

.font_small[
<details>
<ul>
<li> $g(\cdot)$ is a known link function</li>
<li> $\boldsymbol{\beta}_j$ is a $q$-vector of fixed effects associated with covariates $\boldsymbol{x}_i$</li>
<li> $\boldsymbol{\lambda}_j$ is a $k$-vector of loadings for response $j$ </li>
</ul>
Let $\boldsymbol{\eta}_i = (\eta_{i1}, ..., \eta_{ip})^\top$ and $\boldsymbol{\epsilon}_i = (\epsilon_{i1}, ..., \epsilon_{ip})^\top$
<ul>
<li>$\mathbf{\Lambda} = \begin{bmatrix}\boldsymbol{\lambda}_1\cdots \boldsymbol{\lambda}_n\end{bmatrix}^\top$</li>
<li>$\mathbf{\Psi}$ is a diagonal matrix with diagonal entries $\psi_i$</li>
<li> $\boldsymbol{u}_i \sim N(\boldsymbol{0}_k, \mathbf{I}_k)$, $Cov(\boldsymbol{\eta}_i|\boldsymbol{x}_i) = \mathbf{\Lambda}\mathbf{\Lambda}^\top$, $\boldsymbol{\epsilon}_i \sim N(\boldsymbol{0}_p, \mathbf{\Psi})$ and $Cov(\boldsymbol{y}_i | \boldsymbol{x}_i) = \mathbf{\Lambda}\mathbf{\Lambda}^\top + \mathbf{\Psi}$ </li>
</ul>
</details>
]

::: { .grid grid: 1fr / 2fr 1fr; }

::: item

**Main idea**

* `$p$`-vector response of .pink[row] unit is a result of `$k$` (independent) latent variables where `$k < p$`
* this results in **dimension reduction**

:::

::: item center

:::

---

# But how many latent variables?

(in another words what should `$k$` be?)

---

# Estimating variance parameters

::: paddings

* Note that under our model for given `$k$`

`$$Cov(\boldsymbol{\eta}_i|~\boldsymbol{x}_i) = \mathbf{\Lambda}\mathbf{\Lambda}^\top\quad\text{or}\quad Cov(\boldsymbol{y}_i|~\boldsymbol{x}_i) = \mathbf{\Lambda}\mathbf{\Lambda}^\top + \mathbf{\Psi}$$`

* So `$\mathbf{\Lambda}$` is a set of variance parameters

* Let `$\boldsymbol{\theta}$` denote a vector of all variance parameters in a model then

::: { .info-box width: 60%; margin: auto; font-size: 1.2em; }

`$$\DeclareMathOperator*{\argmax}{arg\,max}\hat{\boldsymbol{\theta}}_{\text{ML/REML}} = \argmax_{\boldsymbol{\theta}}~ \ell(\boldsymbol{\theta}| ~\cdot)$$`

:::

* `$k$` is chosen using likelihood ratio tests or some ad hoc approaches

:::

---

# Ordered Factor LASSO (OFAL)

::: paddings

* Assume that `$\mathbf{\Lambda}_0$` is a `$p\times d$` pseudo factor loading matrix where `$k \leq d \leq p$`

* .blue2[**OFAL estimate**]: our approach via penalised likelihood

:::

`$$\displaystyle\hat{\boldsymbol{\theta}}_{\text{OFAL}}  = \argmax_{\boldsymbol{\theta}} \left\{\ell(\boldsymbol{\theta}) - s \sum _{l=1}^d \omega_{g,l} \sqrt{ \sum_{i=1}^p\sum_{j=l}^d \lambda_{0,ij}^2} - s \sum_{i=1}^p\sum_{j=1}^d \omega_{e,ij}|\lambda_{0,ij}|\right\}$$`

::: { .paddings font-size: 0.8em; }

where
* `$s$` is a **tuning parameter**,
* `$\omega_{g,l}$` is a **group-wise adaptive weight** for `$l$`th column of `$\mathbf{\Lambda}_0$`, and
* `$\omega_{e,ij}$` is an **element-wise adaptive weight** for `$i,j$`th entry of `$\mathbf{\Lambda}_0$`.

:::

::: { .footnote font-size: 0.63em; }

Hui, Tanaka & Warton (2018) Order Selection and Sparsity in Latent Variable Models via the Ordered Factor LASSO. Biometrics

:::

---

# OFAL concept demo: element-wise sparsity

::: { .grid grid: 1fr / 1fr 900px; }

::: item

`$$\mathbf{\Lambda}_0$$`

:::

::: item

Say `$s\omega_{e,15} \rightarrow \infty$`, then you would expect `$|\lambda_{15}| \rightarrow 0$`.

:::

---

# OFAL concept demo: group-wise sparsity

::: { .grid grid: 1fr / 1fr 900px; }

::: item

`$$\mathbf{\Lambda}_0$$`

:::

::: {.item font-size: 0.8em; }

* Say `$s\omega_{g,5} \rightarrow \infty$`, then you would expect `$\left(\sum_{l=1}^p(\lambda_{l5}^2 + \lambda^2_{l6})\right)^{1/2} \rightarrow 0$`.

* Sum of squares is zero only if each element is zero, so `$\lambda_{l5}\rightarrow 0$` and `$\lambda_{l6}\rightarrow 0$` for `$l=1, ..., p$`.

:::

---

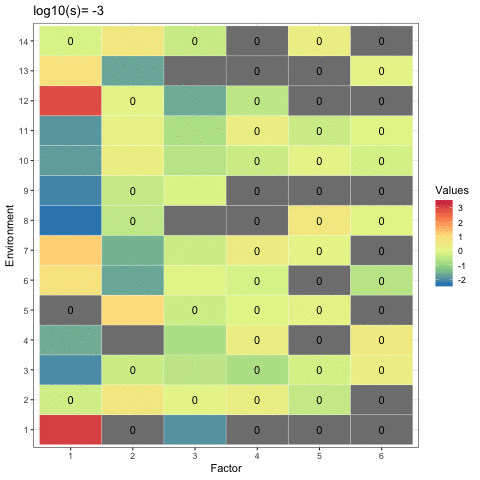

# Algorithm in action 🎞

::: grid

::: item

&emsp; `$\mathbf{\Lambda}_0$`

:::

::: item

* Our procedure uses EM-algorithm
* At the M-step, we reformulate the OFAL penalised likelihood into an elastic-net type regularisation problem
* Then employ coordinate-wise optimisation to obtain loading estimates
* Full algorithm (including code), choice of adapative weights and tuning parameter selection are in Hui, Tanaka & Warton (2018)

:::

::: { .footnote font-size: 0.63em; }

Hui, Tanaka & Warton (2018) Order Selection and Sparsity in Latent Variable Models via the Ordered Factor LASSO. Biometrics

:::

---

Well now how to get people to use your method?

# Software designing for practitioners

---

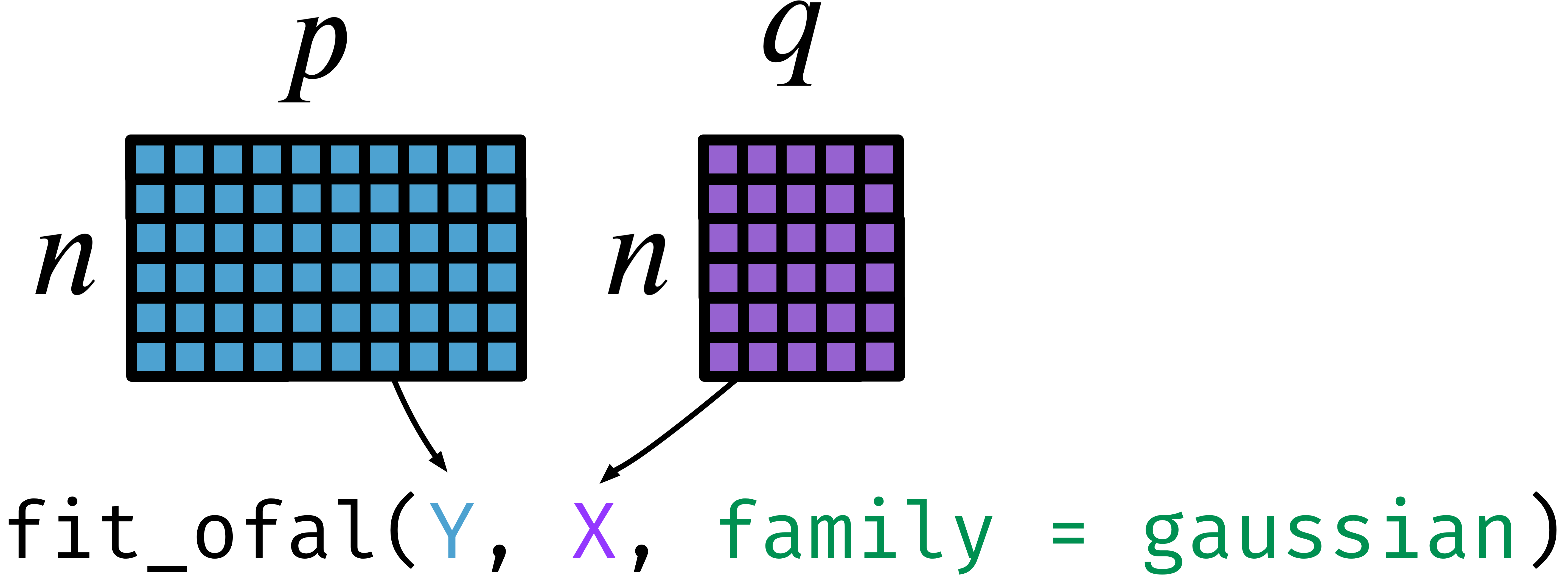

# Specifying the model 🎬 .circle2[1]

::: { .paddings margin-top: 10px; }

::: grid

::: { .info-box margin-bottom: 10px; width: 370px; margin-right: 10px; }

Non-Gaussian Distribution

`$$\color{green}{g}(\mu_{ij}) = \eta_{ij} = \color{purple}{\boldsymbol{x}_i}^\top\boldsymbol{\beta}_j + \boldsymbol{u}_i^\top\boldsymbol{\lambda}_j$$`

:::

::: { .info-box  width: 370px; }

Gaussian Distribution

`$$y_{ij} =  \color{purple}{\boldsymbol{x}_i}^\top\boldsymbol{\beta}_j + \boldsymbol{u}_i^\top  \boldsymbol{\lambda}_j + \epsilon_{ij}$$`

:::

:::

---

# Unbalanced data

What if the cells contain `$>1$` observations or no observation?

---

Users: "Let's make it rectangular [to fit the software]"

::: { .info-box width: 50%; margin: auto; }

**Bottomline**: software design encourages certain user behaviour whether that be good or not

:::

---

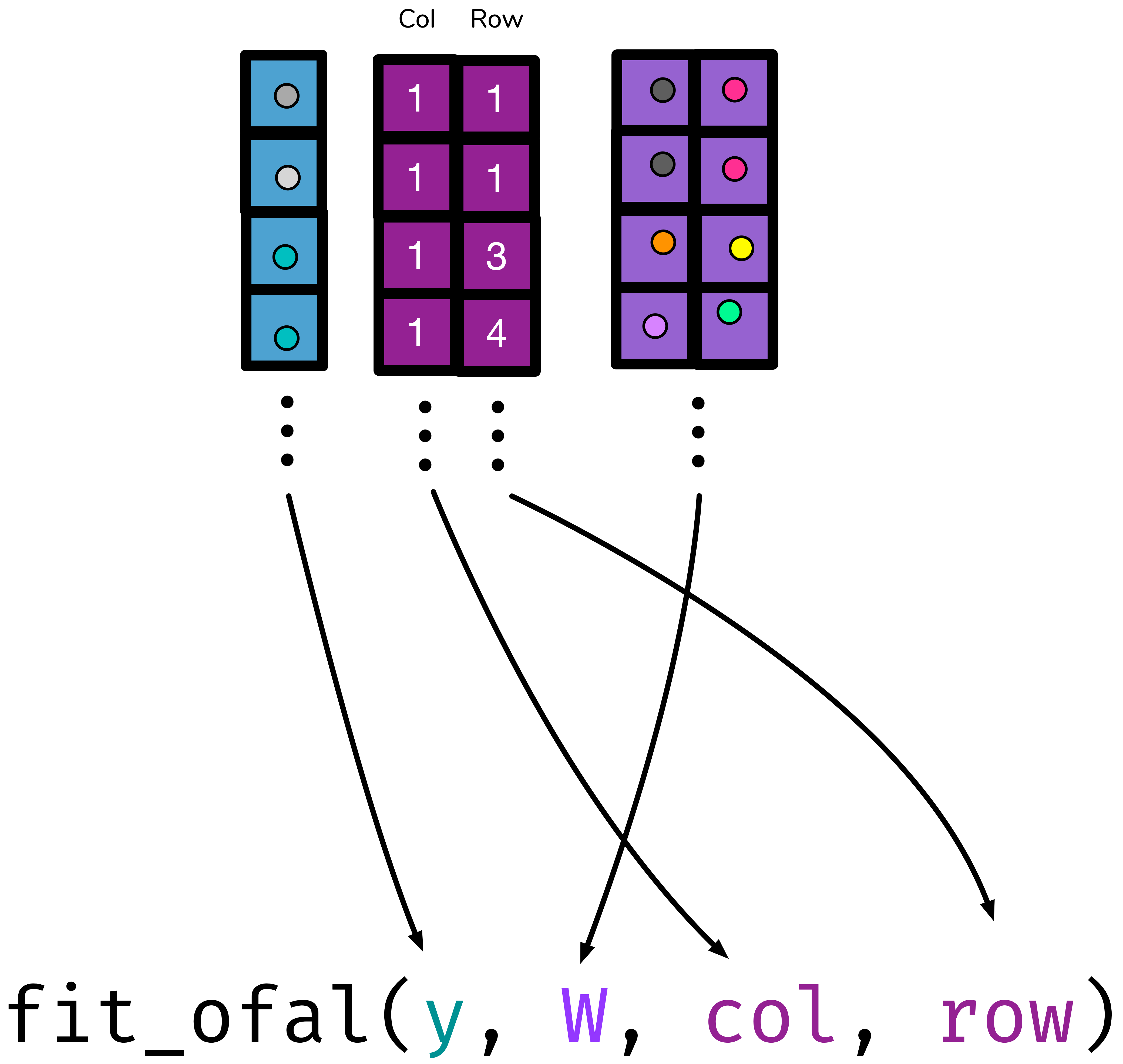

# Multivariate to univariate data

---

# Specifying the model 🎬 .circle2[2]

---

# Specifying the model 🎬 .circle2[3]

<center>
Symbolic model formulae

.footnote[
Tanaka and Hui (2019) Symbolic formulae for linear mixed models. https://arxiv.org/abs/1911.08628
]

---

# Software extensibility and generalisability

::: paddings

* Practitioners normally need to fit many kinds of models
* If software is restrictive, user beahviour is restrictive (for good or bad)

:::

.footnote[
Tanaka and Hui (2019) Symbolic formulae for linear mixed models. https://arxiv.org/abs/1911.08628
]

---
