Multiple layers
Data Visualisation with R
👩🏻💻 Emi Tanaka @ Monash University
- emi.tanaka@monash.edu
- @statsgen
- github.com/emitanaka
- emitanaka.org
28th November 2022 Australasian Applied Statistics Conference 2022
A layer in ggplot2
- A layer is comprised of:
datamapping- statistical transformation (
stat) - geometric object (
geom) - position adjustment (
position)
dataandmappingare often inherited fromggplot
The violin plot layer
- There is one layer in this plot comprising of:
- inherited
data:penguins - inherited
mapping:aes(x = island, y = body_mass_g) geom: violinstat: density for the y-axis (ydensity)position: dodge
- inherited

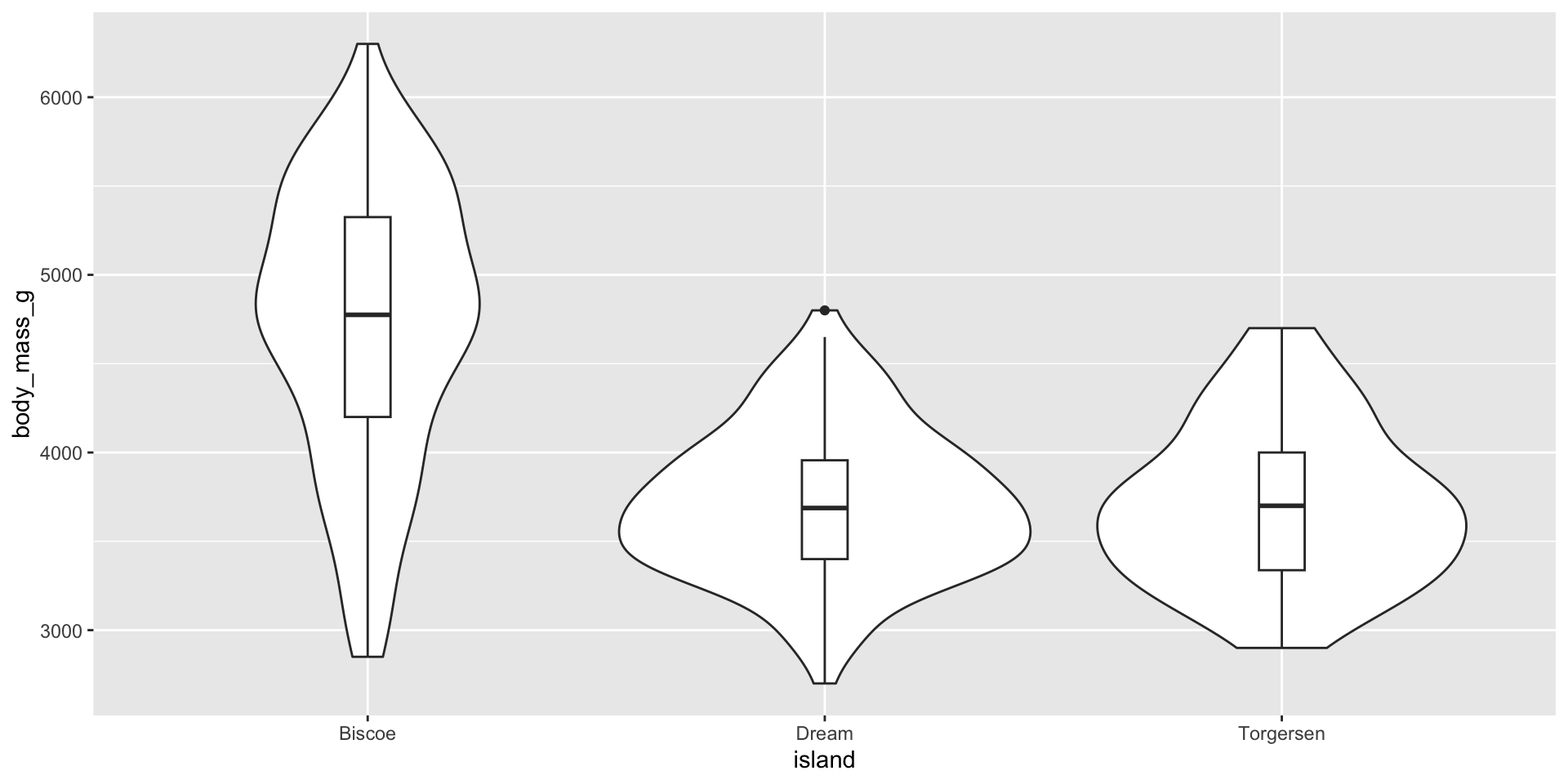

You can add more than one layer
- We now have the boxplot layer on top of the violin plot layer.

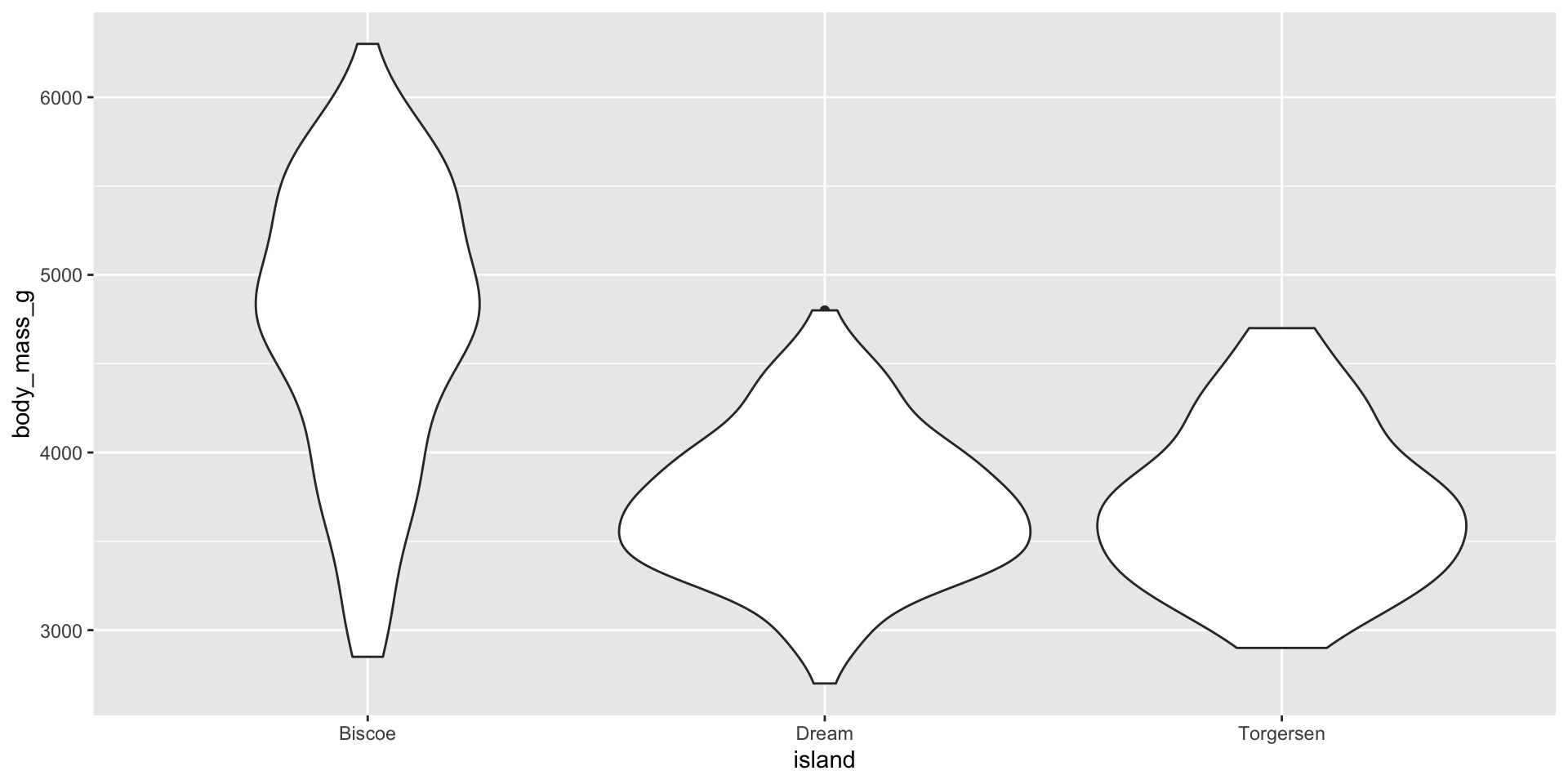

The order of the layers matters
- You can’t see the boxplot here because it’s been hidden by the violin plot.

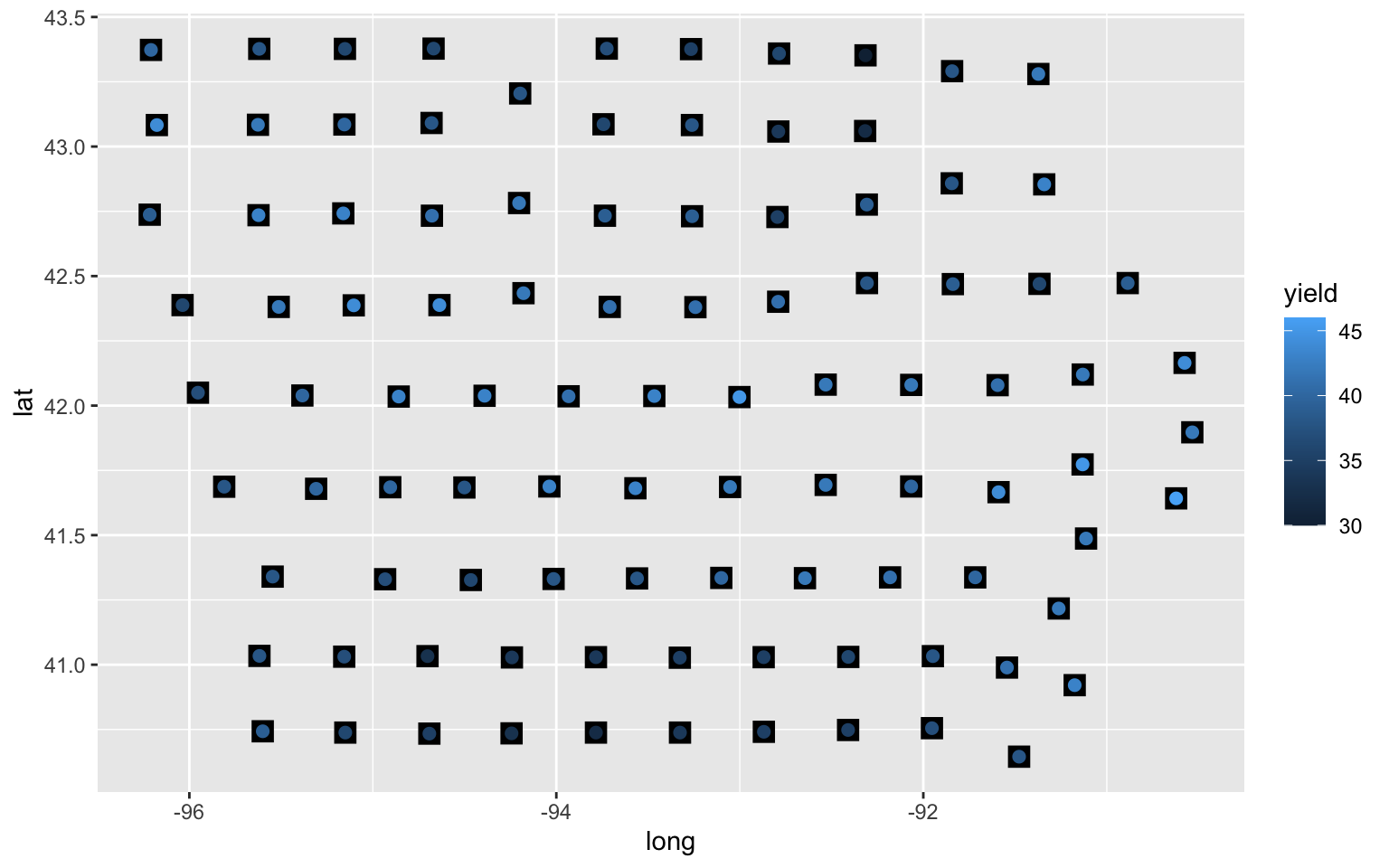

Inheriting data and mapping
- A layer inherits the data and mapping from the initialised ggplot object by default

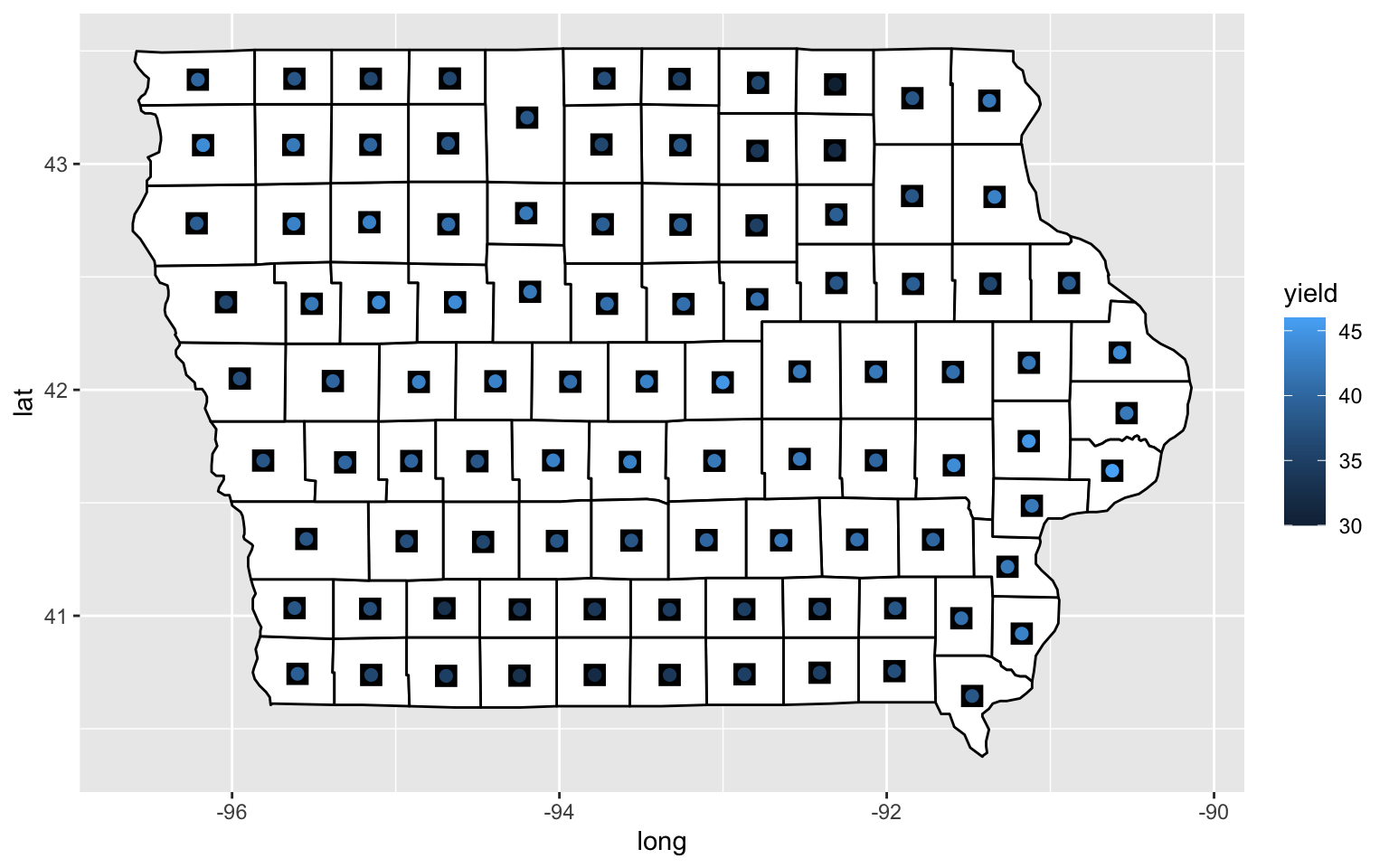

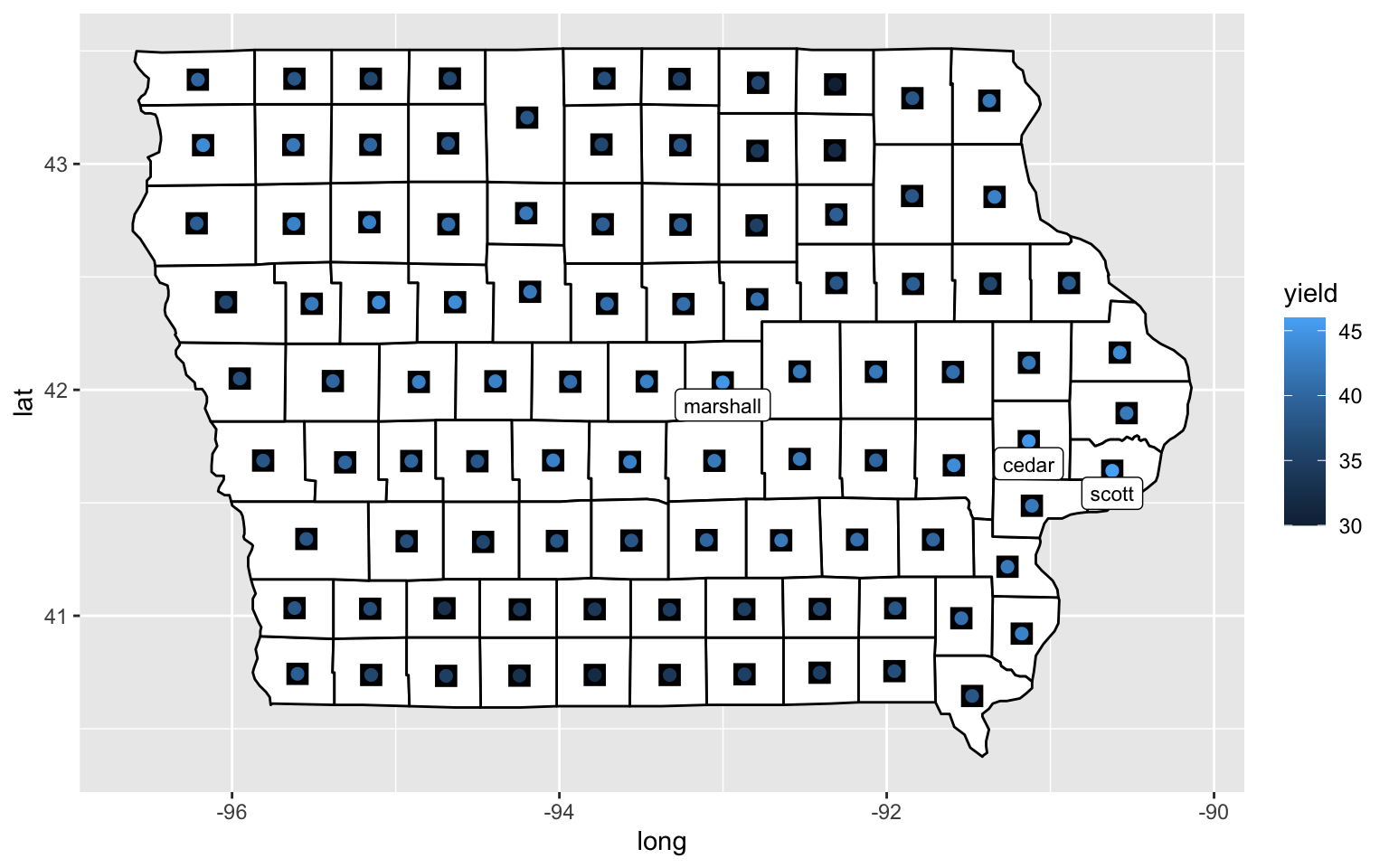

Layer-specific data and aesthetic mapping
- For each layer, aesthetic and/or data can be overwritten
Illustrative data 🚜 Iowa farmland values by county
'data.frame': 99 obs. of 10 variables:
$ county : Factor w/ 99 levels "adair","adams",..: 1 2 3 4 5 6 7 8 9 10 ...
$ fips : int 19001 19003 19005 19007 19009 19011 19013 19015 19017 19019 ...
$ lat : num 41.3 41 43.3 40.7 41.7 ...
$ long : num -94.5 -94.7 -91.4 -92.9 -94.9 ...
$ yield : int 36 33 42 35 40 42 38 41 39 39 ...
$ corn : int 32 30 13 19 34 35 32 40 27 27 ...
$ grain : int 16 14 15 10 21 22 25 25 24 24 ...
$ untillable: int 19 14 44 28 9 17 17 18 28 28 ...
$ fedval : int 93 90 66 68 115 143 132 151 93 93 ...
$ stval : int 88 89 49 60 111 125 114 141 79 79 ... long lat group order region subregion
1 -94.24583 41.50506 1 1 iowa adair
2 -94.24583 41.16129 1 2 iowa adair
3 -94.24583 41.16129 1 3 iowa adair
4 -94.48647 41.16129 1 4 iowa adair
5 -94.70992 41.16129 1 5 iowa adair
6 -94.70992 41.50506 1 6 iowa adair
7 -94.24583 41.50506 1 7 iowa adair
9 -94.70992 41.16129 2 9 iowa adams
10 -94.48647 41.16129 2 10 iowa adams
11 -94.48647 40.90346 2 11 iowa adams
12 -94.93338 40.90346 2 12 iowa adams
13 -94.93338 41.15556 2 13 iowa adams
14 -94.70992 41.16129 2 14 iowa adams
16 -91.22634 43.49895 3 16 iowa allamakee
17 -91.22634 43.45312 3 17 iowa allamakee
18 -91.20342 43.43020 3 18 iowa allamakee
19 -91.16904 43.41301 3 19 iowa allamakee
20 -91.15186 43.36145 3 20 iowa allamakee
21 -91.07164 43.29842 3 21 iowa allamakee
22 -91.06018 43.26404 3 22 iowa allamakee
23 -91.07164 43.24112 3 23 iowa allamakee
24 -91.14040 43.16664 3 24 iowa allamakee
25 -91.17477 43.12653 3 25 iowa allamakee
26 -91.18050 43.08070 3 26 iowa allamakee
27 -91.17477 43.08643 3 27 iowa allamakee
28 -91.59876 43.08643 3 28 iowa allamakee
29 -91.59876 43.35572 3 29 iowa allamakee
30 -91.61022 43.34999 3 30 iowa allamakee
31 -91.60449 43.51041 3 31 iowa allamakee
32 -91.22634 43.49895 3 32 iowa allamakee
34 -92.63009 40.90346 4 34 iowa appanoose
35 -92.63009 40.60552 4 35 iowa appanoose
36 -92.68738 40.60552 4 36 iowa appanoose
37 -93.09991 40.60552 4 37 iowa appanoose
38 -93.10564 40.90346 4 38 iowa appanoose
39 -92.63009 40.90346 4 39 iowa appanoose
41 -95.10526 41.86030 5 41 iowa audubon
42 -94.75576 41.86603 5 42 iowa audubon
43 -94.75576 41.60819 5 43 iowa audubon
44 -94.70992 41.60819 5 44 iowa audubon
45 -94.70992 41.50506 5 45 iowa audubon
46 -95.05943 41.50506 5 46 iowa audubon
47 -95.05370 41.60247 5 47 iowa audubon
48 -95.10526 41.60247 5 48 iowa audubon
49 -95.10526 41.86030 5 49 iowa audubon
51 -92.06286 42.30148 6 51 iowa benton
52 -91.82221 42.30148 6 52 iowa benton
53 -91.82221 41.87175 6 53 iowa benton
54 -92.28058 41.87175 6 54 iowa benton
55 -92.28632 42.30148 6 55 iowa benton
56 -92.06286 42.30148 6 56 iowa benton
58 -92.54987 42.64525 7 58 iowa black hawk
59 -92.08005 42.64525 7 59 iowa black hawk
60 -92.07432 42.47336 7 60 iowa black hawk
61 -92.06286 42.47336 7 61 iowa black hawk
62 -92.06286 42.30148 7 62 iowa black hawk
63 -92.28632 42.30148 7 63 iowa black hawk
64 -92.52695 42.30148 7 64 iowa black hawk
65 -92.52695 42.47336 7 65 iowa black hawk
66 -92.54987 42.47336 7 66 iowa black hawk
67 -92.54987 42.56504 7 67 iowa black hawk
68 -92.54987 42.64525 7 68 iowa black hawk
70 -93.70152 41.86030 8 70 iowa boone
71 -93.81611 41.86030 8 71 iowa boone
72 -94.17134 41.86603 8 72 iowa boone
73 -94.16561 42.20980 8 73 iowa boone
74 -93.93070 42.20980 8 74 iowa boone
75 -93.70152 42.20980 8 75 iowa boone
76 -93.70152 41.86030 8 76 iowa boone
78 -92.08005 42.90881 9 78 iowa bremer
79 -92.08005 42.64525 9 79 iowa bremer
80 -92.54987 42.64525 9 80 iowa bremer
81 -92.54987 42.90881 9 81 iowa bremer
82 -92.08005 42.90881 9 82 iowa bremer
84 -91.82221 42.30148 10 84 iowa buchanan
85 -92.06286 42.30148 10 85 iowa buchanan
86 -92.06286 42.47336 10 86 iowa buchanan
87 -92.07432 42.47336 10 87 iowa buchanan
88 -92.08005 42.64525 10 88 iowa buchanan
89 -91.59876 42.64525 10 89 iowa buchanan
90 -91.59876 42.48482 10 90 iowa buchanan
91 -91.58157 42.48482 10 91 iowa buchanan
92 -91.58730 42.30148 10 92 iowa buchanan
93 -91.82221 42.30148 10 93 iowa buchanan
95 -94.92192 42.92027 11 95 iowa buena vista
96 -94.92192 42.55930 11 96 iowa buena vista
97 -95.39747 42.56504 11 97 iowa buena vista
98 -95.39747 42.91454 11 98 iowa buena vista
99 -94.92192 42.92027 11 99 iowa buena vista
101 -93.02543 42.90881 12 101 iowa butler
102 -92.54987 42.90881 12 102 iowa butler
103 -92.54987 42.64525 12 103 iowa butler
104 -92.54987 42.56504 12 104 iowa butler
105 -93.02543 42.56504 12 105 iowa butler
106 -93.02543 42.90881 12 106 iowa butler
108 -94.92192 42.55930 13 108 iowa calhoun
109 -94.44636 42.55357 13 109 iowa calhoun
110 -94.44064 42.47336 13 110 iowa calhoun
111 -94.40053 42.47336 13 111 iowa calhoun
112 -94.40625 42.20980 13 112 iowa calhoun
113 -94.62971 42.20980 13 113 iowa calhoun
114 -94.87035 42.20980 13 114 iowa calhoun
115 -94.86462 42.47336 13 115 iowa calhoun
116 -94.92192 42.47336 13 116 iowa calhoun
117 -94.92192 42.55930 13 117 iowa calhoun
119 -95.10526 41.86030 14 119 iowa carroll
120 -95.09954 42.20407 14 120 iowa carroll
121 -94.87035 42.20980 14 121 iowa carroll
122 -94.62971 42.20980 14 122 iowa carroll
123 -94.63544 41.86603 14 123 iowa carroll
124 -94.75576 41.86603 14 124 iowa carroll
125 -95.10526 41.86030 14 125 iowa carroll
127 -95.16829 41.50506 15 127 iowa cass
128 -95.05943 41.50506 15 128 iowa cass
129 -94.70992 41.50506 15 129 iowa cass
130 -94.70992 41.16129 15 130 iowa cass
131 -94.93338 41.15556 15 131 iowa cass
132 -95.16256 41.15556 15 132 iowa cass
133 -95.16829 41.50506 15 133 iowa cass
135 -91.34666 41.60819 16 135 iowa cedar
136 -91.35239 41.87175 16 136 iowa cedar
137 -91.35239 41.95197 16 137 iowa cedar
138 -90.88257 41.95197 16 138 iowa cedar
139 -90.87683 41.78008 16 139 iowa cedar
140 -90.88257 41.60247 16 140 iowa cedar
141 -91.34666 41.60819 16 141 iowa cedar
143 -93.50098 43.26404 17 143 iowa cerro gordo
144 -93.02543 43.25831 17 144 iowa cerro gordo
145 -93.02543 43.22394 17 145 iowa cerro gordo
146 -93.02543 42.90881 17 146 iowa cerro gordo
147 -93.49525 42.91454 17 147 iowa cerro gordo
148 -93.50098 43.26404 17 148 iowa cerro gordo
150 -95.85583 42.55357 18 150 iowa cherokee
151 -95.85583 42.90881 18 151 iowa cherokee
152 -95.39747 42.91454 18 152 iowa cherokee
153 -95.39747 42.56504 18 153 iowa cherokee
154 -95.74125 42.55930 18 154 iowa cherokee
155 -95.85583 42.55357 18 155 iowa cherokee
157 -92.55560 43.22394 19 157 iowa chickasaw
158 -92.08005 43.21820 19 158 iowa chickasaw
159 -92.07432 43.08643 19 159 iowa chickasaw
160 -92.08005 42.90881 19 160 iowa chickasaw
161 -92.54987 42.90881 19 161 iowa chickasaw
162 -92.55560 43.22394 19 162 iowa chickasaw
164 -93.56401 41.16129 20 164 iowa clarke
165 -93.56401 40.90346 20 165 iowa clarke
166 -94.01665 40.90346 20 166 iowa clarke
167 -94.01665 41.16129 20 167 iowa clarke
168 -93.80465 41.16702 20 168 iowa clarke
169 -93.56401 41.16129 20 169 iowa clarke
171 -95.39747 42.91454 21 171 iowa clay
172 -95.39174 43.26404 21 172 iowa clay
173 -94.92192 43.26404 21 173 iowa clay
174 -94.92192 42.92027 21 174 iowa clay
175 -95.39747 42.91454 21 175 iowa clay
177 -91.59876 42.64525 22 177 iowa clayton
178 -91.59876 43.08643 22 178 iowa clayton
179 -91.17477 43.08643 22 179 iowa clayton
180 -91.15186 42.99475 22 180 iowa clayton
181 -91.12894 42.92027 22 181 iowa clayton
182 -91.08883 42.87443 22 182 iowa clayton
183 -91.07164 42.78849 22 183 iowa clayton
184 -91.06018 42.75411 22 184 iowa clayton
185 -91.00861 42.73119 22 185 iowa clayton
186 -90.95705 42.70255 22 186 iowa clayton
187 -90.89976 42.69109 22 187 iowa clayton
188 -90.87683 42.67963 22 188 iowa clayton
189 -90.87110 42.65671 22 189 iowa clayton
190 -90.88830 42.64525 22 190 iowa clayton
191 -91.12321 42.64525 22 191 iowa clayton
192 -91.59876 42.64525 22 192 iowa clayton
194 -90.87683 42.03791 23 194 iowa clinton
195 -90.14918 42.03791 23 195 iowa clinton
196 -90.13772 42.00927 23 196 iowa clinton
197 -90.14918 41.96343 23 197 iowa clinton
198 -90.16064 41.93478 23 198 iowa clinton
199 -90.16064 41.89467 23 199 iowa clinton
200 -90.17783 41.83738 23 200 iowa clinton
201 -90.18929 41.82019 23 201 iowa clinton
202 -90.24085 41.79154 23 202 iowa clinton
203 -90.26950 41.78008 23 203 iowa clinton
204 -90.30388 41.75716 23 204 iowa clinton
205 -90.32107 41.72279 23 205 iowa clinton
206 -90.36691 41.74570 23 206 iowa clinton
207 -90.39555 41.75143 23 207 iowa clinton
208 -90.41846 41.78008 23 208 iowa clinton
209 -90.42993 41.78008 23 209 iowa clinton
210 -90.44712 41.77435 23 210 iowa clinton
211 -90.45857 41.78008 23 211 iowa clinton
212 -90.45857 41.79154 23 212 iowa clinton
213 -90.47004 41.79727 23 213 iowa clinton
214 -90.48723 41.79154 23 214 iowa clinton
215 -90.49868 41.78008 23 215 iowa clinton
216 -90.53307 41.79154 23 216 iowa clinton
217 -90.55025 41.78008 23 217 iowa clinton
218 -90.56171 41.77435 23 218 iowa clinton
219 -90.57890 41.78008 23 219 iowa clinton
220 -90.60755 41.78008 23 220 iowa clinton
221 -90.63619 41.78008 23 221 iowa clinton
222 -90.65911 41.77435 23 222 iowa clinton
223 -90.68203 41.76289 23 223 iowa clinton
224 -90.72214 41.75143 23 224 iowa clinton
225 -90.72787 41.75143 23 225 iowa clinton
226 -90.76225 41.78008 23 226 iowa clinton
227 -90.87683 41.78008 23 227 iowa clinton
228 -90.88257 41.95197 23 228 iowa clinton
229 -90.87683 42.03791 23 229 iowa clinton
231 -95.09954 42.20407 24 231 iowa crawford
232 -95.10526 41.86030 24 232 iowa crawford
233 -95.55790 41.86030 24 233 iowa crawford
234 -95.67822 41.86030 24 234 iowa crawford
235 -95.67249 42.20407 24 235 iowa crawford
236 -95.34018 42.20407 24 236 iowa crawford
237 -95.09954 42.20407 24 237 iowa crawford
239 -94.17134 41.86603 25 239 iowa dallas
240 -93.81611 41.86030 25 240 iowa dallas
241 -93.82184 41.60819 25 241 iowa dallas
242 -93.80465 41.60819 25 242 iowa dallas
243 -93.80465 41.51079 25 243 iowa dallas
244 -93.86768 41.51079 25 244 iowa dallas
245 -93.99372 41.50506 25 245 iowa dallas
246 -94.24583 41.50506 25 246 iowa dallas
247 -94.24583 41.60247 25 247 iowa dallas
248 -94.28593 41.60247 25 248 iowa dallas
249 -94.29166 41.86603 25 249 iowa dallas
250 -94.17134 41.86603 25 250 iowa dallas
252 -92.17172 40.61698 26 252 iowa davis
253 -92.34361 40.61125 26 253 iowa davis
254 -92.63009 40.60552 26 254 iowa davis
255 -92.63009 40.90346 26 255 iowa davis
256 -92.17172 40.90346 26 256 iowa davis
257 -92.17172 40.61698 26 257 iowa davis
259 -93.56401 40.90346 27 259 iowa decatur
260 -93.56974 40.59979 27 260 iowa decatur
261 -93.77600 40.59979 27 261 iowa decatur
262 -94.01665 40.59979 27 262 iowa decatur
263 -94.01665 40.90346 27 263 iowa decatur
264 -93.56401 40.90346 27 264 iowa decatur
266 -91.59876 42.64525 28 266 iowa delaware
267 -91.12321 42.64525 28 267 iowa delaware
268 -91.12321 42.49055 28 268 iowa delaware
269 -91.11748 42.48482 28 269 iowa delaware
270 -91.11748 42.30148 28 270 iowa delaware
271 -91.35239 42.30148 28 271 iowa delaware
272 -91.58730 42.30148 28 272 iowa delaware
273 -91.58157 42.48482 28 273 iowa delaware
274 -91.59876 42.48482 28 274 iowa delaware
275 -91.59876 42.64525 28 275 iowa delaware
277 -90.95132 41.08107 29 277 iowa des moines
278 -90.94559 41.06961 29 278 iowa des moines
279 -90.95132 40.96648 29 279 iowa des moines
280 -90.97424 40.93211 29 280 iowa des moines
281 -91.04299 40.87481 29 281 iowa des moines
282 -91.08883 40.82324 29 282 iowa des moines
283 -91.10029 40.75449 29 283 iowa des moines
284 -91.11175 40.70865 29 284 iowa des moines
285 -91.14040 40.72584 29 285 iowa des moines
286 -91.15186 40.73157 29 286 iowa des moines
287 -91.16331 40.73157 29 287 iowa des moines
288 -91.18623 40.73157 29 288 iowa des moines
289 -91.21488 40.73730 29 289 iowa des moines
290 -91.23779 40.76022 29 290 iowa des moines
291 -91.26645 40.76022 29 291 iowa des moines
292 -91.30083 40.77741 29 292 iowa des moines
293 -91.30656 40.79460 29 293 iowa des moines
294 -91.33521 40.80605 29 294 iowa des moines
295 -91.35812 40.81752 29 295 iowa des moines
296 -91.35239 41.08680 29 296 iowa des moines
297 -90.95132 41.08107 29 297 iowa des moines
299 -95.39174 43.26404 30 299 iowa dickinson
300 -95.39174 43.50468 30 300 iowa dickinson
301 -94.91619 43.50468 30 301 iowa dickinson
302 -94.92192 43.26404 30 302 iowa dickinson
303 -95.39174 43.26404 30 303 iowa dickinson
305 -90.87683 42.67963 31 305 iowa dubuque
306 -90.81954 42.66817 31 306 iowa dubuque
307 -90.75079 42.64525 31 307 iowa dubuque
308 -90.69922 42.61087 31 308 iowa dubuque
309 -90.66484 42.57076 31 309 iowa dubuque
310 -90.65911 42.54212 31 310 iowa dubuque
311 -90.64192 42.50774 31 311 iowa dubuque
312 -90.64765 42.50774 31 312 iowa dubuque
313 -90.64192 42.47336 31 313 iowa dubuque
314 -90.48150 42.38742 31 314 iowa dubuque
315 -90.63046 42.39315 31 315 iowa dubuque
316 -90.64192 42.30148 31 316 iowa dubuque
317 -90.87110 42.30148 31 317 iowa dubuque
318 -91.11748 42.30148 31 318 iowa dubuque
319 -91.11748 42.48482 31 319 iowa dubuque
320 -91.12321 42.49055 31 320 iowa dubuque
321 -91.12321 42.64525 31 321 iowa dubuque
322 -90.88830 42.64525 31 322 iowa dubuque
323 -90.87110 42.65671 31 323 iowa dubuque
324 -90.87683 42.67963 31 324 iowa dubuque
326 -94.86462 43.50468 32 326 iowa emmet
327 -94.45209 43.50468 32 327 iowa emmet
328 -94.45209 43.26404 32 328 iowa emmet
329 -94.92192 43.26404 32 329 iowa emmet
330 -94.91619 43.50468 32 330 iowa emmet
331 -94.86462 43.50468 32 331 iowa emmet
333 -91.59876 43.08643 33 333 iowa fayette
334 -91.59876 42.64525 33 334 iowa fayette
335 -92.08005 42.64525 33 335 iowa fayette
336 -92.08005 42.90881 33 336 iowa fayette
337 -92.07432 43.08643 33 337 iowa fayette
338 -91.59876 43.08643 33 338 iowa fayette
340 -93.02543 42.90881 34 340 iowa floyd
341 -93.02543 43.22394 34 341 iowa floyd
342 -92.55560 43.22394 34 342 iowa floyd
343 -92.54987 42.90881 34 343 iowa floyd
344 -93.02543 42.90881 34 344 iowa floyd
346 -93.49525 42.55930 35 346 iowa franklin
347 -93.49525 42.91454 35 347 iowa franklin
348 -93.02543 42.90881 35 348 iowa franklin
349 -93.02543 42.56504 35 349 iowa franklin
350 -93.49525 42.55930 35 350 iowa franklin
352 -95.82719 40.90919 36 352 iowa fremont
353 -95.38029 40.89773 36 353 iowa fremont
354 -95.38602 40.74876 36 354 iowa fremont
355 -95.37456 40.74876 36 355 iowa fremont
356 -95.37456 40.60552 36 356 iowa fremont
357 -95.75271 40.61125 36 357 iowa fremont
358 -95.76416 40.60552 36 358 iowa fremont
359 -95.76989 40.63990 36 359 iowa fremont
360 -95.79282 40.66282 36 360 iowa fremont
361 -95.83292 40.69146 36 361 iowa fremont
362 -95.86156 40.72011 36 362 iowa fremont
363 -95.87303 40.74876 36 363 iowa fremont
364 -95.86730 40.76595 36 364 iowa fremont
365 -95.84438 40.81178 36 365 iowa fremont
366 -95.85583 40.85189 36 366 iowa fremont
367 -95.82719 40.90919 36 367 iowa fremont
369 -94.16561 42.20980 37 369 iowa greene
370 -94.17134 41.86603 37 370 iowa greene
371 -94.29166 41.86603 37 371 iowa greene
372 -94.63544 41.86603 37 372 iowa greene
373 -94.62971 42.20980 37 373 iowa greene
374 -94.40625 42.20980 37 374 iowa greene
375 -94.16561 42.20980 37 375 iowa greene
377 -92.99678 42.21553 38 377 iowa grundy
378 -92.99678 42.47336 38 378 iowa grundy
379 -93.01970 42.47336 38 379 iowa grundy
380 -93.02543 42.56504 38 380 iowa grundy
381 -92.54987 42.56504 38 381 iowa grundy
382 -92.54987 42.47336 38 382 iowa grundy
383 -92.52695 42.47336 38 383 iowa grundy
384 -92.52695 42.30148 38 384 iowa grundy
385 -92.76186 42.30148 38 385 iowa grundy
386 -92.76186 42.21553 38 386 iowa grundy
387 -92.99678 42.21553 38 387 iowa grundy
389 -94.70992 41.50506 39 389 iowa guthrie
390 -94.70992 41.60819 39 390 iowa guthrie
391 -94.75576 41.60819 39 391 iowa guthrie
392 -94.75576 41.86603 39 392 iowa guthrie
393 -94.63544 41.86603 39 393 iowa guthrie
394 -94.29166 41.86603 39 394 iowa guthrie
395 -94.28593 41.60247 39 395 iowa guthrie
396 -94.24583 41.60247 39 396 iowa guthrie
397 -94.24583 41.50506 39 397 iowa guthrie
398 -94.70992 41.50506 39 398 iowa guthrie
400 -93.96508 42.55930 40 400 iowa hamilton
401 -93.49525 42.55930 40 401 iowa hamilton
402 -93.49525 42.45617 40 402 iowa hamilton
403 -93.46661 42.45044 40 403 iowa hamilton
404 -93.46661 42.20980 40 404 iowa hamilton
405 -93.70152 42.20980 40 405 iowa hamilton
406 -93.93070 42.20980 40 406 iowa hamilton
407 -93.93070 42.46763 40 407 iowa hamilton
408 -93.96508 42.46763 40 408 iowa hamilton
409 -93.96508 42.55930 40 409 iowa hamilton
411 -93.50098 43.26404 41 411 iowa hancock
412 -93.49525 42.91454 41 412 iowa hancock
413 -93.97081 42.91454 41 413 iowa hancock
414 -93.97081 43.25831 41 414 iowa hancock
415 -93.50098 43.26404 41 415 iowa hancock
417 -92.99678 42.21553 42 417 iowa hardin
418 -93.23169 42.20980 42 418 iowa hardin
419 -93.46661 42.20980 42 419 iowa hardin
420 -93.46661 42.45044 42 420 iowa hardin
421 -93.49525 42.45617 42 421 iowa hardin
422 -93.49525 42.55930 42 422 iowa hardin
423 -93.02543 42.56504 42 423 iowa hardin
424 -93.01970 42.47336 42 424 iowa hardin
425 -92.99678 42.47336 42 425 iowa hardin
426 -92.99678 42.21553 42 426 iowa hardin
428 -96.00481 41.50506 43 428 iowa harrison
429 -96.01627 41.53371 43 429 iowa harrison
430 -96.04491 41.53371 43 430 iowa harrison
431 -96.08502 41.55090 43 431 iowa harrison
432 -96.07929 41.56809 43 432 iowa harrison
433 -96.05064 41.60247 43 433 iowa harrison
434 -96.05064 41.61966 43 434 iowa harrison
435 -96.06783 41.61966 43 435 iowa harrison
436 -96.09648 41.61966 43 436 iowa harrison
437 -96.12513 41.63684 43 437 iowa harrison
438 -96.12513 41.66549 43 438 iowa harrison
439 -96.11940 41.71706 43 439 iowa harrison
440 -96.09075 41.75143 43 440 iowa harrison
441 -96.10221 41.78008 43 441 iowa harrison
442 -96.09648 41.82592 43 442 iowa harrison
443 -96.13086 41.86030 43 443 iowa harrison
444 -95.67822 41.86030 43 444 iowa harrison
445 -95.55790 41.86030 43 445 iowa harrison
446 -95.55218 41.60247 43 446 iowa harrison
447 -95.48914 41.59674 43 447 iowa harrison
448 -95.49487 41.50506 43 448 iowa harrison
449 -96.00481 41.50506 43 449 iowa harrison
451 -91.70763 40.82324 44 451 iowa henry
452 -91.70190 40.90346 44 452 iowa henry
453 -91.70190 41.17274 44 453 iowa henry
454 -91.46698 41.17274 44 454 iowa henry
455 -91.35812 41.17274 44 455 iowa henry
456 -91.35239 41.08680 44 456 iowa henry
457 -91.35812 40.81752 44 457 iowa henry
458 -91.39822 40.82324 44 458 iowa henry
459 -91.70763 40.82324 44 459 iowa henry
461 -92.45820 43.50468 45 461 iowa howard
462 -92.08005 43.50468 45 462 iowa howard
463 -92.08005 43.21820 45 463 iowa howard
464 -92.55560 43.22394 45 464 iowa howard
465 -92.54987 43.51041 45 465 iowa howard
466 -92.45820 43.50468 45 466 iowa howard
468 -93.97081 42.91454 46 468 iowa humboldt
469 -93.97081 42.63952 46 469 iowa humboldt
470 -94.44064 42.64525 46 470 iowa humboldt
471 -94.44064 42.92027 46 471 iowa humboldt
472 -93.97081 42.91454 46 472 iowa humboldt
474 -95.39747 42.56504 47 474 iowa ida
475 -95.39174 42.47336 47 475 iowa ida
476 -95.33445 42.47336 47 476 iowa ida
477 -95.34018 42.20407 47 477 iowa ida
478 -95.67249 42.20407 47 478 iowa ida
479 -95.67249 42.47336 47 479 iowa ida
480 -95.74125 42.47336 47 480 iowa ida
481 -95.74125 42.55930 47 481 iowa ida
482 -95.39747 42.56504 47 482 iowa ida
484 -91.93108 41.51652 48 484 iowa iowa
485 -92.26912 41.52225 48 485 iowa iowa
486 -92.27485 41.60819 48 486 iowa iowa
487 -92.28632 41.60819 48 487 iowa iowa
488 -92.28058 41.87175 48 488 iowa iowa
489 -91.82221 41.87175 48 489 iowa iowa
490 -91.82794 41.60819 48 490 iowa iowa
491 -91.81648 41.60819 48 491 iowa iowa
492 -91.82221 41.51652 48 492 iowa iowa
493 -91.93108 41.51652 48 493 iowa iowa
495 -90.14918 42.03791 49 495 iowa jackson
496 -90.87683 42.03791 49 496 iowa jackson
497 -90.87110 42.30148 49 497 iowa jackson
498 -90.64192 42.30148 49 498 iowa jackson
499 -90.63046 42.39315 49 499 iowa jackson
500 -90.48150 42.38742 49 500 iowa jackson
501 -90.45284 42.37023 49 501 iowa jackson
502 -90.41846 42.33585 49 502 iowa jackson
503 -90.41846 42.29575 49 503 iowa jackson
504 -90.40701 42.24991 49 504 iowa jackson
505 -90.37263 42.22699 49 505 iowa jackson
506 -90.32680 42.20407 49 506 iowa jackson
507 -90.24658 42.17542 49 507 iowa jackson
508 -90.17783 42.13532 49 508 iowa jackson
509 -90.16064 42.10094 49 509 iowa jackson
510 -90.14918 42.03791 49 510 iowa jackson
512 -93.33482 41.50506 50 512 iowa jasper
513 -93.33482 41.60819 50 513 iowa jasper
514 -93.35201 41.60819 50 514 iowa jasper
515 -93.34628 41.86030 50 515 iowa jasper
516 -93.23169 41.86603 50 516 iowa jasper
517 -92.76186 41.87175 50 517 iowa jasper
518 -92.76186 41.63111 50 518 iowa jasper
519 -92.74468 41.63111 50 519 iowa jasper
520 -92.74468 41.51652 50 520 iowa jasper
521 -92.85927 41.51652 50 521 iowa jasper
522 -93.33482 41.50506 50 522 iowa jasper
524 -91.92535 41.17274 51 524 iowa jefferson
525 -91.70190 41.17274 51 525 iowa jefferson
526 -91.70190 40.90346 51 526 iowa jefferson
527 -92.17172 40.90346 51 527 iowa jefferson
528 -92.16599 41.16702 51 528 iowa jefferson
529 -91.92535 41.17274 51 529 iowa jefferson
531 -91.34666 41.60819 52 531 iowa johnson
532 -91.35239 41.42485 52 532 iowa johnson
533 -91.47272 41.43058 52 533 iowa johnson
534 -91.48417 41.44777 52 534 iowa johnson
535 -91.48990 41.46495 52 535 iowa johnson
536 -91.50136 41.47642 52 536 iowa johnson
537 -91.49563 41.49934 52 537 iowa johnson
538 -91.50136 41.51079 52 538 iowa johnson
539 -91.51855 41.52225 52 539 iowa johnson
540 -91.82221 41.51652 52 540 iowa johnson
541 -91.81648 41.60819 52 541 iowa johnson
542 -91.82794 41.60819 52 542 iowa johnson
543 -91.82221 41.87175 52 543 iowa johnson
544 -91.35239 41.87175 52 544 iowa johnson
545 -91.34666 41.60819 52 545 iowa johnson
547 -90.87110 42.30148 53 547 iowa jones
548 -90.87683 42.03791 53 548 iowa jones
549 -90.88257 41.95197 53 549 iowa jones
550 -91.35239 41.95197 53 550 iowa jones
551 -91.35239 42.30148 53 551 iowa jones
552 -91.11748 42.30148 53 552 iowa jones
553 -90.87110 42.30148 53 553 iowa jones
555 -91.93108 41.51652 54 555 iowa keokuk
556 -91.92535 41.17274 54 556 iowa keokuk
557 -92.16599 41.16702 54 557 iowa keokuk
558 -92.39517 41.17274 54 558 iowa keokuk
559 -92.41236 41.52225 54 559 iowa keokuk
560 -92.26912 41.52225 54 560 iowa keokuk
561 -91.93108 41.51652 54 561 iowa keokuk
563 -94.45209 43.26404 55 563 iowa kossuth
564 -94.45209 43.50468 55 564 iowa kossuth
565 -94.26302 43.50468 55 565 iowa kossuth
566 -93.97654 43.51041 55 566 iowa kossuth
567 -93.97081 43.25831 55 567 iowa kossuth
568 -93.97081 42.91454 55 568 iowa kossuth
569 -94.44064 42.92027 55 569 iowa kossuth
570 -94.45209 43.26404 55 570 iowa kossuth
572 -91.11175 40.70865 56 572 iowa lee
573 -91.11175 40.68000 56 573 iowa lee
574 -91.14613 40.65709 56 574 iowa lee
575 -91.18623 40.63417 56 575 iowa lee
576 -91.26645 40.62271 56 576 iowa lee
577 -91.30656 40.62271 56 577 iowa lee
578 -91.35239 40.61125 56 578 iowa lee
579 -91.37531 40.58833 56 579 iowa lee
580 -91.41541 40.56541 56 580 iowa lee
581 -91.41541 40.55395 56 581 iowa lee
582 -91.37531 40.49665 56 582 iowa lee
583 -91.39250 40.44509 56 583 iowa lee
584 -91.39250 40.42217 56 584 iowa lee
585 -91.38677 40.39352 56 585 iowa lee
586 -91.40968 40.38206 56 586 iowa lee
587 -91.41541 40.37634 56 587 iowa lee
588 -91.48990 40.41644 56 588 iowa lee
589 -91.52428 40.47374 56 589 iowa lee
590 -91.58730 40.50812 56 590 iowa lee
591 -91.61595 40.56541 56 591 iowa lee
592 -91.66752 40.56541 56 592 iowa lee
593 -91.70190 40.61698 56 593 iowa lee
594 -91.70763 40.82324 56 594 iowa lee
595 -91.39822 40.82324 56 595 iowa lee
596 -91.35812 40.81752 56 596 iowa lee
597 -91.33521 40.80605 56 597 iowa lee
598 -91.30656 40.79460 56 598 iowa lee
599 -91.30083 40.77741 56 599 iowa lee
600 -91.26645 40.76022 56 600 iowa lee
601 -91.23779 40.76022 56 601 iowa lee
602 -91.21488 40.73730 56 602 iowa lee
603 -91.18623 40.73157 56 603 iowa lee
604 -91.16331 40.73157 56 604 iowa lee
605 -91.15186 40.73157 56 605 iowa lee
606 -91.14040 40.72584 56 606 iowa lee
607 -91.11175 40.70865 56 607 iowa lee
609 -91.82221 42.30148 57 609 iowa linn
610 -91.58730 42.30148 57 610 iowa linn
611 -91.35239 42.30148 57 611 iowa linn
612 -91.35239 41.95197 57 612 iowa linn
613 -91.35239 41.87175 57 613 iowa linn
614 -91.82221 41.87175 57 614 iowa linn
615 -91.82221 42.30148 57 615 iowa linn
617 -91.06592 41.34464 58 617 iowa louisa
618 -91.06018 41.32745 58 618 iowa louisa
619 -91.06592 41.31026 58 619 iowa louisa
620 -91.08883 41.27015 58 620 iowa louisa
621 -91.08883 41.23005 58 621 iowa louisa
622 -91.05445 41.20139 58 622 iowa louisa
623 -91.02008 41.17847 58 623 iowa louisa
624 -90.98570 41.15556 58 624 iowa louisa
625 -90.95705 41.11545 58 625 iowa louisa
626 -90.95132 41.08107 58 626 iowa louisa
627 -91.35239 41.08680 58 627 iowa louisa
628 -91.35812 41.17274 58 628 iowa louisa
629 -91.46698 41.17274 58 629 iowa louisa
630 -91.47272 41.43058 58 630 iowa louisa
631 -91.35239 41.42485 58 631 iowa louisa
632 -91.35239 41.35036 58 632 iowa louisa
633 -91.06592 41.34464 58 633 iowa louisa
635 -93.10564 41.16702 59 635 iowa lucas
636 -93.10564 40.90346 59 636 iowa lucas
637 -93.56401 40.90346 59 637 iowa lucas
638 -93.56401 41.16129 59 638 iowa lucas
639 -93.33482 41.16129 59 639 iowa lucas
640 -93.10564 41.16702 59 640 iowa lucas
642 -96.04491 43.49895 60 642 iowa lyon
643 -95.86156 43.50468 60 643 iowa lyon
644 -95.86156 43.26404 60 644 iowa lyon
645 -96.56058 43.25831 60 645 iowa lyon
646 -96.57204 43.28123 60 646 iowa lyon
647 -96.55485 43.29842 60 647 iowa lyon
648 -96.53193 43.30988 60 648 iowa lyon
649 -96.51474 43.33853 60 649 iowa lyon
650 -96.50901 43.37864 60 650 iowa lyon
651 -96.53766 43.39582 60 651 iowa lyon
652 -96.57204 43.42447 60 652 iowa lyon
653 -96.59496 43.45312 60 653 iowa lyon
654 -96.58350 43.49895 60 654 iowa lyon
655 -96.42879 43.49323 60 655 iowa lyon
656 -96.04491 43.49895 60 656 iowa lyon
658 -94.24583 41.16129 61 658 iowa madison
659 -94.24583 41.50506 61 659 iowa madison
660 -93.99372 41.50506 61 660 iowa madison
661 -93.86768 41.51079 61 661 iowa madison
662 -93.80465 41.51079 61 662 iowa madison
663 -93.80465 41.16702 61 663 iowa madison
664 -94.01665 41.16129 61 664 iowa madison
665 -94.24583 41.16129 61 665 iowa madison
667 -92.85927 41.51652 62 667 iowa mahaska
668 -92.74468 41.51652 62 668 iowa mahaska
669 -92.41236 41.52225 62 669 iowa mahaska
670 -92.39517 41.17274 62 670 iowa mahaska
671 -92.63581 41.16702 62 671 iowa mahaska
672 -92.85927 41.16702 62 672 iowa mahaska
673 -92.85927 41.51652 62 673 iowa mahaska
675 -93.33482 41.49360 63 675 iowa marion
676 -93.33482 41.50506 63 676 iowa marion
677 -92.85927 41.51652 63 677 iowa marion
678 -92.85927 41.16702 63 678 iowa marion
679 -93.10564 41.16702 63 679 iowa marion
680 -93.33482 41.16129 63 680 iowa marion
681 -93.33482 41.49360 63 681 iowa marion
683 -93.23169 42.20980 64 683 iowa marshall
684 -92.99678 42.21553 64 684 iowa marshall
685 -92.76186 42.21553 64 685 iowa marshall
686 -92.76186 41.87175 64 686 iowa marshall
687 -93.23169 41.86603 64 687 iowa marshall
688 -93.23169 42.20980 64 688 iowa marshall
690 -95.88448 41.16129 65 690 iowa mills
691 -95.38029 41.16129 65 691 iowa mills
692 -95.38029 40.89773 65 692 iowa mills
693 -95.82719 40.90919 65 693 iowa mills
694 -95.82719 40.93211 65 694 iowa mills
695 -95.82146 40.94929 65 695 iowa mills
696 -95.83865 40.97221 65 696 iowa mills
697 -95.87303 41.02951 65 697 iowa mills
698 -95.87303 41.04670 65 698 iowa mills
699 -95.87303 41.07534 65 699 iowa mills
700 -95.85583 41.09826 65 700 iowa mills
701 -95.87303 41.13264 65 701 iowa mills
702 -95.88448 41.16129 65 702 iowa mills
704 -93.02543 43.25831 66 704 iowa mitchell
705 -93.02543 43.51041 66 705 iowa mitchell
706 -92.54987 43.51041 66 706 iowa mitchell
707 -92.55560 43.22394 66 707 iowa mitchell
708 -93.02543 43.22394 66 708 iowa mitchell
709 -93.02543 43.25831 66 709 iowa mitchell
711 -96.13086 41.86030 67 711 iowa monona
712 -96.16524 41.91759 67 712 iowa monona
713 -96.15378 41.94624 67 713 iowa monona
714 -96.15378 41.96916 67 714 iowa monona
715 -96.16524 41.98635 67 715 iowa monona
716 -96.18243 42.00354 67 716 iowa monona
717 -96.22253 42.00354 67 717 iowa monona
718 -96.22826 42.03218 67 718 iowa monona
719 -96.26263 42.05510 67 719 iowa monona
720 -96.27983 42.06656 67 720 iowa monona
721 -96.29701 42.11813 67 721 iowa monona
722 -96.33712 42.14677 67 722 iowa monona
723 -96.34285 42.15824 67 723 iowa monona
724 -96.34285 42.17542 67 724 iowa monona
725 -96.31994 42.19834 67 725 iowa monona
726 -96.31994 42.20980 67 726 iowa monona
727 -95.67249 42.20407 67 727 iowa monona
728 -95.67822 41.86030 67 728 iowa monona
729 -96.13086 41.86030 67 729 iowa monona
731 -93.10564 41.16702 68 731 iowa monroe
732 -92.85927 41.16702 68 732 iowa monroe
733 -92.63581 41.16702 68 733 iowa monroe
734 -92.63009 40.90346 68 734 iowa monroe
735 -93.10564 40.90346 68 735 iowa monroe
736 -93.10564 41.16702 68 736 iowa monroe
738 -95.38029 41.16129 69 738 iowa montgomery
739 -95.16256 41.15556 69 739 iowa montgomery
740 -94.93338 41.15556 69 740 iowa montgomery
741 -94.93338 40.90346 69 741 iowa montgomery
742 -95.38029 40.89773 69 742 iowa montgomery
743 -95.38029 41.16129 69 743 iowa montgomery
745 -90.88257 41.60247 70 745 iowa muscatine
746 -90.76225 41.60247 70 746 iowa muscatine
747 -90.77370 41.45922 70 747 iowa muscatine
748 -90.83673 41.45350 70 748 iowa muscatine
749 -90.87683 41.44777 70 749 iowa muscatine
750 -90.92841 41.43058 70 750 iowa muscatine
751 -90.98570 41.43058 70 751 iowa muscatine
752 -91.01434 41.43058 70 752 iowa muscatine
753 -91.03726 41.40766 70 753 iowa muscatine
754 -91.06592 41.34464 70 754 iowa muscatine
755 -91.35239 41.35036 70 755 iowa muscatine
756 -91.35239 41.42485 70 756 iowa muscatine
757 -91.34666 41.60819 70 757 iowa muscatine
758 -90.88257 41.60247 70 758 iowa muscatine
760 -95.86156 43.26404 71 760 iowa obrien
761 -95.39174 43.26404 71 761 iowa obrien
762 -95.39747 42.91454 71 762 iowa obrien
763 -95.85583 42.90881 71 763 iowa obrien
764 -95.86156 43.26404 71 764 iowa obrien
766 -95.39174 43.50468 72 766 iowa osceola
767 -95.39174 43.26404 72 767 iowa osceola
768 -95.86156 43.26404 72 768 iowa osceola
769 -95.86156 43.50468 72 769 iowa osceola
770 -95.46623 43.50468 72 770 iowa osceola
771 -95.39174 43.50468 72 771 iowa osceola
773 -94.91619 40.59979 73 773 iowa page
774 -95.20267 40.60552 73 774 iowa page
775 -95.37456 40.60552 73 775 iowa page
776 -95.37456 40.74876 73 776 iowa page
777 -95.38602 40.74876 73 777 iowa page
778 -95.38029 40.89773 73 778 iowa page
779 -94.93338 40.90346 73 779 iowa page
780 -94.93338 40.73730 73 780 iowa page
781 -94.92192 40.73730 73 781 iowa page
782 -94.91619 40.59979 73 782 iowa page
784 -94.92192 42.92027 74 784 iowa palo alto
785 -94.92192 43.26404 74 785 iowa palo alto
786 -94.45209 43.26404 74 786 iowa palo alto
787 -94.44064 42.92027 74 787 iowa palo alto
788 -94.92192 42.92027 74 788 iowa palo alto
790 -95.85583 42.90881 75 790 iowa plymouth
791 -95.85583 42.55357 75 791 iowa plymouth
792 -96.46890 42.54785 75 792 iowa plymouth
793 -96.47463 42.57076 75 793 iowa plymouth
794 -96.56058 42.66817 75 794 iowa plymouth
795 -96.58350 42.68536 75 795 iowa plymouth
796 -96.60641 42.70255 75 796 iowa plymouth
797 -96.60641 42.73692 75 797 iowa plymouth
798 -96.59496 42.77703 75 798 iowa plymouth
799 -96.56058 42.81714 75 799 iowa plymouth
800 -96.52047 42.87443 75 800 iowa plymouth
801 -96.52047 42.90308 75 801 iowa plymouth
802 -95.85583 42.90881 75 802 iowa plymouth
804 -94.92192 42.55930 76 804 iowa pocahontas
805 -94.92192 42.92027 76 805 iowa pocahontas
806 -94.44064 42.92027 76 806 iowa pocahontas
807 -94.44064 42.64525 76 807 iowa pocahontas
808 -94.44636 42.55357 76 808 iowa pocahontas
809 -94.92192 42.55930 76 809 iowa pocahontas
811 -93.33482 41.50506 77 811 iowa polk
812 -93.33482 41.49360 77 812 iowa polk
813 -93.39785 41.51079 77 813 iowa polk
814 -93.46661 41.51652 77 814 iowa polk
815 -93.80465 41.51079 77 815 iowa polk
816 -93.80465 41.60819 77 816 iowa polk
817 -93.82184 41.60819 77 817 iowa polk
818 -93.81611 41.86030 77 818 iowa polk
819 -93.70152 41.86030 77 819 iowa polk
820 -93.34628 41.86030 77 820 iowa polk
821 -93.35201 41.60819 77 821 iowa polk
822 -93.33482 41.60819 77 822 iowa polk
823 -93.33482 41.50506 77 823 iowa polk
825 -95.16256 41.15556 78 825 iowa pottawattamie
826 -95.38029 41.16129 78 826 iowa pottawattamie
827 -95.88448 41.16129 78 827 iowa pottawattamie
828 -95.89021 41.17847 78 828 iowa pottawattamie
829 -95.90167 41.21858 78 829 iowa pottawattamie
830 -95.90167 41.25869 78 830 iowa pottawattamie
831 -95.87876 41.29307 78 831 iowa pottawattamie
832 -95.87303 41.31026 78 832 iowa pottawattamie
833 -95.87876 41.31599 78 833 iowa pottawattamie
834 -95.90167 41.32745 78 834 iowa pottawattamie
835 -95.92460 41.33891 78 835 iowa pottawattamie
836 -95.93032 41.35036 78 836 iowa pottawattamie
837 -95.92460 41.36182 78 837 iowa pottawattamie
838 -95.92460 41.38474 78 838 iowa pottawattamie
839 -95.93032 41.41912 78 839 iowa pottawattamie
840 -95.93605 41.44204 78 840 iowa pottawattamie
841 -95.94751 41.45922 78 841 iowa pottawattamie
842 -95.99908 41.48787 78 842 iowa pottawattamie
843 -96.00481 41.50506 78 843 iowa pottawattamie
844 -95.49487 41.50506 78 844 iowa pottawattamie
845 -95.16829 41.50506 78 845 iowa pottawattamie
846 -95.16256 41.15556 78 846 iowa pottawattamie
848 -92.76186 41.87175 79 848 iowa poweshiek
849 -92.28058 41.87175 79 849 iowa poweshiek
850 -92.28632 41.60819 79 850 iowa poweshiek
851 -92.27485 41.60819 79 851 iowa poweshiek
852 -92.26912 41.52225 79 852 iowa poweshiek
853 -92.41236 41.52225 79 853 iowa poweshiek
854 -92.74468 41.51652 79 854 iowa poweshiek
855 -92.74468 41.63111 79 855 iowa poweshiek
856 -92.76186 41.63111 79 856 iowa poweshiek
857 -92.76186 41.87175 79 857 iowa poweshiek
859 -94.01665 40.90346 80 859 iowa ringgold
860 -94.01665 40.59979 80 860 iowa ringgold
861 -94.24010 40.59406 80 861 iowa ringgold
862 -94.48074 40.59406 80 862 iowa ringgold
863 -94.48647 40.90346 80 863 iowa ringgold
864 -94.01665 40.90346 80 864 iowa ringgold
866 -95.39747 42.56504 81 866 iowa sac
867 -94.92192 42.55930 81 867 iowa sac
868 -94.92192 42.47336 81 868 iowa sac
869 -94.86462 42.47336 81 869 iowa sac
870 -94.87035 42.20980 81 870 iowa sac
871 -95.09954 42.20407 81 871 iowa sac
872 -95.34018 42.20407 81 872 iowa sac
873 -95.33445 42.47336 81 873 iowa sac
874 -95.39174 42.47336 81 874 iowa sac
875 -95.39747 42.56504 81 875 iowa sac
877 -90.87683 41.78008 82 877 iowa scott
878 -90.76225 41.78008 82 878 iowa scott
879 -90.72787 41.75143 82 879 iowa scott
880 -90.72214 41.75143 82 880 iowa scott
881 -90.68203 41.76289 82 881 iowa scott
882 -90.65911 41.77435 82 882 iowa scott
883 -90.63619 41.78008 82 883 iowa scott
884 -90.60755 41.78008 82 884 iowa scott
885 -90.57890 41.78008 82 885 iowa scott
886 -90.56171 41.77435 82 886 iowa scott
887 -90.55025 41.78008 82 887 iowa scott
888 -90.53307 41.79154 82 888 iowa scott
889 -90.49868 41.78008 82 889 iowa scott
890 -90.48723 41.79154 82 890 iowa scott
891 -90.47004 41.79727 82 891 iowa scott
892 -90.45857 41.79154 82 892 iowa scott
893 -90.45857 41.78008 82 893 iowa scott
894 -90.44712 41.77435 82 894 iowa scott
895 -90.42993 41.78008 82 895 iowa scott
896 -90.41846 41.78008 82 896 iowa scott
897 -90.39555 41.75143 82 897 iowa scott
898 -90.36691 41.74570 82 898 iowa scott
899 -90.32107 41.72279 82 899 iowa scott
900 -90.32680 41.69414 82 900 iowa scott
901 -90.34399 41.61966 82 901 iowa scott
902 -90.35545 41.59674 82 902 iowa scott
903 -90.41273 41.56236 82 903 iowa scott
904 -90.45857 41.53944 82 904 iowa scott
905 -90.54452 41.52225 82 905 iowa scott
906 -90.60755 41.49934 82 906 iowa scott
907 -90.65339 41.46495 82 907 iowa scott
908 -90.71641 41.45922 82 908 iowa scott
909 -90.77370 41.45922 82 909 iowa scott
910 -90.76225 41.60247 82 910 iowa scott
911 -90.88257 41.60247 82 911 iowa scott
912 -90.87683 41.78008 82 912 iowa scott
914 -95.55790 41.86030 83 914 iowa shelby
915 -95.10526 41.86030 83 915 iowa shelby
916 -95.10526 41.60247 83 916 iowa shelby
917 -95.05370 41.60247 83 917 iowa shelby
918 -95.05943 41.50506 83 918 iowa shelby
919 -95.16829 41.50506 83 919 iowa shelby
920 -95.49487 41.50506 83 920 iowa shelby
921 -95.48914 41.59674 83 921 iowa shelby
922 -95.55218 41.60247 83 922 iowa shelby
923 -95.55790 41.86030 83 923 iowa shelby
925 -95.86156 43.26404 84 925 iowa sioux
926 -95.85583 42.90881 84 926 iowa sioux
927 -96.52047 42.90308 84 927 iowa sioux
928 -96.52047 42.92600 84 928 iowa sioux
929 -96.49755 42.94318 84 929 iowa sioux
930 -96.49755 42.98329 84 930 iowa sioux
931 -96.49755 43.01194 84 931 iowa sioux
932 -96.51474 43.02913 84 932 iowa sioux
933 -96.44598 43.05205 84 933 iowa sioux
934 -96.44025 43.08070 84 934 iowa sioux
935 -96.43452 43.10361 84 935 iowa sioux
936 -96.43452 43.12080 84 936 iowa sioux
937 -96.44025 43.14945 84 937 iowa sioux
938 -96.45171 43.17810 84 938 iowa sioux
939 -96.45745 43.20102 84 939 iowa sioux
940 -96.46890 43.21820 84 940 iowa sioux
941 -96.49755 43.22394 84 941 iowa sioux
942 -96.53193 43.22394 84 942 iowa sioux
943 -96.55485 43.23539 84 943 iowa sioux
944 -96.56058 43.25831 84 944 iowa sioux
945 -95.86156 43.26404 84 945 iowa sioux
947 -93.70152 42.20980 85 947 iowa story
948 -93.46661 42.20980 85 948 iowa story
949 -93.23169 42.20980 85 949 iowa story
950 -93.23169 41.86603 85 950 iowa story
951 -93.34628 41.86030 85 951 iowa story
952 -93.70152 41.86030 85 952 iowa story
953 -93.70152 42.20980 85 953 iowa story
955 -92.28632 42.30148 86 955 iowa tama
956 -92.28058 41.87175 86 956 iowa tama
957 -92.76186 41.87175 86 957 iowa tama
958 -92.76186 42.21553 86 958 iowa tama
959 -92.76186 42.30148 86 959 iowa tama
960 -92.52695 42.30148 86 960 iowa tama
961 -92.28632 42.30148 86 961 iowa tama
963 -94.48074 40.59406 87 963 iowa taylor
964 -94.63544 40.59406 87 964 iowa taylor
965 -94.91619 40.59979 87 965 iowa taylor
966 -94.92192 40.73730 87 966 iowa taylor
967 -94.93338 40.73730 87 967 iowa taylor
968 -94.93338 40.90346 87 968 iowa taylor
969 -94.48647 40.90346 87 969 iowa taylor
970 -94.48074 40.59406 87 970 iowa taylor
972 -94.48647 41.16129 88 972 iowa union
973 -94.24583 41.16129 88 973 iowa union
974 -94.01665 41.16129 88 974 iowa union
975 -94.01665 40.90346 88 975 iowa union
976 -94.48647 40.90346 88 976 iowa union
977 -94.48647 41.16129 88 977 iowa union
979 -91.70190 40.90346 89 979 iowa van buren
980 -91.70763 40.82324 89 980 iowa van buren
981 -91.70190 40.61698 89 981 iowa van buren
982 -91.93681 40.61698 89 982 iowa van buren
983 -92.17172 40.61698 89 983 iowa van buren
984 -92.17172 40.90346 89 984 iowa van buren
985 -91.70190 40.90346 89 985 iowa van buren
987 -92.16599 41.16702 90 987 iowa wapello
988 -92.17172 40.90346 90 988 iowa wapello
989 -92.63009 40.90346 90 989 iowa wapello
990 -92.63581 41.16702 90 990 iowa wapello
991 -92.39517 41.17274 90 991 iowa wapello
992 -92.16599 41.16702 90 992 iowa wapello
994 -93.33482 41.49360 91 994 iowa warren
995 -93.33482 41.16129 91 995 iowa warren
996 -93.56401 41.16129 91 996 iowa warren
997 -93.80465 41.16702 91 997 iowa warren
998 -93.80465 41.51079 91 998 iowa warren
999 -93.46661 41.51652 91 999 iowa warren
1000 -93.39785 41.51079 91 1000 iowa warren
1001 -93.33482 41.49360 91 1001 iowa warren
1003 -91.92535 41.17274 92 1003 iowa washington
1004 -91.93108 41.51652 92 1004 iowa washington
1005 -91.82221 41.51652 92 1005 iowa washington
1006 -91.51855 41.52225 92 1006 iowa washington
1007 -91.50136 41.51079 92 1007 iowa washington
1008 -91.49563 41.49934 92 1008 iowa washington
1009 -91.50136 41.47642 92 1009 iowa washington
1010 -91.48990 41.46495 92 1010 iowa washington
1011 -91.48417 41.44777 92 1011 iowa washington
1012 -91.47272 41.43058 92 1012 iowa washington
1013 -91.46698 41.17274 92 1013 iowa washington
1014 -91.70190 41.17274 92 1014 iowa washington
1015 -91.92535 41.17274 92 1015 iowa washington
1017 -93.56974 40.59979 93 1017 iowa wayne
1018 -93.56401 40.90346 93 1018 iowa wayne
1019 -93.10564 40.90346 93 1019 iowa wayne
1020 -93.09991 40.60552 93 1020 iowa wayne
1021 -93.37493 40.59979 93 1021 iowa wayne
1022 -93.56974 40.59979 93 1022 iowa wayne
1024 -93.96508 42.55930 94 1024 iowa webster
1025 -93.96508 42.46763 94 1025 iowa webster
1026 -93.93070 42.46763 94 1026 iowa webster
1027 -93.93070 42.20980 94 1027 iowa webster
1028 -94.16561 42.20980 94 1028 iowa webster
1029 -94.40625 42.20980 94 1029 iowa webster
1030 -94.40053 42.47336 94 1030 iowa webster
1031 -94.44064 42.47336 94 1031 iowa webster
1032 -94.44636 42.55357 94 1032 iowa webster
1033 -94.44064 42.64525 94 1033 iowa webster
1034 -93.97081 42.63952 94 1034 iowa webster
1035 -93.96508 42.55930 94 1035 iowa webster
1037 -93.49525 43.51041 95 1037 iowa winnebago
1038 -93.50098 43.26404 95 1038 iowa winnebago
1039 -93.97081 43.25831 95 1039 iowa winnebago
1040 -93.97654 43.51041 95 1040 iowa winnebago
1041 -93.64423 43.51041 95 1041 iowa winnebago
1042 -93.49525 43.51041 95 1042 iowa winnebago
1044 -92.08005 43.50468 96 1044 iowa winneshiek
1045 -91.72482 43.51041 96 1045 iowa winneshiek
1046 -91.60449 43.51041 96 1046 iowa winneshiek
1047 -91.61022 43.34999 96 1047 iowa winneshiek
1048 -91.59876 43.35572 96 1048 iowa winneshiek
1049 -91.59876 43.08643 96 1049 iowa winneshiek
1050 -92.07432 43.08643 96 1050 iowa winneshiek
1051 -92.08005 43.21820 96 1051 iowa winneshiek
1052 -92.08005 43.50468 96 1052 iowa winneshiek
1054 -96.34858 42.26710 97 1054 iowa woodbury
1055 -96.40588 42.33012 97 1055 iowa woodbury
1056 -96.41161 42.35304 97 1056 iowa woodbury
1057 -96.40588 42.38169 97 1057 iowa woodbury
1058 -96.39442 42.39888 97 1058 iowa woodbury
1059 -96.38869 42.41607 97 1059 iowa woodbury
1060 -96.38869 42.43898 97 1060 iowa woodbury
1061 -96.39442 42.46190 97 1061 iowa woodbury
1062 -96.43452 42.47336 97 1062 iowa woodbury
1063 -96.44025 42.47336 97 1063 iowa woodbury
1064 -96.46890 42.50774 97 1064 iowa woodbury
1065 -96.46890 42.53065 97 1065 iowa woodbury
1066 -96.46890 42.54785 97 1066 iowa woodbury
1067 -95.85583 42.55357 97 1067 iowa woodbury
1068 -95.74125 42.55930 97 1068 iowa woodbury
1069 -95.74125 42.47336 97 1069 iowa woodbury
1070 -95.67249 42.47336 97 1070 iowa woodbury
1071 -95.67249 42.20407 97 1071 iowa woodbury
1072 -96.31994 42.20980 97 1072 iowa woodbury
1073 -96.34858 42.24418 97 1073 iowa woodbury
1074 -96.34285 42.24991 97 1074 iowa woodbury
1075 -96.34858 42.26710 97 1075 iowa woodbury
1077 -93.02543 43.51041 98 1077 iowa worth
1078 -93.02543 43.25831 98 1078 iowa worth
1079 -93.50098 43.26404 98 1079 iowa worth
1080 -93.49525 43.51041 98 1080 iowa worth
1081 -93.05981 43.51041 98 1081 iowa worth
1082 -93.02543 43.51041 98 1082 iowa worth
1084 -93.49525 42.91454 99 1084 iowa wright
1085 -93.49525 42.55930 99 1085 iowa wright
1086 -93.96508 42.55930 99 1086 iowa wright
1087 -93.97081 42.63952 99 1087 iowa wright
1088 -93.97081 42.91454 99 1088 iowa wright
1089 -93.49525 42.91454 99 1089 iowa wrightLayer specific aesthetic
Layer specific data
Layer specific data as a function of inherited data

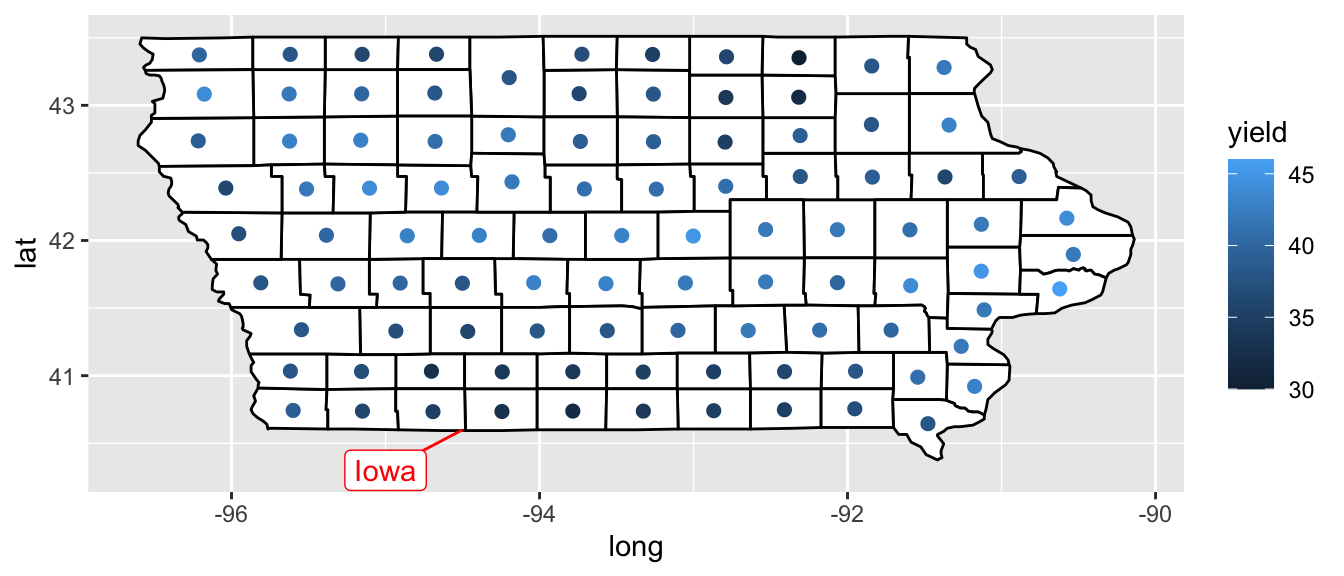

ggplot(wallace.iowaland, aes(x = long, y = lat)) +
geom_polygon(data = map_data("county", region = "iowa"),
aes(group = group), fill = "white", color = "black") +
geom_point(size = 4, shape = "square", color = "black") +
geom_point(aes(color = yield), size = 2) +
geom_label(data = function(.data) subset(.data, yield > quantile(yield, 0.95)),
aes(label = county), nudge_y = -0.1, size = 3)
Annotation layer
annotate()allows you to add elements to plots without adata.frame
ggplot(wallace.iowaland, aes(x = long, y = lat)) +
geom_polygon(data = map_data("county", region = "iowa"),
aes(group = group), fill = "white", color = "black") +
geom_point(aes(color = yield), size = 2) +
annotate("segment", x = -95, y = 40.3, xend = -94.5, yend = 40.6, color = "red") +
annotate("label", x = -95, y = 40.3, label = "Iowa", color = "red")
Your turn!
15:00
> Go to emitanaka.org/dataviz-workshop/exercises/
> Click Exercise 3
